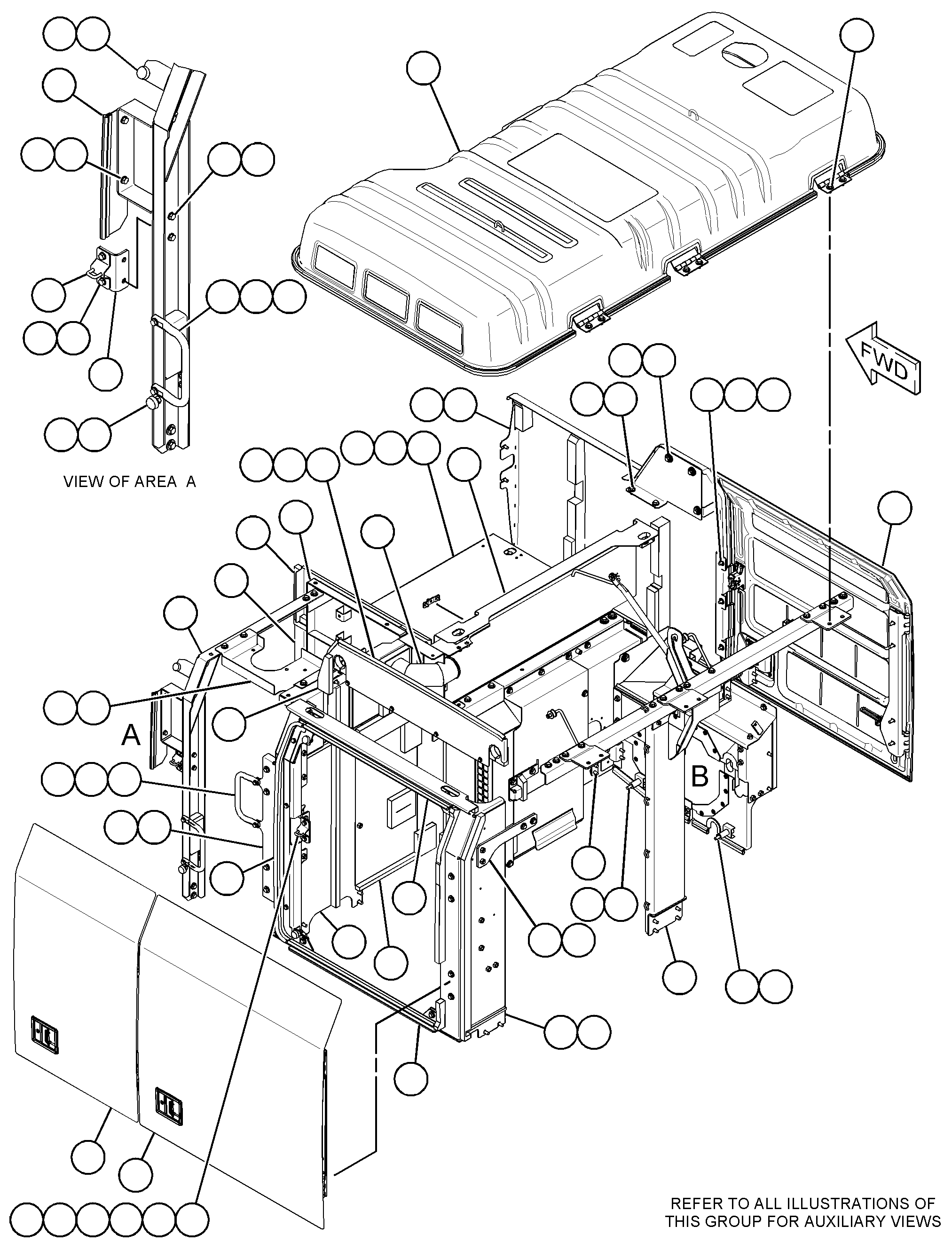

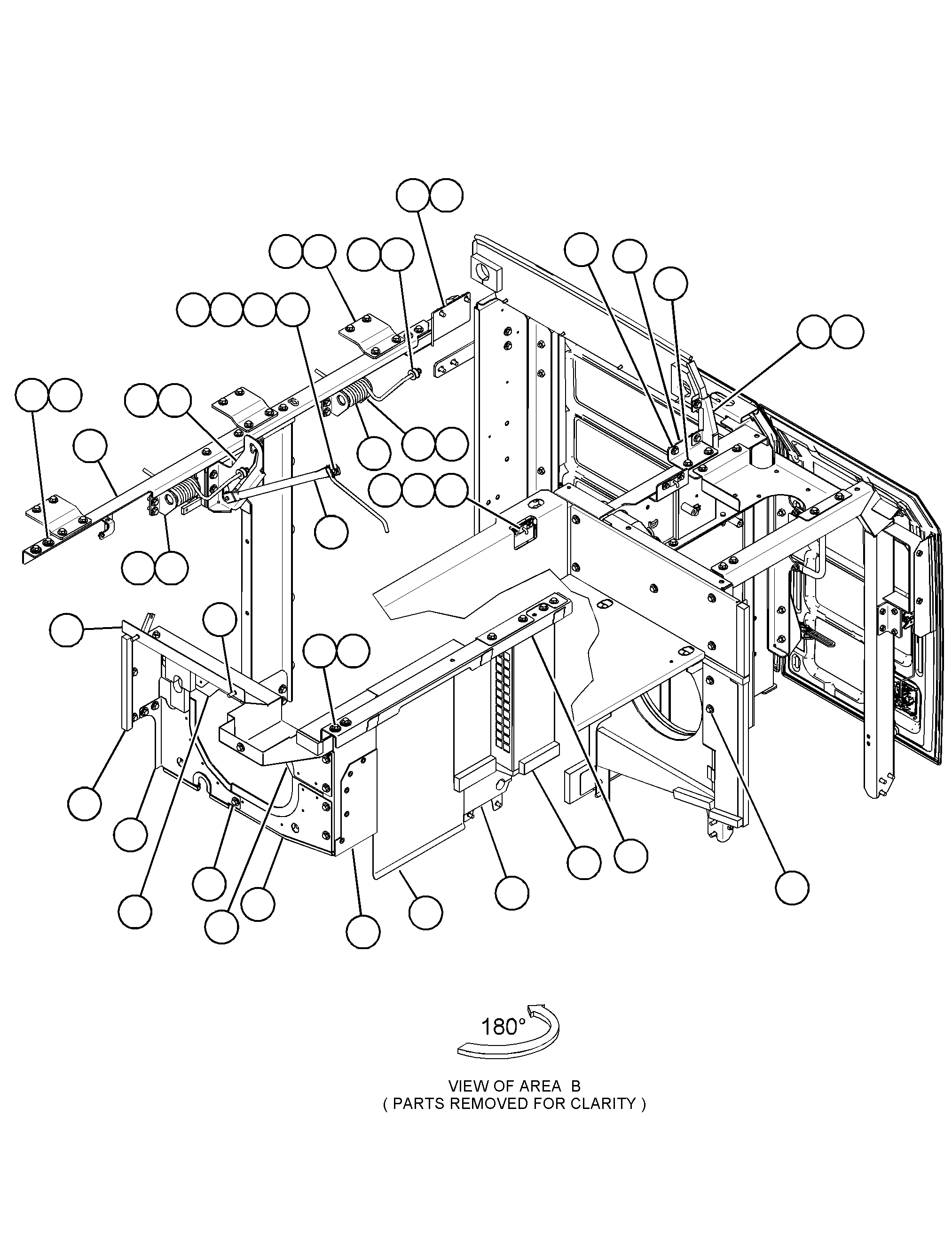

System And Components
527-0147 HOOD & GUARD GPS/N DPL1-UP
Group No: 527-0147
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I0118 | 1 HOOK AS | 2 | |
| 7Y2853 | 2 SPACER (13X38X5-MM THK) | 7 | |
| 2983112 | 3 HANDRAIL | 2 | |
| 3272884 | 4 BRACKET AS | 1 | |
| 3272886 | 5 STRIKER AS | 2 | |
| 3272889 | 6 SHEET AS | 1 | |
| 3485409 | SEAL (13-DM) | ||
| 3384068 | 7 SUPPORT AS | 1 | |
| 3384364 | LINER | 1 | |
| 3384093 | 8 SUPPORT | 1 | |
| 3384094 | 9 SUPPORT AS | 1 | |
| 3384371 | LINER | 1 | |
| 3485409 | SEAL (10-DM) | ||
| 3384115 | 10 BRACKET AS | 3 | |
| 3384202 | 11 SUPPORT AS | 1 | |
| 3384205 | LINER | 1 | |
| 3485409 | SEAL (10-DM) | ||
| 3384209 | 12 SHEET | 1 | |
| 3384210 | 13 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384220 | 14 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384233 | 15 SHEET AS | 1 | |
| 3384236 | LINER | 1 | |
| 3384242 | 16 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384247 | 17 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384286 | 18 PLATE AS | 1 | |
| 3384288 | LINER | 1 | |
| 3384328 | 19 COVER AS-SOUND SUPPRESSION | 1 | |
| 3384336 | 20 SHEET | 1 | |
| 3384344 | 21 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3397383 | 22 SUPPORT AS | 2 | |
| 3397384 | 23 SUPPORT AS | 2 | |
| 3432465 | 24 BUMPER | 4 | |
| 3490020 | 25 SUPPORT AS | 1 | |
| 3504649 | 26 BRACKET AS | 1 | |
| 3504655 | 27 SHEET AS | 1 | |
| 3485409 | SEAL (4-DM) | ||
| 3504816 | 28 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384341 | LINER | 1 | |
| 3568961 | 29 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3568963 | LINER | 1 | |
| 3597996 | 30 SUPPORT AS | 1 | |
| 0543788 | WASHER (13.5X30X3-MM THK) | 2 | |
| 3719994 | 31 SUPPORT AS-ENCLOSURE | 1 | |
| 3719996 | 32 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 7 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 13 | |
| 9R5271 | BOSS (M10X1.5X25-MM) | 2 | |
| 3828630 | 33 ROLLER | 2 | |
| 3852335 | 34 SPRING | 2 | |
| 3988104 | 35 SUPPORT AS | 1 | |
| 3988110 | 36 SUPPORT AS | 1 | |
| 7T1099 | LINK | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 6 | |
| 3988109 | SHEET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 3988131 | 37 HOOD GP-ENGINE | 1 | |
| 4250003 | 38 SUPPORT AS | 1 | |
| 4309415 | 39 RETAINER | 2 | |
| 4310086 | 40 SUPPORT AS-ENCLOSURE | 1 | |
| 4310088 | 41 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4458141 | 42 SUPPORT AS-SOUND SUPPRESSION | 1 | |
| 4511591 | 43 COVER AS-SOUND SUPPRESSION (FUEL, HYDRAULIC TANKS) | 1 | |
| 4595087 | 44 COVER AS-SOUND SUPPRESSION | 1 | |
| 3384301 | INSULATION | 2 | |
| 4610397 | 45 SHEET | 1 | |
| 4610417 | 46 SHEET AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 4610418 | 47 SHEET & MOUNTING GP | 1 | |
| 4625824 | 48 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4625826 | 49 SHEET AS | 1 | |
| 4625827 | 50 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4642255 | 51 COVER AS | 1 | |
| 5267561 | 52 DOOR GP-ACCESS (AIR CLEANER, BATTERY) | 1 | |
| 5267562 | 53 DOOR GP-ACCESS (RADIATOR) | 1 | |
| 5267563 | 54 DOOR GP-ACCESS | 1 | |
| 5277651 | 55 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 6 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 1358573 | 56 BOLT AS | 42 | |
| 1358575 | 57 BOLT AS | 106 | |
| 1358577 | 58 BOLT AS | 2 | |
| 1703016 | 59 SPACER (19X32X2-MM THK) | 14 | |
| 2447789 | 60 SPACER (19X38X3-MM THK) | 8 | |
| 5P0372 | 61 LOCK PIN | 1 | |
| 5P1076 | 62 WASHER-HARD (13.5X30X4-MM THK) | 1 | |
| 5P4116 | 63 WASHER-HARD (8.8X20.5X2-MM THK) | 4 | |
| 7Y2854 | 64 SPACER (24X38X3-MM THK) | 7 | |
| 7Y2916 | 65 PIN-CLEVIS | 1 | |
| 8T4121 | 66 WASHER-HARD (11X21X2.5-MM THK) | 17 | |
| 8T4133 | 67 NUT (M10X1.5-THD) | 4 | |
| 8T4136 | 68 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4137 | 69 BOLT (M10X1.5X20-MM) | 9 | |
| 8T4189 | 70 BOLT (M8X1.25X20-MM) | 8 | |
| 8T4196 | 71 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4223 | 72 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4224 | 73 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 8T6868 | 74 BOLT (M12X1.75X80-MM) | 2 |
