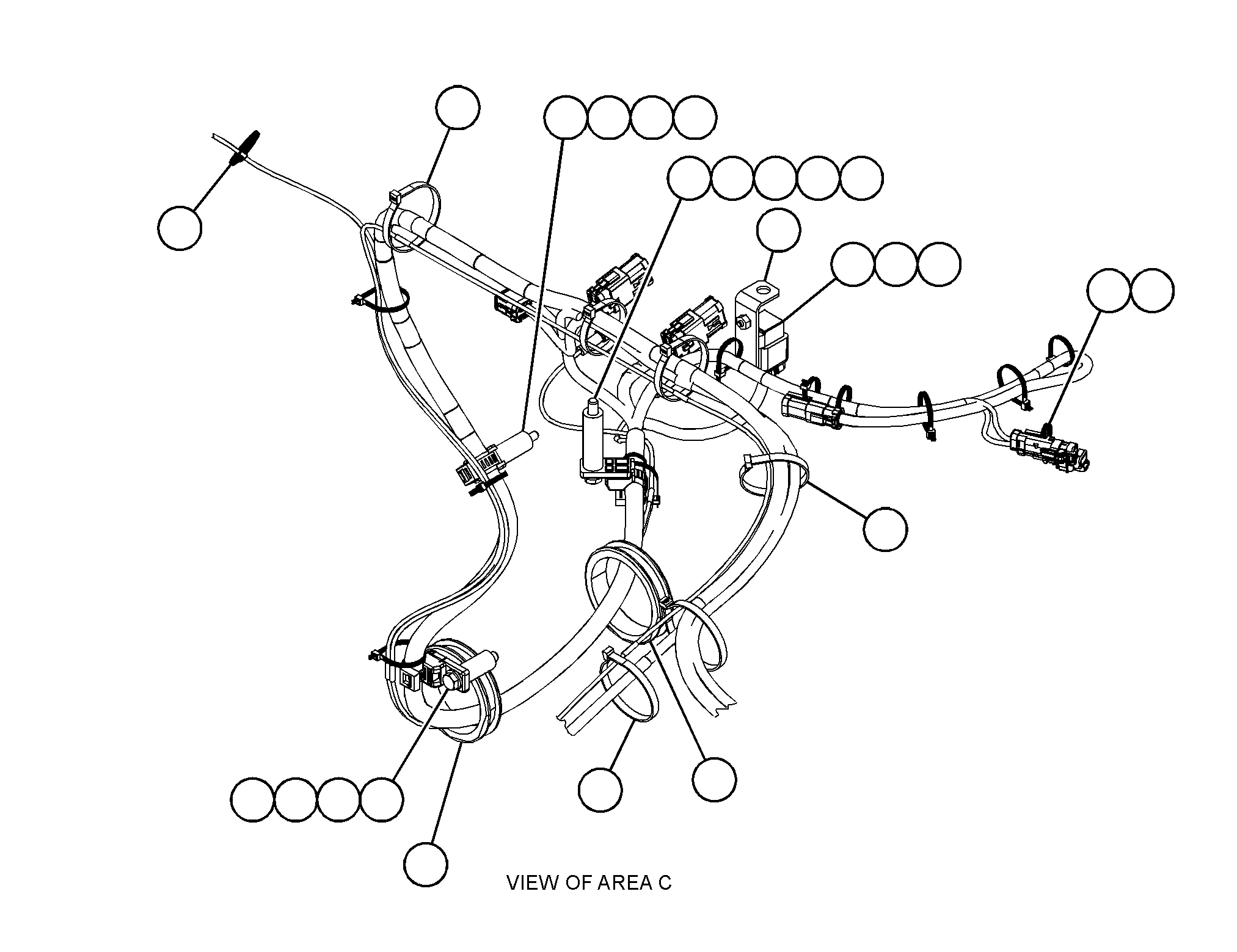

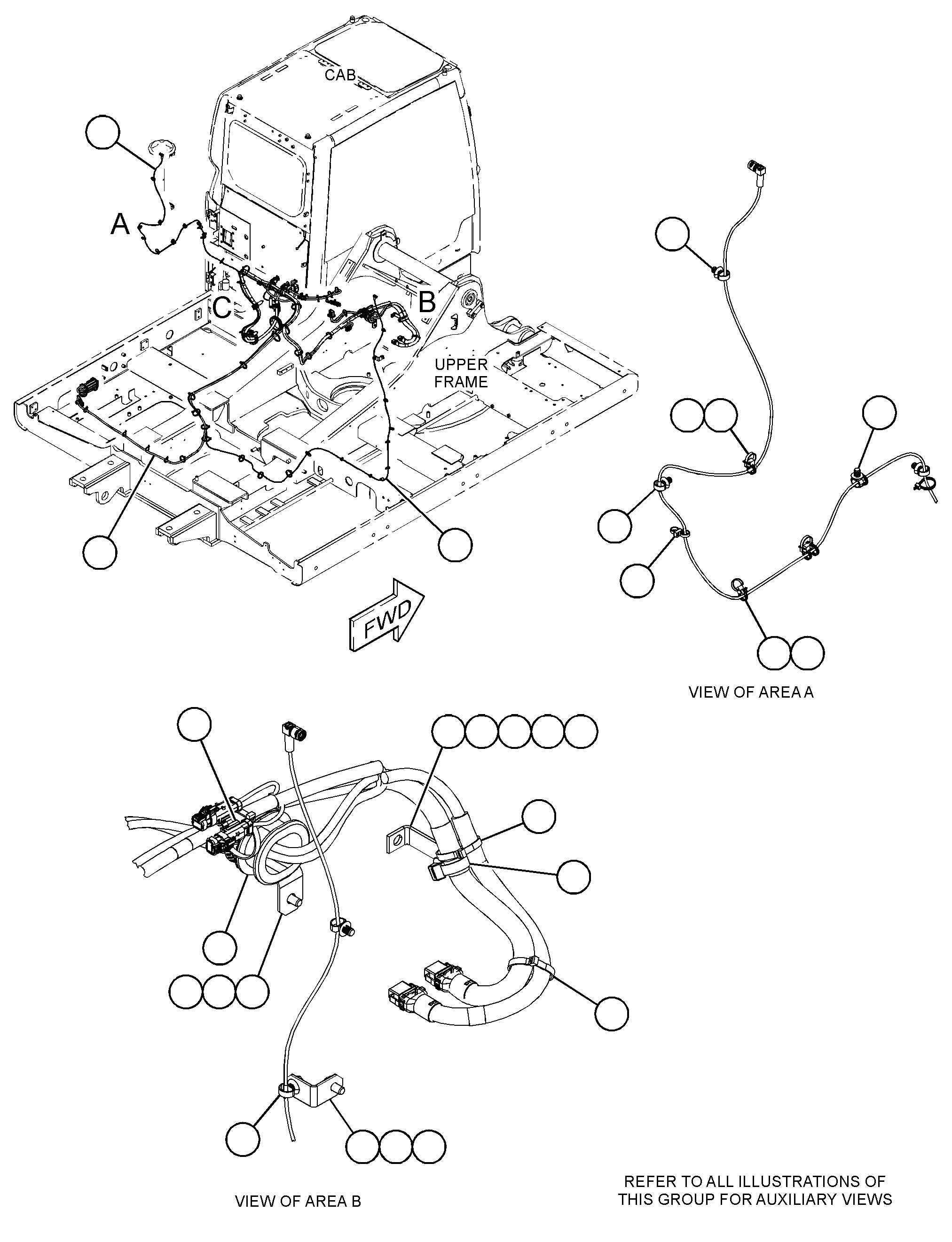

516-8485 WIRING GP-CHASSIS -GRADE CONTROLS/N LHW1-UP
Group No: 516-8485 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T6466 | 1 BOLT (M10X1.5X60-MM) | 1 | |
| 5C9553 | 2 BOLT (M6X1X16-MM) | 1 | |
| 5P4116 | 3 WASHER-HARD (8.8X20.5X2-MM THK) | 1 | |
| 7K1181 | 4 STRAP-CABLE | 28 | |
| 1400864 | 5 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1450603 | 6 GROMMET | 2 | |
| 3432410 | 7 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4837802 | 8 SPACER (11X20X40-MM THK) | 1 | |
| 4837805 | 9 SPACER (11X20X65-MM THK) | 2 | |
| 1416526 | 10 GROMMET | 1 | |
| 2041611 | 11 STRAP-CABLE (DUAL) | 2 | |
| 2042281 | 12 STRAP-CABLE | 1 | |
| 2667379 | 13 STRAP-CABLE | 3 | |
| 3E5239 | 14 RELAY AS (24-VOLT)(GRADE CONTROL) | 1 | |
| 3S2093 | 15 STRAP-CABLE | 31 | |
| 4841451 | 16 CLIP | 5 | |
| 4841452 | 17 CLIP | 1 | |
| 4841453 | 18 CLIP (RETAINER) | 7 | |
| 4841456 | 19 STRAP-CABLE | 8 | |
| 5184286 | 20 BRACKET AS (CHASSIS) | 1 | |
| 5204564 | 21 HARNESS AS-CHASSIS (GRADE CONTROL) | 1 | |
| 5204568 | 22 CABLE AS (GRADE CONTROL, LH) | 1 | |
| 5204569 | 23 CABLE AS (GRADE CONTROL, RH) | 1 | |
| 5286515 | 24 BRACKET AS (PLATFORM) | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 1 | |
| 8T4121 | 25 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4136 | 26 BOLT (M10X1.5X25-MM) | 1 | |
| 8T4137 | 27 BOLT (M10X1.5X20-MM) | 3 | |
| 8T4177 | 28 BOLT (M8X1.25X90-MM) | 1 | |
| 8T4178 | 29 BOLT (M10X1.5X90-MM) | 1 | |
| 9X8256 | 30 WASHER (6.6X12X2-MM THK) | 1 |
