System And Components

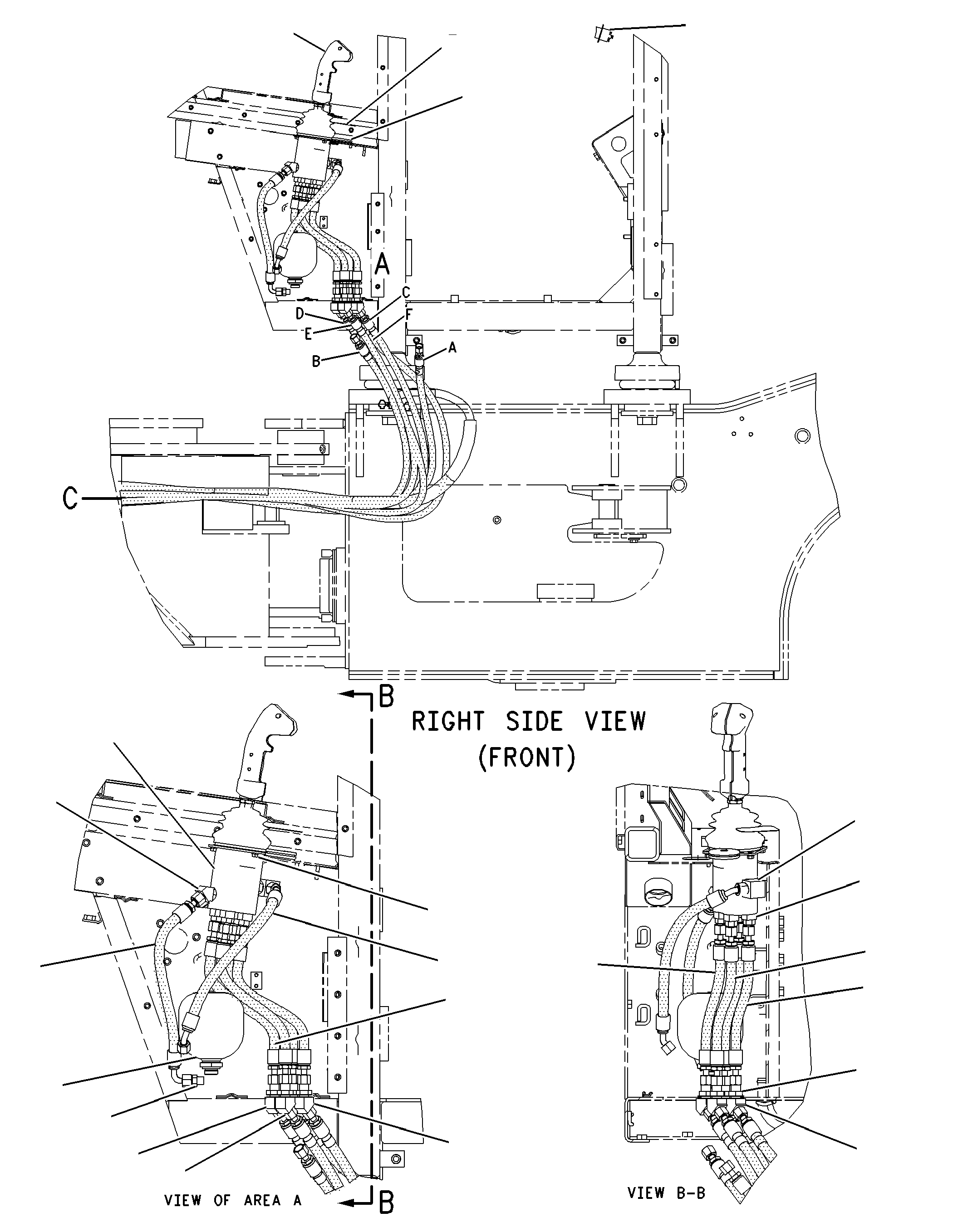

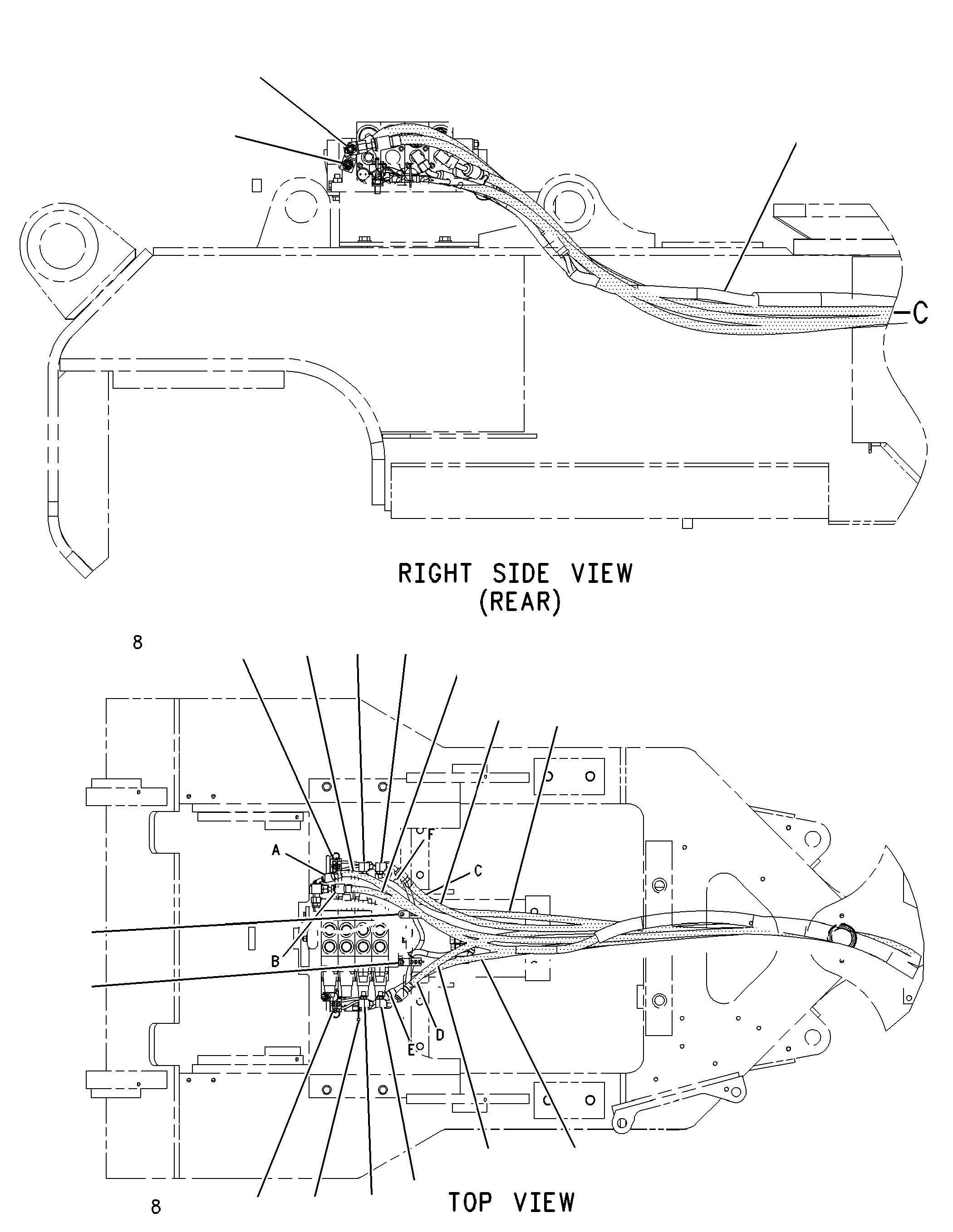

163-3311 CONTROL GP-PILOT OPERATED HYD -DUAL FUNCTION GRAPPLES/N 3KZ306-874
Group No: 163-3311
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6R5056 | 1 HOSE AS | 4 | |
| 6V8367 | 2 LOCKWASHER | 8 | |
| 8S5151 | 3 NUT-JAM | 1 | |
| 8X9254 | 4 HOSE AS | 1 | |
| 1512500 | 5 HOSE AS | 1 | |
| 1219479 | 6 VALVE GP-PILOT (GRAPPLE) | 1 | |
| 1233810 | 7 FILM-INSTRUCTION (BOOM CONTROL) | 1 | |
| 3S2093 | 8 STRAP-CABLE | 5 | |
| 1450294 | 9 HOSE AS | 5 | |
| 1488366 | 10 ELBOW AS | 4 | |
| 6V8987 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1497698 | 11 SWITCH AS-ROCKER (24-VOLT)(GRAPPLE TONG AUTO/MANUAL) | 1 | |
| 3E8859 | SWITCH AS (GRAPPLE TONG AUTO/MANUAL) | 1 | |
| 3E8825 | LAMP (24-VOLT) | 2 | |
| 1497695 | ACTUATOR | 1 | |
| 1944128 | 12 HOSE AS | 1 | |
| 2020948 | 13 HARNESS AS-REAR | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 2 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 8T8737 | PLUG-SEAL | 13 | |
| 8L8413 | STRAP-CABLE (WHITE) | 3 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 5 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 1708531 | 14 ACCUMULATOR GP-PILOT OIL (CHARGED)(DEAD ENGINE LOWER) | 1 | |
| 1834485 | 15 CONTROL GP-JOYSTICK (GRAPPLE CONTROL) | 1 | |
| 1488326 | 16 CONNECTOR AS | 2 | |
| 6V9872 | CONNECTOR | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488336 | 17 CONNECTOR AS | 5 | |
| 6V8636 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488378 | 18 ELBOW AS | 1 | |
| 6V8724 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488361 | 19 ELBOW AS (90-DEG) | 4 | |
| 6V9200 | ELBOW | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488367 | 20 ELBOW AS | 1 | |
| 6V9850 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488371 | 21 ELBOW AS | 1 | |
| 8C8988 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488374 | 22 ELBOW AS | 1 | |
| 6V8723 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 2G1133 | 23 GROMMET | 1 | |
| 4P7581 | 24 CLIP (LADDER) | 2 | |
| 5C2890 | 25 NUT (M6X1-THD) | 4 | |
| 6V9168 | 26 NUT (11/16-16-THD) | 4 | |
| 9X8256 | 27 WASHER (6.6X12X2-MM THK) | 4 | |
| 8T4137 | 28 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4121 | 29 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 4P8134 | 30 CLIP (LADDER) | 2 |
