System And Components
Assembly
100%

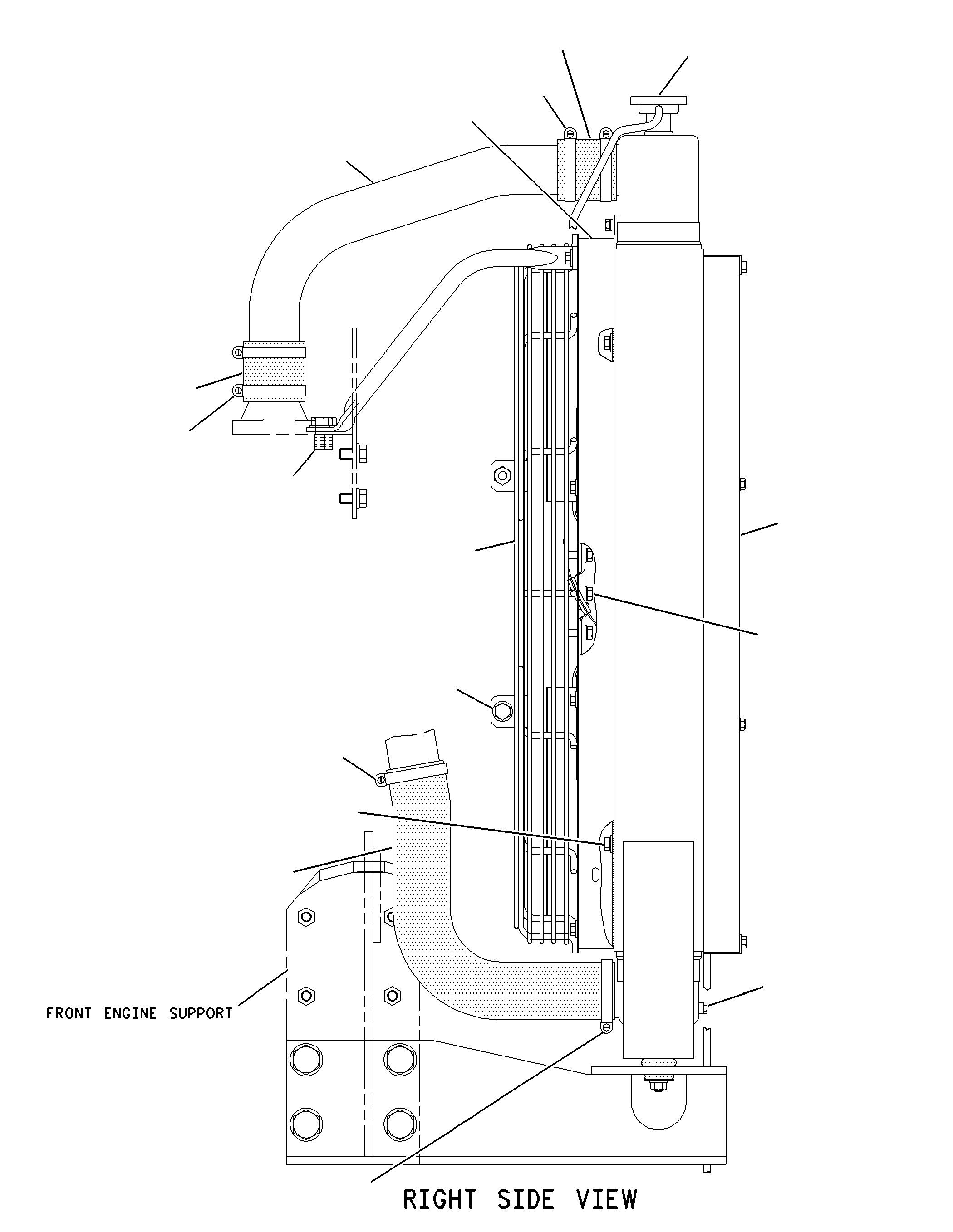

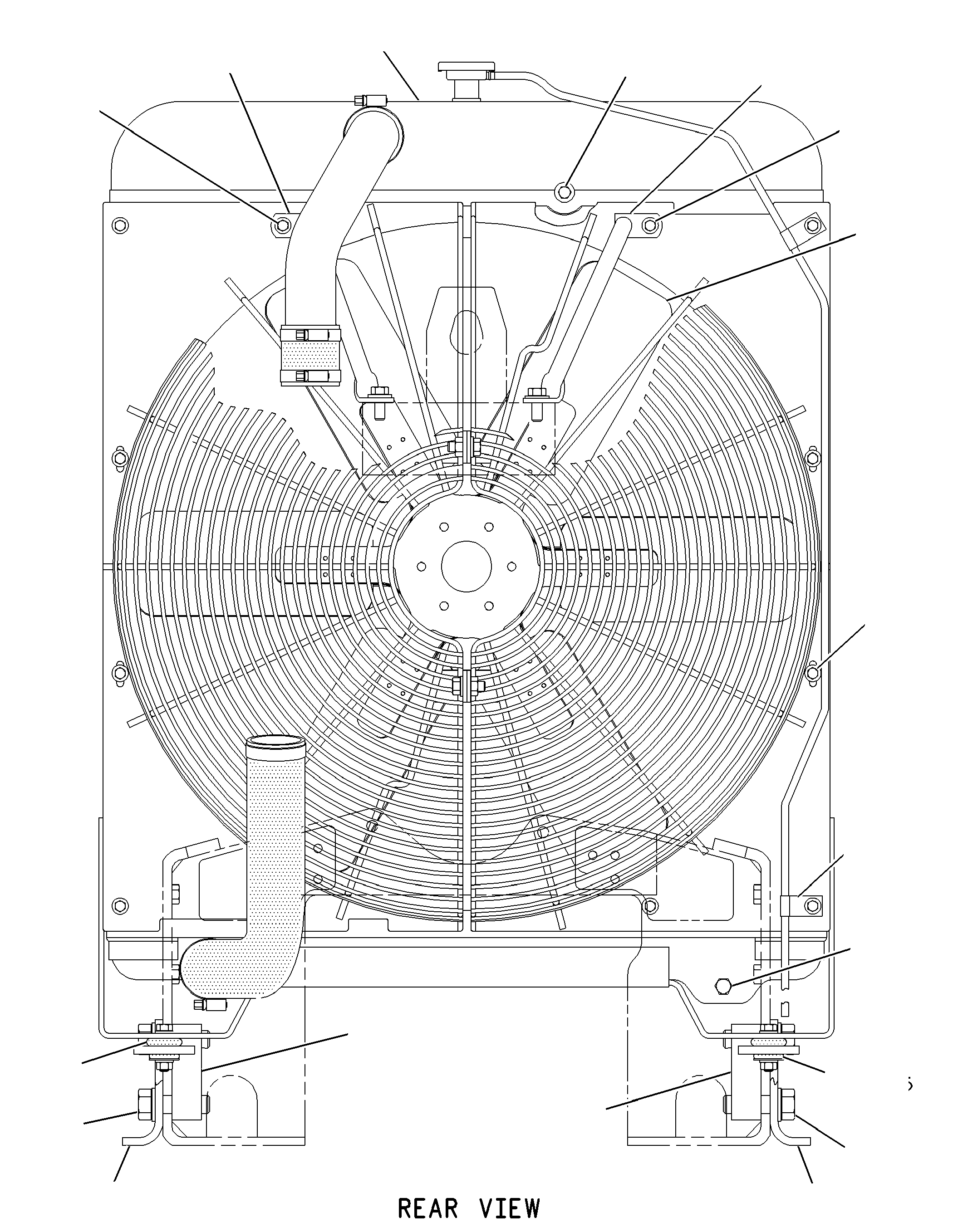

144-6585 RADIATOR GPS/N B8D1-UP

Group No: 144-6585
Part NumberPart NameQty
7C86271 RADIATOR AS1
6L86172 CAP-PRESSURE (7-PSI)(RADIATOR)1
7T83323 MOUNTING2
7X03114 BOLT (7/16-14X2.25-IN)2
1C19765 WASHER (0.438X1.5X0.075-IN THK)2
8T53606 WASHER (12X22.5X2.5-MM THK)4
7X04477 NUT (7/16-14-THD)2
14465848 SUPPORT AS (RADIATOR-RH)1
14465839 SUPPORT AS (RADIATOR-LH)1
186071210 PLATE4
7X038411 BOLT (7/8-9X3-IN)8
8C691312 WASHER-HARD (24X41.5X4-MM THK)8
100373813 BRACE (RH)1
100373914 BRACE (LH)1
5M306215 BOLT (3/8-16X0.75-IN)4
5P411616 WASHER-HARD (8.8X20.5X2-MM THK)12
8T891717 BOLT (1/2-13X1.25-IN)4
5P107618 WASHER-HARD (13.5X30X4-MM THK)2
9Y299319 SHROUD AS-RADIATOR1
6V5044NUT-WELD (5/16-18-THD)12
4M006120 BOLT (5/16-18X0.75-IN)10
5P107521 WASHER-HARD (10.2X22.5X3-MM THK)4
6I187122 GUARD AS-FAN2
1F0748NUT-WELD (1/2-13-THD)1
8T422323 WASHER-HARD (13.5X25.5X3-MM THK)2
7C863024 GUARD GP-RADIATOR1
6I181425 TUBE1
5P126226 HOSE (8CM EACH)2
9M795927 CLAMP-HOSE6
106779328 HOSE-RADIATOR (LOWER)1
4N257129 SPIDER AS-FAN (6-BLADE)(6 BLADES)1
8T250230 BOLT (3/8-16X1.125-IN)6
8T489631 WASHER-HARD (10.2X18.5X2.5-MM THK)6
8T676232 PLUG-PIPE (1/2-14-THD)2
8T676533 PLUG-PIPE (1/4-18-THD)1
4M642534 BOLT (5/16-18X1-IN)2
8H160336 CLIP2
