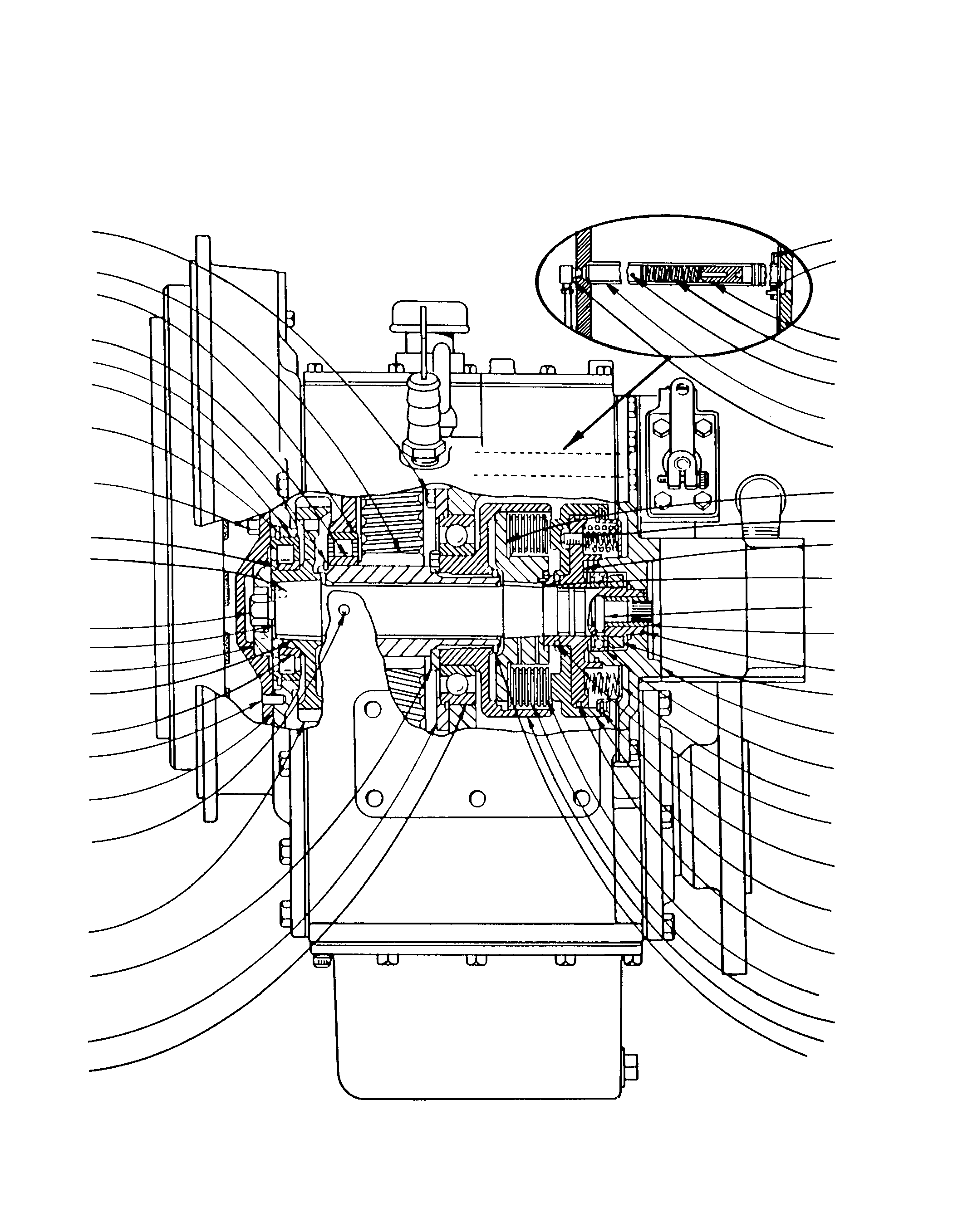

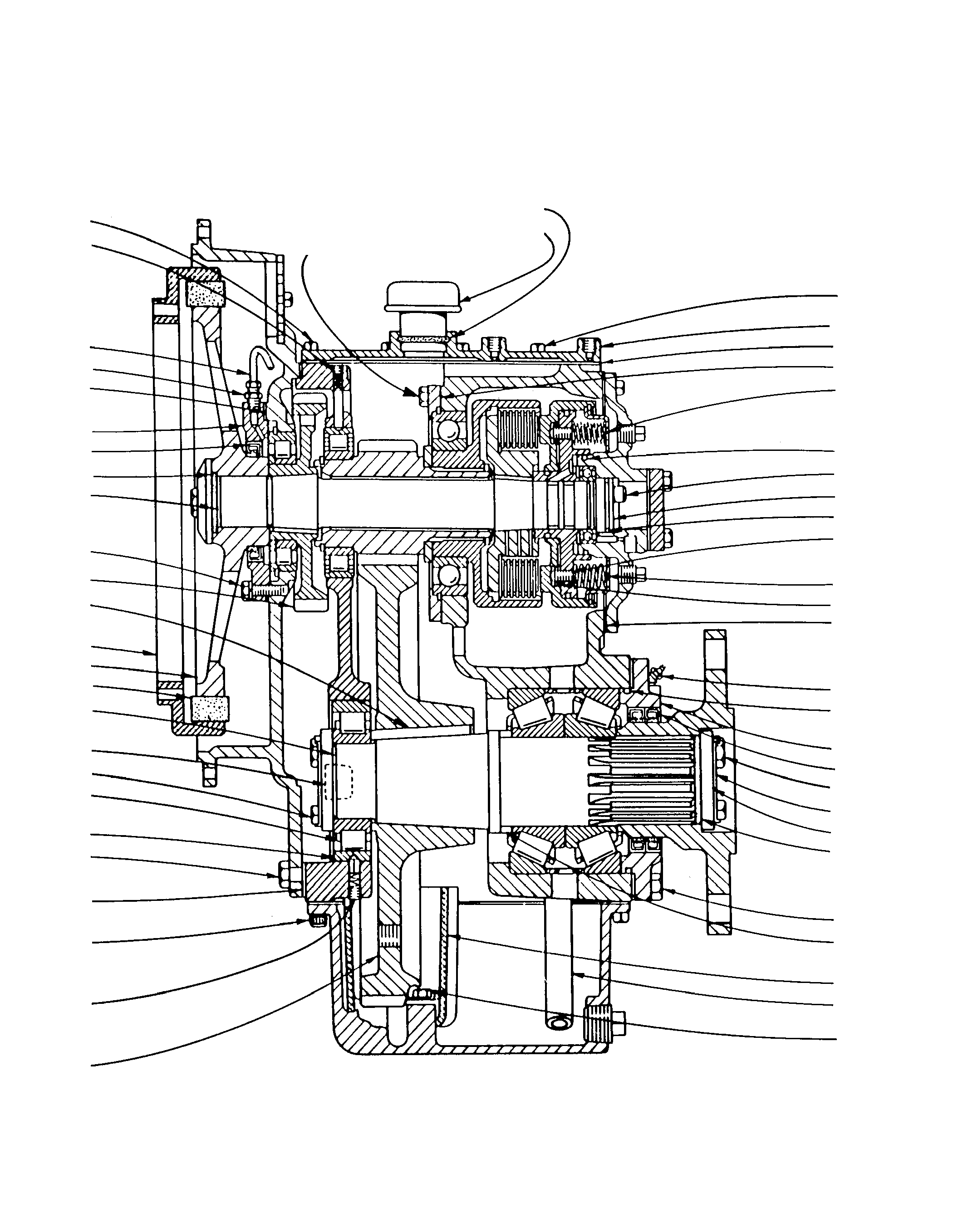

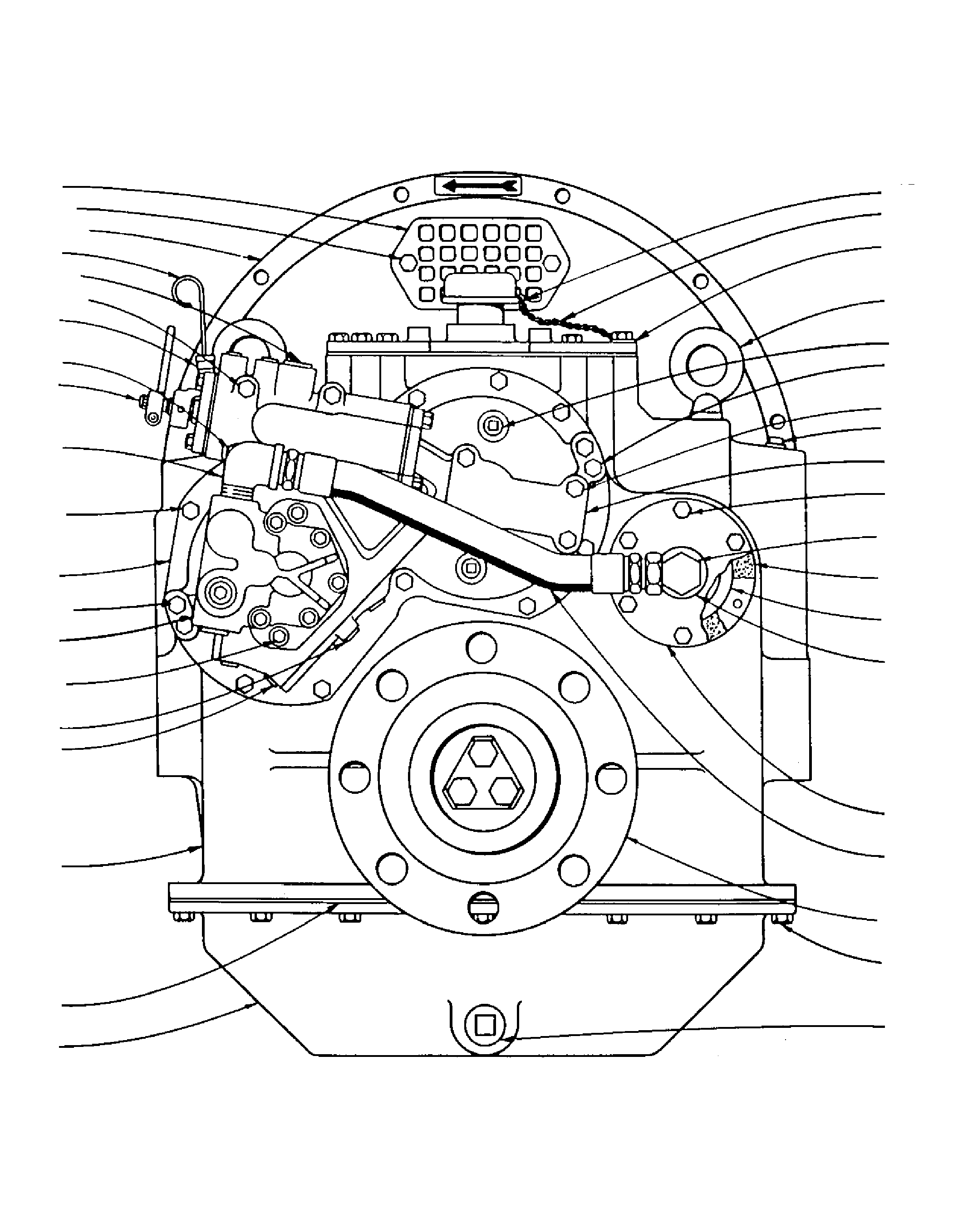

8L-4230 TRANSMISSION GP-MARINE3.83: 1 RATIO. SPECIFICATION NO. 32579
Group No: 8L-4230
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6L5208 | 1 COVER-TOP | 1 | |
| 6L5209 | 2 GASKET | 1 | |
| 5N5888 | 3 RETAINER GP-BEARING | 1 | |
| 5D0353 | 4 BOLT-LOCKING (3/8-16X1-IN) | 6 | |
| 4M8610 | 5 RING-PISTON | 2 | |
| 4L9829 | 6 BOLT | 2 | |
| 4L9769 | 7 PLATE-LOCK | 1 | |
| 4L9758 | 8 RING-PISTON | 1 | |
| 4L9811 | 9 SETSCREW | 4 | |
| 4L9779 | 10 SPRING-RELEASE | 32 | |
| 4H1641 | 11 PIN-SPRING | 4 | |
| 4L9764 | 12 GASKET | 1 | |
| 3B8485 | 13 ELBOW (TRANSMISSION) | 1 | |
| 2L1778 | 14 SEAL-O-RING | 1 | |
| 2L1745 | 15 RETAINER-BEARING | 1 | |
| 6L4840 | 16 BOLT | 3 | |
| 2L1790 | 17 LOCK | 2 | |
| 2L1771 | 18 WASHER-RETAINING | 2 | |
| 5L4626 | 19 SEAL | 1 | |
| 0S1585 | 20 BOLT (1/2-13X1.5-IN) | 6 | |
| 2L1772 | 21 SPACER | 1 | |
| 6L5221 | 22 PAN-GEAR | 1 | |
| 6L5295 | 23 FITTING | 1 | |
| 6L2181 | 24 LOCK | 2 | |
| 6L5223 | 25 GEAR-SHAFT (88 TEETH) | 1 | |
| 2D4534 | 26 BOLT-SOCKET HEAD (3/8-16X1-IN) | 6 | |
| 6L5217 | 27 GASKET | 1 | |
| 0S1594 | 28 BOLT (3/8-16X1-IN) | 15 | |
| 3F5750 | 29 RACE-ROLLER BEARING | 1 | |
| 3B8845 | 30 BEARING-INNER | 1 | |
| 2L1701 | 31 BOLT (5/8-18X1.5-IN) | 3 | |
| 2B7411 | 32 PLUG | 2 | |
| 2L1740 | 33 RING-DRIVE | 1 | |
| 6T6548 | 34 SHAFT-OUTPUT | 1 | |
| 2N4619 | 35 BLOCK-RUBBER | 26 | |
| 4L9797 | 36 SPIDER-DRIVE | 1 | |
| 2L1785 | 37 KEY | 1 | |
| 5N5881 | 38 GEAR-TRANSFER (42-TEETH) | 1 | |
| 5D0353 | 39 BOLT-LOCKING (3/8-16X1-IN) | 6 | |
| 6L5222 | 40 SHAFT-INPUT | 1 | |
| 4L9761 | 41 GASKET | 1 | |
| 4H8101 | 42 SEAL-LIP TYPE | 1 | |
| 6L3618 | 43 RETAINER-BEARING | 1 | |
| 4L9765 | 44 GASKET | 1 | |
| 6L3616 | 45 CONNECTOR | 1 | |
| 6L3621 | 46 TUBE AS | 1 | |
| 0S1616 | 47 BOLT (1/4-20X1-IN) | 2 | |
| 7L2175 | 48 SEAL-O-RING | 1 | |
| 2N9418 | 49 BREATHER AS (TRANSMISSION) | 1 | |
| 0L1351 | 50 BOLT (3/8-16X0.875-IN) | 15 | |
| 7H3171 | 51 PLUG-PIPE | 1 | |
| 5L4763 | PIN-SPRING | 1 | |
| 5L4080 | SPRING | 1 | |
| 9F2247 | 52 PLUG-PIPE (1/8-27-THD) | 1 | |
| 5L3199 | SPRING | 1 | |
| 5L3202 | PIN | 1 | |
| 1T0467 | 53 SEAL-LIP TYPE | 2 | |
| 4L9782 | 54 SPRING-RELEASE | 32 | |
| 2L5895 | 55 GASKET-PIPE | 1 | |
| 3H9675 | 56 PIN-SPRING | 1 | |
| 6L3622 | 57 TUBE AS-LUBRICATION | 1 | |
| 6L3623 | 58 PISTON | 1 | |
| 4L9567 | 59 SPRING | 1 | |
| 2L5893 | 60 PIN-SPRING (.39CM DIA) | 2 | |
| 2L5894 | PIN-SPRING (.24CM DIA) | 1 | |
| 5K9243 | 61 ELBOW-FLARED | 1 | |
| 5N2745 | 62 PLATE-HUB & BACK | 2 | |
| 8F8833 | PIN | 2 | |
| 7L8273 | 63 PIN | 2 | |
| 5N2744 | 64 CARRIER-PISTON | 2 | |
| 6L5219 | 65 KEY | 2 | |
| 4L9752 | 66 PIN | 1 | |
| 4L9751 | 67 SLEEVE-DRIVE | 1 | |
| 4L9757 | 68 RING-PISTON | 1 | |
| 4L9754 | 69 NUT | 1 | |
| 4L9763 | 70 GASKET | 1 | |
| 4L9825 | 71 BALL BEARING | 2 | |
| 7L8274 | 72 RETAINER-SPRING | 1 | |
| 4L9783 | 73 RING-PISTON | 2 | |
| 6L2194 | 74 RING-RETAINING | 1 | |
| 6L4335 | 75 PISTON-CLUTCH | 2 | |
| 3N6915 | 76 SEAL-RUBBER | 2 | |
| 6L2179 | 77 PLATE-CLUTCH | 14 | |
| 7L7782 | 78 PLATE-CLUTCH | 14 | |
| 6L5224 | 79 SPIDER-CLUTCH | 2 | |
| 4L9820 | 80 RING-RETAINING | 2 | |
| 4L3220 | 81 BALL BEARING | 2 | |
| 5N5889 | 82 RETAINER GP-BEARING | 1 | |
| 5D0353 | 83 BOLT-LOCKING (3/8-16X1-IN) | 6 | |
| 5N5881 | 84 GEAR-TRANSFER (42-TEETH) | 1 | |
| 9F2247 | 85 PLUG-PIPE (1/8-27-THD) | 1 | |
| 5L3197 | PIN | 1 | |
| 5L3199 | SPRING | 1 | |
| 7L4089 | 86 CARRIER AS | 1 | |
| 6F5219 | 87 PIN | 3 | |
| 6L6564 | 88 RACE | 2 | |
| 6L5218 | 89 KEY | 2 | |
| 4L9771 | 90 WASHER-RETAINING | 2 | |
| 6L6377 | 91 SHAFT-CLUTCH | 1 | |
| 2L1701 | 92 BOLT (5/8-18X1.5-IN) | 2 | |
| 3H2617 | 93 PIN-SPRING | 2 | |
| 6L6566 | 94 PLATE | 2 | |
| 2J3118 | 95 BOLT-LOCKING (3/8-16X1.25-IN) | 4 | |
| 6L6565 | 96 RING-SNAP | 2 | |
| 6L6563 | 97 RACE & ROLLER AS | 2 | |
| 2H6234 | 98 RING-SNAP | 2 | |
| 5L7723 | 99 RACE-BEARING | 2 | |
| 5L7722 | 100 RACE & ROLLER AS | 2 | |
| 6L6567 | 101 PINION-GEAR | 2 | |
| 4L9772 | 102 SPACER | 2 | |
| 8B7016 | 103 LINK | 1 | |
| 8B7245 | 104 CHAIN | 1 | |
| 6F5272 | 105 CLIP | 1 | |
| 5B6172 | WASHER (9.7X19X0.8-MM THK) | 1 | |
| 5L7820 | 106 EYEBOLT | 2 | |
| 0S1594 | 107 BOLT (3/8-16X1-IN) | 17 | |
| 2B7457 | 108 PLUG-PIPE | 1 | |
| 2L1808 | 109 COVER | 1 | |
| 2L1388 | GASKET | 1 | |
| 0S1571 | 110 BOLT (3/8-16X1.75-IN) | 6 | |
| 2H3939 | 111 ELBOW | 1 | |
| 4L9748 | 112 GASKET-PLATE | 1 | |
| 4L9747 | 113 ELEMENT-STRAINER | 1 | |
| 6B9081 | 114 BUSHING-REDUCER | 1 | |
| 4L9750 | 115 COVER-STRAINER | 1 | |
| 4L9746 | 116 HOSE AS | 1 | |
| 2L1769 | 117 FLANGE-PROPELLER | 1 | |
| 4L6454 | 118 BOLT (3/8-16X1-IN) | 12 | |
| 2B7412 | 119 PLUG-PIPE | 1 | |
| 6L5214 | 120 COVER-BOTTOM | 1 | |
| 6L5216 | 121 GASKET-COVER | 1 | |
| 6L5212 | 122 HOUSING AS | 1 | |
| 1T0143 | DOWEL (.374IN LONG) | 2 | |
| 4L9793 | DOWEL (.437IN LONG) | 2 | |
| 8B2664 | 123 BUSHING-REDUCER | 1 | |
| 4L9753 | 124 PUMP AS-MARINE XMSN OIL | 1 | |
| 3N4378 | 125 MANIFOLD AS | 1 | |
| 9F2247 | 126 PLUG-PIPE (1/8-27-THD) | 1 | |
| 7H3171 | 127 PLUG-PIPE | 5 | |
| 2B7457 | 128 PLUG-PIPE | 2 | |
| 0S1591 | 129 BOLT (3/8-16X1.5-IN) | 2 | |
| 4L3191 | 130 PLATE-COVER | 1 | |
| 3B6554 | 131 ELBOW | 1 | |
| 7L7310 | 132 VALVE AS-SELECTOR | 1 | |
| 0T0055 | 133 BOLT (3/8-16X4.25-IN) | 2 | |
| 6L5225 | 134 TUBE AS-OIL GAUGE | 1 | |
| 0T0573 | 135 BOLT (3/8-16X2.75-IN) | 2 | |
| 6L5215 | 136 GAUGE AS-OIL LEVEL (DIPSTICK) | 1 | |
| 8L5292 | 137 HOUSING-FRONT | 1 | |
| 5L1990 | PLATE-INSTRUMENT | 1 | |
| 4B4158 | SCREW-DRIVE (NO 4X0.25-IN) | 4 | |
| 2N9330 | KIT-BEARING & SHIM | 1 | |
| 7L8497 | KIT-CLUTCH SERVICE | 1 |
