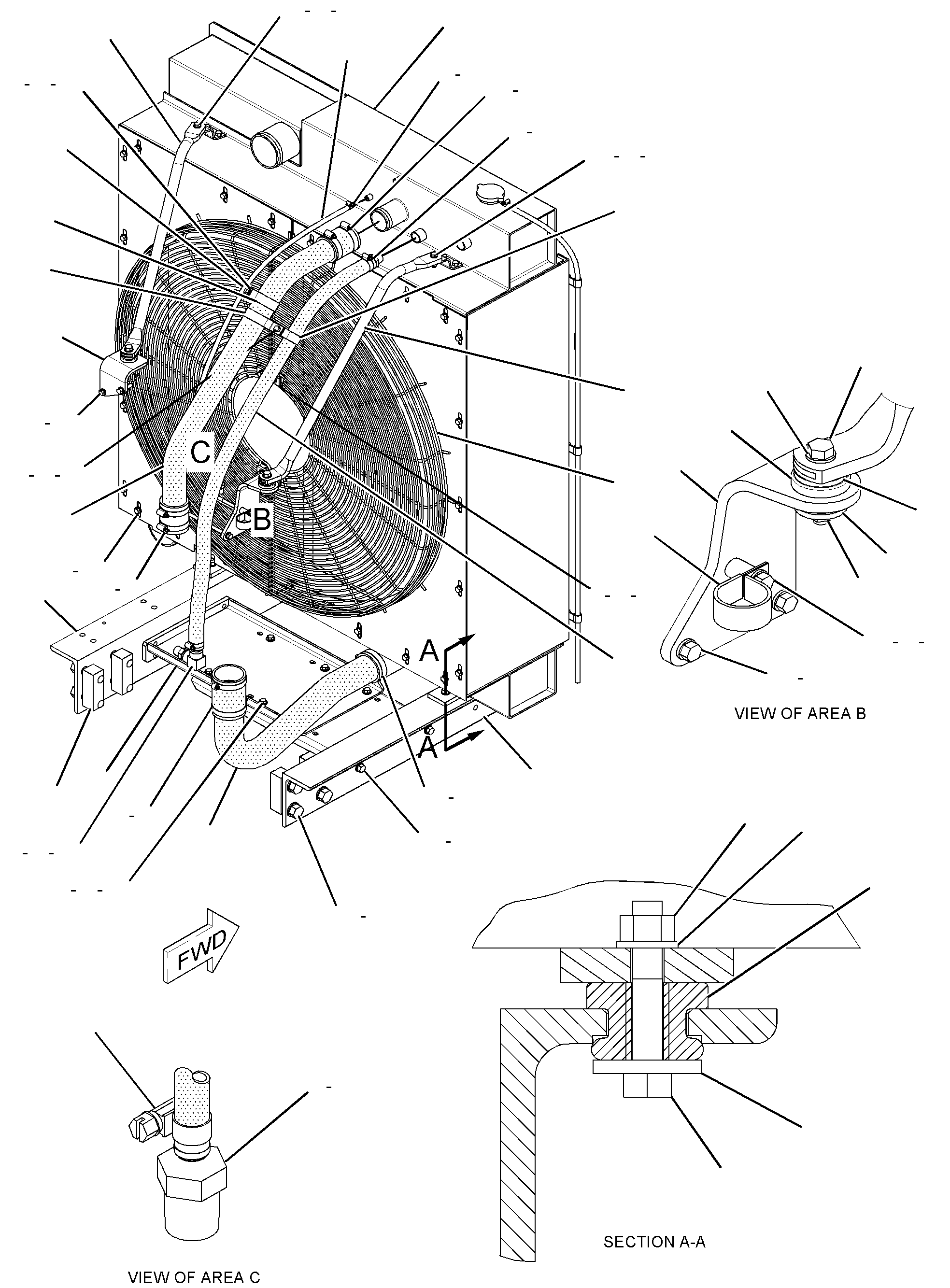

229-2670 RADIATOR GPS/N BEM1-7155

Group No: 229-2670
Part NumberPart NameQty
1P42781 CLAMP-HOSE2
1P93282 FITTING2
4L57573 STRAP2
7X78934 HOSE (13-CM EACH)2
5P48685 CLAMP-HOSE4
5P12626 HOSE (9-CM EACH)2
7N46007 BRACE AS2
8D37868 MOUNTING2
8T11179 CLAMP-HOSE2
005427310 CONNECTOR-HOSE1
053231311 CONNECTOR1
186071212 PLATE4
228267413 RADIATOR GP1
228437014 BRACE1
228437115 BRACE1
228437416 BRACKET1
228437517 BRACKET1
228437618 SUPPORT1
228437719 SUPPORT1
228437820 TUBE1
228437921 TUBE1
228990022 GUARD AS-FAN2
1F0750NUT-WELD (3/8-16-THD)2
004727023 FITTING-PIPE1
164140424 SPACER (10.67X16.95X23-MM THK)1
1K693725 ELBOW-PIPE1
2S701026 CLIP2
4L933727 BOLT (3/8-16X1.5-IN)1
5M306228 BOLT (3/8-16X0.75-IN)26
5P059829 CLAMP-HOSE4
5P107530 WASHER-HARD (10.2X22.5X3-MM THK)12
5P929931 CLIP (LOOP)1
5S737932 BOLT (3/8-16X0.875-IN)4
6B507233 ADAPTER1
6V880134 NUT (3/8-16-THD)10
7D723335 CLIP (LOOP)2
7T833236 MOUNTING4
7X029337 BOLT (3/8-16X4.75-IN)1
7X030138 BOLT (3/8-16X7-IN)2
7X031239 BOLT (7/16-14X2.5-IN)4
7X031340 BOLT (7/16-14X2.75-IN)2
7X038441 BOLT (7/8-9X3-IN)8
7X044742 NUT (7/16-14-THD)6
7X061843 WASHER-HARD (13.5X40X5-MM THK)8
8C691344 WASHER-HARD (24X41.5X4-MM THK)8
8T250245 BOLT (3/8-16X1.125-IN)2
8T422346 WASHER-HARD (13.5X25.5X3-MM THK)8
8T489647 WASHER-HARD (10.2X18.5X2.5-MM THK)43
8T536048 WASHER (12X22.5X2.5-MM THK)6
8T891749 BOLT (1/2-13X1.25-IN)8
9B723750 BOLT (3/8-16X1.25-IN)6
5P644251 HOSE (102-CM)
5P125152 HOSE (127-CM)
