System And Components
Assembly
100%

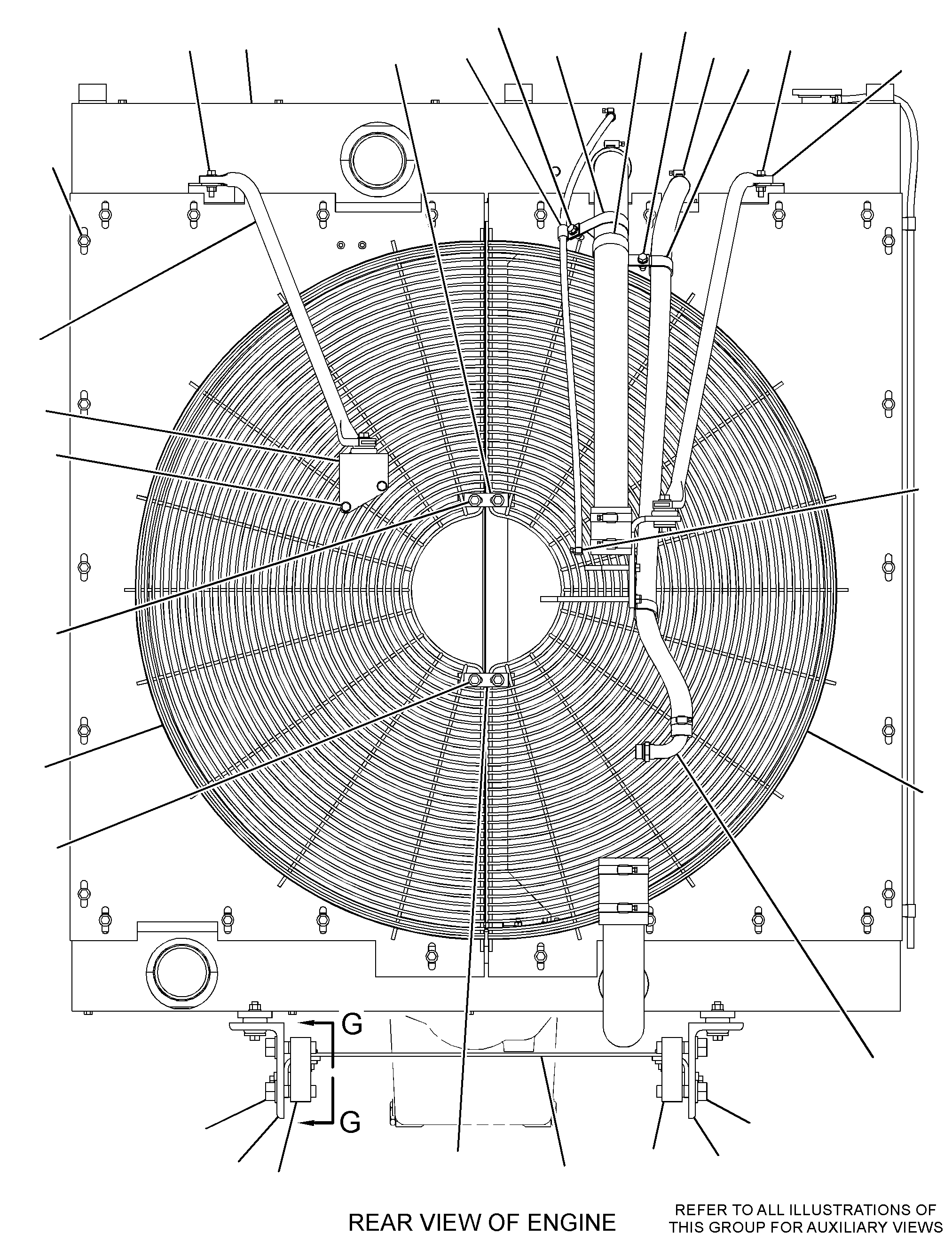

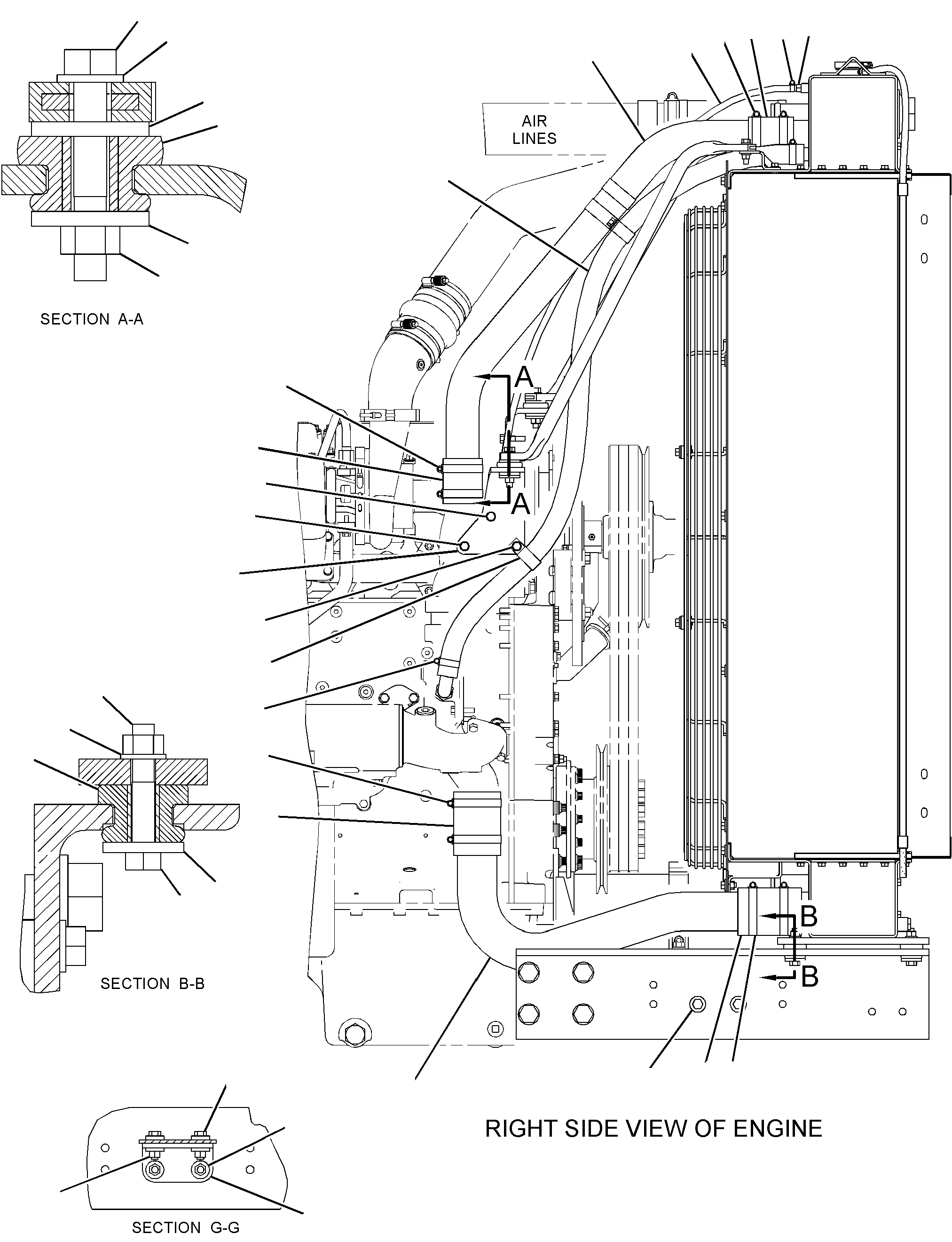

296-9791 RADIATOR GPS/N WJH3133-UP; WRH1-UP

Group No: 296-9791 · Commonality
Part NumberPart NameQty
1P93281 FITTING1
4L57572 STRAP2
4V18783 HOSE2
6L48544 HOSE2
18607125 PLATE4
22843746 BRACKET1
22843757 BRACKET1
22843768 SUPPORT1
22843779 SUPPORT1
228437910 TUBE1
296979211 BRACE1
296979312 BRACE1
296979413 TUBE1
296979514 GUARD AS-FAN1
296979615 GUARD AS-FAN1
296980016 RADIATOR GP1
355309517 BRACKET2
355309618 PLATE1
417063219 ELBOW AS1
5P2080STEM AS-HOSE1
6V5063SEAL-O-RING1
1P427820 CLAMP-HOSE2
2S701021 CLIP2
4L645422 BOLT (3/8-16X1-IN)4
5P059823 CLAMP-HOSE4
5P107524 WASHER-HARD (10.2X22.5X3-MM THK)30
5P486825 CLAMP-HOSE4
5P929926 CLIP (LOOP)1
5S737927 BOLT (3/8-16X0.875-IN)26
6V880128 NUT (3/8-16-THD)4
7D723329 CLIP (LOOP)2
7T833230 MOUNTING4
7X028831 BOLT (3/8-16X1.625-IN)4
7X029132 BOLT (3/8-16X3.75-IN)1
7X030133 BOLT (3/8-16X7-IN)2
7X031234 BOLT (7/16-14X2.5-IN)4
7X031335 BOLT (7/16-14X2.75-IN)2
7X038436 BOLT (7/8-9X3-IN)8
7X044737 NUT (7/16-14-THD)6
7X061838 WASHER-HARD (13.5X40X5-MM THK)8
7X339139 WASHER-HARD (13.5X32X6-MM THK)16
8C691340 WASHER-HARD (24X41.5X4-MM THK)8
8D378641 MOUNTING2
8T111742 CLAMP-HOSE2
8T250243 BOLT (3/8-16X1.125-IN)2
8T418344 BOLT (M12X1.75X40-MM)4
8T419445 BOLT (M12X1.75X50-MM)4
8T424446 NUT (M12X1.75-THD)8
8T489647 WASHER-HARD (10.2X18.5X2.5-MM THK)13
8T536048 WASHER (12X22.5X2.5-MM THK)6
5P644249 HOSE (110-CM)
371809450 HOSE (140-CM)
