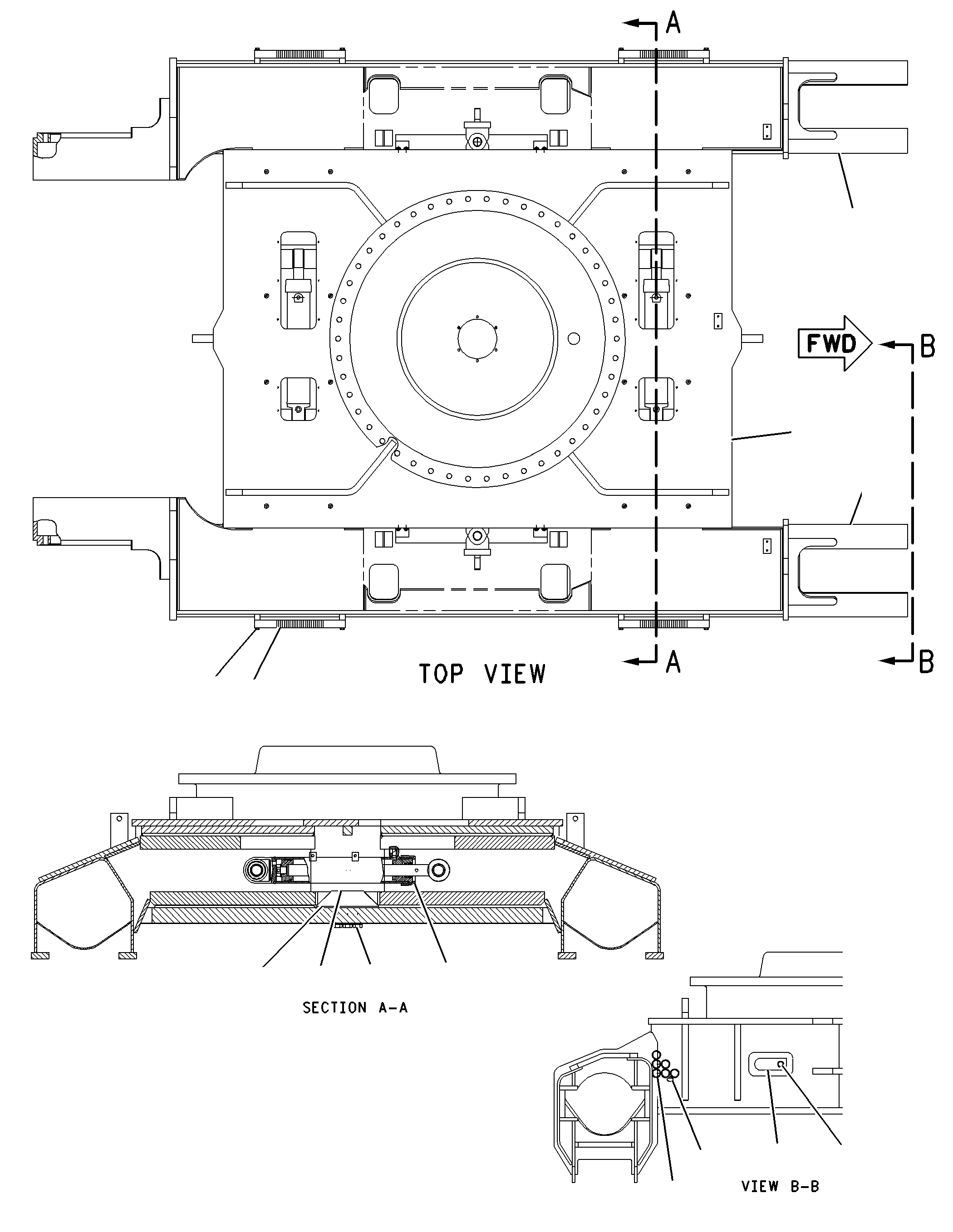

213-1485 FRAME GP-UNDERCARRIAGE -VARIABLE GAUGES/N JNK1-UP

Group No: 213-1485
Part NumberPart NameQty
10952051 STEP4
8T41942 BOLT (M12X1.75X50-MM)16
7X06223 WASHER (13X24X2.5-MM THK)16
21314864 FRAME GP-TRACK ROLLER (LH)1
21579165 FRAME GP-CARBODY1
21314886 FRAME GP-TRACK ROLLER (RH)1
8T06697 BOLT (M24X3X130-MM)12
8T41678 WASHER-HARD (26X44X4-MM THK)60
12341219 CYLINDER GP-UNDERCARRIAGE (ADJUSTABLE GAUGE)2
118917910 BLOCK4
127622411 SHIM (6.5-MM THK)4
118917812 BLOCK8
8T066713 BOLT (M24X3X100-MM)48
118919614 PIN AS4
7X255315 BOLT (M16X2X40-MM)4
9X825716 WASHER (17.5X30X3.5-MM THK)4
