System And Components

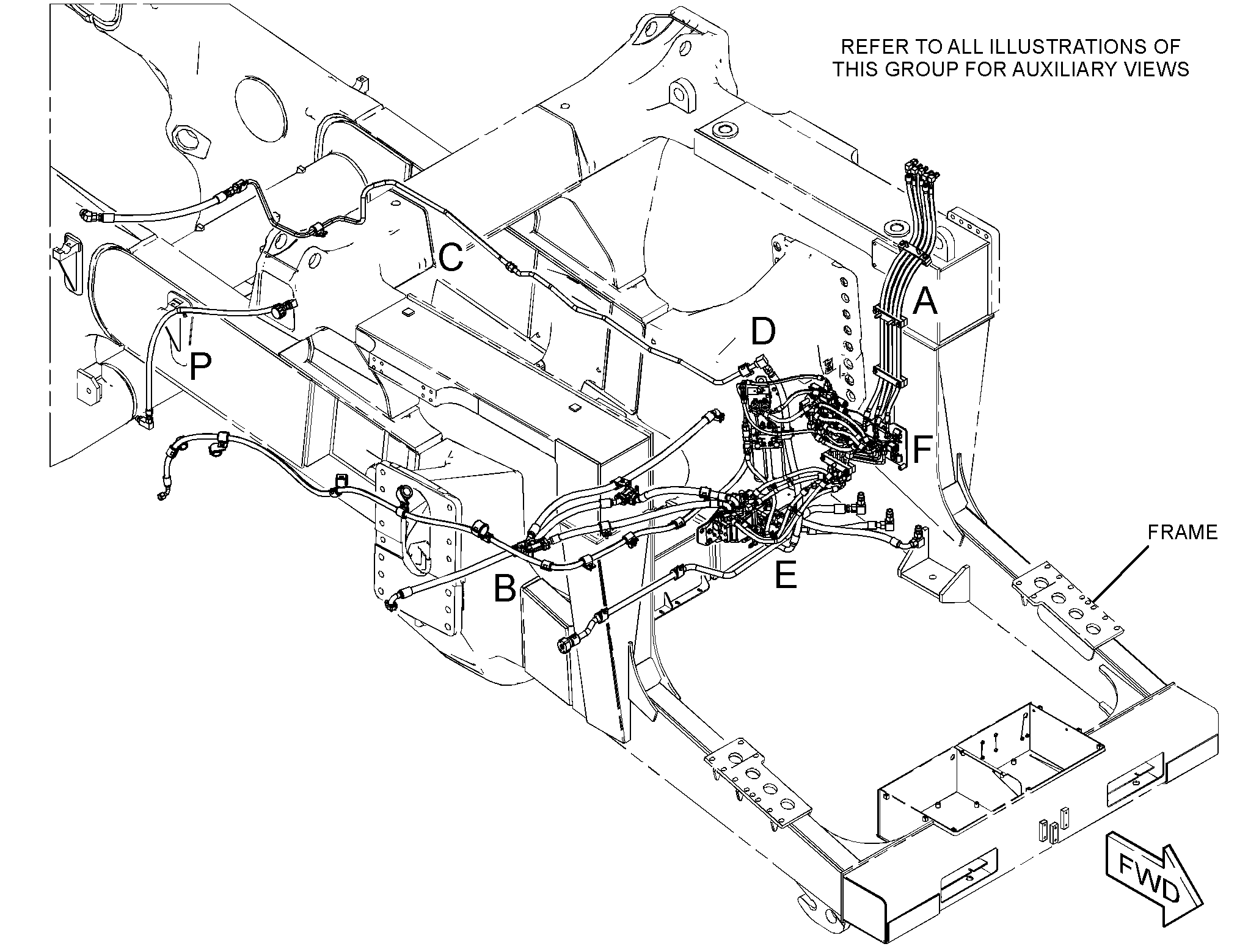

337-7923 LINES GP-STEERINGS/N RB41-UP
Group No: 337-7923
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4844298 | 1 HOSE AS | 1 | |
| 1106349 | 2 FITTING AS (QUICK DISCONNECT) | 2 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 1134339 | 3 SPACER (10.5X18X21-MM THK) | 2 | |
| 1243559 | 4 HOSE AS | 1 | |
| 1259477 | 5 PLATE | 1 | |
| 1261814 | 6 FILTER-OIL (ULTRA HIGH EFFICIENCY)(HYDRAULIC, PILOT) | 2 | |
| 1327551 | 7 SPACER (11X19X6-MM THK) | 1 | |
| 1358575 | 8 BOLT AS | 1 | |
| 1358577 | 9 BOLT AS | 6 | |
| 1358578 | 10 BOLT AS | 5 | |
| 1487779 | 11 HOSE AS | 1 | |
| 1517220 | 12 HOSE AS | 1 | |
| 1577911 | 13 BREATHER (HYDRAULIC TANK) | 1 | |
| 1645567 | 14 COUPLER AS-QUICK DISCONNECT (MALE) | 5 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1705715 | 15 SEAL-O-RING | 14 | |
| 1731437 | 16 FLANGE-HALF | 2 | |
| 1833399 | 17 CONNECTOR AS | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 1912962 | 18 SEAL-O-RING | 2 | |
| 1984777 | 19 WASHER-HARD (11X25X10-MM THK) | 6 | |
| 1V6274 | 20 TAG-IDENTIFICATION (LETTER R) | 2 | |
| 1V6276 | 21 TAG-IDENTIFICATION (LETTER L) | 2 | |
| 1V6277 | 22 TAG-IDENTIFICATION (LETTER T) | 2 | |
| 2141048 | 23 SPACER (8.8X16X4-MM THK) | 1 | |
| 2195121 | 24 HOSE AS | 1 | |
| 2287090 | 25 SEAL-O-RING | 3 | |
| 2287091 | 26 SEAL-O-RING | 4 | |
| 2287092 | 27 SEAL-O-RING | 2 | |
| 2287093 | 28 SEAL-O-RING | 3 | |
| 2352475 | 29 SEAL-RECTANGULAR | 1 | |
| 2385080 | 30 SEAL-O-RING | 1 | |
| 2385081 | 31 SEAL-O-RING | 1 | |
| 2385082 | 32 SEAL-O-RING | 1 | |
| 2441018 | 33 HOSE AS | 1 | |
| 2466323 | 34 HOSE AS | 1 | |
| 2501424 | 35 ELBOW AS | 1 | |
| 6V8724 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2609219 | 36 CONNECTOR AS | 9 | |
| 6V8638 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 2609221 | 37 ELBOW AS | 1 | |
| 9X2085 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2729849 | 38 VALVE GP-SOLENOID & RELIEF (STEERING ACCUMULATOR) | 1 | |
| 2815932 | 39 TEE AS | 2 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 2287090 | SEAL-O-RING | 2 | |
| 2815977 | 40 CONNECTOR AS | 3 | |
| 6V8642 | CONNECTOR | 1 | |
| 2287091 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 2815979 | 41 ELBOW AS | 1 | |
| 6V9007 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 2815981 | 42 ELBOW AS | 1 | |
| 6V8722 | ELBOW | 1 | |
| 2287091 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 2923258 | 43 HOSE AS | 1 | |
| 2956052 | 44 CLAMP | 6 | |
| 2977976 | 45 ELBOW AS | 1 | |
| 6V9850 | ELBOW | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3017415 | 46 PLATE AS | 2 | |
| 1259477 | PLATE | 1 | |
| 3095137 | 47 CONNECTOR AS | 4 | |
| 6V8635 | CONNECTOR | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3159837 | 48 ELBOW AS | 4 | |
| 6V9854 | ELBOW (SWIVEL) | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 3196217 | 49 CONNECTOR AS | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196223 | 50 ELBOW AS | 1 | |
| 8T6684 | ELBOW (90-DEG) | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3196225 | 51 ELBOW AS | 7 | |
| 6V8625 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196226 | 52 ELBOW AS | 1 | |
| 8T6876 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3196227 | 53 ELBOW AS | 3 | |
| 6V9851 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3196228 | 54 ELBOW AS | 1 | |
| 6V8721 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 3196233 | 55 TEE AS | 2 | |
| 6V8782 | TEE | 1 | |
| 2287090 | SEAL-O-RING | 2 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196240 | 56 CONNECTOR AS | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3196247 | 57 ADAPTER AS | 1 | |
| 6V1722 | ADAPTER | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3293356 | 58 NUT (M12X1.75-THD) | 2 | |
| 3295470 | 59 TEE AS | 1 | |
| 6V9840 | TEE-SWIVEL | 1 | |
| 2287093 | SEAL-O-RING | 2 | |
| 3295511 | 60 ELBOW AS | 1 | |
| 6V8723 | ELBOW | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3295518 | 61 ADAPTER AS | 1 | |
| 8T2353 | ADAPTER | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 3295532 | 62 TEE AS | 1 | |
| 2287091 | SEAL-O-RING | 1 | |
| 7X0872 | TEE-SWIVEL | 1 | |
| 3309734 | 63 ELBOW AS | 1 | |
| 8C8400 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3309738 | 64 CONNECTOR AS | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 7X3164 | ADAPTER-SWIVEL | 1 | |
| 3309761 | 65 ELBOW AS | 1 | |
| 1434281 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2287096 | SEAL-O-RING | 1 | |
| 3309765 | 66 TEE AS | 1 | |
| 1057704 | TEE | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3328543 | 67 TEE AS | 1 | |
| 7X0871 | TEE | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3328562 | 68 ELBOW AS | 1 | |
| 6V9852 | ELBOW (SWIVEL) | 1 | |
| 2287091 | SEAL-O-RING | 1 | |
| 3340161 | 69 MANIFOLD & VALVE GP (PILOT OIL) | 1 | |
| 3397793 | 70 MANIFOLD GP-CONTROL (STEERING) | 1 | |
| 2516159 | VALVE GP-SHUTTLE | 1 | |
| 2776343 | VALVE GP-SOLENOID (24-VOLT)(STEERING) | 2 | |
| 2855622 | KIT-SEAL (SOLENOID VALVE) | 1 | |
| 2540072 | COIL AS (24-VOLT) | 1 | |
| 3399460 | 71 MANIFOLD | 1 | |
| 3410123 | 72 TEE AS | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 9X2492 | TEE | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3419393 | 73 VALVE GP-DIVERTER (STEERING) | 1 | |
| 6V8653 | BOLT-SOCKET HEAD (M6X1X40-MM) | 2 | |
| 4612544 | SENSOR AS (SPOOL) | 1 | |
| 3445675 | 74 NUT (M10X1.5-THD) | 12 | |
| 3495283 | 75 PLATE-ADAPTER | 2 | |
| 3526498 | 76 TEE AS | 1 | |
| 8T8902 | ADAPTER-TEE | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3533050 | 77 HOSE AS | 1 | |
| 3533051 | 78 HOSE AS | 1 | |
| 3533052 | 79 HOSE AS | 1 | |
| 3533056 | 80 HOSE AS | 1 | |
| 3533058 | 81 HOSE AS | 1 | |
| 3533059 | 82 HOSE AS | 1 | |
| 3533060 | 83 HOSE AS | 1 | |
| 3533061 | 84 HOSE AS | 1 | |
| 3533064 | 85 HOSE AS | 1 | |
| 3533068 | 86 TUBE AS | 1 | |
| 3533069 | 87 TUBE AS | 1 | |
| 3533070 | 88 TUBE AS | 1 | |
| 3533077 | 89 PLATE | 1 | |
| 3533080 | 90 PLATE | 1 | |
| 3533081 | 91 PLATE AS | 1 | |
| 4Y8939 | BOSS (M10X1.5X40-MM) | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 4 | |
| 8Y4489 | BOSS (M10X1.5X35-MM) | 2 | |
| 9R2613 | BOSS-WELD (M10X1.5X25-MM) | 1 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 2128834 | BOSS (M10X1.5X60-MM) | 1 | |
| 3533082 | 92 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 9R2613 | BOSS-WELD (M10X1.5X25-MM) | 2 | |
| 3534987 | 93 TUBE AS | 1 | |
| 3534988 | 94 TUBE AS | 1 | |
| 3534989 | 95 TUBE AS | 1 | |
| 3534990 | 96 TUBE AS | 1 | |
| 3534991 | 97 TUBE AS | 1 | |
| 3534993 | 98 ADAPTER | 2 | |
| 3534994 | 99 CLAMP | 2 | |
| 3535369 | 100 HOSE AS | 1 | |
| 3559454 | 101 PLATE | 1 | |
| 3602594 | 102 PLATE AS | 1 | |
| 9R2613 | BOSS-WELD (M10X1.5X25-MM) | 1 | |
| 1259477 | PLATE | 1 | |
| 3706297 | 103 CONNECTOR AS | 2 | |
| 6V8715 | CONNECTOR | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 3784367 | 104 HOSE AS | 1 | |
| 4227518 | 105 TUBE AS | 1 | |
| 4418400 | 106 HOSE AS | 1 | |
| 4418401 | 107 HOSE AS | 1 | |
| 4418402 | 108 HOSE AS | 1 | |
| 4418403 | 109 HOSE AS | 1 | |
| 4488780 | 110 HOSE AS | 1 | |
| 4491413 | 111 ADAPTER AS | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 6V8556 | NUT (1-3/16-12-THD) | 1 | |
| 6V8942 | REDUCER-O-RING | 1 | |
| 4792171 | 112 BOLT AS | 4 | |
| 4792172 | 113 BOLT AS | 10 | |
| 4807925 | 114 HOSE AS | 1 | |
| 4807926 | 115 HOSE AS | 1 | |
| 4927277 | 116 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4931316 | 117 PLATE | 1 | |
| 4J6311 | 118 TAG-IDENTIFICATION (NUMBER ELEVEN) | 2 | |
| 5089512 | 119 TUBE AS | 1 | |
| 5178253 | 120 TUBE AS | 1 | |
| 5218491 | 121 VALVE GP-STEERING (ELECTROHYDRAULIC) | 1 | |
| 5334159 | 122 BOLT AS | 41 | |
| 5416632 | 123 CLIP (LOOP) | 1 | |
| 5441251 | 124 HOSE AS | 1 | |
| 5441254 | 125 HOSE AS | 1 | |
| 5441255 | 126 HOSE AS | 1 | |
| 5787400 | 127 HOSE AS | 1 | |
| 5P1075 | 128 WASHER-HARD (10.2X22.5X3-MM THK) | 6 | |
| 5P1076 | 129 WASHER-HARD (13.5X30X4-MM THK) | 2 | |
| 5P7466 | 130 CLIP (SLOT) | 10 | |
| 5P7467 | 131 CLIP (TAB) | 10 | |
| 5P7468 | 132 CLIP (SLOT) | 13 | |
| 5P7469 | 133 CLIP (TAB) | 13 | |
| 5P7470 | 134 CLIP (SLOT) | 1 | |
| 5P7471 | 135 CLIP (TAB) | 1 | |
| 5P7703 | 136 GROMMET (52-MM ID) | 1 | |
| 5P8112 | 137 GROMMET | 10 | |
| 5P8444 | 138 GROMMET (37-MM ID) | 7 | |
| 6D4244 | 139 CLIP (LOOP) | 9 | |
| 6V0852 | 140 CAP-DUST | 7 | |
| 6V1572 | 141 CLIP (SLOT) | 1 | |
| 6V1573 | 142 CLIP (TAB) | 1 | |
| 6V1867 | 143 CLIP (SLOT) | 1 | |
| 6V1868 | 144 CLIP (TAB) | 1 | |
| 6V1869 | 145 GROMMET (65-MM ID) | 1 | |
| 6V1874 | 146 GROMMET (31-MM ID) | 3 | |
| 6V1875 | 147 GROMMET | 1 | |
| 6V8775 | 148 TEE-FACE SEAL | 1 | |
| 6W6231 | 149 SPACER (0.493X0.675X1.78-IN THK) | 2 | |
| 7X2537 | 150 BOLT (M8X1.25X35-MM) | 1 | |
| 7X2544 | 151 BOLT (M10X1.5X140-MM) | 1 | |
| 8C3206 | 152 FLANGE-HALF | 16 | |
| 8M2773 | 153 CLIP (LOOP) | 2 | |
| 8R4853 | 154 TAG-IDENTIFICATION (LETTER P) | 2 | |
| 8T4121 | 155 WASHER-HARD (11X21X2.5-MM THK) | 40 | |
| 8T4139 | 156 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4172 | 157 BOLT (M10X1.5X80-MM) | 2 | |
| 8T4182 | 158 BOLT (M10X1.5X45-MM) | 1 | |
| 8T4183 | 159 BOLT (M12X1.75X40-MM) | 5 | |
| 8T4184 | 160 BOLT (M12X1.75X45-MM) | 2 | |
| 8T4185 | 161 BOLT (M10X1.5X50-MM) | 14 | |
| 8T4186 | 162 BOLT (M10X1.5X40-MM) | 5 | |
| 8T4189 | 163 BOLT (M8X1.25X20-MM) | 4 | |
| 8T4195 | 164 BOLT (M10X1.5X30-MM) | 6 | |
| 8T4198 | 165 BOLT (M10X1.5X100-MM) | 4 | |
| 8T4223 | 166 WASHER-HARD (13.5X25.5X3-MM THK) | 24 | |
| 8T4224 | 167 WASHER-HARD (8.8X16X2-MM THK) | 7 | |
| 8T4908 | 168 BOLT (M8X1.25X25-MM) | 3 | |
| 8T4910 | 169 BOLT (M12X1.75X60-MM) | 4 | |
| 8T4956 | 170 BOLT (M12X1.75X35-MM) | 9 | |
| 8T5005 | 171 BOLT (M10X1.5X70-MM) | 4 | |
| 8T5436 | 172 BOLT (M10X1.5X130-MM) | 2 | |
| 8T6466 | 173 BOLT (M10X1.5X60-MM) | 4 | |
| 8T6685 | 174 BOLT (M10X1.5X110-MM) | 3 | |
| 8T7529 | 175 CLIP | 1 | |
| 8T8984 | 176 TEE-O-RING PORT | 1 | |
| 8T9518 | 177 GROMMET (24-MM ID) | 3 | |
| 8X5139 | 178 JUNCTION BLOCK | 2 | |
| 8X5976 | 179 PLATE AS | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 9T1013 | 180 VALVE AS-CHECK | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 9T8931 | 181 VALVE GP-STEERING | 1 | |
| 9X2027 | 182 WASHER (11X18X2-MM THK) | 8 | |
| 9X6459 | 183 COVER | 1 | |
| 9X8250 | 184 CLIP (LOOP) | 1 |
