System And Components

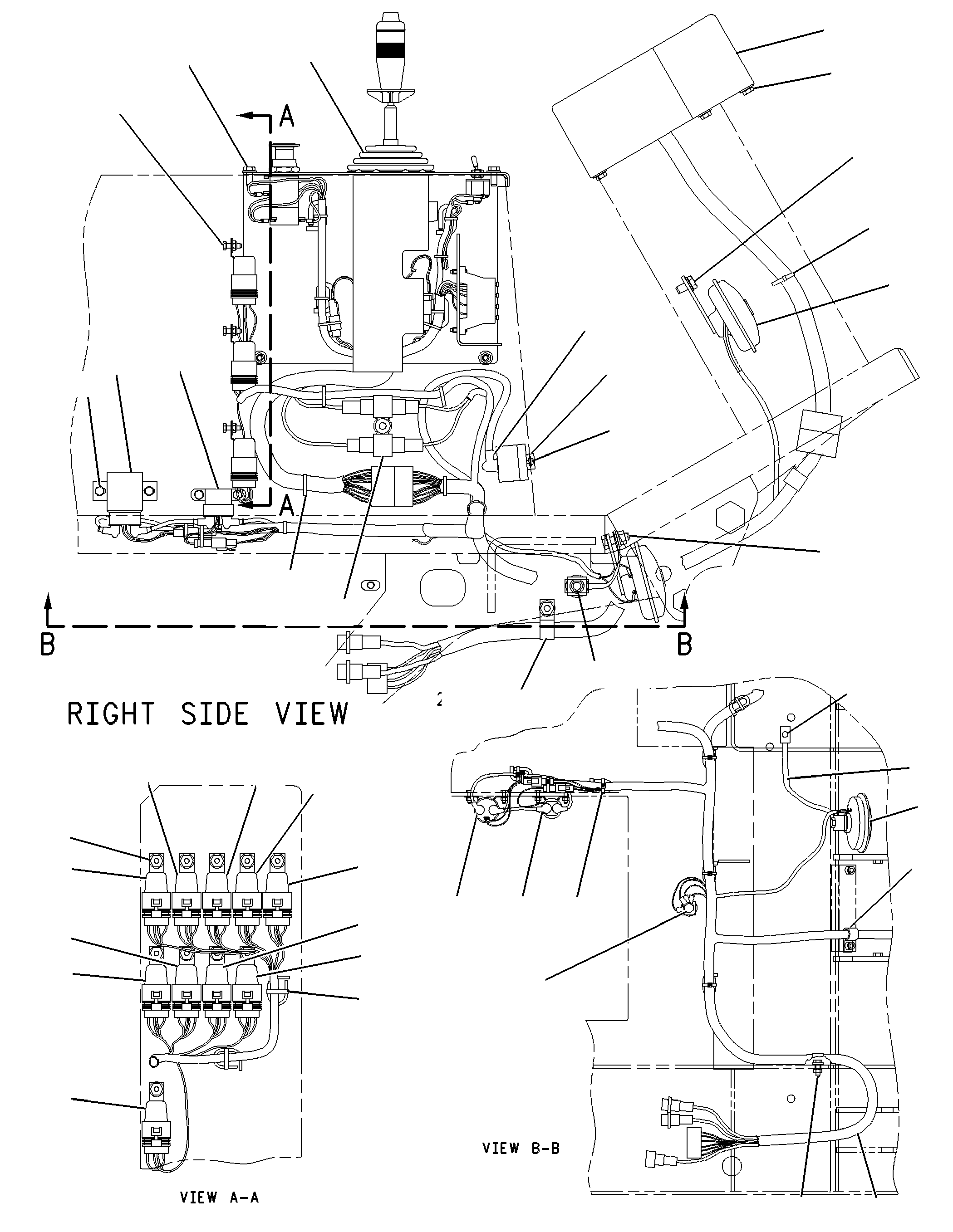

118-3462 WIRING GP-PLATFORMS/N 9RN1-544
Group No: 118-3462
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E5239 | 1 RELAY AS (24-VOLT)(ENGINE OIL PRESSURE) | 1 | |
| 7T0969 | 2 HORN AS (24-VOLT, LOW TONE) | 2 | |
| 8C7581 | SCREW-MACHINE (M4X0.7X8-MM) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 3E0075 | 3 SWITCH GP-MAGNETIC (24-VOLT)(STARTER RELAY) | 1 | |
| 1017740 | 4 SWITCH AS-MAGNETIC (MAIN RELAY) | 1 | |
| 6V8186 | NUT-FULL (5/16-24-THD) | 2 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1028807 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 4M7146 | 5 STRAP AS-GROUND | 1 | |
| 9S0174 | 6 CIRCUIT BREAKER AS (60-AMPERE) | 1 | |
| 1H3244 | LOCKWASHER | 2 | |
| 6V8365 | SCREW-MACHINE (1/4-28X0.5-IN) | 2 | |
| 1179982 | 7 CONSOLE GP-INSTRUMENT | 1 | |
| 8T4189 | 8 BOLT (M8X1.25X20-MM) | 5 | |
| 5P4116 | 9 WASHER-HARD (8.8X20.5X2-MM THK) | 5 | |
| 8T4191 | 10 BOLT (M10X1.5X16-MM) | 2 | |
| 8T4121 | 11 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4195 | 12 BOLT (M10X1.5X30-MM) | 2 | |
| 7K1181 | 13 STRAP-CABLE | 17 | |
| 9X8256 | 14 WASHER (6.6X12X2-MM THK) | 4 | |
| 1126646 | 15 LOCKNUT (M6X1-THD) | 14 | |
| 8T4138 | 16 BOLT (M6X1X20-MM) | 18 | |
| 1170842 | 17 HARNESS AS-PLATFORM | 1 | |
| 9X0146 | RECEPTACLE AS-CONNECTOR (24-PIN) | 2 | |
| 9G4352 | HOUSING-RECEPTACLE (8-GA TO 10-GA) | 1 | |
| 9G4351 | HOUSING-RECEPTACLE (4-GA TO 6-GA) | 1 | |
| 9X7144 | PLUG AS-CONNECTOR (24-PIN) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8558 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 9X3265 | SEAL-CONNECTOR (24-PIN) | 2 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN)(START RELAY) | 1 | |
| 9X1054 | PLUG AS-CONNECTOR (4-PIN) | 3 | |
| 3E5519 | PLUG AS-CONNECTOR (5-PIN) | 7 | |
| 1028802 | KIT-RECEPTACLE (2-PIN)(MAIN RELAY) | 1 | |
| 8T8737 | PLUG-SEAL | 11 | |
| 9G4349 | HOUSING-PLUG | 1 | |
| 9G4348 | HOUSING-PLUG (4-GA TO 6-GA) | 2 | |
| 7G7918 | PLUG-SEAL | 6 | |
| 1S9593 | STRAP-CABLE | 15 | |
| 1091035 | 18 CONSOLE GP-OPERATOR | 1 | |
| 2S9556 | 19 SCREW-MACHINE (10-32X0.875-IN) | 2 | |
| 4B4274 | 20 WASHER (5.5X13X1.2-MM THK) | 2 | |
| 3B4502 | 21 LOCKWASHER | 2 | |
| 9G9154 | 22 CLIP | 2 | |
| 3K6060 | 23 LOCKNUT (3/8-16-THD) | 1 | |
| 8M2773 | 24 CLIP (LOOP) | 2 | |
| 7C4354 | 25 CLIP | 2 | |
| 8T4133 | 26 NUT (M10X1.5-THD) | 2 | |
| 5M3062 | 27 BOLT (3/8-16X0.75-IN) | 1 | |
| 8T4896 | 28 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 8T8799 | 29 BOOT (RED) | 6 | |
| 6V8188 | 30 NUT (1/2-13-THD) | 1 | |
| 8T4223 | 31 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 3E5239 | 32 RELAY AS (24-VOLT)(COOLANT TEMP) | 1 | |
| 3E5239 | 33 RELAY AS (24-VOLT)(WARNING LIGHT) | 1 | |
| 3E5239 | 34 RELAY AS (24-VOLT)(HYD OIL TEMP) | 1 | |
| 3E5239 | 35 RELAY AS (24-VOLT)(FUNCTIONAL LIGHT) | 1 | |
| 3E5239 | 36 RELAY AS (24-VOLT)(NEUTRAL START #2) | 1 | |
| 3E5239 | 37 RELAY AS (24-VOLT)(NEUTRAL START #1) | 1 | |
| 3E5239 | 38 RELAY AS (24-VOLT)(BRAKE #2) | 1 | |
| 3E5239 | 39 RELAY AS (24-VOLT)(BRAKE #1) | 1 | |
| 3E5239 | 40 RELAY AS (24-VOLT)(LOW CHARGE) | 1 |
