System And Components

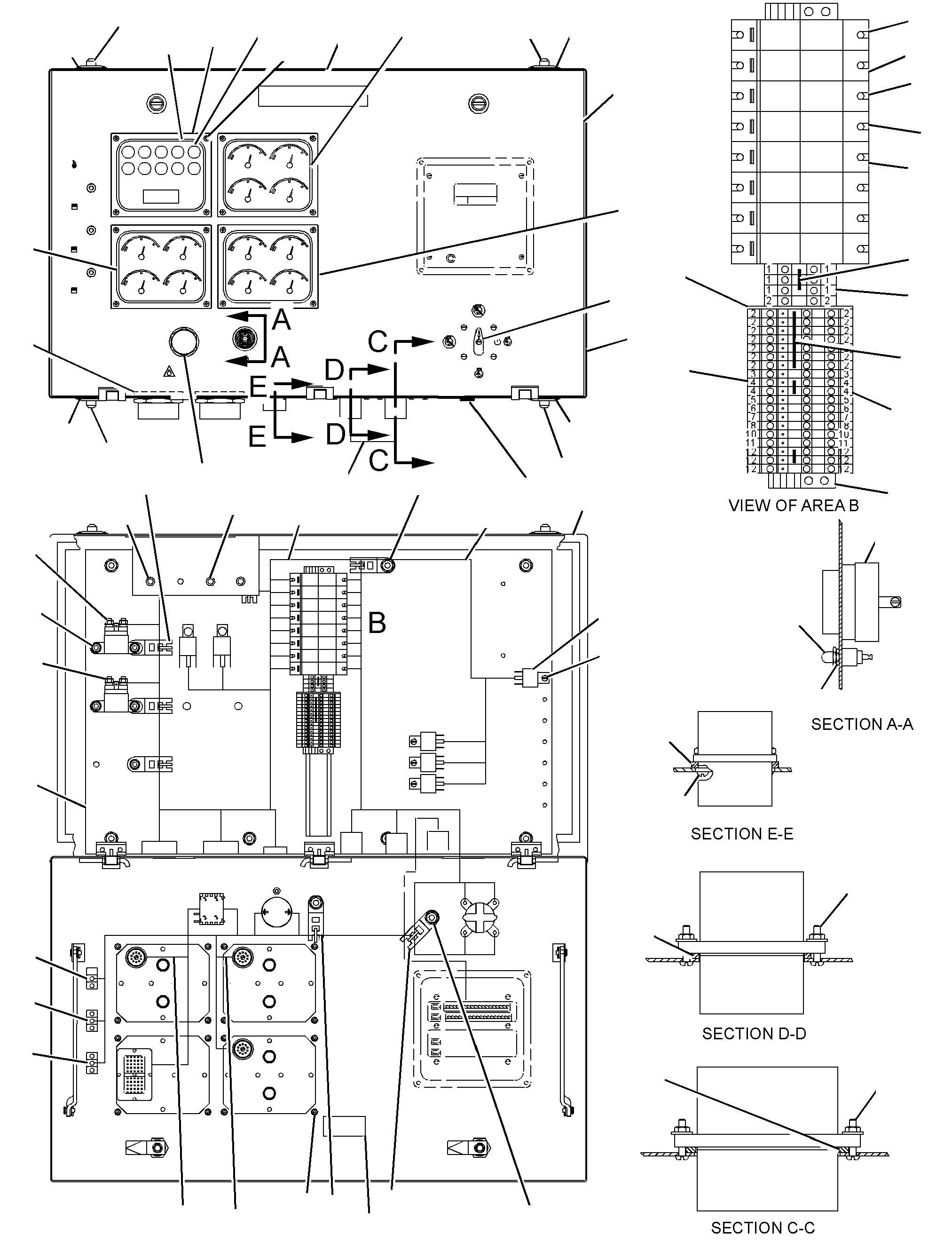

125-9745 BOX GP-INSTRUMENT PANELS/N 9G51-UP
Group No: 125-9745
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1627662 | 1 BOX GP-INSTRUMENT PANEL | 1 | |
| 1096507 | 2 SWITCH AS-PUSH BUTTON (EMERGENCY STOP) | 1 | |
| 1108909 | 3 MOUNT-FLEXIBLE | 8 | |
| 2833428 | 4 FILM-IDENTIFICATION (INSTRUMENT PANEL) | 1 | |
| 4B4863 | 5 WASHER (4.7X11X1.2-MM THK) | 14 | |
| 1339308 | 6 PLATE AS | 1 | |
| 9Y2921 | 7 RELAY (24-VOLT)(INSTRUMENT PANEL) | 6 | |
| 1272331 | 8 SWITCH AS-ROTARY (ENGINE CONTROL) | 1 | |
| 3B4501 | 9 LOCKWASHER | 38 | |
| 6D5801 | 10 LOCKNUT (8-32-THD) | 32 | |
| 9S8750 | 11 NUT-FULL (1/4-20-THD) | 5 | |
| 7S1197 | 12 SCREW-MACHINE (8-32X0.5-IN) | 38 | |
| 5P0537 | 13 WASHER-HARD (7.2X14.5X2-MM THK) | 5 | |
| 7N8008 | 14 SWITCH AS-TOGGLE (CLEAR, MODE) | 1 | |
| 3L8187 | LOCKWASHER | 6 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 6 | |
| 1152538 | 15 COVER-END | 1 | |
| 1151322 | 16 TERMINAL (DOUBLE) | 21 | |
| 1586255 | 17 CONTROL GP-ENGINE MONITORING (LINE) | 1 | |
| 1666936 | 18 MODULE GP-QUAD GAUGE (ENGINE MONITORING) | 1 | |
| 1666929 | 19 MODULE GP-QUAD GAUGE (ENGINE MONITORING) | 1 | |
| 1333822 | 20 DOOR AS | 1 | |
| 0308967 | STUD-WELD (3/8-16X0.75-IN OAL) | 2 | |
| 1288545 | LATCH AS | 2 | |
| 2W4480 | 22 BOOT-SWITCH | 1 | |
| 8C6123 | 23 NUT (1/4-40-THD) | 1 | |
| 8N0694 | 24 SWITCH AS-TOGGLE (SINGLE POLE)(STARTING AID) | 1 | |
| 1223203 | 25 HARNESS AS-PANEL (QUAD GAUGE MODULE) | 1 | |
| 1552265 | KIT-CONNECTING PLUG (8-PIN) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 10 | |
| 8D2676 | 26 SWITCH AS-TOGGLE (SINGLE POLE)(ENGINE PARAMETER, RH, LH) | 1 | |
| 3L8187 | LOCKWASHER | 2 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 2 | |
| 9X9675 | 27 BRACKET-END | 2 | |
| 1137884 | 28 FILM-IDENTIFICATION (ENGINE MONITORING) | 1 | |
| 4P7581 | 29 CLIP (LADDER) | 6 | |
| 1057542 | 30 STRIP-CONTACT | 1 | |
| 1075856 | 32 CIRCUIT BREAKER AS (63-AMPERE) | 1 | |
| 9X8124 | 33 SWITCH AS-MAGNETIC (24-VOLT)(STARTING MOTOR) | 2 | |
| 8T4134 | NUT (M6X1-THD) | 2 | |
| 1005566 | 34 BEZEL | 4 | |
| 7U4891 | 35 SCREW (10-32X1-IN) | 16 | |
| 9S8752 | 36 NUT-FULL (3/8-16-THD) | 18 | |
| 4B4274 | 37 WASHER (5.5X13X1.2-MM THK) | 16 | |
| 6V8378 | 38 NUT (10-32-THD) | 16 | |
| 1072482 | 39 GASKET | 8 | |
| 1213328 | 40 KIT-MARKER (TERMINAL) | 1 | |
| 5M2894 | 41 WASHER-HARD (10.2X18.5X2.5-MM THK) | 18 | |
| 1141142 | 42 CIRCUIT BREAKER AS (10-AMPERE) | 4 | |
| 1141143 | 43 CIRCUIT BREAKER AS (16-AMPERE) | 1 | |
| 1069819 | 44 TERMINAL | 4 | |
| 8T9637 | 45 SWITCH AS-TOGGLE (MANUAL START) | 1 | |
| 3L8187 | LOCKWASHER | 4 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 4 | |
| 8T4134 | 46 NUT (M6X1-THD) | 4 | |
| 1111324 | 47 BLOCK-CONTACT (1-POLE) | 2 | |
| 1239694 | 48 HORN | 1 | |
| 8C6024 | 49 SEAL-CONNECTOR | 1 | |
| 1243176 | 50 COVER | 1 | |
| 1262210 | 51 HARNESS AS-PANEL (CUSTOMER CONNECTION) | 1 | |
| 7X6222 | PLUG AS-CONNECTOR (24-PIN) | 1 | |
| 8T9834 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 1741436 | 52 HARNESS AS-PANEL (INSTRUMENT) | 1 | |
| 1233395 | 53 FILM-IDENTIFICATION (WIRE) | 1 | |
| 1223202 | 54 HARNESS AS-PANEL (QUAD GAUGE MODULE) | 1 | |
| 2N3476 | 55 SCREW-MACHINE (6-32X0.75-IN) | 8 | |
| 4B2041 | 56 NUT (6-32-THD) | 8 | |
| 5S4245 | 57 SCREW-MACHINE (4-40X0.5-IN) | 4 | |
| 6B4542 | 58 LOCKWASHER | 4 | |
| 6B4540 | 59 NUT (4-40-THD) | 4 | |
| 7C4910 | 60 SEAL | 1 | |
| 9X6772 | 61 STRAP-CABLE | 7 | |
| 9X1365 | 62 SEAL-CONNECTOR | 1 | |
| 9D2734 | 63 GASKET | 2 | |
| 6T0453 | 64 GASKET | 1 | |
| 1167655 | 65 CIRCUIT BREAKER AS (50-AMPERE) | 1 | |
| 1075857 | 66 CIRCUIT BREAKER AS (32-AMPERE) | 1 | |
| 3E5503 | 67 BAR-FIXED BRIDGE | 2 | |
| 4D1836 | 68 SWITCH-TOGGLE (LOW IDLE) | 1 | |
| 1666937 | 69 MODULE GP-QUAD GAUGE (ENGINE MONITORING) | 1 | |
| 6K0806 | 70 STRAP-CABLE | 20 | |
| 1111323 | 71 BLOCK-CONTACT (1-POLE) | 1 | |
| 4P8134 | 72 CLIP (LADDER) | 1 | |
| 1863166 | 73 TUBE-HEAT SHRINK (6.35-MM DIA)(31-CM) | ||
| 8M3839 | 74 BUTTON-PLUG | 1 |
