System And Components

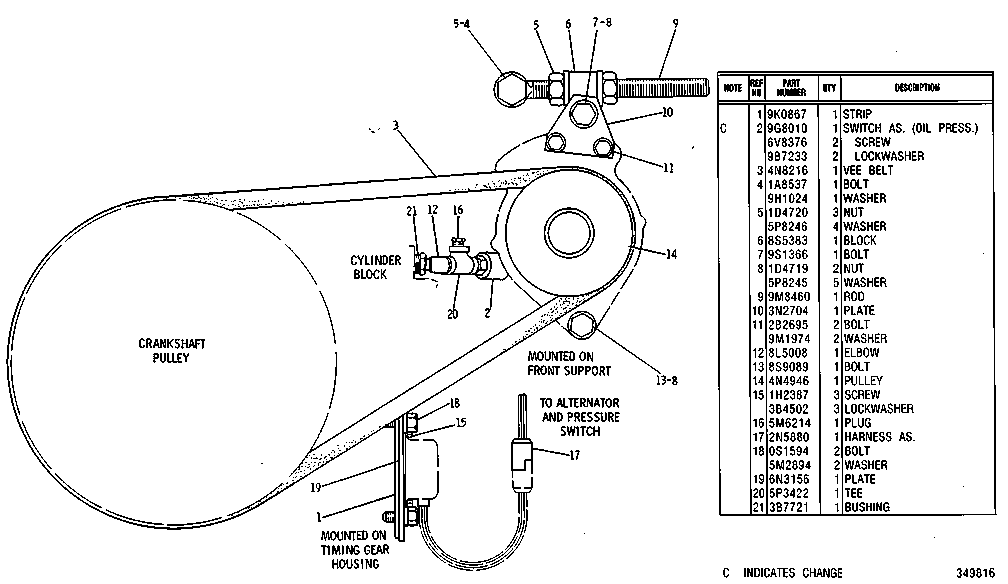

8N1640 ALTERNATOR MOUNTING GROUP-24 VOLT, 35 AMPERE-TYPE 2-REPLACED BY4W5577 SHOWN ON PAGE 391B. FOR USE WITH INDUSTRIAL ENGINES WITH AIR
Group No: 8N1640
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9K0867 | 1 STRIP | 1 | |
| 9G8010 | 2 SWITCH AS (OIL PRESS.) | 1 | |
| 6V8376 | SCREW-MACHINE | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 4N8216 | 3 V-BELT | 1 | |
| 1A8537 | 4 BOLT | 1 | |
| 9H1024 | WASHER-HARD | 1 | |
| 1D4720 | 5 NUT | 3 | |
| 5P8246 | WASHER-HARD | 4 | |
| 8S5383 | 6 BLOCK | 1 | |
| 9S1366 | 7 BOLT | 1 | |
| 1D4719 | 8 NUT | 2 | |
| 5P8245 | WASHER | 5 | |
| 9M8460 | 9 ROD | 1 | |
| 3N2704 | 10 PLATE-MOUNTING | 1 | |
| 2B2695 | 11 BOLT | 2 | |
| 9M1974 | WASHER | 2 | |
| 8L5008 | 12 ELBOW-PIPE | 1 | |
| 8S9089 | 13 BOLT | 1 | |
| 4N4946 | 14 PULLEY | 1 | |
| 1H2387 | 15 SCREW-MACHINE | 3 | |
| 3B4502 | LOCKWASHER | 3 | |
| 5M6214 | 16 PLUG-PIPE | 1 | |
| 2N5880 | 17 HARNESS AS-WIRING | 1 | |
| 0S1594 | 18 BOLT | 2 | |
| 5M2894 | WASHER | 2 | |
| 6N3156 | 19 PLATE | 1 | |
| 5P3422 | 20 TEE-PIPE | 1 | |
| 3B7721 | 21 BUSHING-REDUCING | 1 |
