System And Components

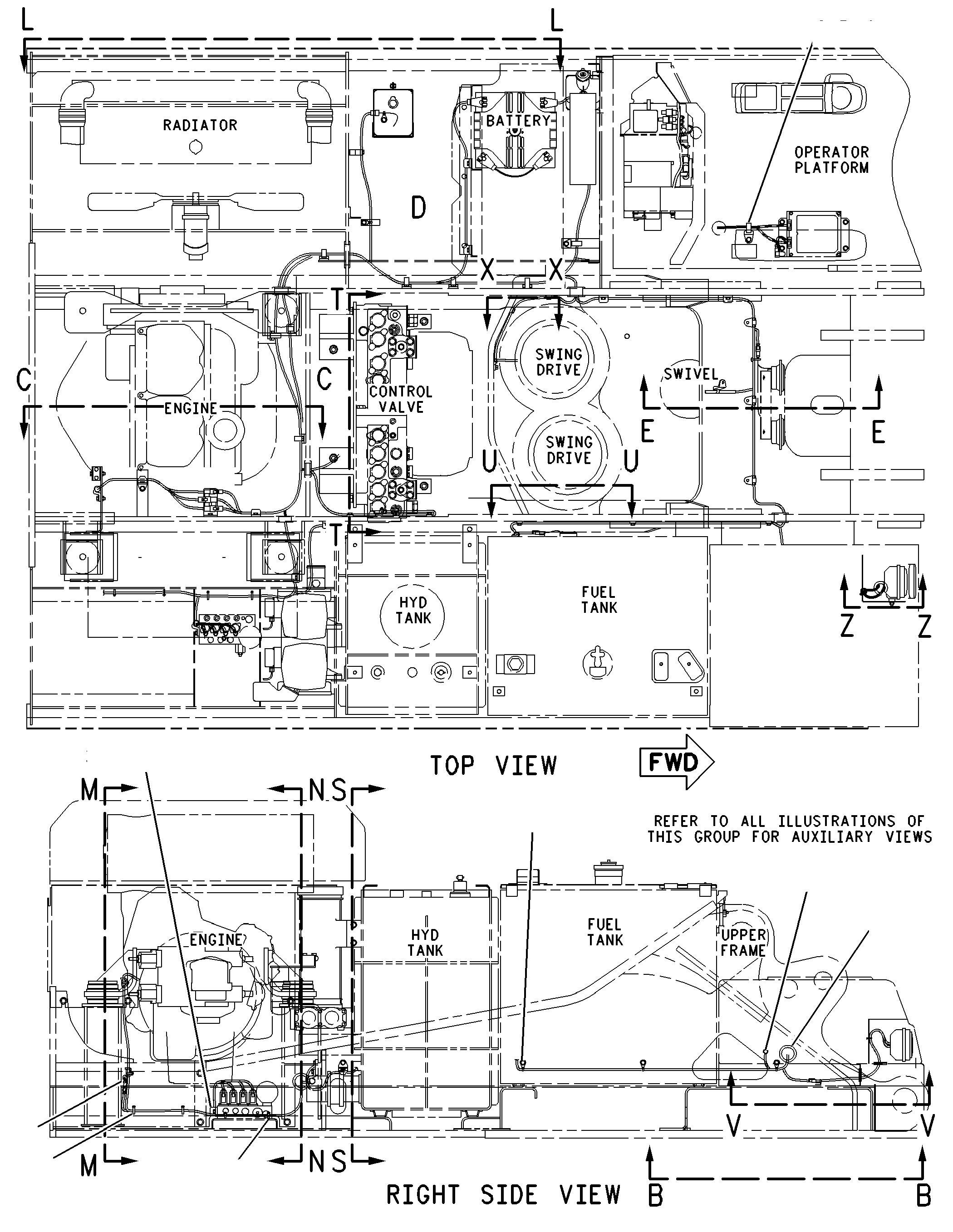

167-3623 BATTERY & WIRING GPS/N AKJ1-UP; AKX1-UP
Group No: 167-3623
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7X7888 | 1 BOLT (M6X1X90-MM) | 1 | |
| 1114837 | 2 CLIP | 27 | |
| 8T4137 | 3 BOLT (M10X1.5X20-MM) | 54 | |
| 7Y8167 | 4 GROMMET (50-MM ID) | 1 | |
| 3S2093 | 5 STRAP-CABLE | 39 | |
| 8T4133 | 6 NUT (M10X1.5-THD) | 1 | |
| 8T4226 | 7 WASHER-PLATED (10.5X45X3-MM THK) | 1 | |
| 5I8304 | 8 ROD | 1 | |
| 5C7261 | 9 NUT (M8X1.25-THD) | 2 | |
| 8T4121 | 10 WASHER-HARD (11X21X2.5-MM THK) | 90 | |
| 1160230 | 11 BRACKET AS | 1 | |
| 8T4191 | 12 BOLT (M10X1.5X16-MM) | 19 | |
| 5P4116 | 13 WASHER-HARD (8.8X20.5X2-MM THK) | 1 | |
| 2V3216 | 14 CLIP (LOOP) | 1 | |
| 1321843 | 15 BRACKET AS | 1 | |
| 1321820 | 16 BRACKET AS | 1 | |
| 8T4186 | 17 BOLT (M10X1.5X40-MM) | 1 | |
| 1160118 | 18 CLIP | 7 | |
| 1160229 | 19 BRACKET AS | 2 | |
| 8T4136 | 20 BOLT (M10X1.5X25-MM) | 11 | |
| 1114838 | 21 CLIP | 11 | |
| 1114839 | 22 STRAP | 11 | |
| 7G1060 | 23 STRAP AS-GROUND | 1 | |
| 7Y3196 | 24 GROMMET | 2 | |
| 1114836 | 25 CLIP | 23 | |
| 1288884 | 26 CABLE AS | 1 | |
| 3S6049 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 5P0761 | CABLE (00-GA, RED)(410CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 3T5760 | 27 BATTERY GP (12-VOLT, 750-CCA) | 2 | |
| 6W6005 | 28 HOLD-DOWN-BATTERY | 1 | |
| 1254727 | 29 CABLE AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(27CM) | ||
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 3S6050 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1160080 | 30 CABLE AS (JUMPER) | 1 | |
| 3S6049 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 3S6050 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 5P0761 | CABLE (00-GA, RED)(31CM) | ||
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 4I4653 | 31 GROMMET | 2 | |
| 4I5426 | 32 GROMMET | 1 | |
| 6G2256 | 33 CLAMP | 3 | |
| 6G2263 | 34 SPACER (10.5X19X28.5-MM THK) | 3 | |
| 2G8767 | 35 WASHER (10.5X60X3-MM THK) | 4 | |
| 8T4185 | 36 BOLT (M10X1.5X50-MM) | 4 | |
| 1321805 | 37 STRAP AS-GROUND | 1 | |
| 8T4199 | 38 BOLT (M8X1.25X12-MM) | 1 | |
| 1288900 | 39 HARNESS AS | 1 | |
| 0919035 | 40 SPACER (11X25X20-MM THK) | 1 | |
| 1087553 | 41 GROMMET | 1 | |
| 5I4366 | 42 GROMMET | 1 | |
| 1321818 | 43 BRACKET AS | 1 | |
| 9X8256 | 44 WASHER (6.6X12X2-MM THK) | 1 | |
| 1532447 | 45 BRACKET AS | 1 | |
| 1709396 | 46 HARNESS AS | 1 | |
| 1288886 | 47 STRAP AS-GROUND | 1 | |
| 1321845 | 48 HARNESS AS-WIRING (HYD LOCKOUT, NEUTRAL START) | 1 | |
| 9C7045 | 49 TUBE | 1 | |
| 1211044 | 50 HARNESS AS-POWER (NEUTRAL START RELAY) | 1 | |
| 1343341 | 51 BRACKET AS | 1 | |
| 1506961 | 52 HARNESS AS-WIRING (REFUELING PUMP) | 1 | |
| 2041613 | 53 BRACKET AS | 1 | |
| 1400880 | 54 BRACKET AS | 1 | |
| 1400873 | 55 BRACKET AS | 1 | |
| 6V3822 | 56 BOLT (M10X1.5X35-MM) | 1 | |
| 8T4224 | 57 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 2041729 | 58 HARNESS AS | 1 | |
| 4I7889 | 59 SPACER (11X25X45-MM THK) | 2 | |
| 1673624 | 60 PANEL GP-CIRCUIT BREAKER | 1 | |
| 8T5005 | 61 BOLT (M10X1.5X70-MM) | 2 | |
| 1400918 | 62 HARNESS AS-HYDRAULIC TANK | 1 | |
| 7K1181 | 63 STRAP-CABLE | 2 | |
| 1706985 | 64 HARNESS AS-WIRING (ENGINE CONTROL, FAN CONTROL) | 1 | |
| 8T4182 | 65 BOLT (M10X1.5X45-MM) | 1 |
