System And Components

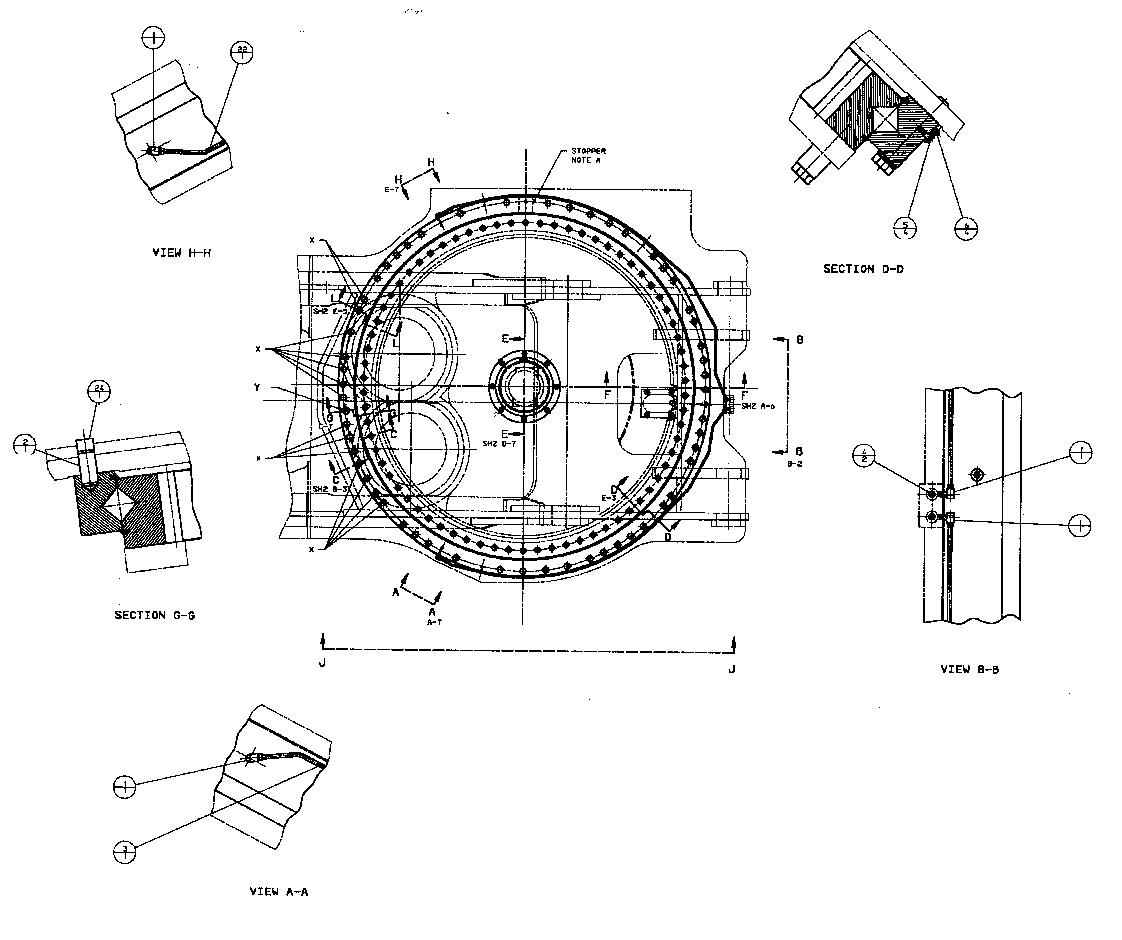

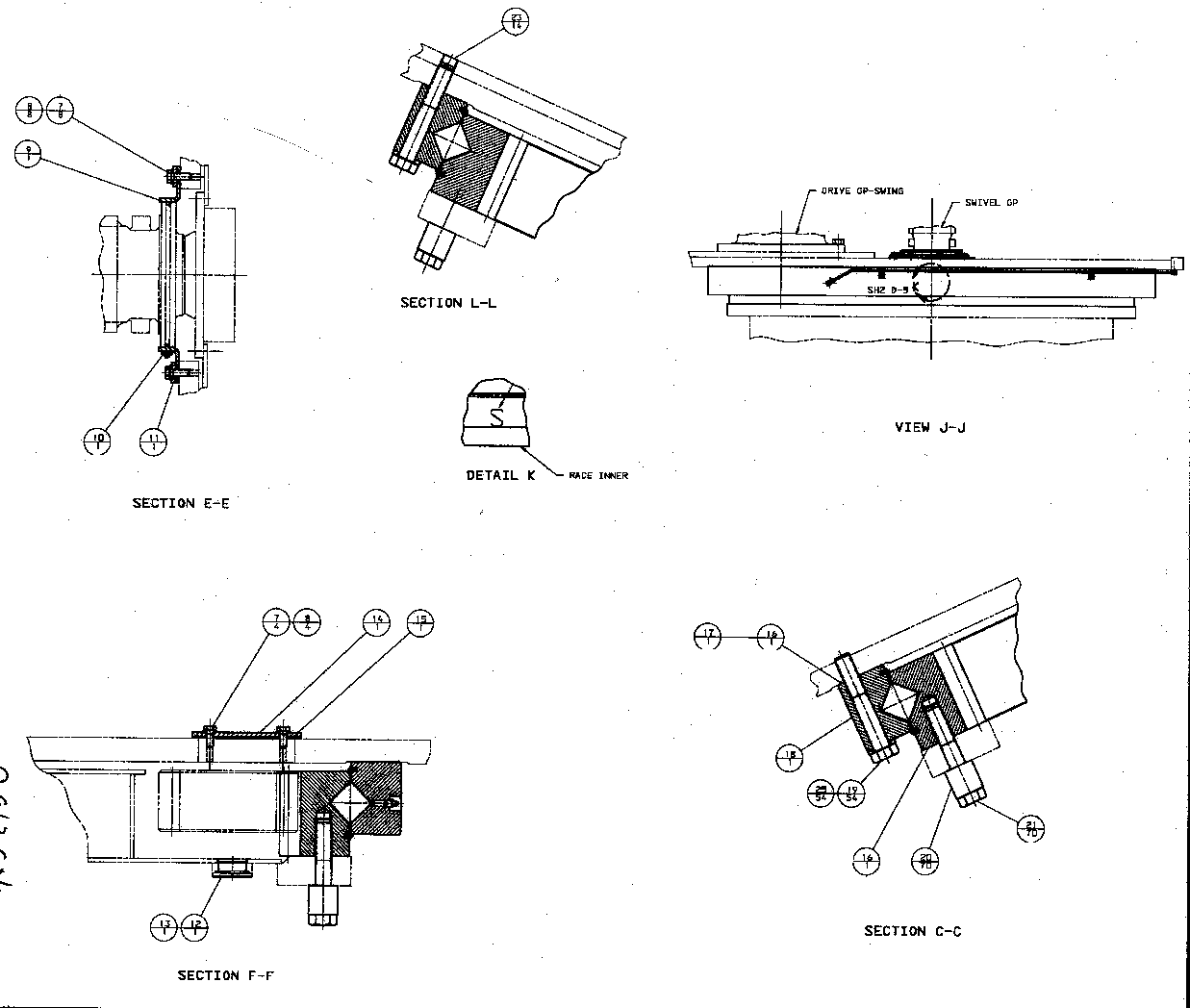

1695536 GEAR & BEARING GP-SWINGPART OF 2182959-LOWER ARRANGEMENT
Group No: 1695536
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5K9243 | 1 ELBOW-FLARED | 4 | |
| 7Y1095 | 2 DOWEL | 1 | |
| 1141396 | 3 TUBE AS-RH | 1 | |
| 3B8489 | 4 FITTING-GREASE | 2 | |
| 8T4199 | 5 BOLT (M8X1.25X12MM) | 4 | |
| 4N9170 | 6 CLIP | 4 | |
| 8T4136 | 7 BOLT (M10X1.5X25MM) | 12 | |
| 8T4121 | 8 WASHER-HARD (11X21X2.5MM THK) | 12 | |
| 7Y1649 | 9 BOOT | 1 | |
| 5P0600 | 10 CLAMP-HOSE | 1 | |
| 0930543 | 11 RETAINER | 1 | |
| 0966095 | 12 PLUG | 1 | |
| 0951608 | 13 SEAL-O-RING | 1 | |
| 7Y1648 | 14 STRIP | 1 | |
| 7Y1647 | 15 GASKET | 1 | |
| 8C8422 | 16 SEALANT-GASKET (ml) | 122 | |
| 1695537 | 18 GEAR & BEARING GP-SWING | 1 | |
| 1416373 | 19 BOLT (M24) | 54 | |
| 7Y1507 | 20 SPACER | 70 | |
| 1121532 | 21 BOLT (M24X3.0X140MM) | 70 | |
| 1141397 | 22 TUBE AS-LH | 1 | |
| 6I6441 | 23 CORK | 14 | |
| 1484573 | 24 PLUG | 1 | |
| 0930020 | 25 SPACER | 54 |
