System And Components

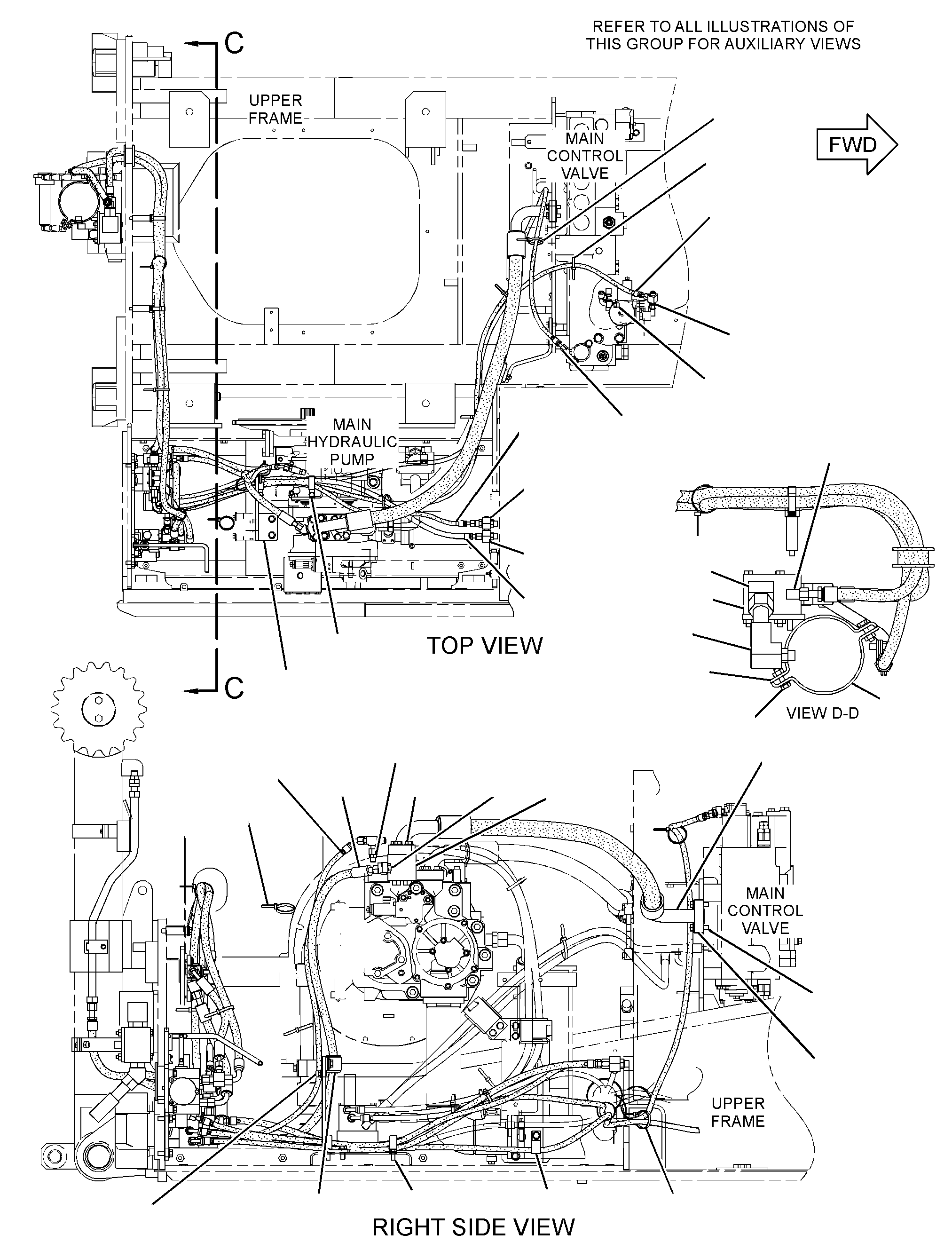

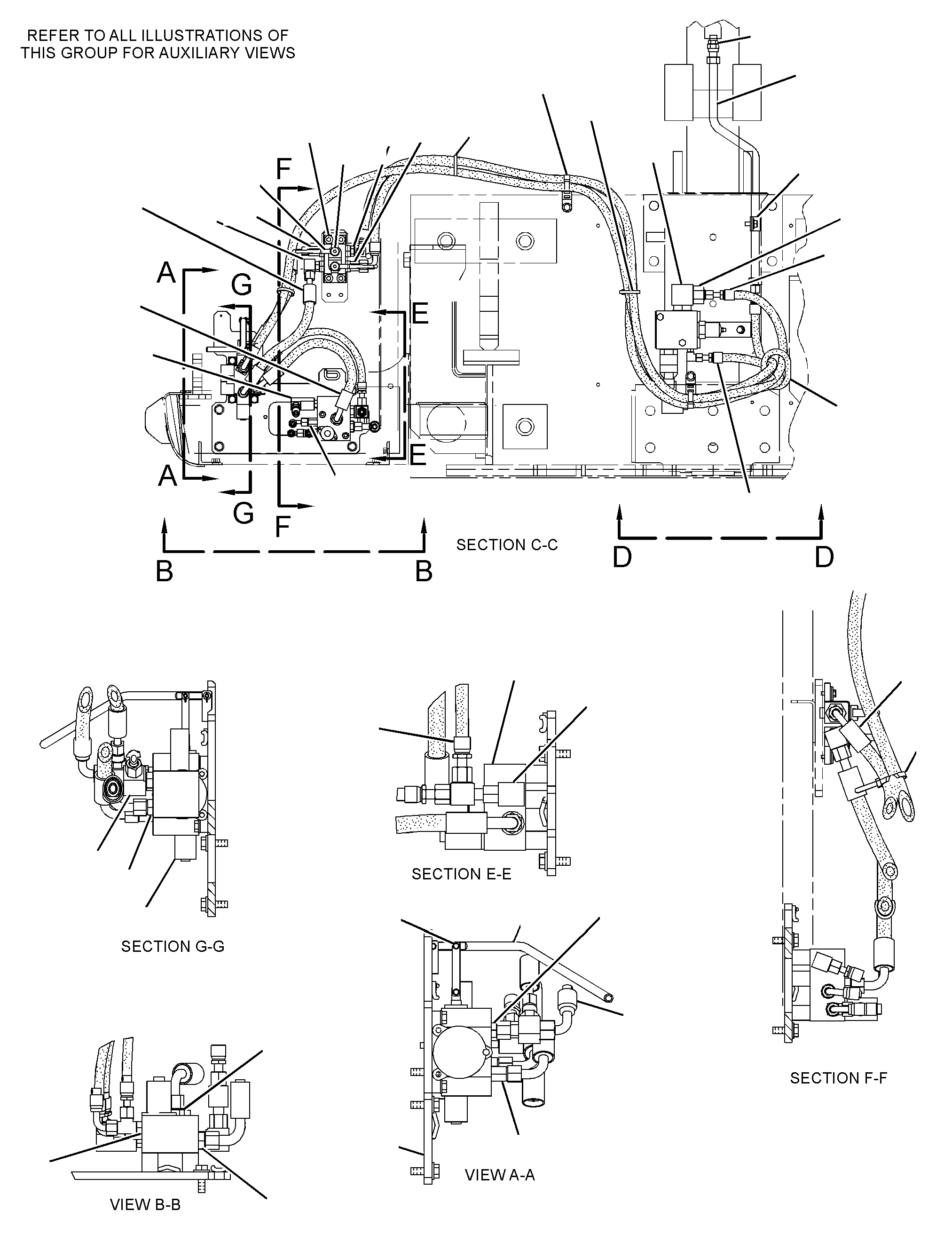

227-0459 LINES GP-REAR ATTACHMENTS/N ESD1-UP; TDG1-UP; PJW1-UP
Group No: 227-0459
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I6188 | 1 VALVE AS-MANUAL (COUNTERWEIGHT) | 2 | |
| 1347113 | HANDLE | 1 | |
| 1347114 | BOLT-SPECIAL | 1 | |
| 1347115 | PLATE | 1 | |
| 1950090 | PLATE | 1 | |
| 4I9521 | 2 BAND-MARKER (RED, L1) | 2 | |
| 4I9522 | 3 BAND-MARKER (YELLOW, L2) | 2 | |
| 4I9523 | 4 BAND-MARKER (BLUE, L3) | 2 | |
| 4I9524 | 5 BAND-MARKER (BROWN, L4) | 2 | |
| 4I9525 | 6 BAND-MARKER (ORANGE, R1) | 2 | |
| 4I9526 | 7 BAND-MARKER (WHITE, R2) | 2 | |
| 4I9527 | 8 BAND-MARKER (GREEN, R3) | 2 | |
| 4I9528 | 9 BAND-MARKER (PURPLE, R4) | 2 | |
| 5I4076 | 10 HOSE AS | 1 | |
| 5P5148 | 11 STRAP-CABLE | 2 | |
| 7I0970 | 12 SUPPORT | 2 | |
| 7I0972 | 13 BAR | 2 | |
| 7K1181 | 14 STRAP-CABLE | 10 | |
| 7Y8165 | 15 GROMMET | 1 | |
| 0874962 | 16 LINK | 1 | |
| 0875087 | 17 VALVE GP-CHECK (PILOT OPERATED) | 1 | |
| 1053483 | 18 BOLT-SOCKET HEAD (M10X1.5X70-MM) | 3 | |
| 1232514 | 19 VALVE GP-PILOT (COUNTERWEIGHT) | 1 | |
| 1232515 | 20 VALVE GP-COUNTERWEIGHT CONTROL | 1 | |
| 1232549 | 21 VALVE GP-SHUTTLE (PUMP) | 1 | |
| 1319522 | 22 SUPPORT AS | 1 | |
| 1319537 | 23 HANDLE | 1 | |
| 1335733 | 24 HOSE AS | 1 | |
| 1335813 | 25 BAND-MARKER (GRAY, P) | 2 | |
| 1346898 | 26 HOSE AS | 1 | |
| 1346904 | 27 HOSE AS | 1 | |
| 1346963 | 28 HOSE AS | 1 | |
| 1346964 | 29 HOSE AS | 1 | |
| 1346966 | 30 SUPPORT AS | 1 | |
| 1346967 | 31 HOSE AS | 1 | |
| 1742250 | 32 COUPLING AS | 1 | |
| 1434262 | COUPLING | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 1797616 | 33 HOSE AS | 1 | |
| 2125424 | 34 HOSE AS | 1 | |
| 2362841 | 35 HOSE AS | 1 | |
| 2362849 | 36 HOSE AS | 1 | |
| 2362851 | 37 HOSE AS | 1 | |
| 2363022 | 38 HOSE AS | 1 | |
| 2363024 | 39 BLOCK | 1 | |
| 2363050 | 40 SUPPORT AS | 1 | |
| 2608080 | 41 HOSE AS | 1 | |
| 2700032 | 42 PLATE | 1 | |
| 2751819 | 43 TUBE AS | 1 | |
| 0919035 | 44 SPACER (11X25X20-MM THK) | 1 | |
| 0950840 | 45 PIN-COTTER | 3 | |
| 0951310 | 46 PIN-CLEVIS | 3 | |
| 1488336 | 47 CONNECTOR AS | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488338 | 48 CONNECTOR AS | 1 | |
| 8T0075 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488340 | 49 CONNECTOR AS | 2 | |
| 6V8639 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488345 | 50 CONNECTOR AS | 3 | |
| 6V8638 | CONNECTOR | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488354 | 51 ELBOW AS | 1 | |
| 6V9002 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488361 | 52 ELBOW AS (90-DEG) | 1 | |
| 6V9200 | ELBOW | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488364 | 53 ELBOW AS | 1 | |
| 6V8625 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488372 | 54 ELBOW AS | 2 | |
| 6V8721 | ELBOW | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488374 | 55 ELBOW AS | 1 | |
| 6V8723 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488391 | 56 ELBOW AS | 1 | |
| 8T8987 | ELBOW | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488407 | 57 PLUG AS | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1488412 | 58 REDUCER AS | 1 | |
| 6V8944 | REDUCER | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488415 | 59 REDUCER AS | 2 | |
| 6V8936 | REDUCER | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488428 | 60 TEE AS | 2 | |
| 6V8782 | TEE | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1488433 | 61 TEE AS | 1 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1488435 | 62 TEE AS | 1 | |
| 6V8781 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1488444 | 63 TEE AS-SWIVEL | 2 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1503036 | 64 ELBOW AS | 1 | |
| 8T1905 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1645605 | 65 CONNECTOR AS | 1 | |
| 8T0076 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1645608 | 66 CONNECTOR AS | 2 | |
| 8T1687 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1645662 | 67 ELBOW AS | 1 | |
| 1434281 | ELBOW | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1P3704 | 68 SEAL-RECTANGULAR | 2 | |
| 1P3705 | 69 SEAL-RECTANGULAR | 1 | |
| 1P5767 | 70 FLANGE-HALF | 4 | |
| 4K8864 | 71 CLIP (LOOP) | 1 | |
| 4P7582 | 72 CLIP (LADDER) | 2 | |
| 5K8451 | 73 CLIP (LOOP) | 1 | |
| 5P2369 | 74 CLIP (LOOP) | 2 | |
| 5P7460 | 75 CLIP (SLOT) | 1 | |
| 5P7461 | 76 CLIP (TAB) | 1 | |
| 5P7464 | 77 CLIP (SLOT) | 1 | |
| 5P7465 | 78 CLIP (TAB) | 1 | |
| 6V8397 | 79 SEAL-O-RING | 2 | |
| 6V8398 | 80 SEAL-O-RING | 1 | |
| 7X7729 | 81 WASHER (11X25X3-MM THK) | 2 | |
| 8B6561 | 82 SPACER (5.56X22.22X55.58-MM THK) | 2 | |
| 8T2920 | 83 GROMMET (27-MM ID) | 1 | |
| 8T4121 | 84 WASHER-HARD (11X21X2.5-MM THK) | 9 | |
| 8T4136 | 85 BOLT (M10X1.5X25-MM) | 5 | |
| 8T4138 | 86 BOLT (M6X1X20-MM) | 4 | |
| 8T4139 | 87 BOLT (M12X1.75X30-MM) | 2 | |
| 8T4172 | 88 BOLT (M10X1.5X80-MM) | 2 | |
| 8T4179 | 89 BOLT (M12X1.75X20-MM) | 1 | |
| 8T4184 | 90 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4191 | 91 BOLT (M10X1.5X16-MM) | 1 | |
| 8T4192 | 92 BOLT (M12X1.75X25-MM) | 1 | |
| 8T4196 | 93 BOLT (M10X1.5X35-MM) | 3 | |
| 8T4198 | 94 BOLT (M10X1.5X100-MM) | 2 | |
| 8T4223 | 95 WASHER-HARD (13.5X25.5X3-MM THK) | 16 | |
| 8T4956 | 96 BOLT (M12X1.75X35-MM) | 4 | |
| 8T5041 | 97 BOLT (M12X1.75X120-MM) | 4 | |
| 9X6165 | 98 WASHER (6.5X22X2.5-MM THK) | 4 | |
| 9X6579 | 99 NUT-ORIFICE (7/16-12-THD) | 1 | |
| 9X8256 | 100 WASHER (6.6X12X2-MM THK) | 3 |
