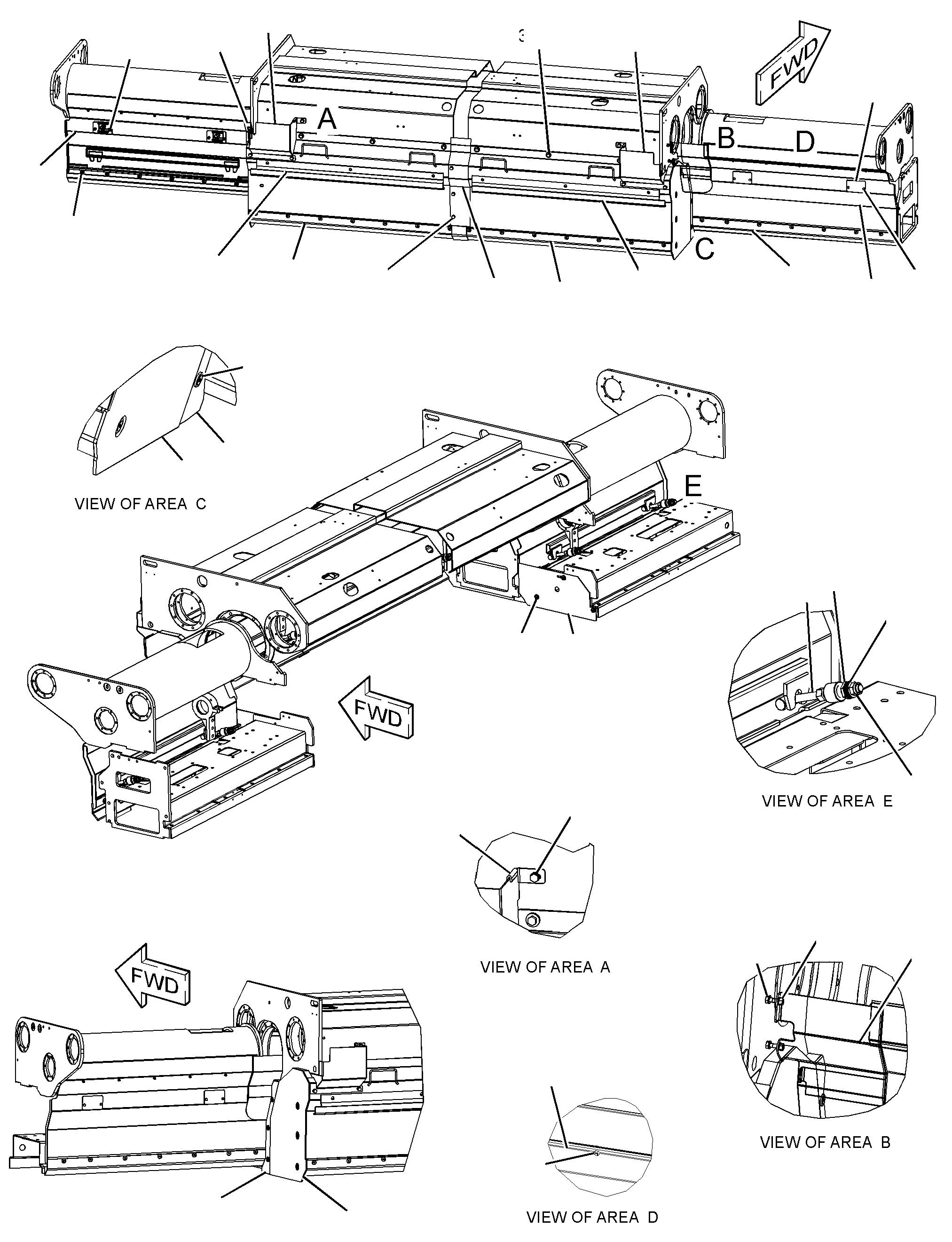

250-3366 DEFLECTOR GPPART OF 240-8839 SCREED AR

Group No: 250-3366
Part NumberPart NameQty
24227161 RETAINER8
24228052 WASHER-SPRING64
24228663 BOLT-HOLLOW (M27X2X50-MM)8
25108424 PLATE2
25752925 PLATE AS (RH)1
25752936 PLATE AS (LH)1
25752947 DEFLECTOR AS (REAR, RH)1
25752958 DEFLECTOR AS (REAR, LH)1
25752969 DEFLECTOR AS (FRONT, RH)1
257529710 DEFLECTOR AS (FRONT, LH)1
257529811 BLADE AS (RH)1
257529912 PLATE1
258717313 COVER AS (RH)(RH)1
258717414 COVER AS (LH)(LH)1
258717715 BLADE (LH)(LH)1
258717816 BLADE (RH)(RH)2
269513817 WASHER (13X24X3-MM THK)18
273203618 COVER-ACCESS4
273204119 COVER AS (SLIDING, LH)1
273204220 COVER AS (SLIDING, RH)1
273204321 SCRAPER (LH)1
273204422 SCRAPER (RH)1
276562023 SPACER (1095X105X2-MM THK)2
276562124 WASHER (10.5X21X2-MM THK)10
096488525 LOCKNUT (M16X2-THD)8
157094926 SCREW-FLAT HEAD (M10X1.5X25-MM)28
5C289027 NUT (M6X1-THD)10
5C726128 NUT (M8X1.25-THD)4
5C955329 BOLT (M6X1X16-MM)8
6R765330 SCREW (M6X1X15-MM)10
8C750531 SCREW-FLAT HEAD (M8X1.25X20-MM)18
8M714532 WASHER (10.2X28.5X5-MM THK)6
8T038933 LOCKNUT (M10X1.5-THD)28
8T412134 WASHER-HARD (11X21X2.5-MM THK)28
8T413735 BOLT (M10X1.5X20-MM)19
8T422436 WASHER-HARD (8.8X16X2-MM THK)8
8T489637 WASHER-HARD (10.2X18.5X2.5-MM THK)13
8T754738 BOLT (M8X1.25X30-MM)4
258464839 SEAL (30-CM EACH)
