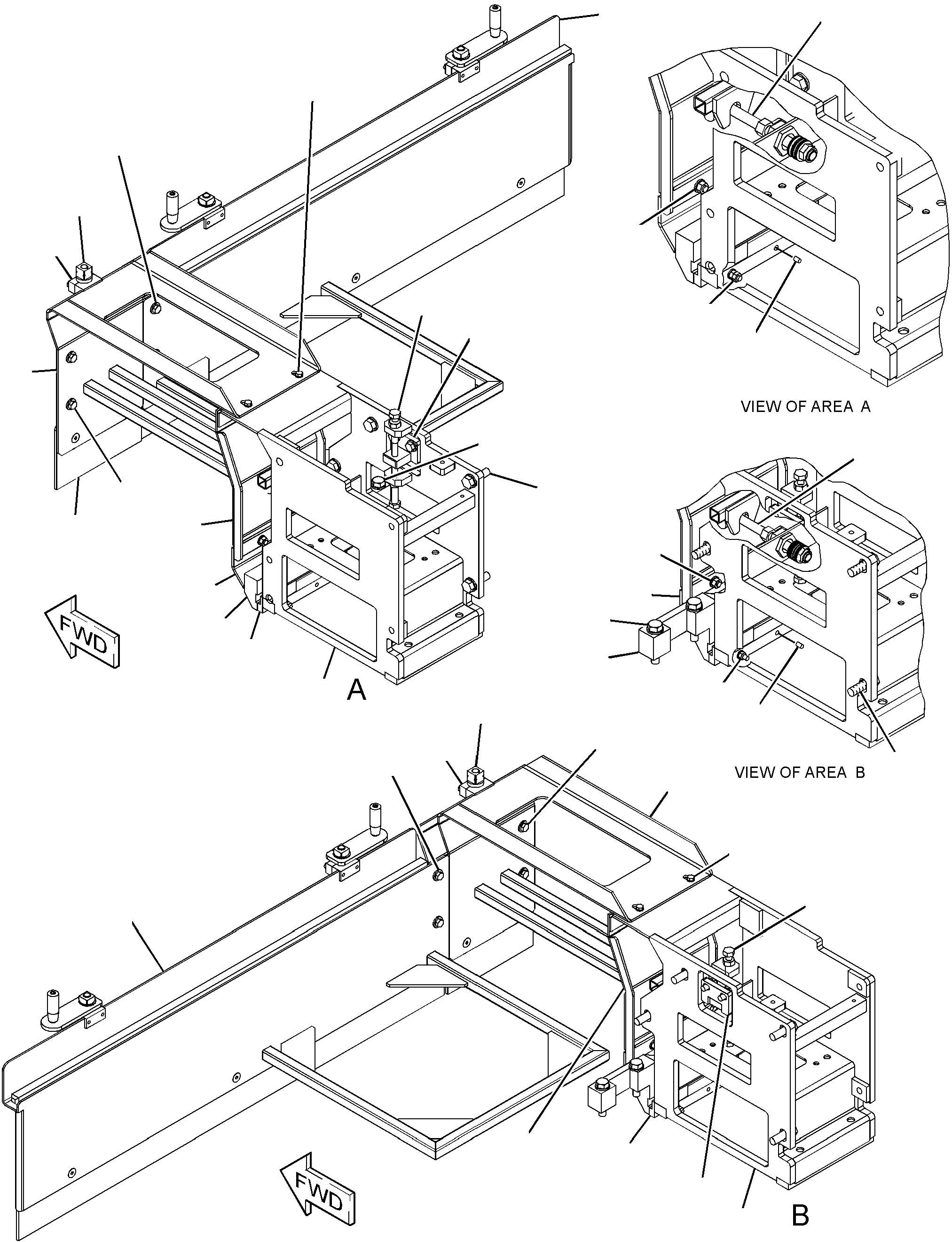

299-7236 EXTENSION GP-MAIN FRAMES/N MAN1-UP

Group No: 299-7236
Part NumberPart NameQty
09648761 NUT (M14X2-THD)4
16271812 BOLT (M16X2X75-MM)4
19471833 NUT (M8X1.25-THD)8
24227164 RETAINER2
8T4132NUT (M16X2-THD)1
24228055 WASHER-SPRING16
24228666 BOLT-HOLLOW (M27X2X50-MM)2
24596847 SUPPORT2
25090858 FRAME AS (RH)1
25090869 FRAME AS (LH)1
251142410 PROTECTION AS2
315369011 PLATE AS (RH)(RH)1
315369112 PLATE AS (LH)(LH)1
251142713 PLATE (LH)2
312504914 PLATE AS (RH)2
251143115 BLADE2
251143516 PROTECTION GP-FUEL SYSTEM (RH)1
251143717 PROTECTION GP-FUEL SYSTEM (LH)1
310983118 CLAMP2
096488519 LOCKNUT (M16X2-THD)2
114335020 SCREW-FLAT HEAD (M8X1.25X60-MM)4
157094921 SCREW-FLAT HEAD (M10X1.5X25-MM)4
310982122 BUSHING2
7X243823 DOWEL2
8T029824 BOLT (M14X2X100-MM)4
8T412125 WASHER-HARD (11X21X2.5-MM THK)4
310981726 PLATE GP-SCREED (LH)1
8T413327 NUT (M10X1.5-THD)4
8T419228 BOLT (M12X1.75X25-MM)4
8T419329 BOLT (M16X2X50-MM)8
8T422330 WASHER-HARD (13.5X25.5X3-MM THK)4
8T422431 WASHER-HARD (8.8X16X2-MM THK)12
8T490832 BOLT (M8X1.25X25-MM)8
9X825733 WASHER (17.5X30X3.5-MM THK)12
8T419534 BOLT (M10X1.5X30-MM)4
8T413635 BOLT (M10X1.5X25-MM)4
7X772936 WASHER (11X25X3-MM THK)20
8T038937 LOCKNUT (M10X1.5-THD)12
8T754738 BOLT (M8X1.25X30-MM)4
310981639 PLATE GP-SCREED (RH)1
