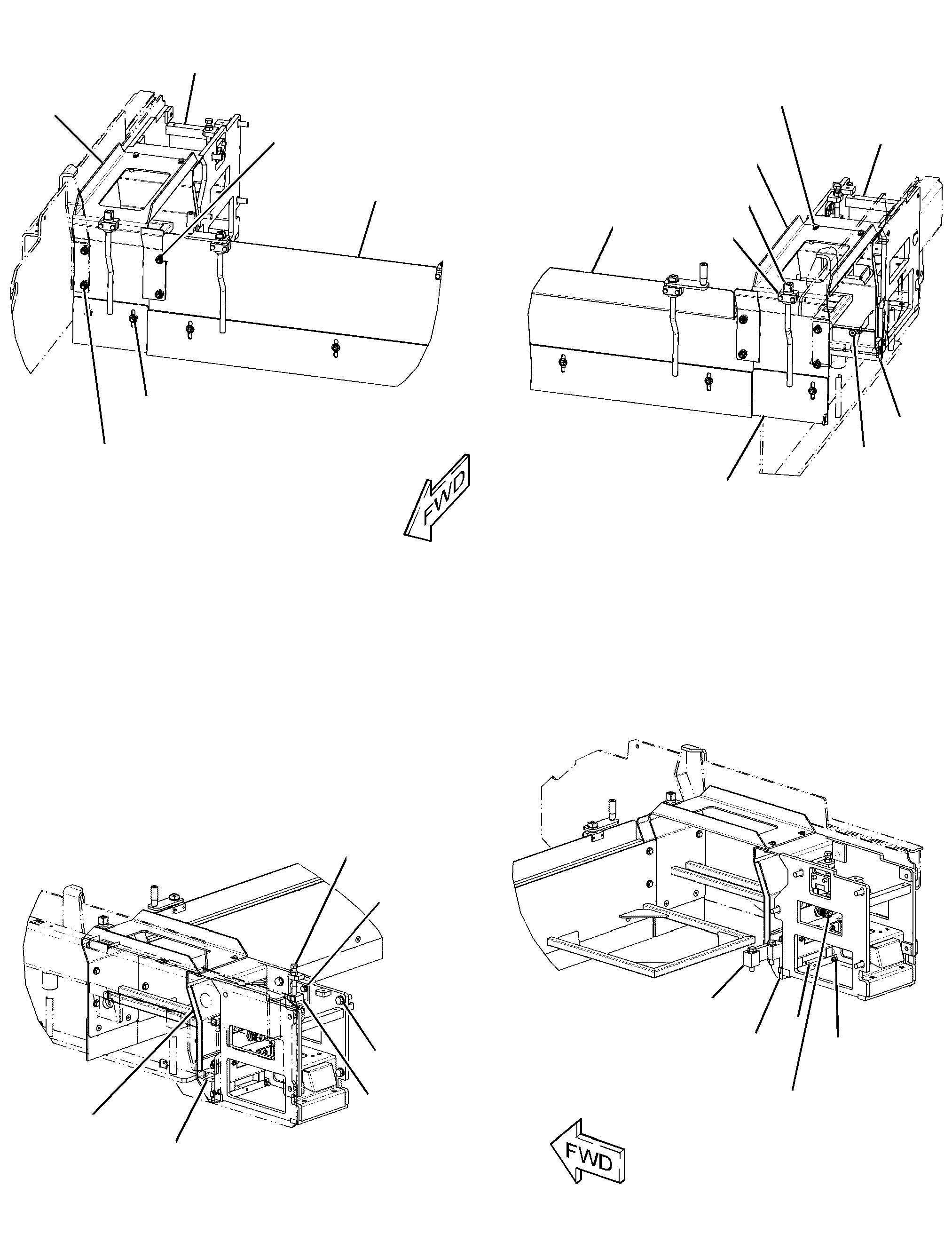

339-1628 EXTENSION GP-MAIN FRAMES/N MAN1-UP

Group No: 339-1628
Part NumberPart NameQty
8T41321 NUT (M16X2-THD)4
16271812 BOLT (M16X2X75-MM)4
19471833 NUT (M8X1.25-THD)8
24227164 RETAINER2
8T4132NUT (M16X2-THD)1
24228055 WASHER-SPRING16
24228666 BOLT-HOLLOW (M27X2X50-MM)2
24596847 SUPPORT2
25114248 PROTECTION AS2
25114279 PLATE2
251143110 BLADE2
251143511 PROTECTION GP-FUEL SYSTEM (RH)1
251143712 PROTECTION GP-FUEL SYSTEM (LH)1
310981613 PLATE GP-SCREED (RH)1
310981714 PLATE GP-SCREED (LH)1
310982115 BUSHING2
310983116 CLAMP2
312504917 PLATE AS2
315369018 PLATE AS (RH)1
315369119 PLATE AS (LH)1
339162520 FRAME AS (LH)1
339162621 FRAME AS (RH)1
096488522 LOCKNUT (M16X2-THD)2
114335023 SCREW-FLAT HEAD (M8X1.25X60-MM)4
157094924 SCREW-FLAT HEAD (M10X1.5X25-MM)4
7X243825 DOWEL2
7X772926 WASHER (11X25X3-MM THK)20
136418227 BOLT (M16X2X100-MM)4
8T038928 LOCKNUT (M10X1.5-THD)12
8T412129 WASHER-HARD (11X21X2.5-MM THK)4
8T413330 NUT (M10X1.5-THD)4
8T413631 BOLT (M10X1.5X25-MM)4
8T419232 BOLT (M12X1.75X25-MM)4
8T419333 BOLT (M16X2X50-MM)8
8T419534 BOLT (M10X1.5X30-MM)4
8T422335 WASHER-HARD (13.5X25.5X3-MM THK)4
8T422436 WASHER-HARD (8.8X16X2-MM THK)12
8T490837 BOLT (M8X1.25X25-MM)8
8T754738 BOLT (M8X1.25X30-MM)4
9X825739 WASHER (17.5X30X3.5-MM THK)12
