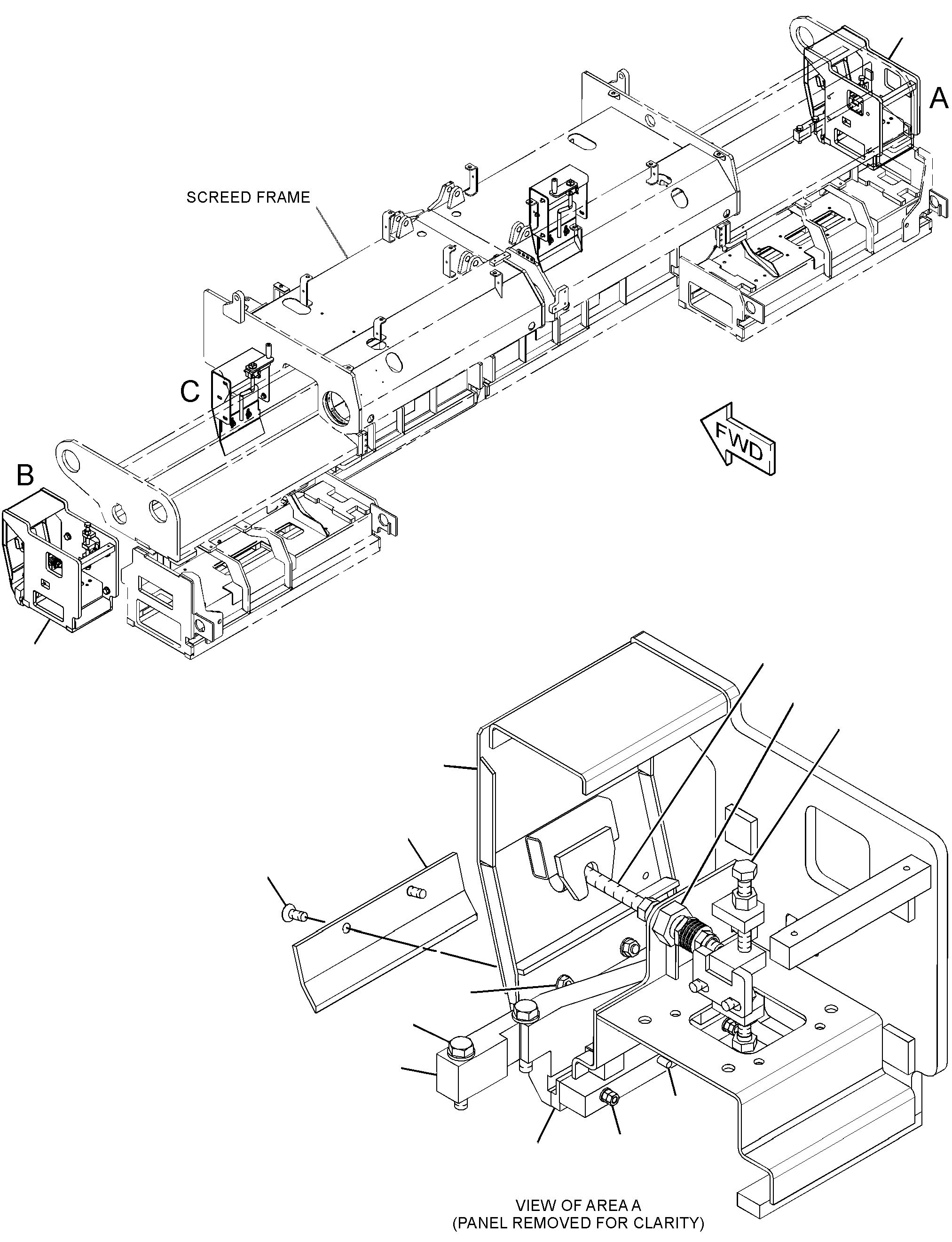

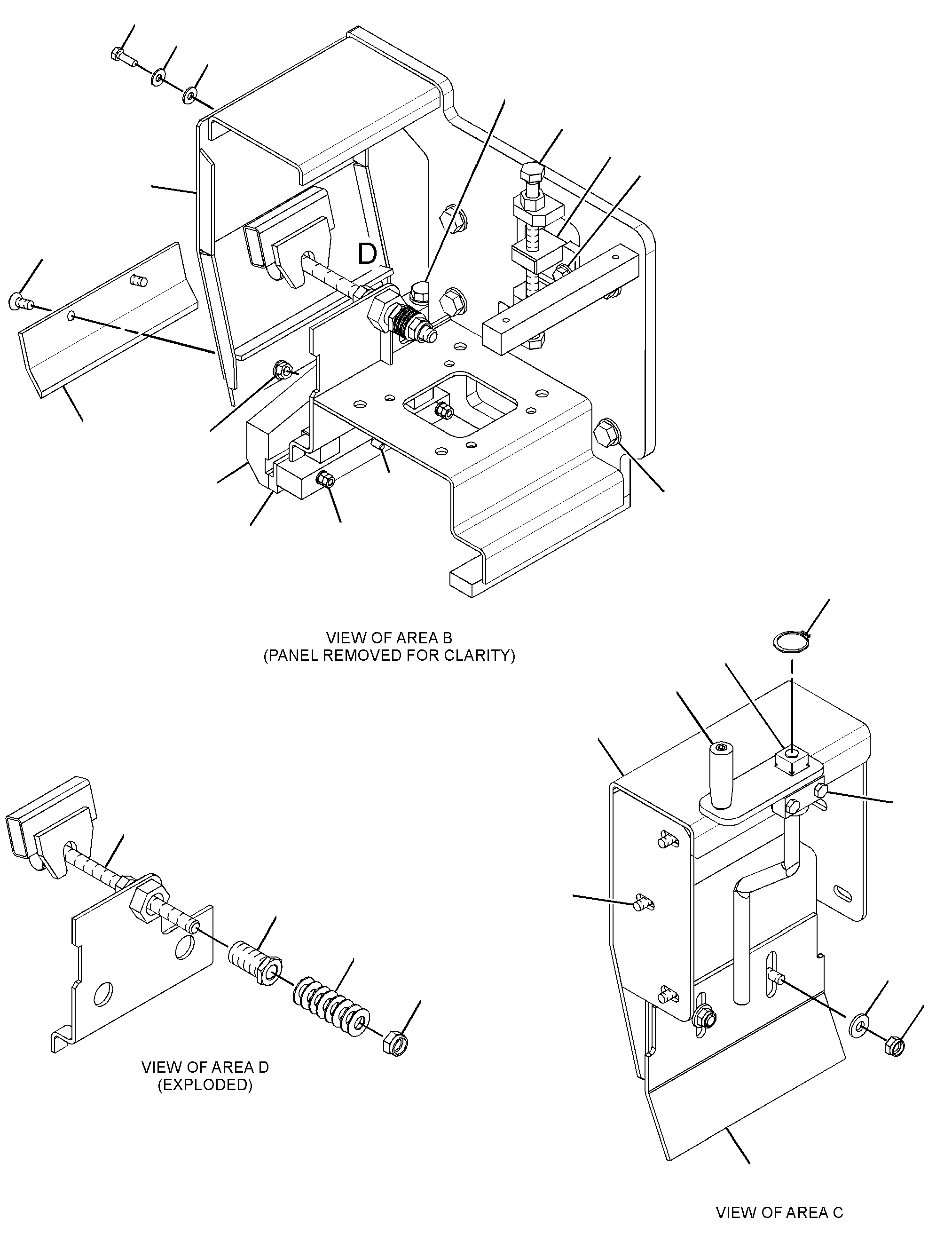

291-8020 EXTENSION GP-SCREED -5.5-MS/N GNN1-UP

Group No: 291-8020
Part NumberPart NameQty
16271811 BOLT (M16X2X75-MM)4
24228052 WASHER-SPRING16
24228663 BOLT-HOLLOW (M27X2X50-MM)2
24596844 SUPPORT2
25114315 BLADE2
28283316 FRAME AS (LH)1
28283327 PLATE AS2
28283338 BLADE2
28283349 BLADE1
282833710 BLADE1
282833911 GATE AS2
282834012 COVER AS2
282834313 FRAME AS (RH)1
282834514 ROD AS-PULL2
310982115 BUSHING2
310982916 HANDLE AS2
2422804HANDLE1
3153713LEVER1
310983117 CLAMP2
095092218 RING-RETAINING2
096488519 LOCKNUT (M16X2-THD)2
114335020 SCREW-FLAT HEAD (M8X1.25X60-MM)4
136418221 BOLT (M16X2X100-MM)4
157094922 SCREW-FLAT HEAD (M10X1.5X25-MM)4
194718323 NUT (M8X1.25-THD)8
5P411624 WASHER-HARD (8.8X20.5X2-MM THK)8
7X243825 DOWEL2
7X255326 BOLT (M16X2X40-MM)8
7X772927 WASHER (11X25X3-MM THK)10
8T038928 LOCKNUT (M10X1.5-THD)4
8T412129 WASHER-HARD (11X21X2.5-MM THK)4
8T412230 WASHER-HARD (17X32X3.5-MM THK)8
8T413231 NUT (M16X2-THD)4
8T413332 NUT (M10X1.5-THD)4
8T413733 BOLT (M10X1.5X20-MM)6
8T413934 BOLT (M12X1.75X30-MM)4
8T422335 WASHER-HARD (13.5X25.5X3-MM THK)4
8T422436 WASHER-HARD (8.8X16X2-MM THK)4
8T490837 BOLT (M8X1.25X25-MM)4
8T754738 BOLT (M8X1.25X30-MM)4
9X825739 WASHER (17.5X30X3.5-MM THK)4
