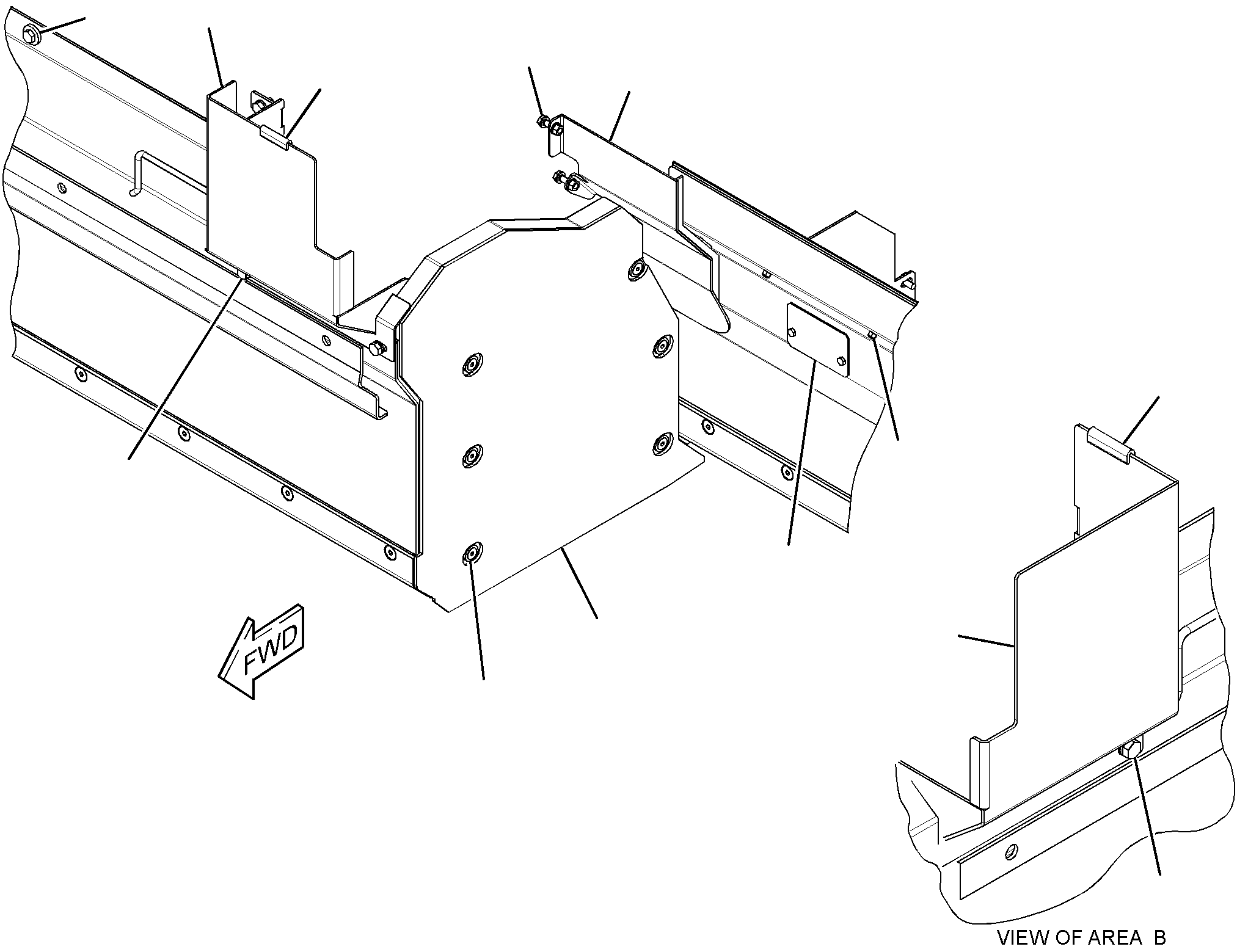

250-3366 DEFLECTOR GPS/N TFM1-UP

Group No: 250-3366
Part NumberPart NameQty
19787841 LOCKNUT (M10X1.5-THD)28
24227162 RETAINER8
24228053 WASHER-SPRING64
24228664 BOLT-HOLLOW (M27X2X50-MM)8
25108425 PLATE2
25752946 DEFLECTOR AS (REAR, RH)1
25752957 DEFLECTOR AS (REAR, LH)1
25752968 DEFLECTOR AS (FRONT, RH)1
25752979 DEFLECTOR AS (FRONT, LH)1
257529810 BLADE AS (RH)1
257529911 PLATE1
425195212 COVER AS (RH)1
425195313 COVER AS (LH)1
258717714 BLADE (LH)1
258717815 BLADE (RH)2
269513816 WASHER (13X24X3-MM THK)18
273203617 COVER-ACCESS4
273204118 COVER AS (SLIDING, LH)1
273204219 COVER AS (SLIDING, RH)1
276562020 SPACER (1095X105X2-MM THK)2
258464821 SEAL (22.5-CM EACH)
332789822 PLATE AS (RH)1
332789923 PLATE AS (LH)1
335060224 SUPPORT (LH)1
335060325 SUPPORT (RH)1
096488526 LOCKNUT (M16X2-THD)8
157094927 SCREW-FLAT HEAD (M10X1.5X25-MM)28
5C289028 NUT (M6X1-THD)10
5C726129 NUT (M8X1.25-THD)4
5C955330 BOLT (M6X1X16-MM)8
6R765331 SCREW (M6X1X15-MM)10
8C750532 SCREW-FLAT HEAD (M8X1.25X20-MM)18
8M714533 WASHER (10.2X28.5X5-MM THK)6
8T412134 WASHER-HARD (11X21X2.5-MM THK)38
8T413735 BOLT (M10X1.5X20-MM)19
8T422436 WASHER-HARD (8.8X16X2-MM THK)8
8T489637 WASHER-HARD (10.2X18.5X2.5-MM THK)13
8T754738 BOLT (M8X1.25X30-MM)4
