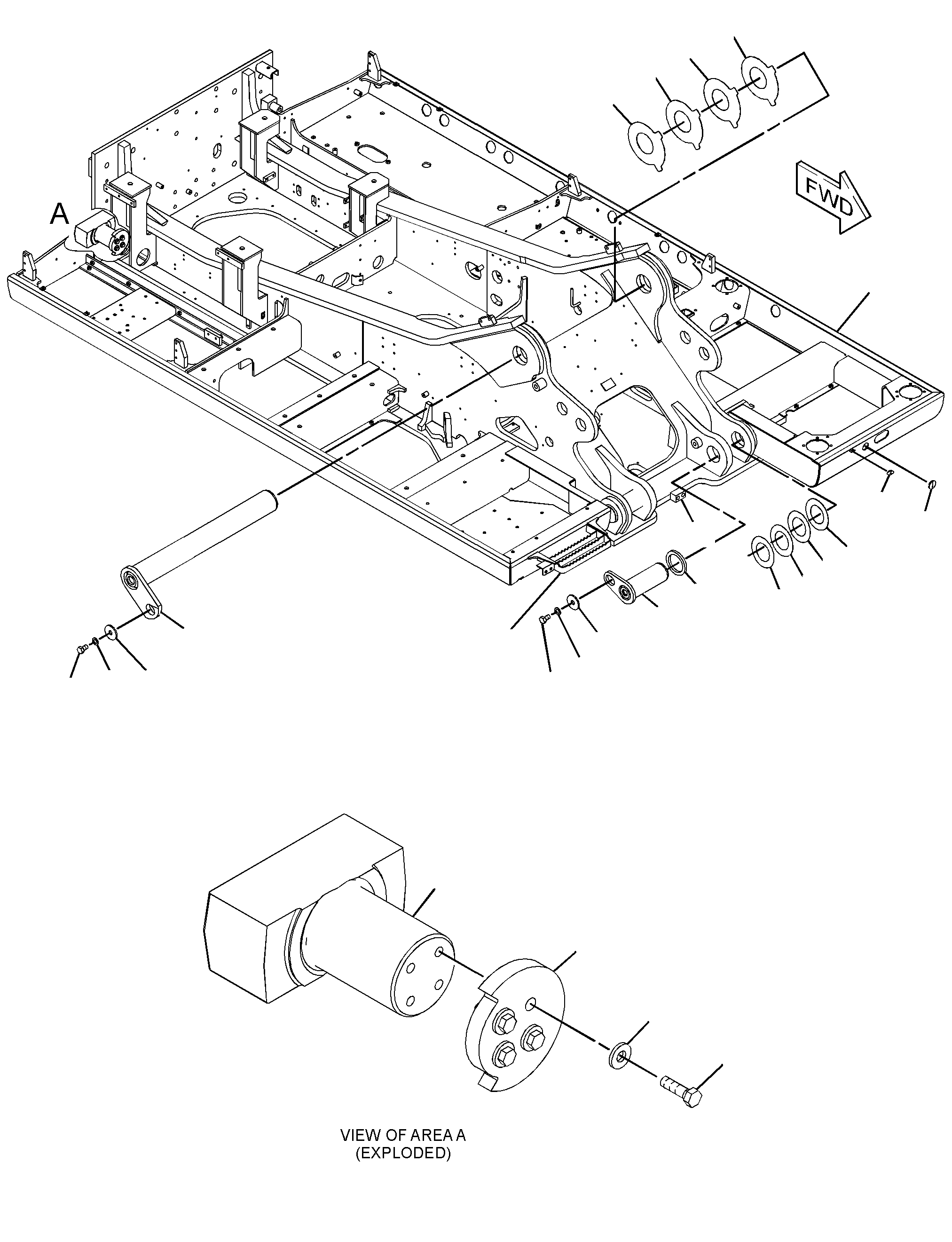

290-9039 FRAME GP-UPPERS/N NEG1-UP

Group No: 290-9039
Part NumberPart NameQty
4I05751 SHIM (1-MM THK)4
4I05772 SHIM (2-MM THK)2
4I25093 PLATE-END2
4I49964 PIN AS2
12663675 SUPPORT2
13324286 SHIM (0.5-MM THK)2
20127717 WASHER (26X90X8-MM THK)3
23439428 PIN AS1
24579009 CAP1
245790110 CAP1
290904011 FRAME AS-UPPER1
7Y111311A BOSS1
248176811B STEP AS1
308877212 SHIM (0.5-MM THK)1
308877313 SHIM (1-MM THK)2
308877414 SHIM (2-MM THK)1
4I112915 SPACER (113X150X14-MM THK)2
5P107616 WASHER-HARD (13.5X30X4-MM THK)8
7X257317 BOLT (M24X3X40-MM)3
8T416718 WASHER-HARD (26X44X4-MM THK)3
8T418319 BOLT (M12X1.75X40-MM)8
1780852PLATE-SKIRT (1100-MM)1
1845724PLATE-SKIRT (2000-MM)1
