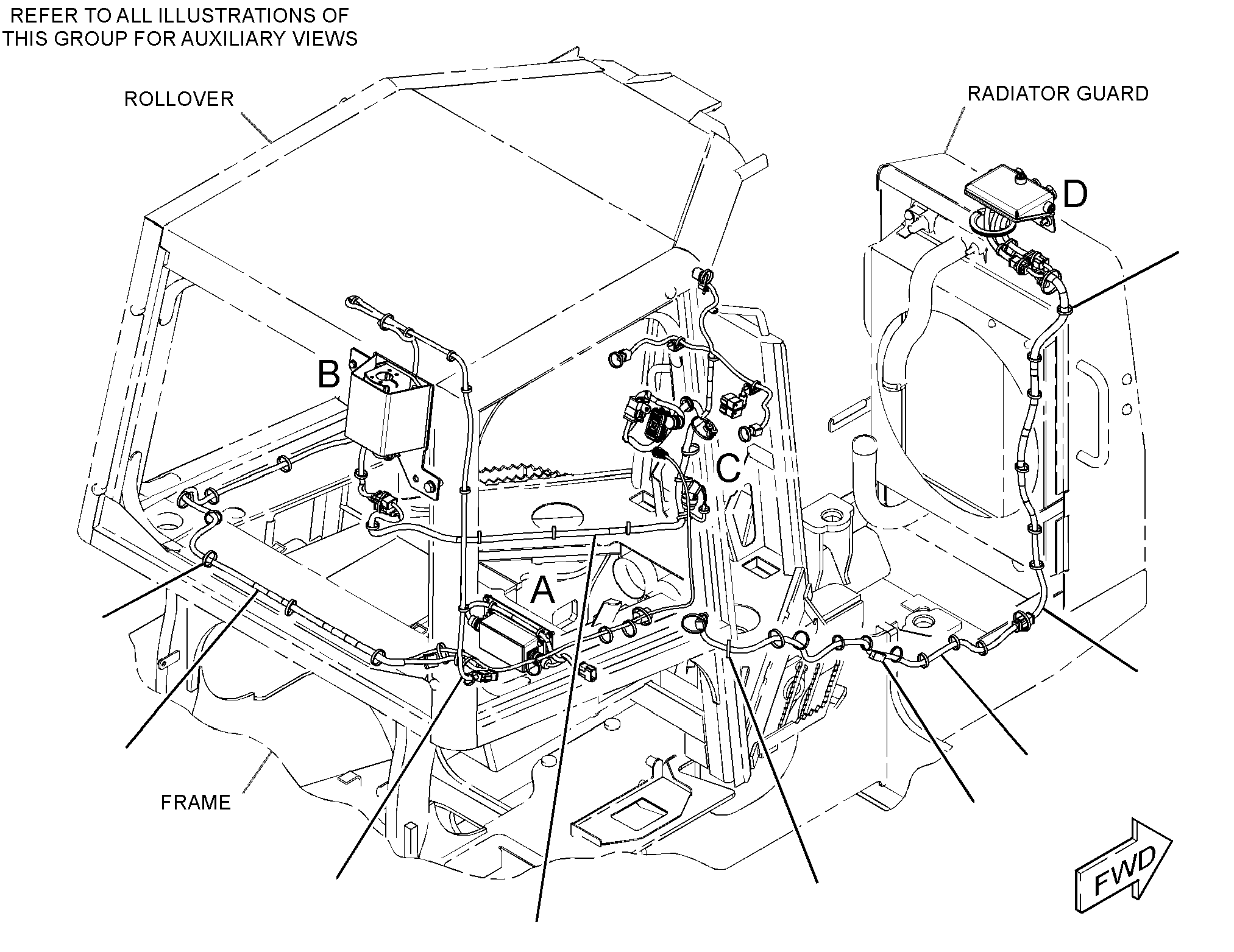

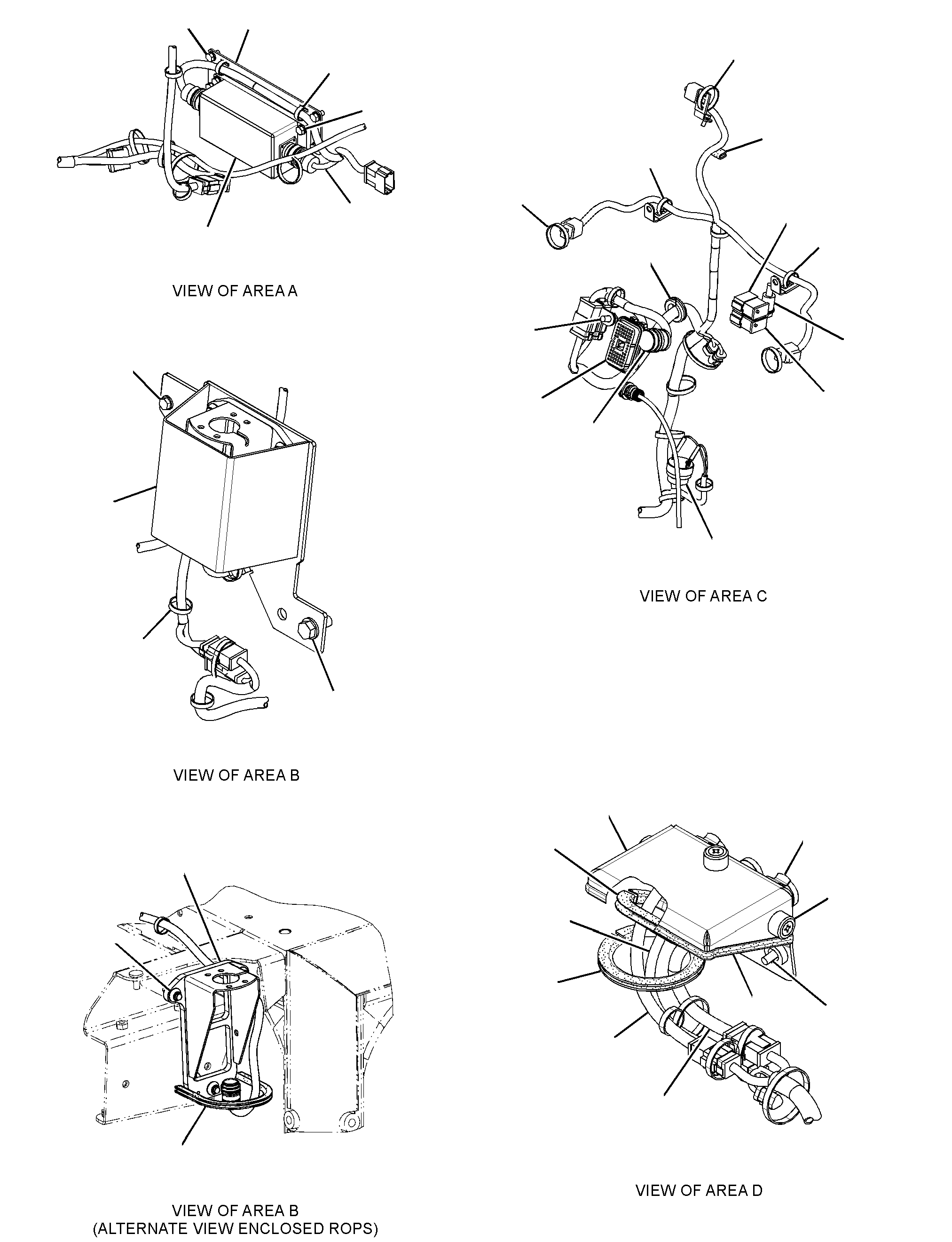

245-6029 WIRING GP-GRADE CONTROL -FULLS/N JLF171-UP; WWW158-UP; YYY164-UP

Group No: 245-6029
Part NumberPart NameQty
7K11811 STRAP-CABLE65
8C56072 MOUNT-ISOLATION6
8C56083 SPACER (6.5X9.5X25.4-MM THK)3
8T87374 PLUG-SEAL24
13053005 CLIP4
13284876 NUT-RING3
16787127 ALARM1
19076158 KIT-RECEPTACLE (12-PIN)1
22691699 MODULE AS-POWER SUPPLY1
236882610 BOSS (1-1/8-18X0.708-IN)3
249903011 HARNESS AS-WIRING (POWER SUPPLY MODULE)1
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)7
3R9965PLUG AS-CONNECTOR (8-PIN)1
6D5257PLUG AS-CONNECTOR (8-PIN)1
8T8737PLUG-SEAL5
1028801KIT-RECEPTACLE (12-PIN)1
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
249903112 HARNESS AS-FRONT (GRADE CONTROL)1
1552265KIT-CONNECTING PLUG (8-PIN)2
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)8
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)8
249903213 HARNESS AS-HOOD (GRADE CONTROL)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)4
8T8729PIN-CONNECTOR (16-GA TO 20-GA)4
9W0852PIN-CONNECTOR (14-GA TO 16-GA)9
1552265KIT-CONNECTING PLUG (8-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)2
1552271KIT-CONNECTING PLUG (4-PIN)1
8T8737PLUG-SEAL9
1028804KIT-RECEPTACLE (4-PIN)1
1028806KIT-RECEPTACLE (8-PIN)1
1028801KIT-RECEPTACLE (12-PIN)1
1342540RECEPTACLE AS-CONNECTOR (3-PIN)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)10
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)6
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(60-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(60-CM)
249903314 HARNESS AS-CONSOLE (GRADE CONTROL)1
8C6354CAP-RECEPTACLE (ET CONNECTOR)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)10
8T8729PIN-CONNECTOR (16-GA TO 20-GA)10
9W0852PIN-CONNECTOR (14-GA TO 16-GA)2
1552255KIT-CONNECTING PLUG (12-PIN)2
2532695PLUG AS-CONNECTOR (6-PIN)1
8T8737PLUG-SEAL12
1028806KIT-RECEPTACLE (8-PIN)1
1028801KIT-RECEPTACLE (12-PIN)1
8T8736RECEPTACLE-CONNECTOR (9-PIN)1
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)13
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)6
1418061TAPE
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(40-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
249903415 HARNESS AS-SENSOR (GRADE CONTROL)1
2283323CLIP-SPRING1
1863735PIN-CONNECTOR (16-GA TO 18-GA)2
9W0852PIN-CONNECTOR (14-GA TO 16-GA)2
1028804KIT-RECEPTACLE (4-PIN)1
249904916 HARNESS AS-WIRING (RECEIVER, LH)1
2283323CLIP-SPRING1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)4
9W0852PIN-CONNECTOR (14-GA TO 16-GA)4
1028806KIT-RECEPTACLE (8-PIN)1
249905017 HARNESS AS-WIRING (RECEIVER, RH)1
2283323CLIP-SPRING1
1552255KIT-CONNECTING PLUG (12-PIN)1
8T8737PLUG-SEAL3
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)4
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)5
249907718 PLATE AS1
257750119 PLATE AS1
264451020 BRACKET AS1
269766421 BRACKET AS1
311029522 HARNESS AS-DASH (GRADE CONTROL)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)1
9W0852PIN-CONNECTOR (14-GA TO 16-GA)2
9X3401PIN-CONNECTOR (16-GA TO 18-GA)6
1261767PIN-CONNECTOR (14-GA TO 16-GA)6
1552255KIT-CONNECTING PLUG (12-PIN)1
1552257KIT-CONNECTING PLUG (12-PIN)1
1552265KIT-CONNECTING PLUG (8-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)2
2305008PLUG AS-CONNECTOR (4-PIN)3
8T8737PLUG-SEAL24
1028801KIT-RECEPTACLE (12-PIN)1
1342540RECEPTACLE AS-CONNECTOR (3-PIN)2
2305009RECEPTACLE AS-CONNECTOR (4-PIN)3
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)12
1809340SOCKET-CONNECTOR (14-GA TO 18-GA)10
5P2321TERMINAL-FORK (14-GA TO 16-GA, NO. 6 SCREW)2
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(45-CM)
311029723 HARNESS AS-MONITOR1
2307254PIN-CONNECTOR13
1471444PLUG AS-CONNECTOR (70-PIN)1
1599322SEAL-O-RING1
8T8737PLUG-SEAL67
1028801KIT-RECEPTACLE (12-PIN)1
1907615KIT-RECEPTACLE (12-PIN)1
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)14
1418061TAPE
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
311029824 HARNESS AS-DASH1
2307254PIN-CONNECTOR15
8T8737PLUG-SEAL9
1028801KIT-RECEPTACLE (12-PIN)1
1907615KIT-RECEPTACLE (12-PIN)1
1418061TAPE
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
096596225 WASHER-HARD (3.4X7X0.8-MM THK)12
117695226 SCREW (M8X1.25X30-MM)3
132578927 CLIP (LADDER)2
133693428 SPACER (11X20X25-MM THK)1
311030529 HARNESS AS-RADIO (GRADE CONTROL)1
1552255KIT-CONNECTING PLUG (12-PIN)1
1678987PLUG AS-CONNECTOR (8-PIN)1
8T8737PLUG-SEAL4
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)2
1809340SOCKET-CONNECTOR (14-GA TO 18-GA)6
2D038830 GROMMET (25.4-MM ID)1
102880131 KIT-RECEPTACLE (12-PIN)1
4P813432 CLIP (LADDER)1
5C955333 BOLT (M6X1X16-MM)1
7R302934 CAP-DUST3
7X255335 BOLT (M16X2X40-MM)1
8C845136 BOLT (M6X1X40-MM)3
033481837 SCREW-MACHINE12
8T412138 WASHER-HARD (11X21X2.5-MM THK)6
8T412239 WASHER-HARD (17X32X3.5-MM THK)1
8T413740 BOLT (M10X1.5X20-MM)1
8T418541 BOLT (M10X1.5X50-MM)1
8T418642 BOLT (M10X1.5X40-MM)2
8T419543 BOLT (M10X1.5X30-MM)2
8T420044 BOLT (M8X1.25X16-MM)2
8T420545 WASHER-HARD (7.2X14.5X2-MM THK)6
8T422446 WASHER-HARD (8.8X16X2-MM THK)8
8T490847 BOLT (M8X1.25X25-MM)4
9X825648 WASHER (6.6X12X2-MM THK)1
8T342649 CHANNEL-TRIM (1-M)
7Y507450 GUARD-HOSE (48-CM)
109201351 GUARD (49-CM)
6V135952 SEAL (0.1-M)
3E660053 SEAL (31-CM)
3E660053A SEAL (32-CM)
3E660053B SEAL (3-CM)
