System And Components

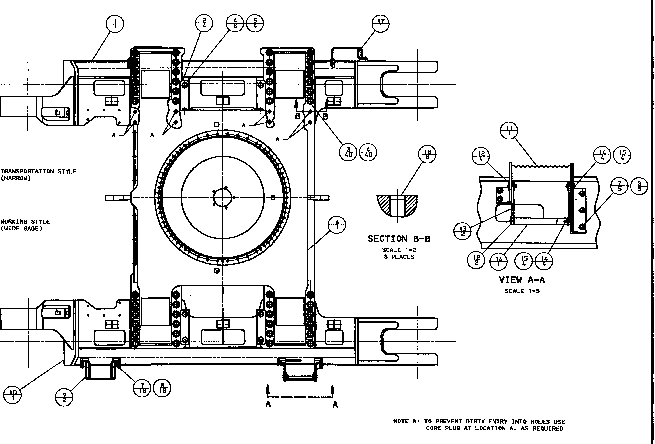

1229102 FRAME GPUNDERCARRIAGE
Group No: 1229102
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1270279 | 1 FRAME AS | 1 | |
| 4I5007 | 2 PLATE | 4 | |
| 4I5006 | 3 SPACER | 40 | |
| 7Y5265 | 4 BOLT (M36) | 48 | |
| 1230822 | 5 SPACER | 4 | |
| 1382725 | 6 FRAME AS | 1 | |
| 9X8257 | 7 WASHER | 23 | |
| 8T4779 | 8 BOLT (M16) | 23 | |
| 4I4958 | 9 STEP AS | 2 | |
| 1270280 | 10 FRAME AS | 1 | |
| 4I4964 | 11 STEP AS | 1 | |
| 8V9996 | 12 PLATE | 6 | |
| 1098613 | 13 BELT | 2 | |
| 1D4704 | 14 BOLT (3/8) | 8 | |
| 2K4973 | 15 LOCKNUT | 8 | |
| 9V2985 | 16 STEP AS | 1 | |
| 4I6628 | 17 STEP AS | 1 | |
| 1048147 | 18 PLUG | 8 |
