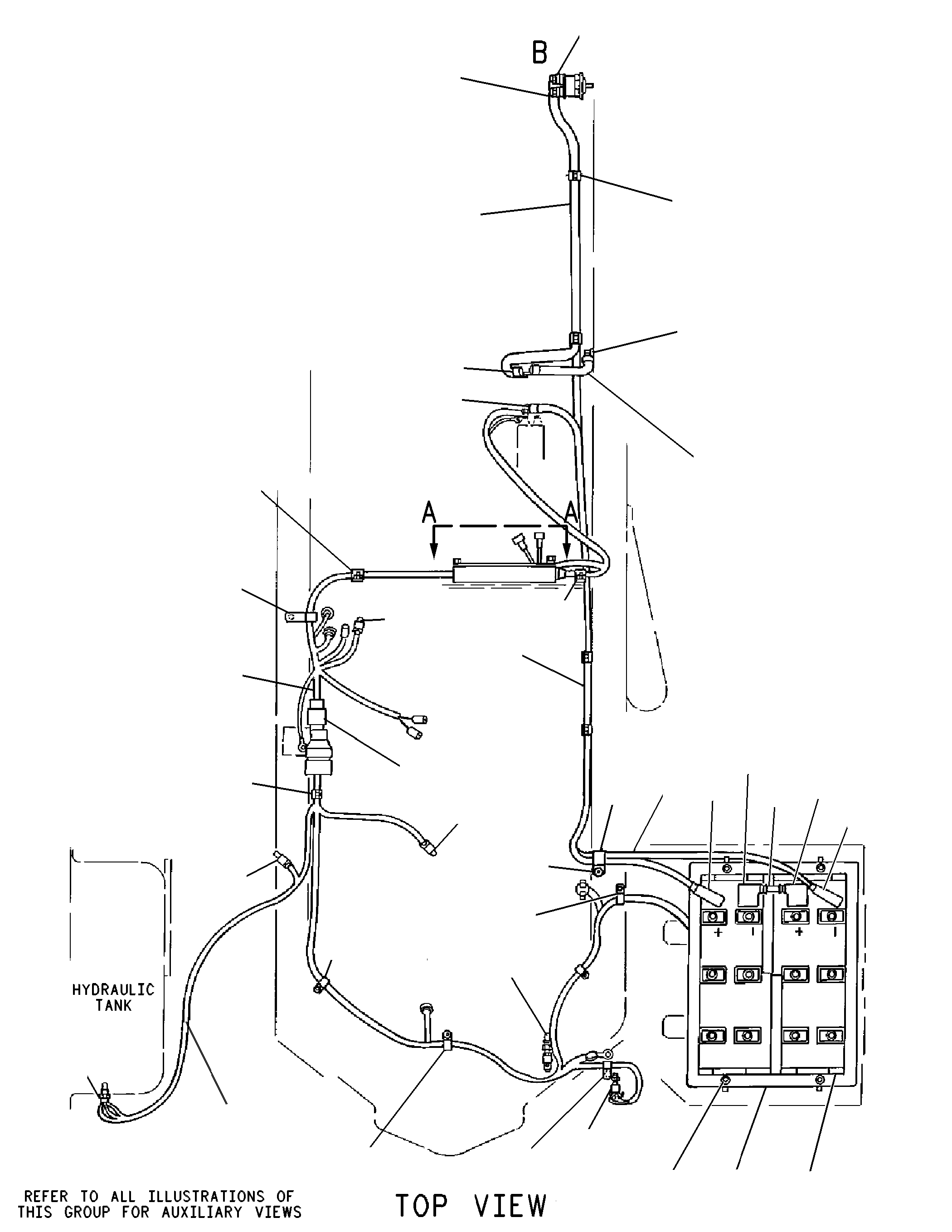

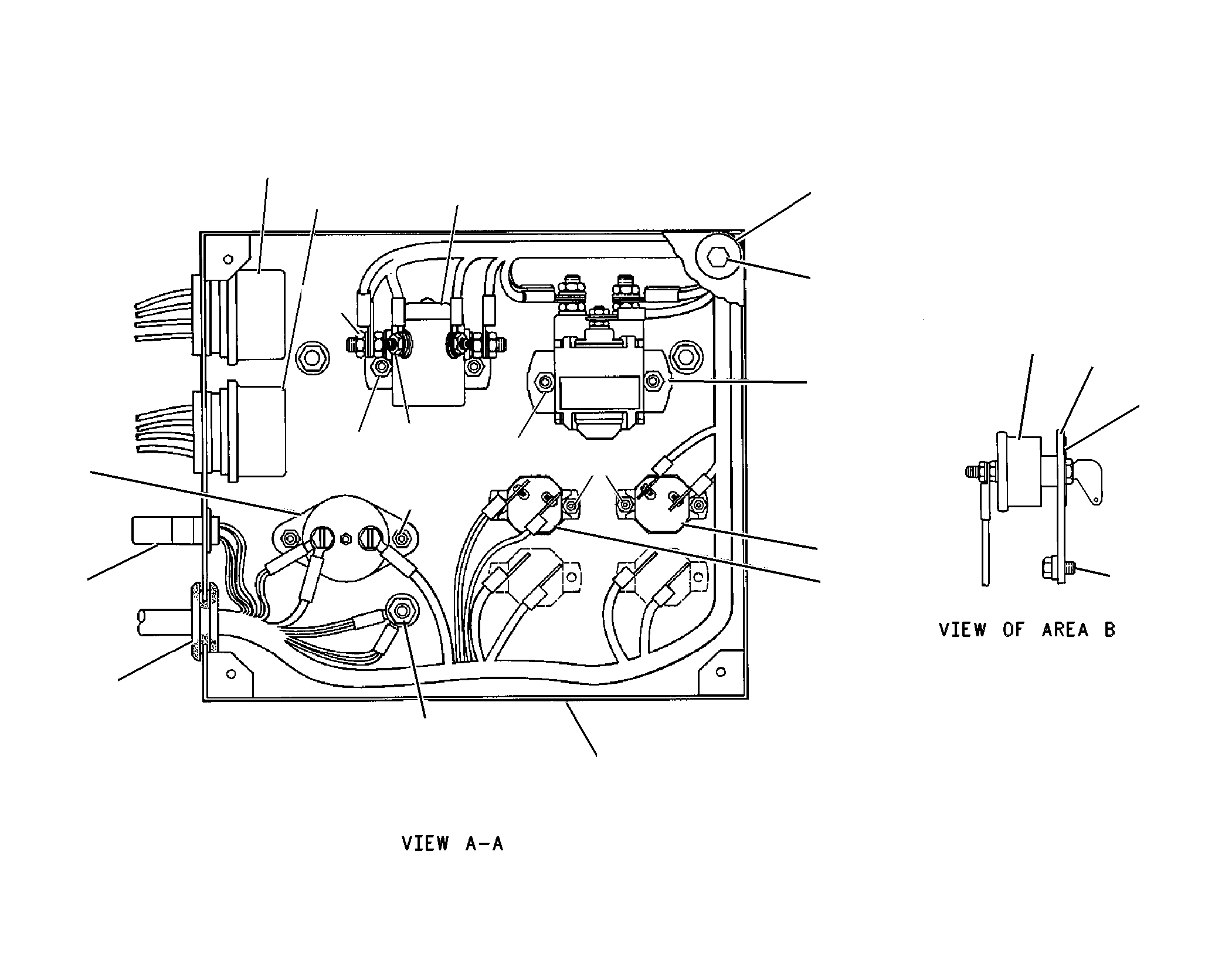

2V-7814 BATTERY & WIRING GPS/N 17Z1-179

Group No: 2V-7814
Part NumberPart NameQty
8V06221 CABLE AS-BATTERY1
5P0761CABLE (00-GA, RED)
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
9G00042 COVER AS-TERMINAL (RED)1
8T9757TERMINAL AS-BATTERY (NEGATIVE)1
8C59173 TERMINAL AS-BATTERY (POSITIVE)1
9G00034 COVER AS-TERMINAL (BLACK)1
9G42325 BATTERY (12-VOLT)2
7N0060VENT AS6
4K84736 FRAME AS1
8V06147 CABLE AS1
5P0747CABLE (00-GA, BLACK)
7N52748 COVER AS-TERMINAL (BLACK)1
3S6050TERMINAL AS-BATTERY (NEGATIVE)(00 GA)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1S72529 TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
5K845110 CLIP (LOOP)6
1D471711 NUT (3/8-16-THD)18
5M289412 WASHER-HARD (10.2X18.5X2.5-MM THK)18
8V061513 CABLE AS1
5P0761CABLE (00-GA, RED)
8N172514 COVER AS-TERMINAL (RED)1
3S6049TERMINAL AS-BATTERY (POSITIVE)(00 GA)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1S725115 TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
8N0869COVER-TERMINAL (RED)1
7P668216 CABLE AS1
5P0747CABLE (00-GA, BLACK)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
1D471917 NUT-FULL (1/2-13-THD)1
5P8245WASHER-HARD (13.5X25.5X3-MM THK)1
7S243018 BOLT4
9G800919 SWITCH AS-PRESSURE (BRAKE AIR)2
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
5V388820 CABLE AS1
5P0747CABLE (00-GA, BLACK)
1S725221 TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
1S725122 TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
5P785423 CLIP (LOOP)3
5N284024 CLIP1
8V017725 HARNESS AS-POWER1
9G915126 CLIP1
9G915527 CLIP1
4S196228 CLIP (LOOP)1
9G915329 CLIP2
7V608630 HARNESS AS1
8N224831 SWITCH AS-TEMPERATURE (HYD TEMP-WARNING)1
3K036032 SEAL-O-RING1
6D424633 CLIP (LOOP)1
9M840634 CLIP (LOOP)1
4D779435 CLIP3
9G801036 SWITCH AS-PRESSURE1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
4M5317BUSHING-REDUCER1
3B655237 ELBOW-PIPE1
5H893638 ADAPTER1
7M33611 GROMMET1
2V94732 DIODE AS1
2V23803 CIRCUIT BREAKER AS (60-AMPERE)1
6V8365SCREW-MACHINE (1/4-28X0.5-IN)2
1H3244LOCKWASHER4
3T06894 RELAY AS1
9G19465 KEEPER2
9G19286 RELAY AS1
0S05097 BOLT (3/8-16X0.75-IN)2
7V29128 COVER1
03102159 BOLT-LOCKING (1/4-20X0.625-IN)4
8M2337WASHER (7.2X24.5X3-MM THK)4
7N593310 SWITCH-MAGNETIC (CONDENSER FAN RELAY)1
3R892011 CIRCUIT BREAKER AS (8-AMPERE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER (4.3MM ID)2
7N162112 CIRCUIT BREAKER AS (3-AMPERE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
7V291313 BOX AS1
1D471714 NUT (3/8-16-THD)3
5M289415 WASHER-HARD (10.2X18.5X2.5-MM THK)5
2S955616 SCREW-MACHINE (10-32X0.875-IN)2
4B2049NUT (10-32-THD)2
4B4274WASHER (5.5X13X1.2-MM THK)2
5M666817 SCREW-MACHINE (8-32X0.75-IN)6
4B4863WASHER (4.7X11X1.2-MM THK)6
0S161418 BOLT (1/4-20X0.5-IN)4
1B433019 NUT (1/4-20-THD)4
5P0537WASHER-HARD (7.2X14.5X2-MM THK)4
7N071820 SWITCH GP-DISCONNECT1
5V363721 PLATE1
8H864822 PLATE-INSTRUCTION (DISCONNECT SWITCH)1
9F309923 SWITCH GP-MAGNETIC (24-VOLT)(MAGNETIC)1
4B204324 NUT (8-32-THD)2
4F229425 NUT-JAM (5/16-24-THD)2
