System And Components

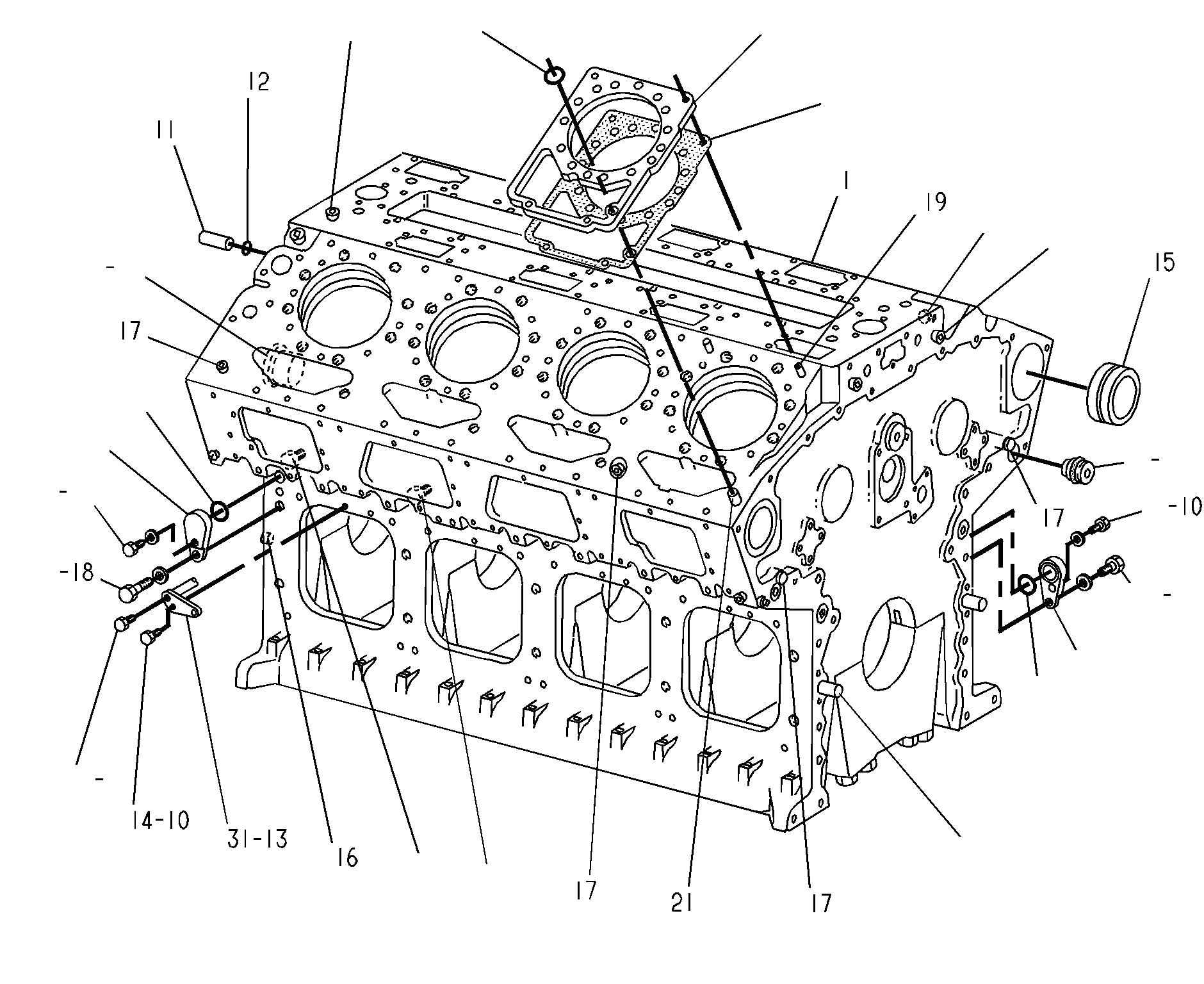

2W-8240 CYLINDER BLOCK GPS/N 96Y683-705; 69Z275-287
Group No: 2W-8240
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2W8239 | 1 CYLINDER BLOCK AS | 1 | |
| 9M1974 | 2 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 5P8245 | 3 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 1A2029 | 4 BOLT (3/8-16X1.125-IN) | 1 | |
| 1B5174 | 5 PLUG-PIPE | 2 | |
| 5M6213 | 6 PLUG-PIPE (1/4-18-THD) | 5 | |
| 2W2940 | 7 PLUG (OIL MANIFOLD) | 8 | |
| 7N2044 | 8 DOWEL | 2 | |
| 2B0858 | 9 PLUG-PIPE | 3 | |
| 5M2894 | 10 WASHER-HARD (10.2X18.5X2.5-MM THK) | 9 | |
| 7N2047 | 11 DOWEL | 3 | |
| 2J6274 | 12 SEAL-O-RING | 3 | |
| 1W8598 | 13 JET AS-PISTON COOLING | 8 | |
| 0T0102 | 14 BOLT (3/8-16X0.625-IN) | 8 | |
| 7N2048 | 15 BEARING-CAMSHAFT | 10 | |
| 4N0683 | 16 DOWEL | 2 | |
| 7H3171 | 17 PLUG-PIPE | 20 | |
| 0S1585 | 18 BOLT (1/2-13X1.5-IN) | 1 | |
| 8T0099 | 19 DOWEL | 16 | |
| 7N5641 | 20 PLUG-MANIFOLD | 2 | |
| 7N2049 | 21 DOWEL | 8 | |
| 2M4453 | 22 SEAL-O-RING | 16 | |
| 7N2038 | 23 GASKET-PLATE | 8 | |
| 8N6864 | 24 PLATE-SPACER | 8 | |
| 5F9657 | 25 SEAL-O-RING | 4 | |
| 6F6673 | 26 SEAL-O-RING | 1 | |
| 0S1585 | 27 BOLT (1/2-13X1.5-IN) | 1 | |
| 5P8245 | 28 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8N8056 | 29 COVER | 1 | |
| 6V3348 | 30 SEAL-O-RING | 8 | |
| 1W4188 | 31 RETAINER AS (FOR USE WITH 1-PC PISTON ONLY) | 8 | |
| 6V3537 | DOWEL | 1 | |
| 1B2790 | 32 BOLT (5/16-18X1.375-IN) | 8 | |
| 5M6213 | 33 PLUG-PIPE (1/4-18-THD) | 1 | |
| 6F6673 | 34 SEAL-O-RING | 1 | |
| 8N8056 | 35 COVER | 1 | |
| 1A2029 | 36 BOLT (3/8-16X1.125-IN) | 1 | |
| 5M2894 | 37 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 |
