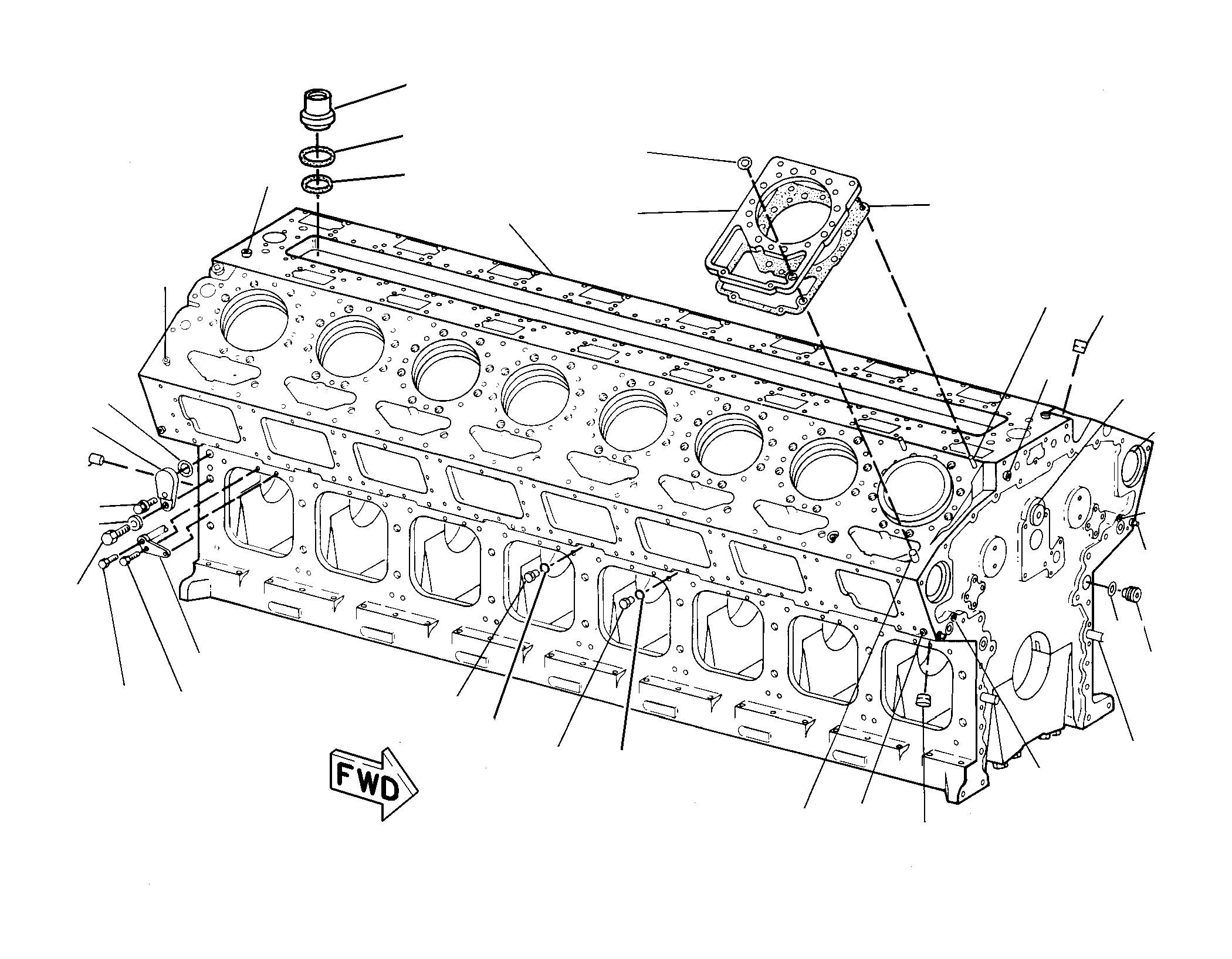

2W-8248 CYLINDER BLOCK GPS/N 73Z290-606; 25Z1641-2188

Group No: 2W-8248
Part NumberPart NameQty
7E49371 CYLINDER BLOCK AS1
9M19742 WASHER-HARD (8.8X16X2-MM THK)16
9S41913 PLUG (9/16-18-THD)1
1A20294 BOLT (3/8-16X1.125-IN)2
7X77315 PLUG-PIPE (3/4-14-THD)2
1B27906 BOLT (5/16-18X1.375-IN)16
2W29407 PLUG8
7N20448 DOWEL2
8T67629 PLUG-PIPE (1/2-14-THD)3
5M289410 WASHER-HARD (10.2X18.5X2.5-MM THK)18
7N204711 DOWEL3
7X480512 SEAL-O-RING3
9Y412113 JET AS-PISTON COOLING16
9Y2606JET AS-PISTON COOLING1
4D0514PLUG-PIPE1
0T010214 BOLT (3/8-16X0.625-IN)16
7N204815 BEARING-CAMSHAFT18
4N068316 DOWEL2
8T676317 PLUG-PIPE (1/4-18-THD)28
1W418818 RETAINER AS (FOR USE WITH 1-PC PISTON ONLY)16
8N9943RETAINER1
6V3537DOWEL1
8T009919 DOWEL32
7N564120 PLUG-MANIFOLD2
7N204921 DOWEL16
5P084022 SEAL-O-RING32
100788623 GASKET-PLATE16
9Y148524 PLATE-SPACER16
5F965725 SEAL-O-RING4
5P821026 SEAL-O-RING2
0S159527 BOLT (1/2-13X1.25-IN)2
5P824528 WASHER-HARD (13.5X25.5X3-MM THK)2
8N805629 COVER2
6V334830 SEAL-O-RING8
9S419131 PLUG (9/16-18-THD)5
4W481432 ADAPTER2
8T292833 SEAL-O-RING2
8T292934 SEAL-O-RING2
033604235 SEAL-O-RING5
033604236 SEAL-O-RING1
