System And Components

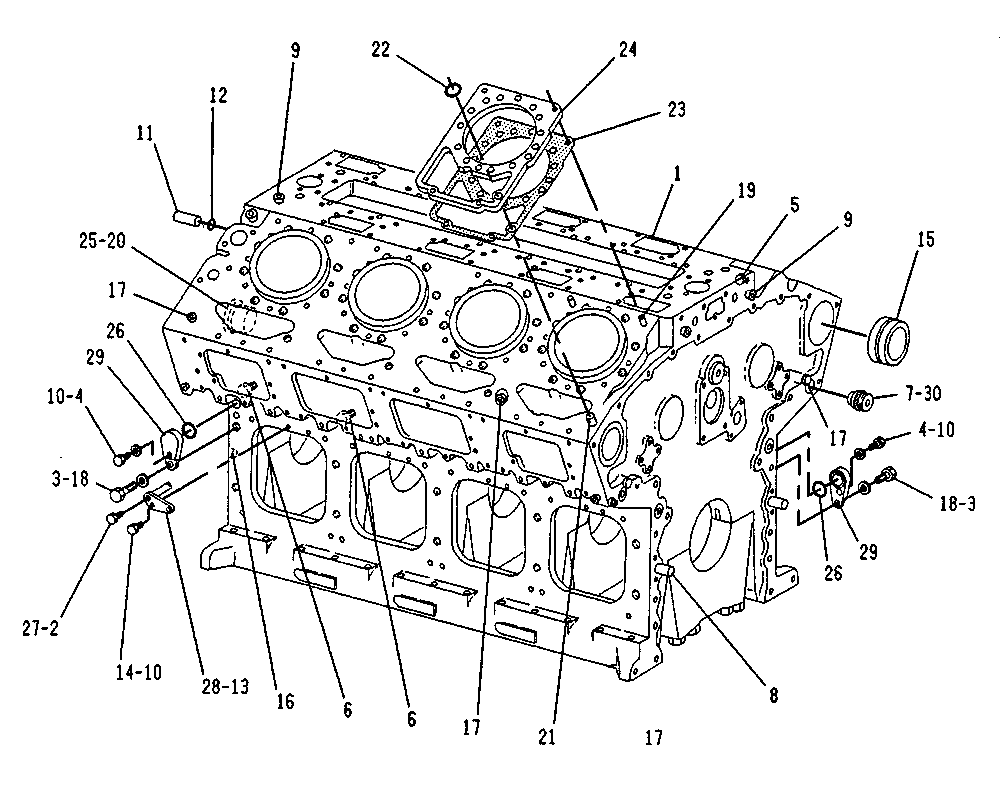

7C8136 CYLINDER BLOCK GPS/N 1ZF1-455
Group No: 7C8136
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7C8137 | 1 CYLINDER BLOCK GP | 1 | |
| 9M1974 | 2 WASHER | 8 | |
| 5P8245 | 3 WASHER | 2 | |
| 1A2029 | 4 BOLT | 2 | |
| 1B5174 | 5 PLUG-PIPE | 2 | |
| 5M6213 | 6 PLUG | 6 | |
| 2W2940 | 7 PLUG-OIL MANIFOLD | 8 | |
| 7N2044 | 8 DOWEL | 2 | |
| 2B0858 | 9 PLUG-PIPE | 3 | |
| 5M2894 | 10 WASHER | 10 | |
| 7N2047 | 11 DOWEL | 3 | |
| 2J6274 | 12 SEAL-O-RING | 3 | |
| 7C3710 | 13 JET AS-PISTON COOLING (EACH INCLUDES) | 8 | |
| 4D0514 | PLUG-PIPE | 1 | |
| 0T0102 | 14 BOLT | 8 | |
| 7N2048 | 15 BEARING-CAMSHAFT | 10 | |
| 4N0683 | 16 DOWEL | 2 | |
| 7H3171 | 17 PLUG-PIPE | 20 | |
| 0S1585 | 18 BOLT | 2 | |
| 8T0099 | 19 DOWEL | 16 | |
| 7N5641 | 20 PLUG-MANIFOLD | 2 | |
| 7N2049 | 21 DOWEL | 8 | |
| 2M4453 | 22 SEAL-O-RING | 16 | |
| 9Y1484 | 23 GASKET-PLATE | 8 | |
| 9Y1485 | 24 PLATE-SPACER | 8 | |
| 5F9657 | 25 SEAL-O-RING | 4 | |
| 6F6673 | 26 SEAL-O-RING | 2 | |
| 1B2790 | 27 BOLT | 8 | |
| 7C3722 | 28 RETAINER AS-JET (EACH INCLUDES) | 8 | |
| 6V3537 | DOWEL | 1 | |
| 8N8056 | 29 COVER | 2 | |
| 6V3348 | 30 SEAL-O-RING | 8 |
