System And Components

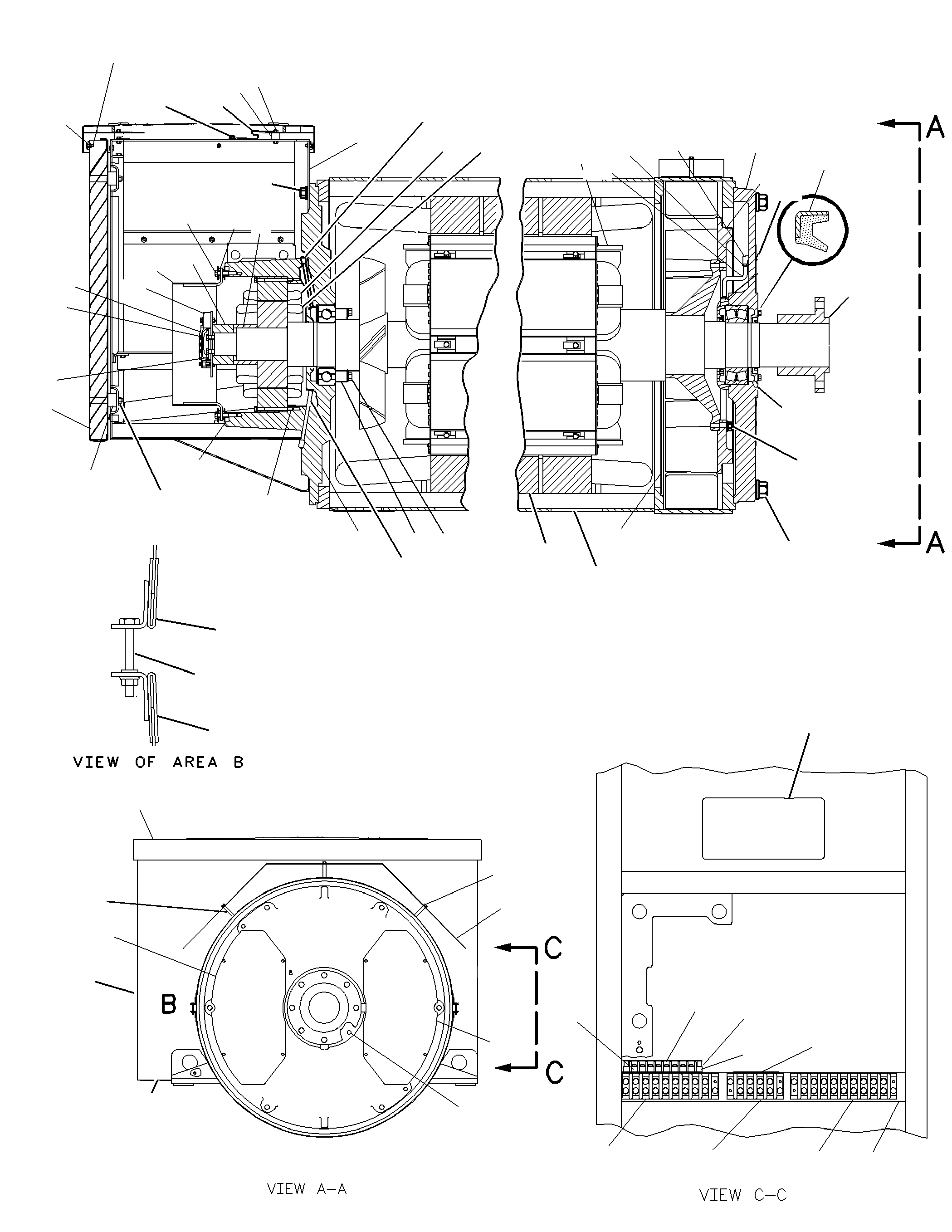

4P-7272 GENERATOR GPS/N 8ZD770-UP
Group No: 4P-7272
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7E3087 | 1 FAN (12-BLADE) | 1 | |
| 4P8792 | 2 ROTOR-EXCITER | 1 | |
| 4P8791 | 3 STATOR-EXCITER | 1 | |
| 7E0132 | 4 SLEEVE-SHAFT | 1 | |
| 7E0133 | 5 SLEEVE AS-SHAFT | 1 | |
| 9Y1466 | 6 DEFLECTOR | 2 | |
| 1104171 | 7 HEAT SINK AS | 1 | |
| 7W8705 | 8 FITTING | 2 | |
| 7W8706 | 9 FITTING | 1 | |
| 7W8737 | 10 HOSE | 1 | |
| 4P9019 | 11 STATOR GP-MAIN | 1 | |
| 1340040 | 12 HUB-FLEXIBLE COUPLING (1-M) | 1 | |
| 7X0578 | 13 WASHER-HARD (10.2X32X2.5-MM THK) | 8 | |
| 0S1590 | 14 BOLT (3/8-16X2-IN) | 4 | |
| 4P2479 | 15 SPACER (9.8X15.09X12.7-MM THK) | 4 | |
| 8H8769 | 16 BOLT (5/16-18X4.25-IN) | 4 | |
| 9M1974 | 17 WASHER-HARD (8.8X16X2-MM THK) | 9 | |
| 7W9971 | 18 COVER-BOTTOM | 1 | |
| 7W9984 | 19 LOUVER-BOX | 1 | |
| 0548671 | 20 MOUNT | 4 | |
| 1D4539 | 21 BOLT (5/16-18X2.5-IN) | 5 | |
| 7F9223 | 22 LOCKWASHER | 2 | |
| 9Y2902 | 23 STRAP | 1 | |
| 7E3035 | 24 BUMPER | 6 | |
| 0S1571 | 25 BOLT (3/8-16X1.75-IN) | 8 | |
| 4B2049 | 26 NUT (10-32-THD) | 6 | |
| 7C1884 | 27 MOUNT-FLEXIBLE | 4 | |
| 3B8488 | 28 FITTING-GREASE (1/8-27 PTF) | 1 | |
| 7E5021 | 29 FRAME AS | 1 | |
| 7C9161 | 30 SEAL | 1 | |
| 7E8372 | 31 COVER AS-EXCITER | 1 | |
| 1104172 | 32 HARNESS AS-WIRING (RECTIFIER) | 1 | |
| 5M5845 | 33 SCREW (10-32X0.625-IN) | 6 | |
| 1076274 | 34 SPACER (20.57X86.36X12.45-MM THK) | 1 | |
| 7W8890 | 35 BRACKET-TERMINAL | 1 | |
| 7E8360 | 36 MARKER | 1 | |
| 7E5463 | 37 STRIP-TERMINAL | 1 | |
| 7E8356 | 38 SPACER (4.93X7.87X9.65-MM THK) | 2 | |
| 7E8354 | 39 COVER | 1 | |
| 7E1222 | 40 STRIP-TERMINAL | 2 | |
| 7E1223 | 41 MARKER | 1 | |
| 3N8763 | 42 STRIP-TERMINAL | 1 | |
| 6L7575 | 43 STRIP-TERMINAL | 1 | |
| 7E1224 | 44 MARKER | 1 | |
| 3N8764 | 45 FILM-CONNECTION (SPACE HEATER) | 1 | |
| 7E8355 | 46 COVER | 2 | |
| 7E8391 | 47 COVER | 1 | |
| 4M5282 | 48 BOLT (1/4-20X1.5-IN) | 4 | |
| 7C7525 | 49 COVER AS-TOP | 1 | |
| 5N3167 | SEAL-RING | 10 | |
| 5N3176 | PLUG-BUTTON | 10 | |
| 6D7128 | SEAL-O-RING | 4 | |
| 8P7065 | PLUG-BUTTON | 4 | |
| 8T9587 | SEAL-O-RING | 4 | |
| 0302284 | PLUG-BUTTON | 4 | |
| 5P8245 | 51 WASHER-HARD (13.5X25.5X3-MM THK) | 12 | |
| 5M2894 | 52 WASHER-HARD (10.2X18.5X2.5-MM THK) | 8 | |
| 1155094 | 53 BRACKET AS-HOUSING | 1 | |
| 1167477 | SLEEVE-WEAR | 1 | |
| 1178268 | 54 RETAINER-BEARING | 2 | |
| 5H1504 | 55 WASHER-HARD (20X33.5X5-MM THK) | 12 | |
| 1D4612 | 56 BOLT (3/4-10X4-IN) | 6 | |
| 1A8063 | 57 BOLT (3/4-10X2.5-IN) | 6 | |
| 1179581 | 58 ROTOR GP-GENERATOR | 1 | |
| 1155096 | 59 BRACKET AS-HOUSING | 1 | |
| 1167476 | SLEEVE-WEAR | 1 | |
| 7E8303 | 60 GROMMET | 4 | |
| 6V8185 | 61 NUT (1/4-20-THD) | 8 | |
| 5S7349 | 62 BOLT (1/4-20X0.5-IN) | 1 | |
| 8F3590 | 63 LOCKWASHER | 4 | |
| 6V8801 | 64 NUT (3/8-16-THD) | 4 | |
| 1083173 | 65 SCREEN AS (INLET) | 2 | |
| 7E5940 | 66 FILM-INFORMATION (GENERATOR WIRING DIAGRAM) | 1 | |
| 7E4475 | 67 TUBE-SPACER (8.3X11.9X50.8-MM THK) | 5 | |
| 1A5964 | 68 BOLT (3/8-16X4.5-IN) | 4 | |
| 4P0348 | 69 PANEL | 2 | |
| 7M7410 | 70 PLUG-PIPE | 2 | |
| 1079334 | 71 COVER-STATOR | 1 | |
| 0S1587 | 72 BOLT (1/2-13X1.75-IN) | 12 | |
| 8T4205 | 73 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 5B1309 | 74 COUPLING-PIPE | 1 | |
| 5D1707 | 75 FITTING | 1 | |
| 3B7282 | 76 NIPPLE-PIPE | 1 | |
| 3B6487 | 77 COUPLING (PIPE) | 1 | |
| 9F2247 | 78 PLUG-PIPE (1/8-27-THD) | 1 | |
| 7C2696 | KIT-SPACE HEATER (GENERATOR) | 1 | |
| 7E8407 | KIT-ROTOR BALANCE WEIGHT (GENERATOR) | 1 |
