System And Components

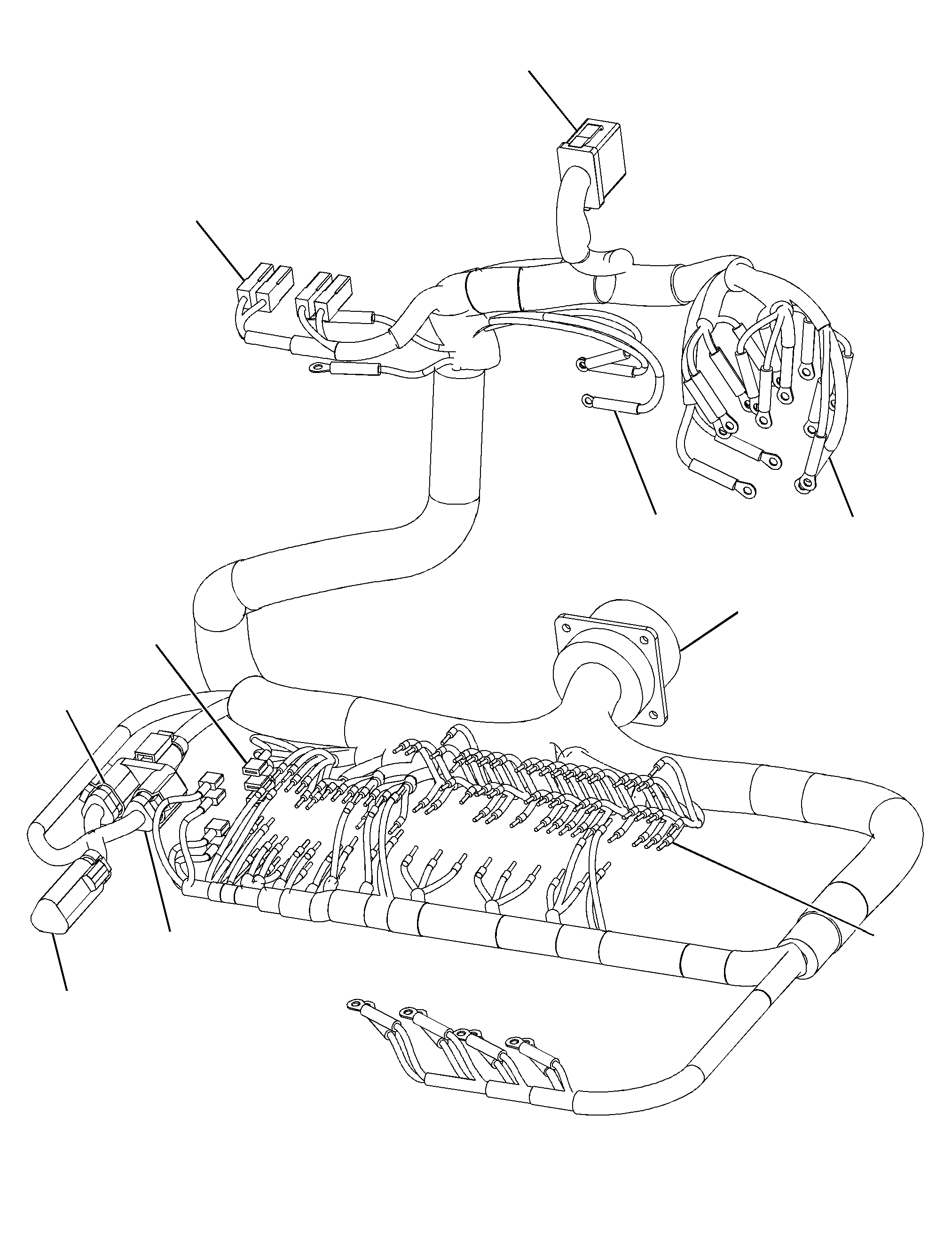

240-8890 HARNESS AS-PANELPART OF 231-9902, 231-9903 BOX GP-INSTRUMENT PANEL
Group No: 240-8890
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1108714 | 1 END-WIRE (18-GA) | 96 | |
| 1342540 | 2 RECEPTACLE AS-CONNECTOR (3-PIN) | 1 | |
| 1609231 | 3 TERMINAL-BLADE (18-GA TO 22-GA) | 4 | |
| 2320019 | 4 CONNECTOR-RECEPTACLE (46-PIN) | 1 | |
| 1284183 | 5 TERMINAL AS | 26 | |
| 2L8075 | TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 1 | |
| 6V2689 | TUBE-HEAT SHRINK (6.35-MM DIA)(0.1-M) | ||
| 1284189 | 6 TERMINAL AS-RING (18-GA TO 22-GA) | 3 | |
| 5P2766 | TERMINAL-RING (18-GA TO 22-GA, NO. 6 SCREW) | 1 | |
| 1306789 | 7 TERMINAL AS-BLADE | 7 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 1 | |
| 7N7221 | TERMINAL-BLADE (18-GA TO 22-GA) | 1 | |
| 1330970 | 8 RECEPTACLE AS-CONNECTOR (3-PIN) | 1 | |
| 1552255 | 9 KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1740503 | 10 KIT-CONNECTING PLUG (3-PIN) | 4 | |
| 5P5677 | WIRE (18-GA, BLACK)(57.4-M) | ||
| 5P5624 | WIRE (14-GA, BLACK)(2-M) | ||
| 2339226 | PIN-CONNECTOR (16-GA TO 20-GA) | 35 | |
| 1863736 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 22 | |
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(50-CM) | ||
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(26-CM) | ||
| 1552258 | WEDGE-PLUG LOCK (12-PIN) | 1 | |
| 1552266 | WEDGE-PLUG LOCK (3-PIN) | 4 | |
| 8T8737 | PLUG-SEAL | 2 | |
| 2339228 | PLUG-SEAL | 11 | |
| 1532707 | CABLE-ELECTRICAL (2-CONDUCTOR, 18-GA)(125-CM) | ||
| 8L8413 | STRAP-CABLE (WHITE) | 100 |
