System And Components

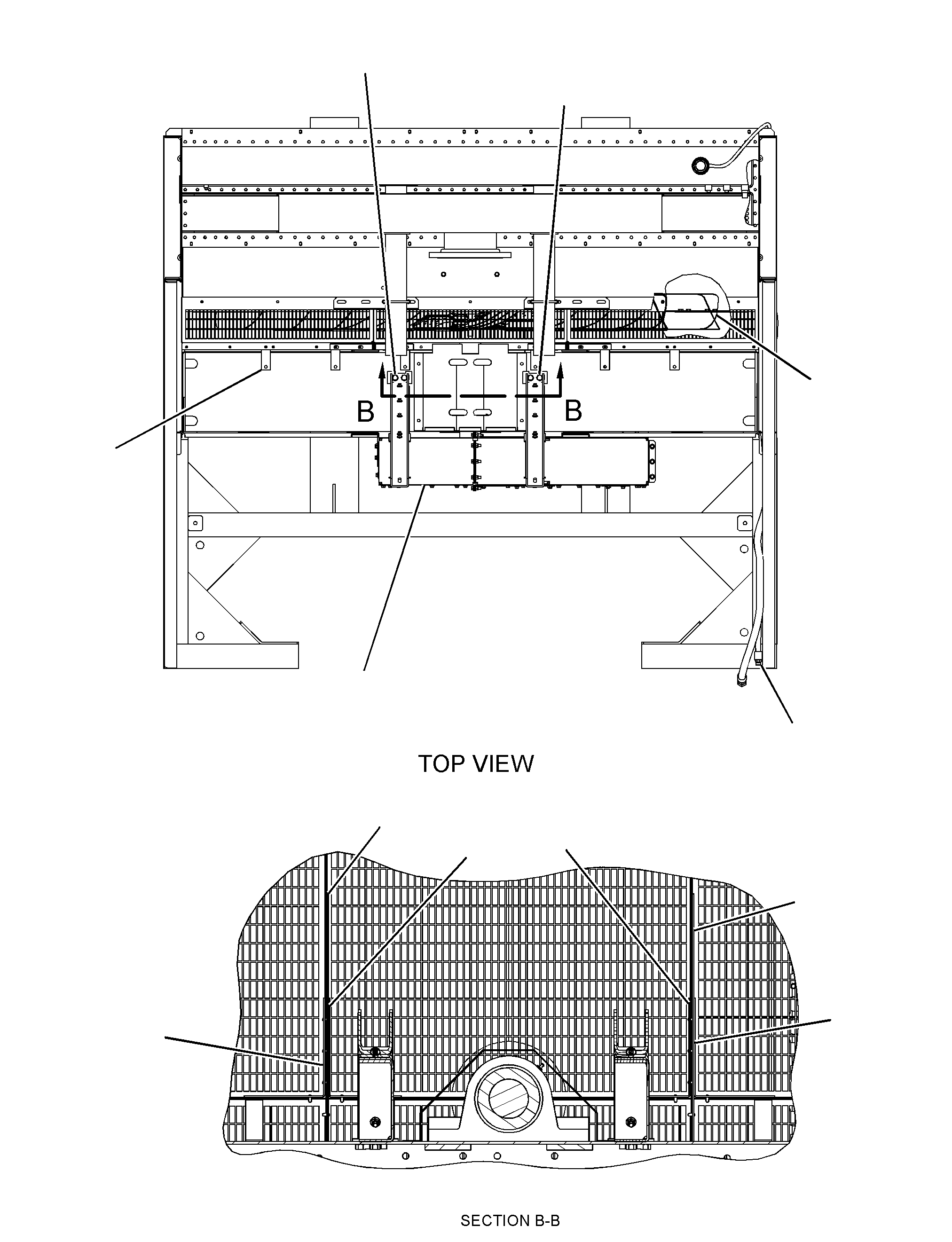

270-3506 RADIATOR & FAN GPS/N LY51-UP
Group No: 270-3506
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1226870 | 1 HOSE-HYDRAULIC (9-IN) | ||
| 1226872 | 2 HOSE-HYDRAULIC (11-IN) | ||
| 3538997 | 3 RADIATOR GP | 1 | |
| 3538989 | 4 SUPPORT AS-RADIATOR | 1 | |
| 2762439 | 5 BEARING | 2 | |
| 2762440 | 6 SHAFT-IDLER | 1 | |
| 2763034 | 7 FAN (11-BLADE) | 1 | |
| 2762442 | 8 SHAFT-FAN | 1 | |
| 2762443 | 9 BEARING | 2 | |
| 2762444 | 10 KEY-SQUARE (7/8-IN) | 1 | |
| 3632782 | 11 PULLEY GP | 1 | |
| 2762446 | 12 GROMMET | 2 | |
| 7E6633 | 14 COOLER-FUEL | 1 | |
| 0065707 | 15 ELBOW-PIPE | 2 | |
| 0619593 | 16 ADAPTER | 1 | |
| 6B9081 | 17 BUSHING-REDUCER | 1 | |
| 0007244 | 18 ELBOW (45-DEG) | 1 | |
| 0039163 | 19 ELBOW (90-DEG) | 1 | |
| 2247698 | 20 HOSE (242-CM) | ||
| 7C4355 | 21 CLIP | 1 | |
| 8T4223 | 22 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 5P1075 | 23 WASHER-HARD (10.2X22.5X3-MM THK) | 4 | |
| 5P2228 | 24 BOLT (1/2-13X1-IN) | 4 | |
| 3125100 | 25 BRACKET | 2 | |
| 8T2502 | 26 BOLT (3/8-16X1.125-IN) | 2 | |
| 3125099 | 27 BRACKET | 2 | |
| 6V8801 | 28 NUT (3/8-16-THD) | 2 | |
| 3890721 | 29 GUARD GP-BELT | 1 | |
| 1241920 | 30 COUPLING-PERMANENT | 1 | |
| 1864133 | 31 COUPLING-PERMANENT | 1 | |
| 1241906 | 32 COUPLING-PERMANENT | 1 | |
| 1242121 | 33 COUPLING-PERMANENT | 1 | |
| 3125098 | 34 BRACKET | 2 | |
| 4652886 | 35 GUARD-FAN (TOP, RH) | 1 | |
| 4652887 | 36 GUARD-FAN (CENTER, TOP) | 1 | |
| 4652888 | 37 GUARD-FAN (BOTTOM, RH) | 1 | |
| 4652889 | 38 GUARD-FAN (BOTTOM, LH) | 1 | |
| 4652890 | 39 GUARD-FAN (CENTER, BOTTOM) | 1 | |
| 4652884 | 40 BRACKET (FAN) | 6 | |
| 4652885 | 41 GUARD-FAN (TOP, LH) | 1 |
