System And Components

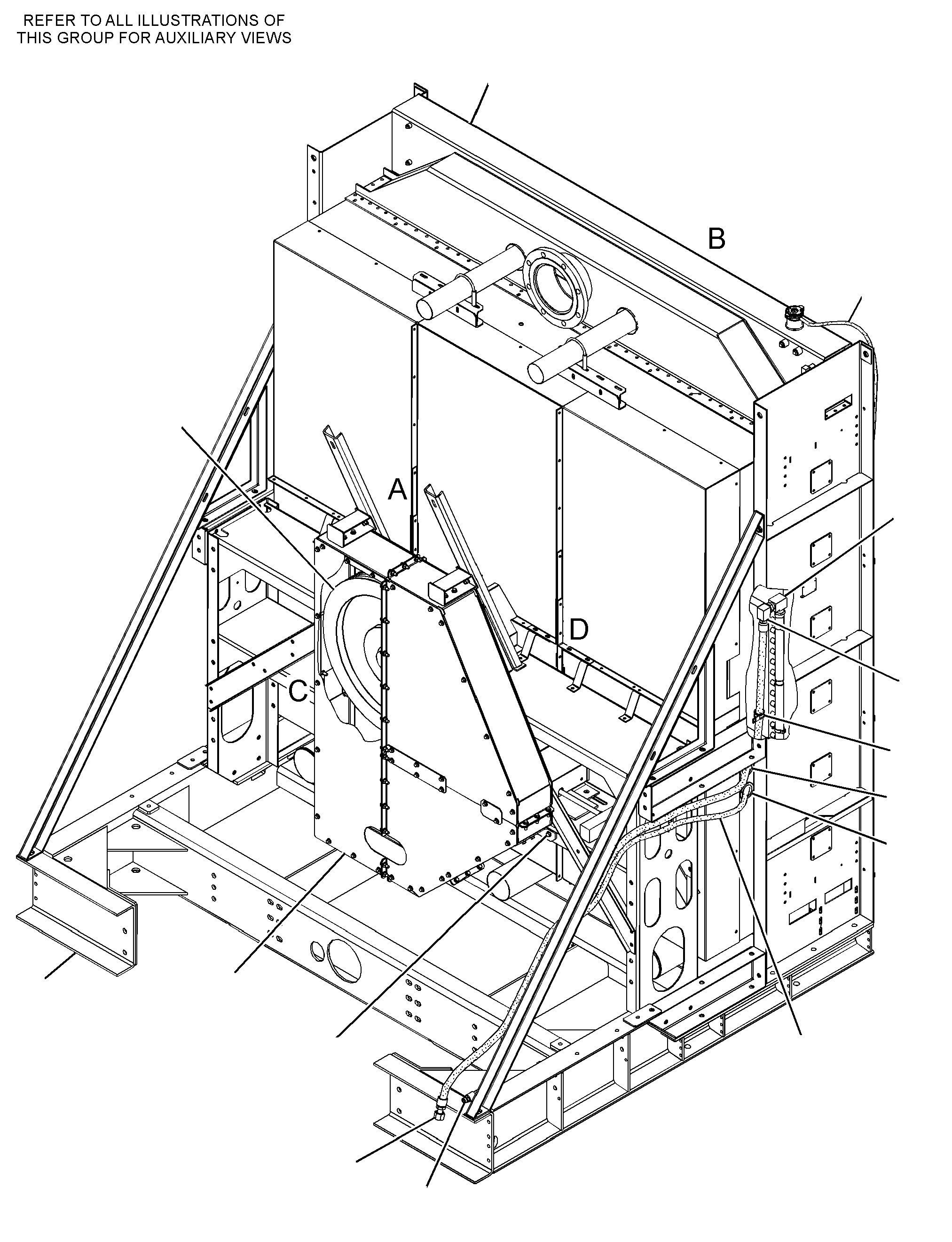

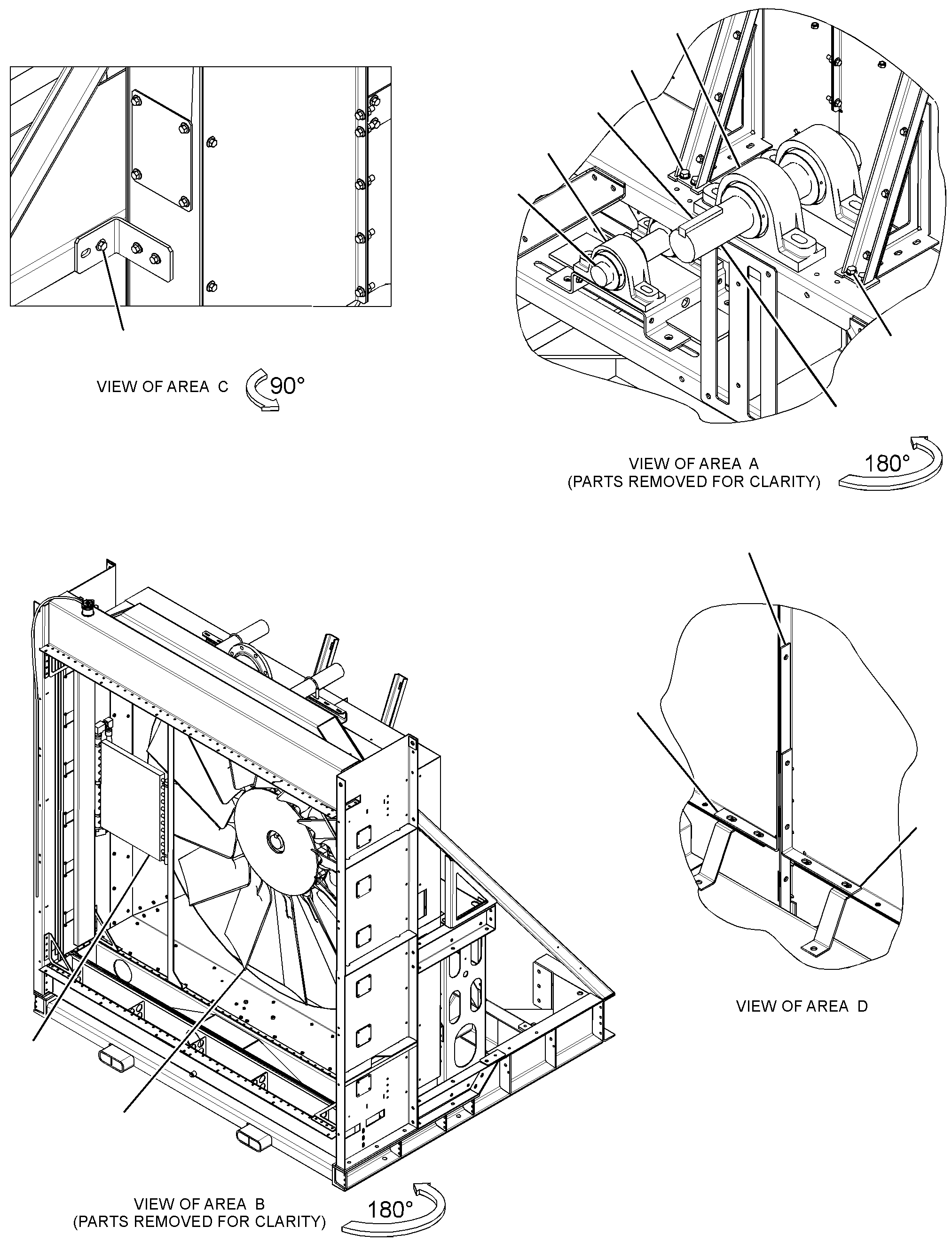

363-2808 RADIATOR & FAN GPS/N LYM1-UP
Group No: 363-2808
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1226870 | 1 HOSE-HYDRAULIC (9-IN) | ||
| 1226872 | 2 HOSE-HYDRAULIC (11-IN) | ||
| 0007244 | 3 ELBOW | 1 | |
| 0039163 | 4 ELBOW | 1 | |
| 0065707 | 5 ELBOW-PIPE | 2 | |
| 0619593 | 6 ADAPTER | 1 | |
| 1241920 | 7 COUPLING-PERMANENT | 1 | |
| 1241906 | 8 COUPLING-PERMANENT | 1 | |
| 1242121 | 9 COUPLING-PERMANENT | 1 | |
| 1864133 | 10 COUPLING-PERMANENT | 1 | |
| 2247698 | 11 HOSE (242-CM) | ||
| 2762439 | 12 BEARING | 2 | |
| 2762440 | 13 SHAFT-IDLER | 1 | |
| 2762442 | 14 SHAFT-FAN | 1 | |
| 2762443 | 15 BEARING | 2 | |
| 2762444 | 16 KEY-SQUARE (7/8-IN) | 1 | |
| 2762446 | 17 GROMMET | 2 | |
| 3587636 | 18 SPIDER AS-FAN (13-BLADE) | 1 | |
| 3125098 | 19 BRACKET | 2 | |
| 3125099 | 20 BRACKET | 2 | |
| 3125100 | 21 BRACKET | 2 | |
| 3538989 | 22 SUPPORT AS-RADIATOR | 1 | |
| 3538997 | 23 RADIATOR GP | 1 | |
| 3632782 | 24 PULLEY GP | 1 | |
| 3890721 | 25 GUARD GP-BELT | 1 | |
| 5P1075 | 26 WASHER-HARD (10.2X22.5X3-MM THK) | 4 | |
| 6B9081 | 27 BUSHING-REDUCER | 1 | |
| 6V8801 | 28 NUT (3/8-16-THD) | 2 | |
| 7C4355 | 29 CLIP | 1 | |
| 7E6633 | 30 COOLER-FUEL | 1 | |
| 8T2502 | 31 BOLT (3/8-16X1.125-IN) | 2 | |
| 5P2228 | 32 BOLT (1/2-13X1-IN) | 4 | |
| 8T4223 | 33 WASHER-HARD (13.5X25.5X3-MM THK) | 4 |
