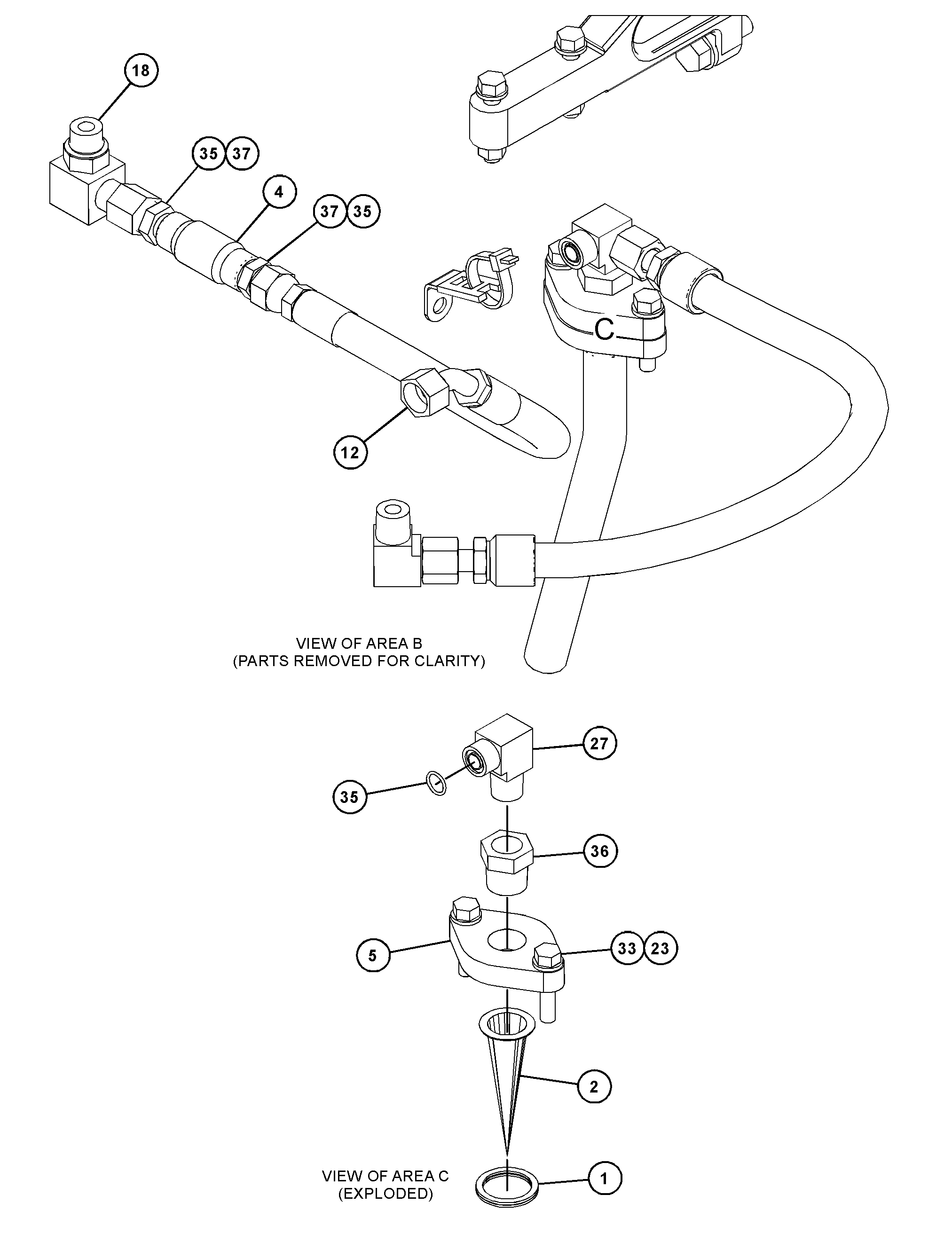

350-4305 WIRING GP-PRELUBRICATIONS/N NWF1-UP

Group No: 350-4305

Part Number	Part Name	Qty
2G6303	1 SEAL	1
2G6304	2 STRAINER AS (PRELUBRICATION PUMP)	1
2L8076	3 TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW)	1
3N6935	4 VALVE-CHECK	1
3R1059	5 FLANGE	1
5P1475	6 TERMINAL-FORK (14-GA TO 16-GA, NO. 8 SCREW)	2
7N4940	8 BRACKET	2
9X6772	11 STRAP-CABLE	2
1084242	12 HOSE AS	1
3687967	13 HARNESS AS-WIRING (PRELUBRICATION PUMP)	1
1152185	14 TERMINAL	2
1259993	15 TERMINAL-FORK (14-GA TO 16-GA, NO. 6 SCREW)	1
1328759	16 SWITCH AS-PRESSURE (ENGINE OIL)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
1716728	18 ELBOW AS	1
3K0360	SEAL-O-RING	1
8T0249	ELBOW (SWIVEL)	1
3695987	19 HARNESS AS-PUMP	1
2320895	CONDUIT-FLEXIBLE (9.6-MM ID)(120-CM)
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	2
1152184	CONNECTOR	1
1152185	TERMINAL	1
1259993	TERMINAL-FORK (14-GA TO 16-GA, NO. 6 SCREW)	1
1552270	KIT-CONNECTING PLUG (2-PIN)	1
2636463	NUT (M20X1.5-THD)	1
3118743	ADAPTER-CONNECTOR	1
2224533	20 RELAY AS (24-VOLT)(PRELUBRICATION)	1
2410117	21 HOSE AS	1
3457548	22 BRACKET AS	1
0S1571	23 BOLT (3/8-16X1.75-IN)	2
0S1585	24 BOLT (1/2-13X1.5-IN)	4
0S1590	25 BOLT (3/8-16X2-IN)	4
4255935	26 TUBE AS	1
2T1922	27 ELBOW	2
3B4502	28 LOCKWASHER	2
2147568	29 SEAL-O-RING	1
4B1227	30 SCREW-MACHINE (10-24X3/8-IN)	3
4P8134	31 CLIP (LADDER)	1
5L2579	32 GROMMET	1
5M2894	33 WASHER-HARD (10.2X18.5X2.5-MM THK)	10
5P8245	34 WASHER-HARD (13.5X25.5X3-MM THK)	4
6V8398	35 SEAL-O-RING	4
8B2664	36 BUSHING-REDUCER	1
8C6871	37 CONNECTOR	2
8T6763	38 PLUG-PIPE (1/4-18-THD)	1
9S4191	39 PLUG (9/16-18-THD)	1
9S8752	40 NUT-FULL (3/8-16-THD)	4
