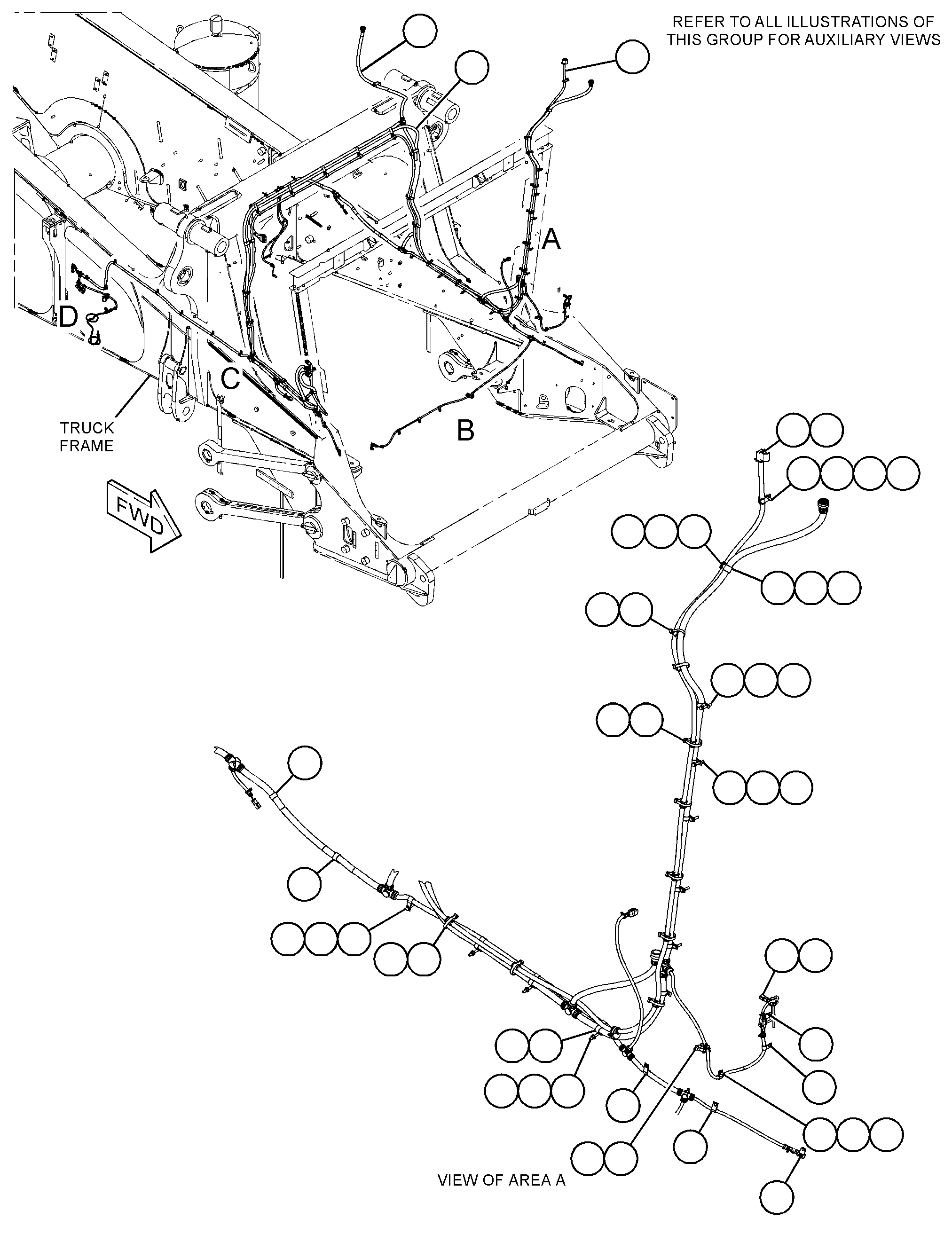

Assembly
100%

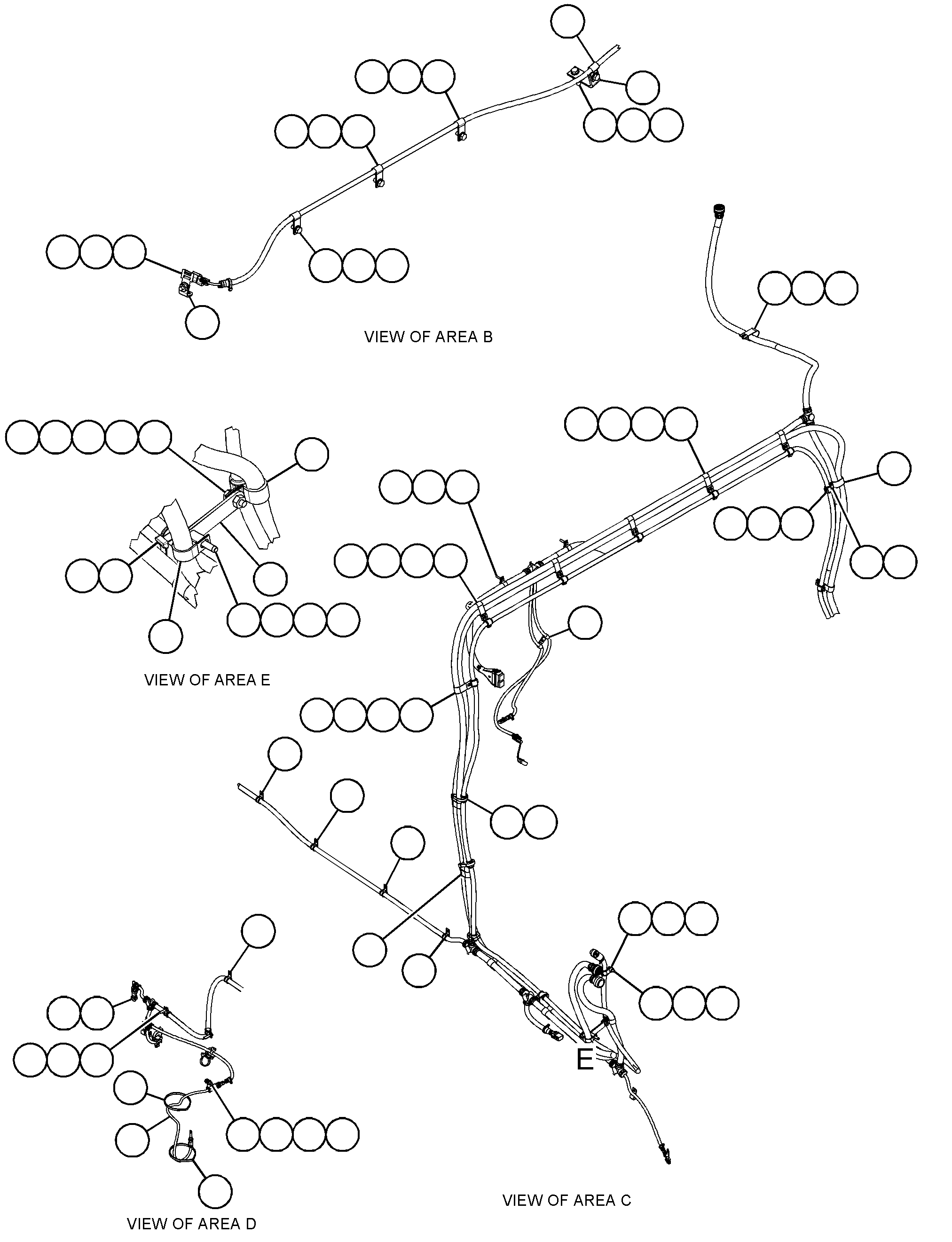

563-9145 WIRING GP-MACHINES/N HRZ508-UP

Group No: 563-9145
Part NumberPart NameQty
3S20931 STRAP-CABLE2
8T42232 WASHER-HARD (13.5X25.5X3-MM THK)1
03414323 STRAP-CABLE2
09100814 SPACER (10.5X20X10-MM THK)1
12585345 PLATE AS1
8T3490NUT-WELD (M10X1.5-THD)1
13369346 SPACER (11X20X25-MM THK)1
13696997 BRACKET AS1
8T3490NUT-WELD (M10X1.5-THD)1
32030618 SENSOR GP-PRESSURE (FUEL)1
32628829 PLATE AS1
8T3490NUT-WELD (M10X1.5-THD)1
484485610 CLIP (LOOP)1
130530011 CLIP5
149773812 CLIP (LOOP)8
200634513 SADDLE-MOUNTING (DUAL SWIVEL)3
202276214 CLIP (LOOP)2
204228115 STRAP-CABLE21
228710116 SEAL-O-RING1
259714017 STUD-TAPERLOCK (M10X1.5X80-MM)1
263634218 CLIP2
288715819 STUD (M10X1.5X125-MM)3
343238720 CLIP (LOOP)7
344567521 NUT (M10X1.5-THD)5
382200122 SENSOR GP-LIQUID LEVEL (WATER IN FUEL)1
3K606023 LOCKNUT (3/8-16-THD)1
479217224 BOLT AS1
483251725 CLIP (LOOP)11
4D951726 CLIP6
556168127 HARNESS AS-FRONT CHASSIS1
564265128 HARNESS AS-PUMP1
569969029 CABLE AS1
3S2093STRAP-CABLE2
9X4519BOOT (RED)1
1598053CABLE-ELECTRICAL (0000-GA, RED)(1216-CM)
3482314TERMINAL AS-RING1
1355010TUBE-HEAT SHRINK (52-MM DIA)(5-CM)
2611730TERMINAL-RING (0000-GA, 1/2-IN SCREW)1
3482317TERMINAL AS-RING1
3L7634TERMINAL-RING (0000-GA, 1/2-IN SCREW)1
1355010TUBE-HEAT SHRINK (52-MM DIA)(5-CM)
3487341COVER-TERMINAL1
580591930 HARNESS AS-WIRING (CHASSIS)1
5G367631 GROMMET28
6V188932 CLIP (LOOP)15
8C312133 BOLT (5/16-18X1.5-IN)2
8S094834 CLIP5
8T188935 CLIP (SLOT)13
8T189036 CLIP (TAB)13
8T412137 WASHER-HARD (11X21X2.5-MM THK)28
8T413338 NUT (M10X1.5-THD)1
8T413639 BOLT (M10X1.5X25-MM)2
8T413740 BOLT (M10X1.5X20-MM)4
8T418541 BOLT (M10X1.5X50-MM)1
8T418642 BOLT (M10X1.5X40-MM)7
8T419243 BOLT (M12X1.75X25-MM)1
8T419544 BOLT (M10X1.5X30-MM)2
8T419645 BOLT (M10X1.5X35-MM)1
8T422446 WASHER-HARD (8.8X16X2-MM THK)2
8T489647 WASHER-HARD (10.2X18.5X2.5-MM THK)2
8T646648 BOLT (M10X1.5X60-MM)2
9B723749 BOLT (3/8-16X1.25-IN)1
