System And Components

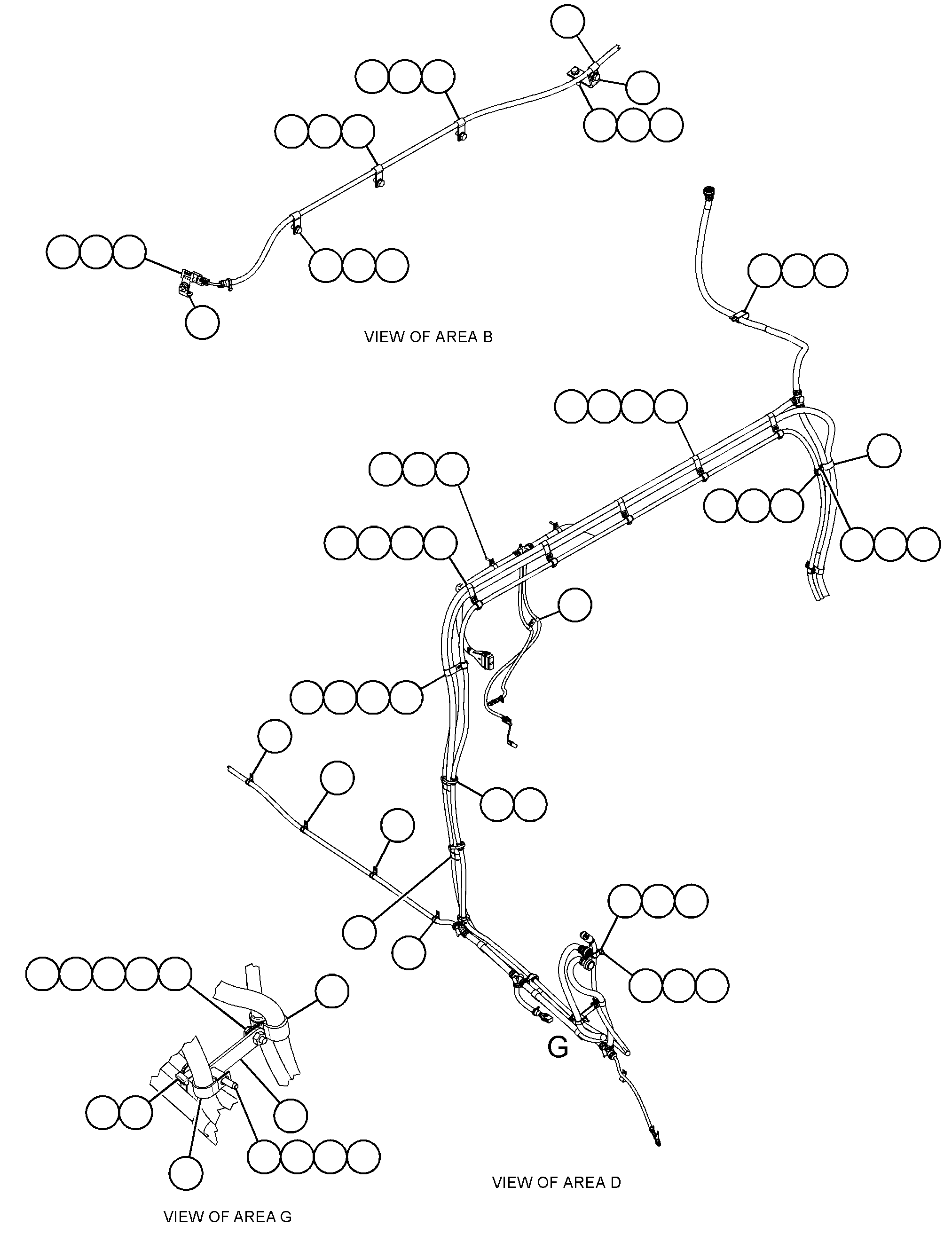

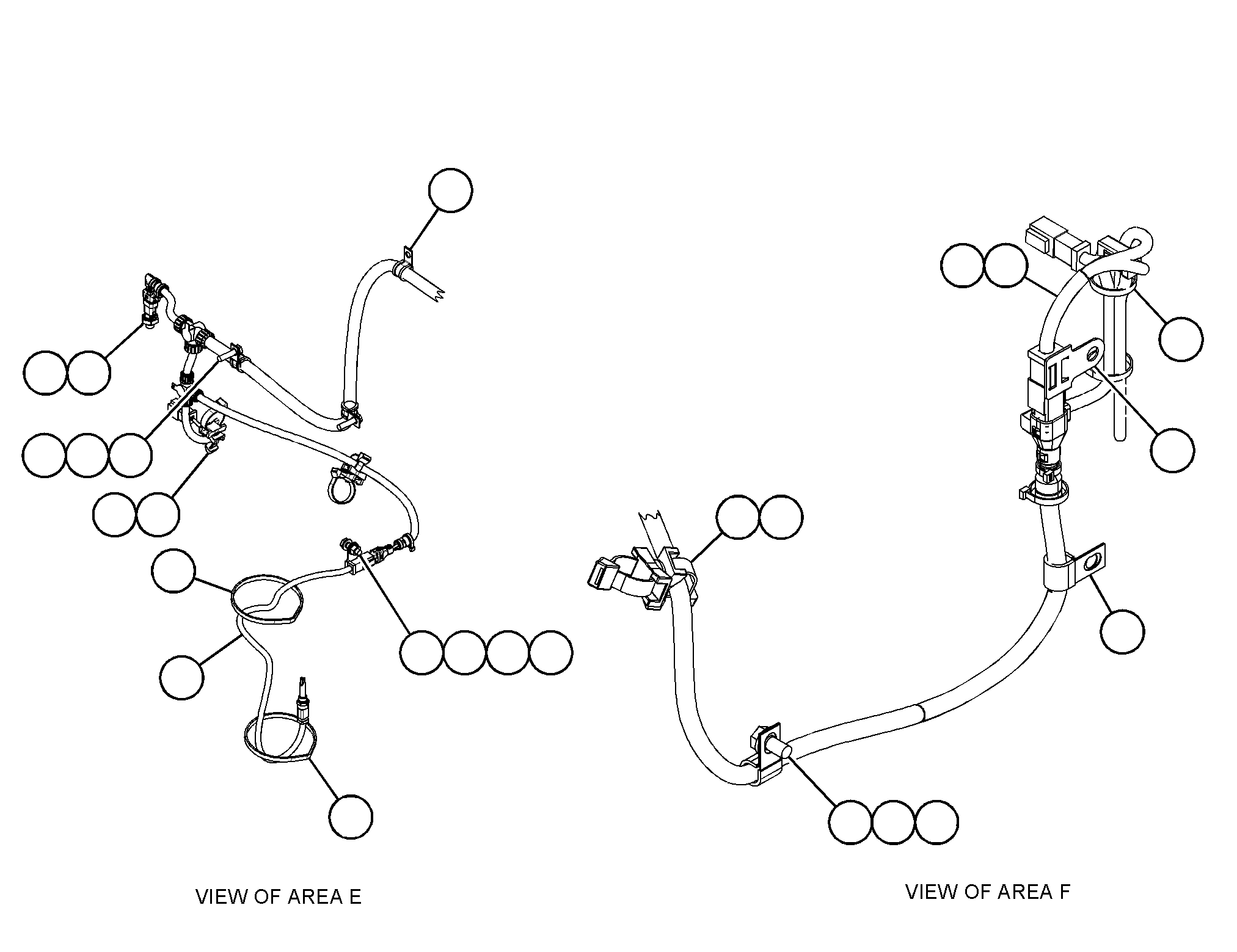

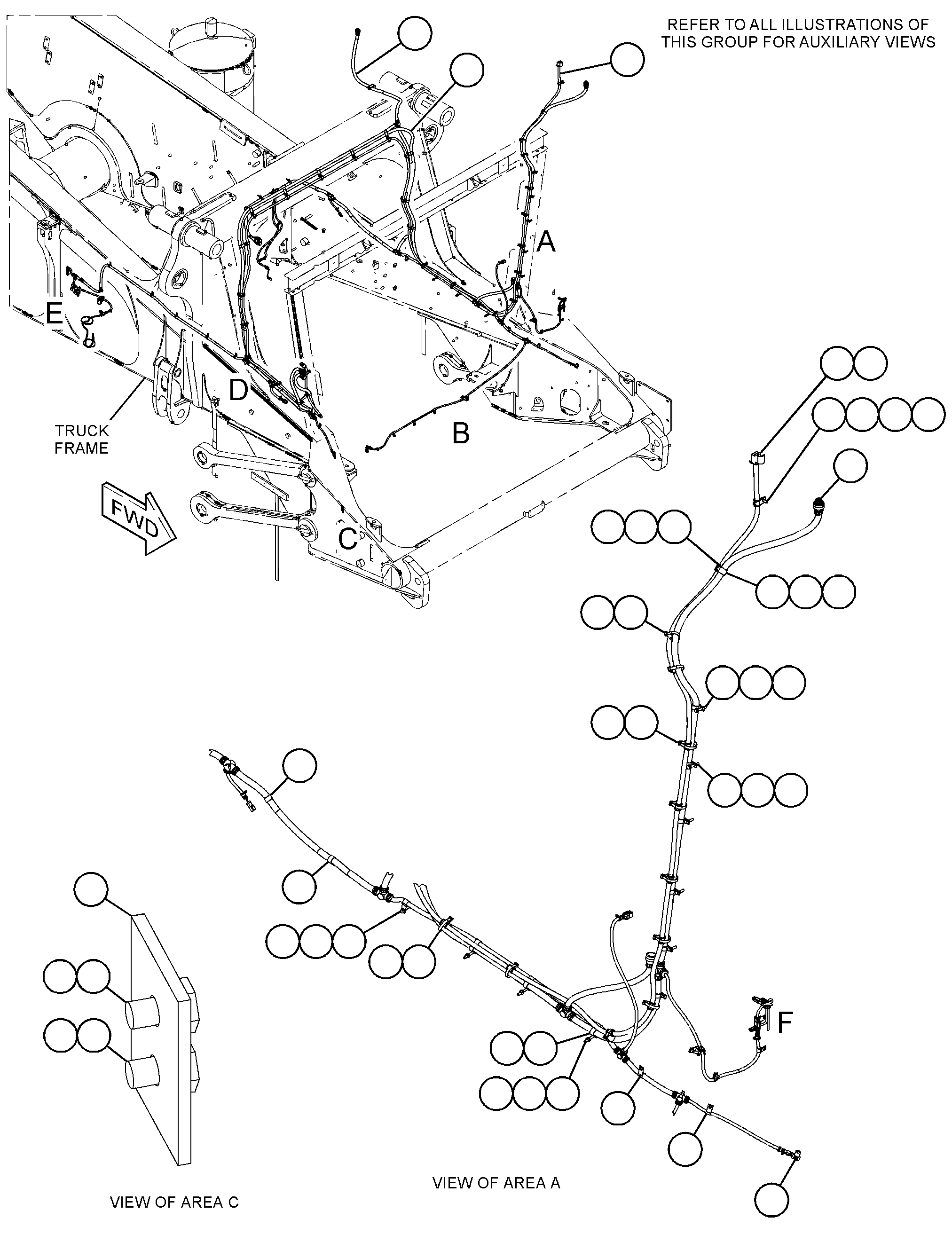

563-9145 WIRING GP-MACHINES/N HRZ508-UP
Group No: 563-9145
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 2 | |
| 8T4223 | 2 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 0341432 | 3 STRAP-CABLE | 2 | |
| 0910081 | 4 SPACER (10.5X20X10-MM THK) | 2 | |
| 1258534 | 5 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1336934 | 6 SPACER (11X20X25-MM THK) | 1 | |
| 1369699 | 7 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3203061 | 8 SENSOR GP-PRESSURE (FUEL) | 1 | |
| 3262882 | 9 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4844856 | 10 CLIP (LOOP) | 1 | |
| 1305300 | 11 CLIP | 5 | |
| 1497738 | 12 CLIP (LOOP) | 8 | |
| 2006345 | 13 SADDLE-MOUNTING (DUAL SWIVEL) | 3 | |
| 2022762 | 14 CLIP (LOOP) | 2 | |
| 2042281 | 15 STRAP-CABLE | 21 | |
| 2287101 | 16 SEAL-O-RING | 1 | |
| 2597140 | 17 STUD-TAPERLOCK (M10X1.5X80-MM) | 1 | |
| 2636342 | 18 CLIP | 2 | |
| 2887158 | 19 STUD (M10X1.5X125-MM) | 3 | |
| 3432387 | 20 CLIP (LOOP) | 7 | |
| 3445675 | 21 NUT (M10X1.5-THD) | 5 | |
| 3822001 | 22 SENSOR GP-LIQUID LEVEL (WATER IN FUEL) | 1 | |
| 3K6060 | 23 LOCKNUT (3/8-16-THD) | 1 | |
| 4792172 | 24 BOLT AS | 1 | |
| 4832517 | 25 CLIP (LOOP) | 11 | |
| 4D9517 | 26 CLIP | 6 | |
| 5561681 | 27 HARNESS AS-FRONT CHASSIS | 1 | |
| 5642651 | 28 HARNESS AS-PUMP | 1 | |
| 5699690 | 29 CABLE AS | 1 | |
| 3S2093 | STRAP-CABLE | 2 | |
| 9X4519 | BOOT (RED) | 1 | |
| 1598053 | CABLE-ELECTRICAL (0000-GA, RED)(1216-CM) | ||
| 3482314 | TERMINAL AS-RING | 1 | |
| 1355010 | TUBE-HEAT SHRINK (52-MM DIA)(5-CM) | ||
| 2611730 | TERMINAL-RING (0000-GA, 1/2-IN SCREW) | 1 | |
| 3482317 | TERMINAL AS-RING | 1 | |
| 3L7634 | TERMINAL-RING (0000-GA, 1/2-IN SCREW) | 1 | |
| 1355010 | TUBE-HEAT SHRINK (52-MM DIA)(5-CM) | ||
| 3487341 | COVER-TERMINAL | 1 | |
| 5805919 | 30 HARNESS AS-WIRING (CHASSIS) | 1 | |
| 5G3676 | 31 GROMMET | 28 | |
| 6V1889 | 32 CLIP (LOOP) | 15 | |
| 8C3121 | 33 BOLT (5/16-18X1.5-IN) | 2 | |
| 8S0948 | 34 CLIP | 5 | |
| 8T1889 | 35 CLIP (SLOT) | 13 | |
| 8T1890 | 36 CLIP (TAB) | 13 | |
| 8T4121 | 37 WASHER-HARD (11X21X2.5-MM THK) | 28 | |
| 8T4133 | 38 NUT (M10X1.5-THD) | 1 | |
| 8T4136 | 39 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4137 | 40 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4185 | 41 BOLT (M10X1.5X50-MM) | 1 | |
| 8T4186 | 42 BOLT (M10X1.5X40-MM) | 7 | |
| 8T4192 | 43 BOLT (M12X1.75X25-MM) | 1 | |
| 8T4195 | 44 BOLT (M10X1.5X30-MM) | 2 | |
| 1837121 | 45 BOLT (M10X1.5X35-MM) | 1 | |
| 8T4224 | 46 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4896 | 47 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 8T6466 | 48 BOLT (M10X1.5X60-MM) | 2 | |
| 9B7237 | 49 BOLT (3/8-16X1.25-IN) | 1 | |
| 7E7606 | 50 BOLT (M10X1.5X16-MM) | 2 | |
| 8R3258 | 51 WASHER (10.5X21X2-MM THK) | 2 | |
| 8T8737 | 52 PLUG-SEAL | 19 | |
| 4511102 | 53 BLOCK | 1 |
