System And Components

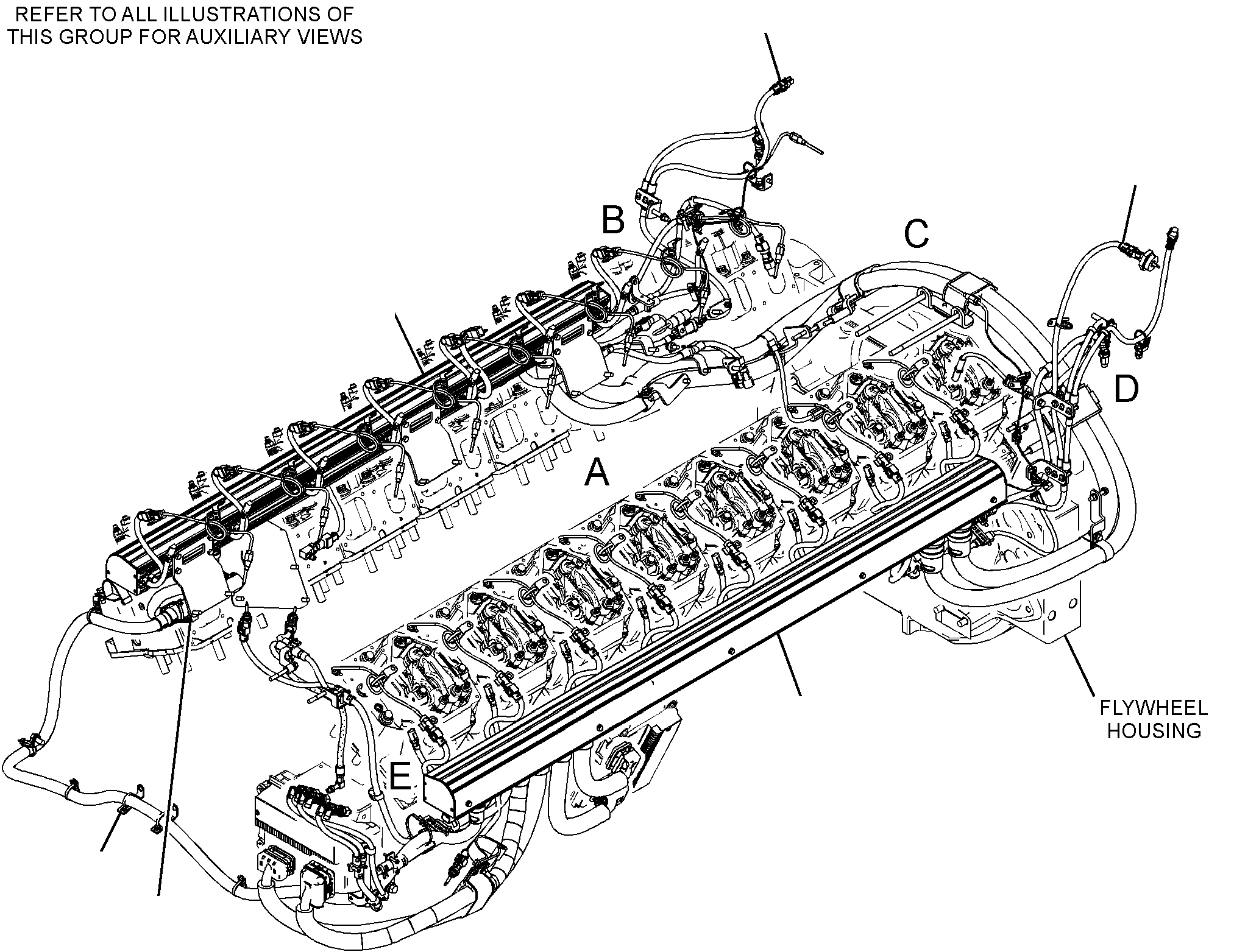

364-7344 WIRING GP-ENGINES/N TKT1-205
Group No: 364-7344
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP-CABLE | 2 | |
| 9V2500 | 2 BRACKET AS | 1 | |
| 9X3495 | 3 CLIP AS | 1 | |
| 9X6772 | 4 STRAP-CABLE | 38 | |
| 1113684 | 5 HOSE AS | 1 | |
| 1439607 | 6 STRAP-CABLE | 3 | |
| 1772215 | 7 STRAP-DUAL CLAMP | 2 | |
| 2123426 | 8 SENSOR GP-SPEED (ENGINE) | 1 | |
| 2159632 | 9 SPACER (12X20X20-MM THK) | 2 | |
| 2450522 | 10 BRACKET | 1 | |
| 2450523 | 11 BRACKET | 2 | |
| 2477635 | 12 SENSOR GP-TEMPERATURE (TURBOCHARGER INLET, LH) | 1 | |
| 2477635 | 12A SENSOR GP-TEMPERATURE (TURBOCHARGER INLET, RH) | 1 | |
| 2566453 | 13 SENSOR-TEMPERATURE (2-PIN)(COMPRESSOR INLET AIR, LH) | 1 | |
| 2566453 | 13A SENSOR-TEMPERATURE (2-PIN)(ENGINE OIL) | 1 | |
| 2566453 | 13B SENSOR-TEMPERATURE (2-PIN)(SEPARATE CIRCUIT AFTERCOOLER) | 1 | |
| 2566453 | 13C SENSOR-TEMPERATURE (2-PIN)(AIR INLET, PRIMARY) | 1 | |
| 2566453 | 13D SENSOR-TEMPERATURE (2-PIN)(ENGINE COOLANT) | 1 | |
| 2566453 | 13E SENSOR-TEMPERATURE (2-PIN)(AIR INLET, SECONDARY) | 1 | |
| 2613856 | 14 BRACKET AS | 1 | |
| 8C3334 | RIVET-TUBULAR | 2 | |
| 2616847 | 15 ADAPTER | 18 | |
| 2621957 | 16 SENSOR GP-TEMPERATURE (CYLINDER EXHAUST) | 16 | |
| 2659033 | 17 SENSOR GP-SPEED (CAMSHAFT POSITION) | 1 | |
| 2659033 | 17A SENSOR GP-SPEED (CRANKSHAFT POSITION) | 1 | |
| 2786469 | 18 GROMMET | 4 | |
| 3203061 | 19 SENSOR GP-PRESSURE (AIR INLET MANIFOLD, SECONDARY) | 1 | |
| 3203061 | 19A SENSOR GP-PRESSURE (ATMOSPHERIC PRESSURE) | 1 | |
| 3203063 | 20 SENSOR GP-PRESSURE (TURBINE, LH) | 1 | |
| 3203063 | 20A SENSOR GP-PRESSURE (TURBINE, RH) | 1 | |
| 3203063 | 20B SENSOR GP-PRESSURE (CRANKCASE) | 1 | |
| 3203063 | 20C SENSOR GP-PRESSURE (AIR INLET MANIFOLD, PRIMARY) | 1 | |
| 3535441 | 21 ADAPTER-ELBOW | 1 | |
| 3579033 | 22 CLAMP | 2 | |
| 3596007 | 23 BRACKET AS | 1 | |
| 9F6445 | NUT-WELD (1/4-20-THD) | 1 | |
| 3596013 | 24 BRACKET AS | 2 | |
| 3647416 | 25 BRACKET | 1 | |
| 3647417 | 26 HARNESS AS-CEM | 1 | |
| 3724756 | 27 BRACKET | 1 | |
| 3724759 | 28 BRACKET | 3 | |
| 3911446 | 29 WIRING GP-ENGINE (RAIL, RH) | 1 | |
| 3911451 | 30 WIRING GP-ENGINE (LH) | 1 | |
| 3911452 | 31 WIRING GP-ENGINE (RH) | 1 | |
| 3915676 | 32 WIRING GP-ENGINE (RAIL, LH) | 1 | |
| 3964585 | 33 MODULE AS-EXHAUST TEMPERATURE (DIGITAL) | 1 | |
| 3434631 | MODULE-EXHAUST TEMPERATURE (SCANNER) | ||
| 0019440 | 34 CONNECTOR | 1 | |
| 0950911 | 35 CLIP | 1 | |
| 0966166 | 36 WASHER-HARD (4.5X9X1-MM THK) | 2 | |
| 0L1143 | 37 BOLT (3/8-16X2.5-IN) | 3 | |
| 0L1352 | 38 BOLT (3/8-16X3.25-IN) | 1 | |
| 0S0509 | 39 BOLT (3/8-16X0.75-IN) | 5 | |
| 0S1571 | 40 BOLT (3/8-16X1.75-IN) | 1 | |
| 0S1588 | 41 BOLT (3/8-16X1.25-IN) | 15 | |
| 0S1590 | 42 BOLT (3/8-16X2-IN) | 4 | |
| 0S1591 | 43 BOLT (3/8-16X1.5-IN) | 5 | |
| 0S1594 | 44 BOLT (3/8-16X1-IN) | 16 | |
| 0S1621 | 45 BOLT (1/2-13X1-IN) | 2 | |
| 1153069 | 46 CLIP AS-CONNECTING (3-PIN) | 16 | |
| 1240289 | 47 CLIP | 2 | |
| 1242528 | 48 SPACER (11X20X10-MM THK) | 1 | |
| 1305300 | 49 CLIP | 1 | |
| 1325789 | 50 CLIP (LADDER) | 3 | |
| 1391398 | 51 CLIP (LOOP) | 6 | |
| 2147566 | 52 SEAL-O-RING | 4 | |
| 2147568 | 53 SEAL-O-RING | 2 | |
| 2287100 | 54 SEAL-O-RING | 4 | |
| 2287101 | 55 SEAL-O-RING | 2 | |
| 2385080 | 56 SEAL-O-RING | 4 | |
| 2771873 | 57 CLIP (LADDER) | 1 | |
| 2840753 | 58 WASHER (11X25X2.5-MM THK) | 1 | |
| 2856393 | 59 CLIP (LADDER) | 2 | |
| 2856395 | 60 CLIP (LADDER) | 1 | |
| 2M0849 | 61 WASHER-HARD (13.5X25.5X5-MM THK) | 1 | |
| 2M3403 | 62 BOLT (3/8-16X3.63-IN) | 4 | |
| 2S4078 | 63 SEAL-O-RING | 1 | |
| 3118802 | 64 SPACER (10.5X19X57-MM THK) | 4 | |
| 3309739 | 65 ADAPTER | 2 | |
| 3353999 | 66 CONNECTOR | 2 | |
| 3523966 | 67 CLIP (LADDER) | 1 | |
| 3523967 | 68 CLIP (LADDER) | 2 | |
| 3523968 | 69 CLIP (LADDER) | 2 | |
| 3535439 | 70 CONNECTOR | 1 | |
| 3535440 | 71 ADAPTER | 2 | |
| 3B1915 | 72 BOLT (3/8-16X1.375-IN) | 1 | |
| 3K0360 | 73 SEAL-O-RING | 2 | |
| 4P7428 | 74 CLIP (LADDER) | 2 | |
| 4P7429 | 75 CLIP (LADDER) | 3 | |
| 4P7581 | 76 CLIP (LADDER) | 2 | |
| 4P8134 | 77 CLIP (LADDER) | 20 | |
| 5M2894 | 78 WASHER-HARD (10.2X18.5X2.5-MM THK) | 57 | |
| 5P3426 | 79 ELBOW | 1 | |
| 5P8245 | 80 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 5P8905 | 81 ADAPTER-O-RING | 1 | |
| 6H1717 | 82 BOLT (1/2-13X1.125-IN) | 1 | |
| 6V0267 | 83 CLIP (TAB) | 1 | |
| 6V0268 | 84 CLIP (SLOT) | 1 | |
| 6V1581 | 85 CLIP (SLOT) | 1 | |
| 6V1582 | 86 CLIP (TAB) | 1 | |
| 6V1612 | 87 BOLT (1/2-13X9.75-IN) | 2 | |
| 6V2751 | 88 BOLT-HIGH TEMPERATURE (3/8-16X0.75-IN) | 1 | |
| 6V5048 | 89 SEAL-O-RING | 1 | |
| 6V6609 | 90 SEAL-O-RING | 1 | |
| 6V7697 | 91 SCREW-MACHINE (8-32X1.25-IN) | 2 | |
| 6V7978 | 92 SCREW-MACHINE (10-32X0.375-IN) | 3 | |
| 7D1649 | 93 WASHER-HARD (13.5X32X5-MM THK) | 2 | |
| 7G5984 | 94 CLIP (TAB) | 4 | |
| 7G5985 | 95 CLIP (SLOT) | 4 | |
| 7W5938 | 96 SCREW-TAPPING (10-24X0.622-IN) | 2 | |
| 8F1434 | 97 LOCKWASHER | 3 | |
| 8H3128 | 98 BOLT-SOCKET HEAD (1/4-20X0.625-IN) | 1 | |
| 8M2770 | 99 CLIP (LOOP) | 3 | |
| 9M8406 | 100 CLIP (LOOP) | 3 | |
| 9S1366 | 101 BOLT (1/2-13X2.5-IN) | 1 | |
| 9S4185 | 102 PLUG (3/4-16-THD) | 1 | |
| 9S8752 | 103 NUT-FULL (3/8-16-THD) | 9 | |
| 9X6458 | 104 WASHER-HARD (10.2X22.5X3-MM THK) | 7 | |
| 9X8267 | 105 WASHER (6.6X12X2-MM THK) | 1 |
