System And Components

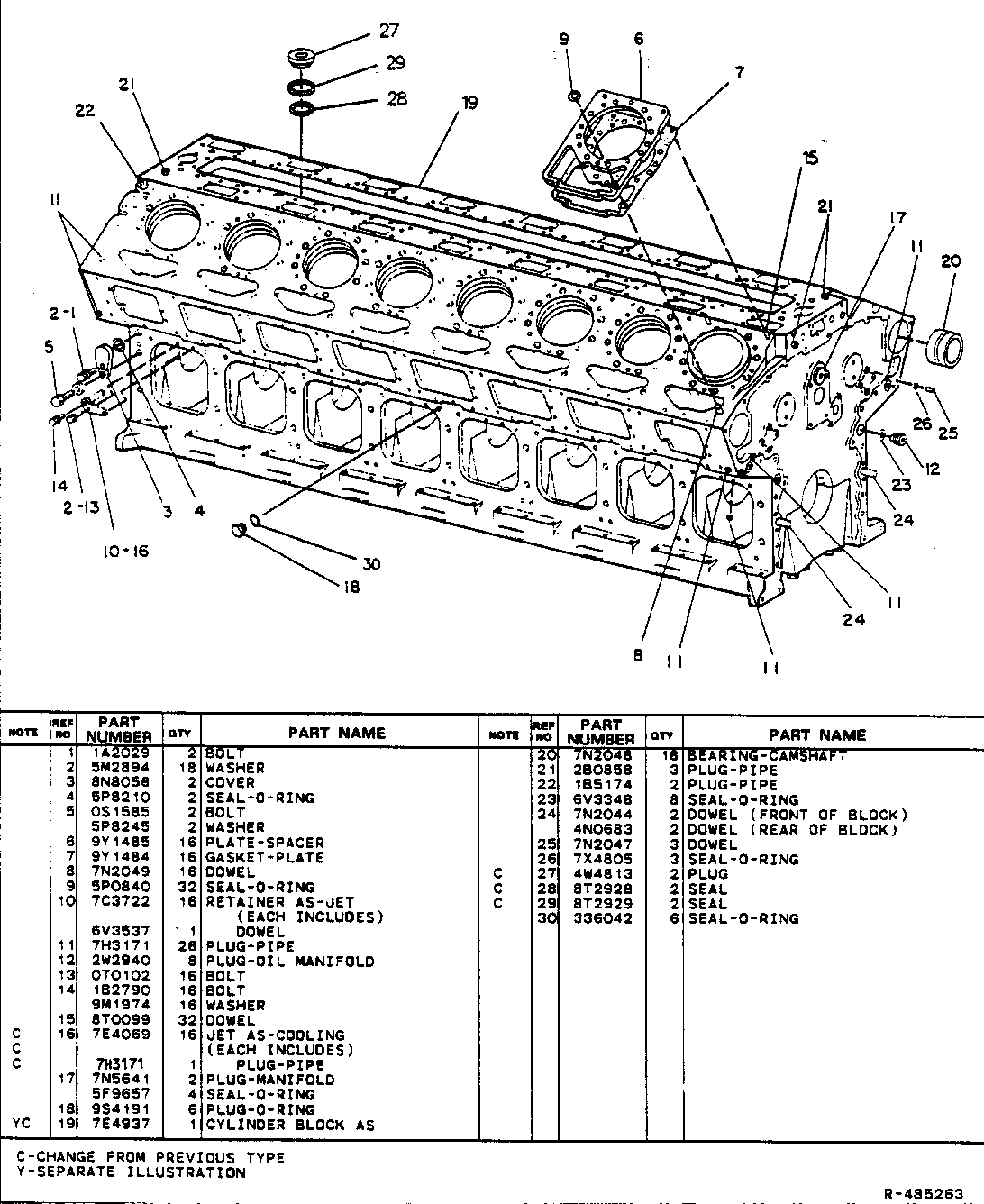

7C8147 CYLINDER BLOCK GP
Group No: 7C8147
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1A2029 | 1 BOLT | 2 | |
| 5M2894 | 2 WASHER | 18 | |
| 8N8056 | 3 COVER | 2 | |
| 5P8210 | 4 SEAL-O-RING | 2 | |
| 0S1585 | 5 BOLT | 2 | |
| 5P8245 | WASHER | 2 | |
| 9Y1485 | 6 PLATE-SPACER | 16 | |
| 9Y1484 | 7 GASKET-PLATE | 16 | |
| 7N2049 | 8 DOWEL | 16 | |
| 5P0840 | 9 SEAL-O-RING | 32 | |
| 7C3722 | 10 RETAINER AS-JET | 16 | |
| 6V3537 | DOWEL | 1 | |
| 7H3171 | 11 PLUG-PIPE | 26 | |
| 2W2940 | 12 PLUG-OIL MANIFOLD | 8 | |
| 0T0102 | 13 BOLT | 16 | |
| 1B2790 | 14 BOLT | 16 | |
| 9M1974 | WASHER | 16 | |
| 8T0099 | 15 DOWEL | 32 | |
| 7E4069 | 16 JET AS-COOLING | 16 | |
| 7H3171 | PLUG-PIPE | 1 | |
| 7N5641 | 17 PLUG-MANIFOLD | 2 | |
| 5F9657 | SEAL-O-RING | 4 | |
| 9S4191 | 18 PLUG-O-RING | 6 | |
| 7E4937 | 19 CYLINDER BLOCK AS | 1 | |
| 7N2048 | 20 BEARING-CAMSHAFT | 18 | |
| 2B0858 | 21 PLUG-PIPE | 3 | |
| 1B5174 | 22 PLUG-PIPE | 2 | |
| 6V3348 | 23 SEAL-O-RING | 8 | |
| 7N2044 | 24 DOWEL (FRONT OF BLOCK) | 2 | |
| 4N0683 | DOWEL (REAR OF BLOCK) | 2 | |
| 7N2047 | 25 DOWEL | 3 | |
| 7X4805 | 26 SEAL-O-RING | 3 | |
| 4W4813 | 27 PLUG | 2 | |
| 8T2928 | 28 SEAL | 2 | |
| 8T2929 | 29 SEAL | 2 | |
| 0336042 | 30 SEAL-O-RING | 6 |
