System And Components

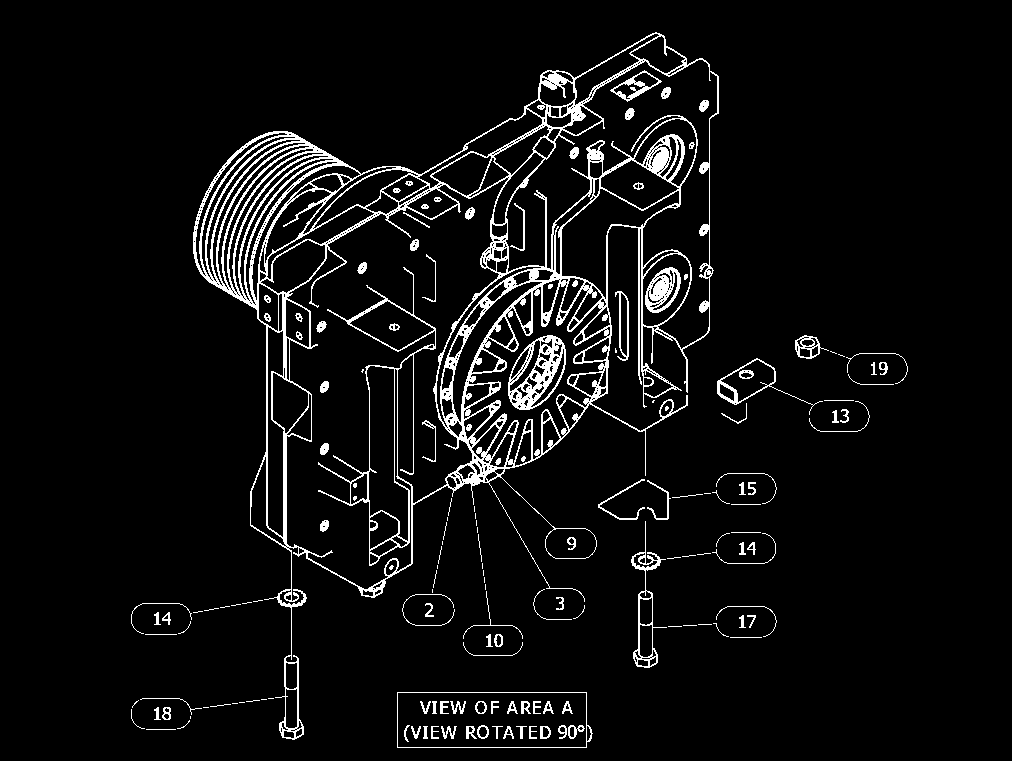

390-2869 MOUNTING GP-DRIVE AXLES/N 8RF1-UP
Group No: 390-2869
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1391398 | 1 CLIP (LOOP) | 1 | |
| 1488408 | 2 PLUG AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 9S4183 | PLUG (1-1/16-12-THD) | 1 | |
| 1645563 | 3 UNION AS | 1 | |
| 3D2824 | SEAL-O-RING | 2 | |
| 5P9560 | UNION | 1 | |
| 1852245 | 4 ADAPTER AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1578510 | ADAPTER | 1 | |
| 2287092 | 5 SEAL-O-RING | 1 | |
| 2385081 | 6 SEAL-O-RING | 1 | |
| 2582829 | 7 BREATHER (HYDRAULIC TANK) | 1 | |
| 3445675 | 8 NUT (M10X1.5-THD) | 1 | |
| 3779540 | 9 ELBOW AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 3717242 | ADAPTER-ELBOW | 1 | |
| 3779629 | 10 VALVE-BALL | 1 | |
| 3899806 | 11 HOSE AS | 1 | |
| 3951930 | 12 DRIVE GP-PUMP | 1 | |
| 5166094 | 13 RETAINER-NUT | 4 | |
| 5201507 | 14 WASHER (31.3X63.3X5.2-MM THK) | 4 | |
| 5548783 | 15 SHIM (0.3-MM THK) | 8 | |
| 6V8629 | 16 ELBOW | 1 | |
| 7X2585 | 17 BOLT (M30X3.5X160-MM) | 2 | |
| 7X2586 | 18 BOLT (M30X3.5X180-MM) | 2 | |
| 8C8722 | 19 NUT (M30X3.5-THD) | 4 | |
| 8T4121 | 20 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4137 | 21 BOLT (M10X1.5X20-MM) | 1 |
