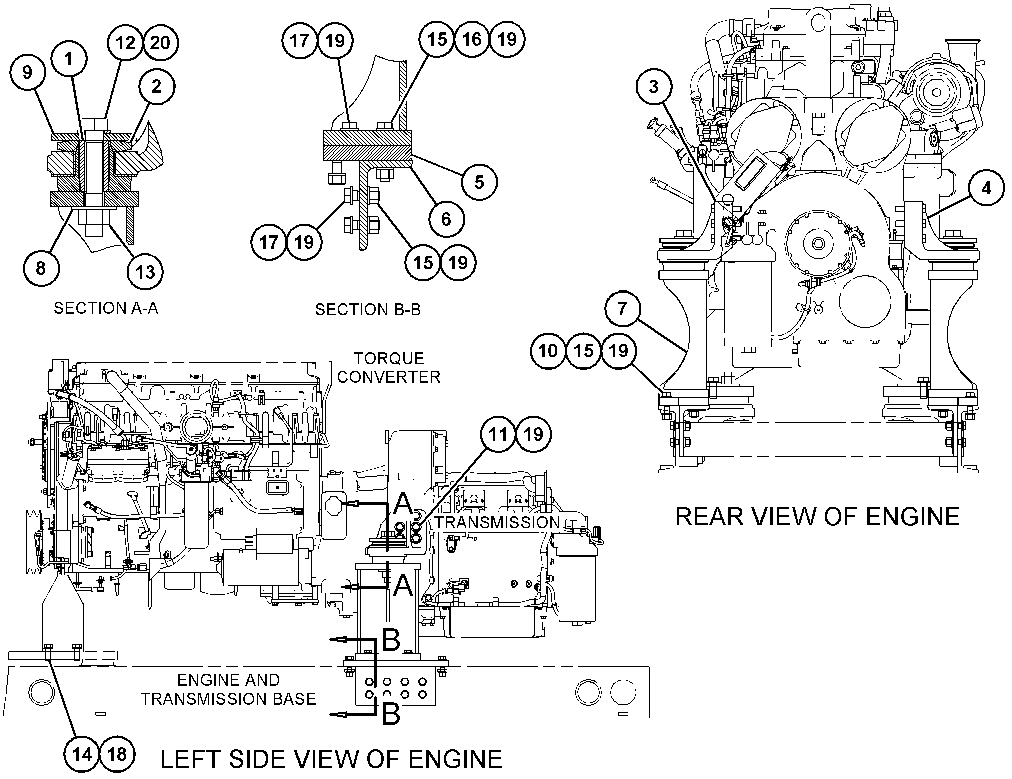

Assembly
100%

356-4870 MOUNTING GP-ENGINE & XMSNS/N PDN1-UP

Group No: 356-4870
Part NumberPart NameQty
3E48871 SLEEVE2
6Y99802 MOUNT AS2
9W8095PAD-REBOUND1
9W9958MOUNT1
19052713 BRACKET (LH)1
19052724 BRACKET (RH)1
34512585 PLATE2
34512596 ANGLE2
34512617 SUPPORT AS2
27654778 WASHER-HARD (34.9X7602X6-MM THK)2
3E48889 WASHER (32X144X12-MM THK)2
7X255410 BOLT (M16X2X70-MM)4
7X255511 BOLT (M16X2X80-MM)12
7X258612 BOLT (M30X3.5X180-MM)2
8C872213 NUT (M30X3.5-THD)2
8T412314 WASHER (22X35X3.5-MM THK)4
8T413215 NUT (M16X2-THD)24
8T417516 BOLT (M16X2X90-MM)4
8T419317 BOLT (M16X2X50-MM)20
8T643018 BOLT (M20X2.5X50-MM)4
9X825719 WASHER (17.5X30X3.5-MM THK)64
9X825820 WASHER (33X56X6-MM THK)2
