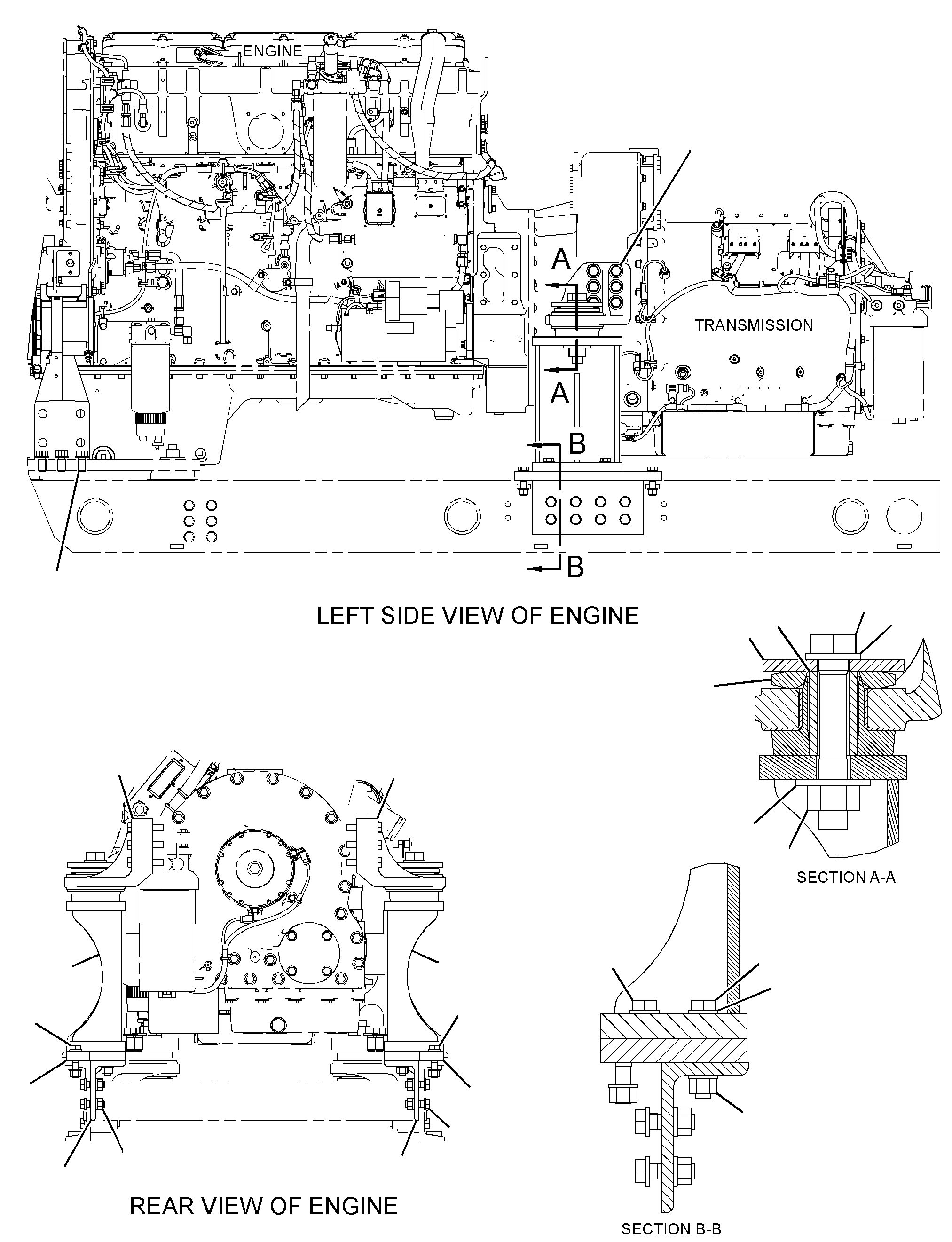

344-3526 MOUNTING GP-ENGINE & XMSNS/N PDM1-UP

Group No: 344-3526
Part NumberPart NameQty
3E48871 SLEEVE2
3E48882 WASHER (32X144X12-MM THK)2
6Y99803 MOUNT AS2
9W8095PAD-REBOUND1
9W9958MOUNT1
19052714 BRACKET (LH)1
19052725 BRACKET (RH)1
34512586 PLATE2
34512597 ANGLE2
34512618 SUPPORT AS2
27654779 WASHER-HARD (34.9X7602X6-MM THK)2
7X255410 BOLT (M16X2X70-MM)4
7X255511 BOLT (M16X2X80-MM)12
7X258612 BOLT (M30X3.5X180-MM)2
8C872213 NUT (M30X3.5-THD)2
8T413214 NUT (M16X2-THD)24
8T417515 BOLT (M16X2X90-MM)4
8T419316 BOLT (M16X2X50-MM)20
8T499417 WASHER-HARD (20X36.5X3.5-MM THK)6
8T939818 BOLT (3/4-10X1.75-IN)6
9X825719 WASHER (17.5X30X3.5-MM THK)64
9X825820 WASHER (33X56X6-MM THK)2
