System And Components

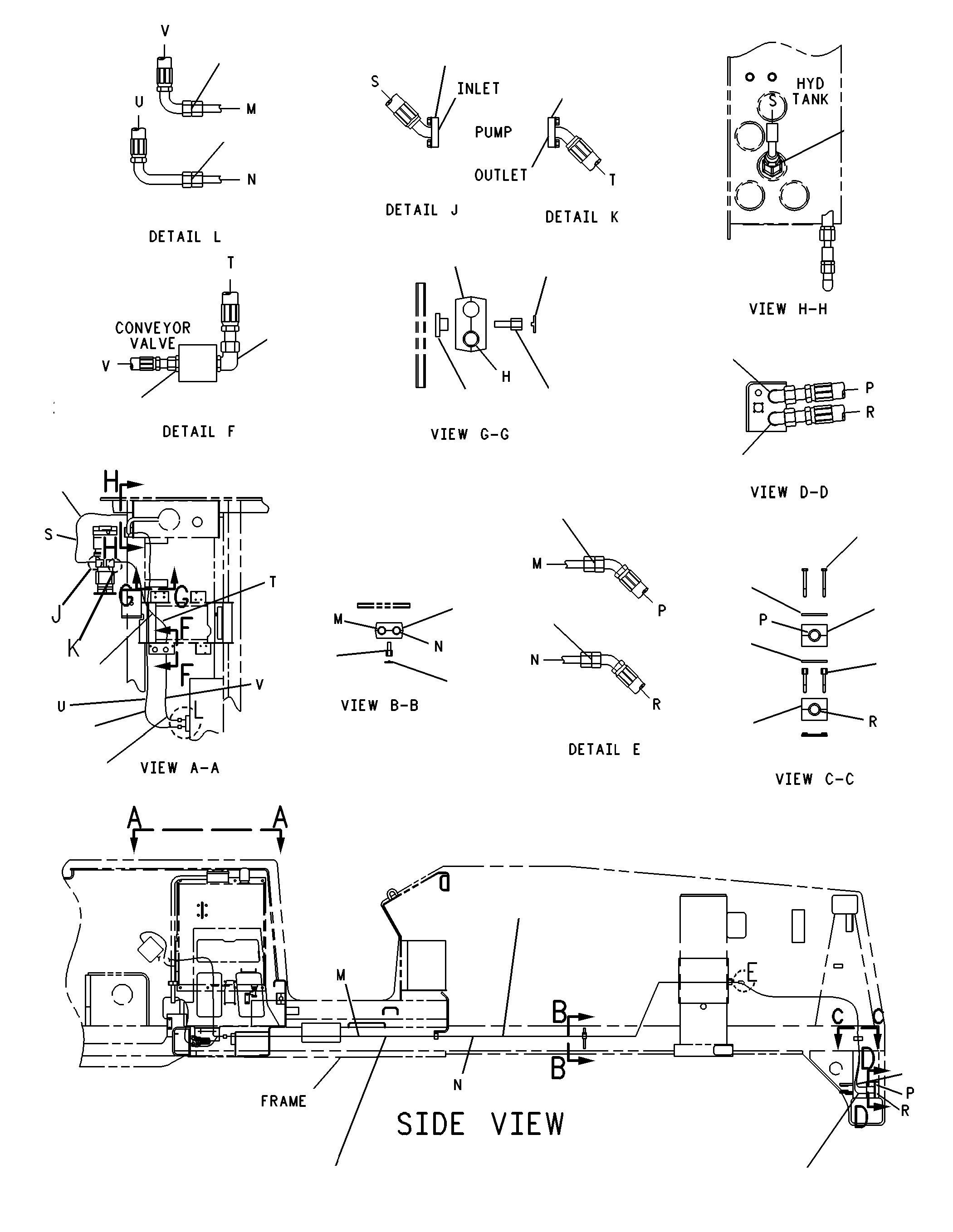

1G-7930 LINES GP-HYDRAULICS/N 3TK1-66
Group No: 1G-7930
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1G9774 | 1 TUBE AS | 1 | |
| 1G9775 | 2 TUBE AS | 1 | |
| 1017781 | 3 HOSE AS | 1 | |
| 1017780 | 4 HOSE AS | 1 | |
| 1019215 | 5 HOSE AS | 1 | |
| 1021669 | 6 HOSE AS | 1 | |
| 1021749 | 7 HOSE AS | 1 | |
| 1017777 | 8 HOSE AS | 1 | |
| 1022135 | 9 ADAPTER | 1 | |
| 1P4579 | 10 FLANGE-HALF | 2 | |
| 0S1587 | 11 BOLT (1/2-13X1.75-IN) | 4 | |
| 5P8245 | 12 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 1P4578 | 13 FLANGE-HALF | 2 | |
| 0T0772 | 14 BOLT (7/16-14X1.5-IN) | 4 | |
| 5P8244 | 15 WASHER-HARD (12X22.5X2.5-MM THK) | 4 | |
| 6V9008 | 16 ELBOW | 1 | |
| 6V8716 | 17 CONNECTOR (STRAIGHT) | 1 | |
| 6V8983 | 18 ELBOW | 2 | |
| 2P1293 | 19 LOCKNUT (1-3/16-12-THD) | 2 | |
| 2S4078 | 20 SEAL-O-RING | 1 | |
| 8T0315 | 21 SEAL-O-RING | 1 | |
| 4J0524 | 22 SEAL-O-RING | 1 | |
| 4J0522 | 23 SEAL-O-RING | 1 | |
| 7M8485 | 24 SEAL-O-RING | 2 | |
| 5K9090 | 25 SEAL-O-RING | 1 | |
| 6V9746 | 26 SEAL-O-RING | 9 | |
| 1017919 | 27 CLAMP-HALF | 6 | |
| 6R3319 | 28 BOLT-SPECIAL (5/16-18-THD) | 3 | |
| 7R7964 | 29 PLATE | 5 | |
| 7R7940 | 30 CLAMP | 4 | |
| 7R7960 | 31 BOLT (1/4-20X2-IN) | 2 | |
| 7R7955 | 32 PLATE (SLOTTED) | 1 | |
| 7R7951 | 33 PLATE | 1 | |
| 7X0264 | 34 BOLT (1/4-20X2.5-IN) | 2 | |
| 7R7965 | 35 NUT | 2 | |
| 1017938 | 36 CLAMP-HALF | 4 | |
| 8V5714 | 37 SEGMENT-RING | 2 |
