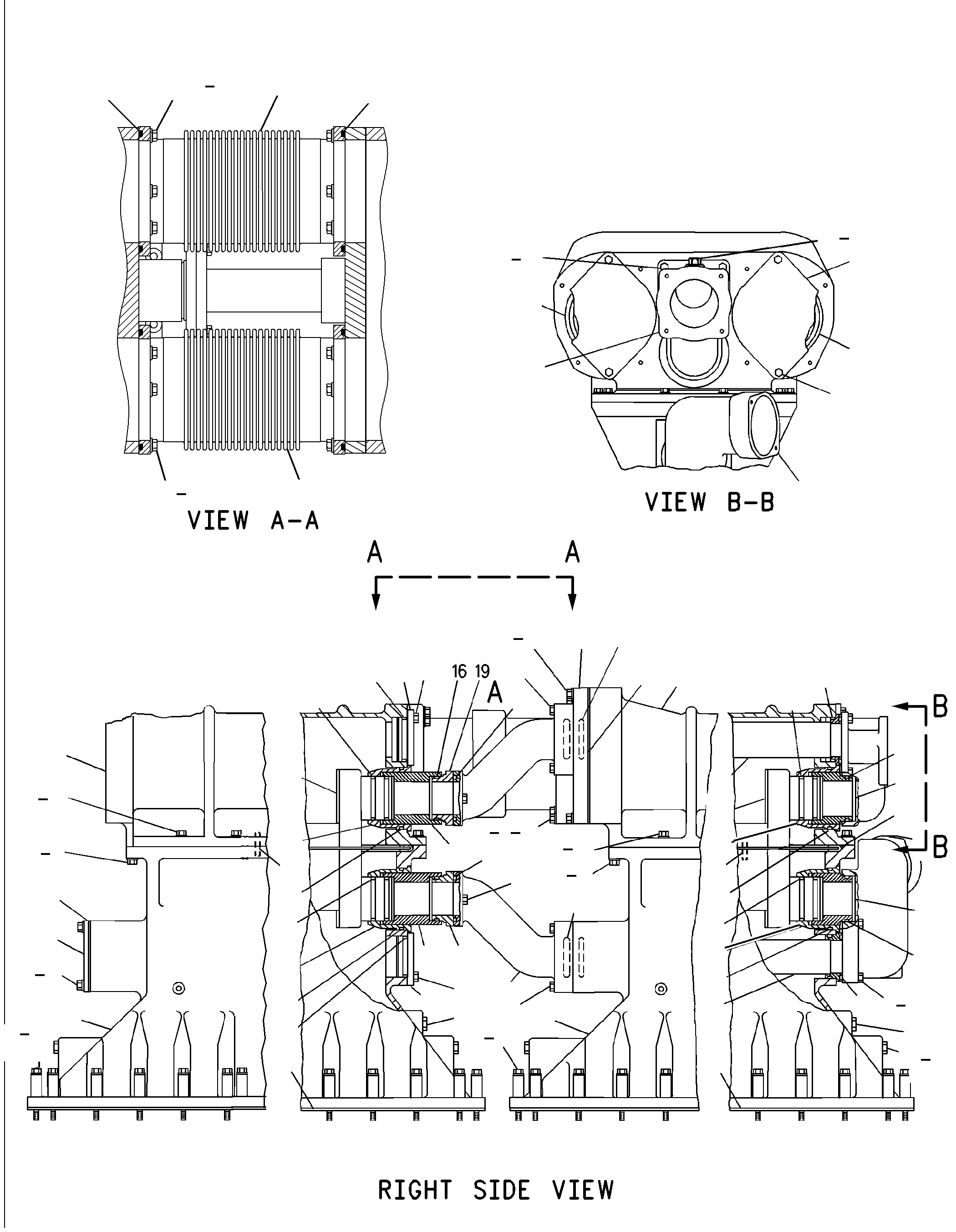

1W-0921 AFTERCOOLER GP-WATER (CHG -09 THRU -16-16D1 THRU -18, 7C-7056-04)Type 2

Group No: 1W-0921
Part NumberPart NameQty
0T05731 BOLT (3/8-16X2.75-IN)6
0L20702 BOLT (3/8-16X2.25-IN)14
0S15713 BOLT (3/8-16X1.75-IN)8
0S15884 BOLT (3/8-16X1.25-IN)15
0S15905 BOLT (3/8-16X2-IN)6
0S15916 BOLT (3/8-16X1.5-IN)86
2W37897 PIPE2
22247158 BELLOWS AS2
2W37949 ADAPTER2
2W402710 PIPE2
2W403111 COVER2
2W405412 SEAL2
2W476613 GASKET1
2W476914 SPACER1
3E675115 SEAL-O-RING2
3P065516 SEAL-O-RING18
3P065717 SEAL-O-RING4
3V330818 WASHER-HARD (10.2X20.5X2.5-MM THK)221
4W755519 ADAPTER2
4W755720 COVER2
4W951021 COVER1
6V325022 SEAL-O-RING1
6V390823 SEAL-O-RING4
6V505124 SEAL-O-RING2
7C010925 GASKET1
7C705626 CORE AS-AFTERCOOLER2
7E238227 HOUSING2
7E621128 ELBOW1
7N535229 DOWEL2
7W552830 ELBOW1
7W633331 SPACER (10.5X20X10.7-MM THK)8
8B202632 SPACER (0.438X0.75X1.5-IN THK)112
8L278633 SEAL-O-RING4
8T676634 PLUG-PIPE2
9S418535 PLUG (3/4-16-THD)4
9S419136 PLUG (9/16-18-THD)1
121387437 GASKET8
123625638 ADAPTER4
123632839 TUBE AS2
127981940 COVER2
135695041 SEAL-O-RING4
5K555242 BOLT-LOCKING (3/8-16X3-IN)112
