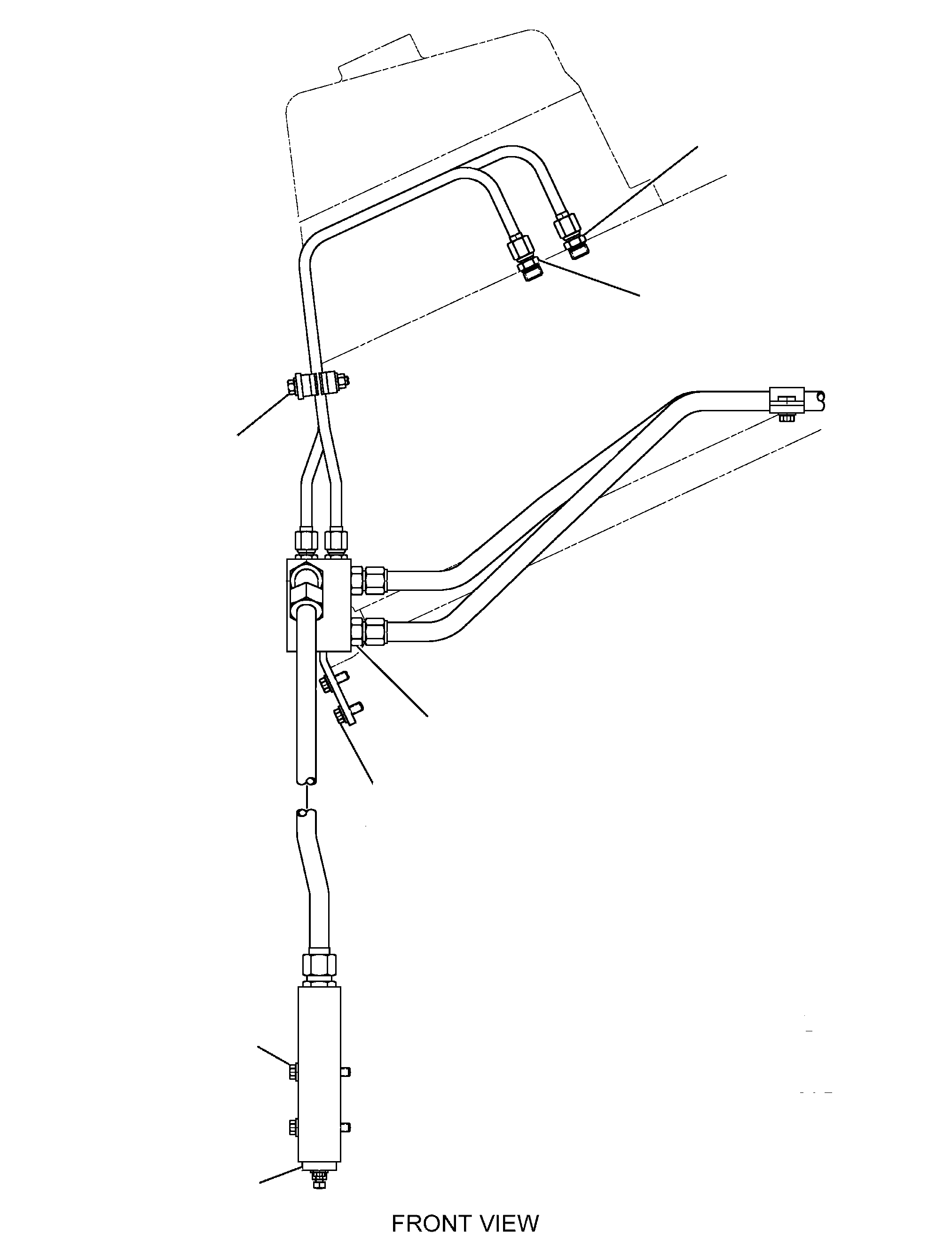

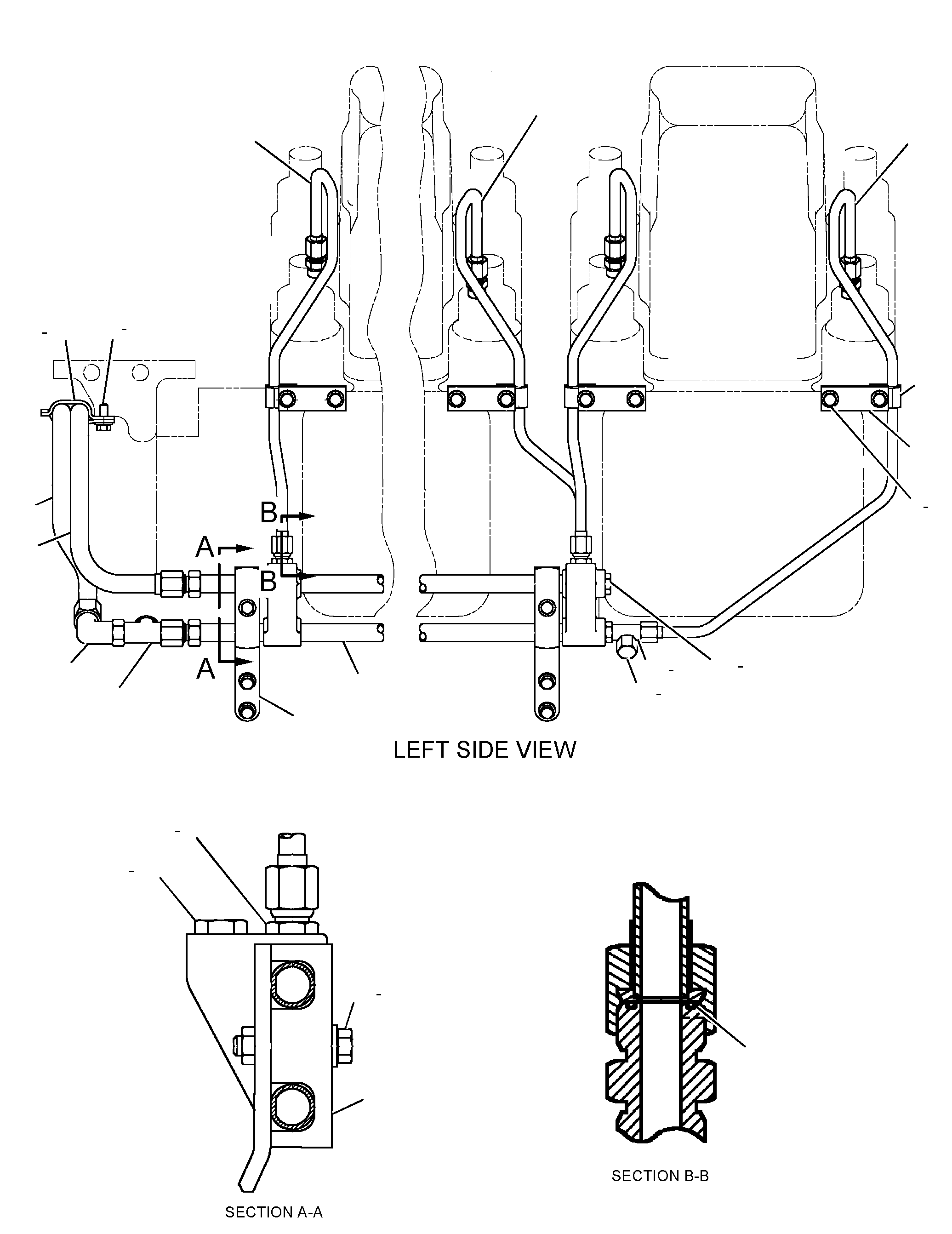

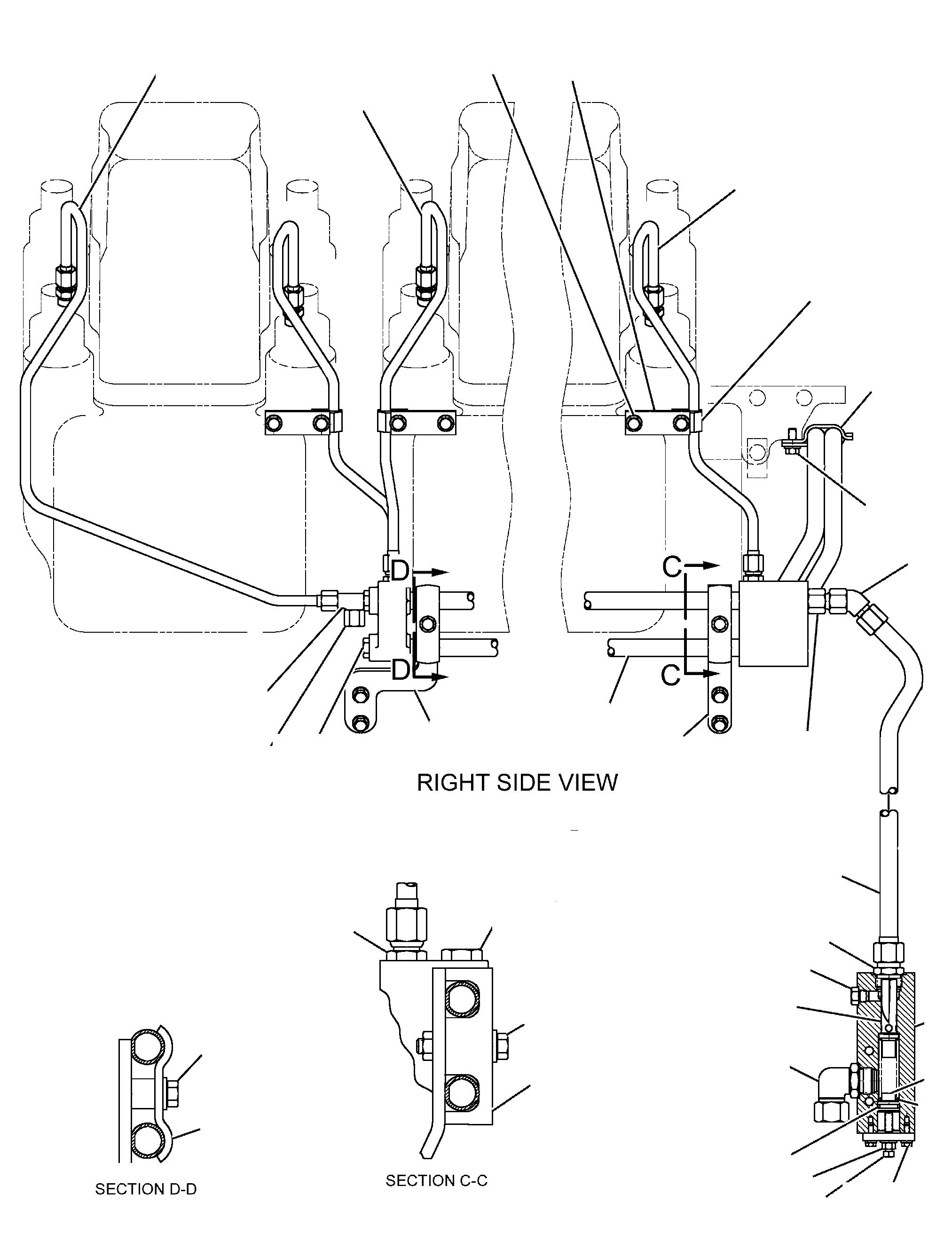

1W-0925 LINES GP-FUEL INJECTION (CHG -00 THRU -04, -04D1, -04D2, -04D3, -04D4, -05-05D1 THRU -09)

Group No: 1W-0925
Part NumberPart NameQty
7C57421 TUBE AS15
7C57412 TUBE AS15
7C57443 TUBE AS1
26815224 CONNECTOR32
23850805 SEAL-O-RING68
4P07076 CLAMP AS64
3078373GROMMET1
6K79537 BAR32
0S15718 BOLT (3/8-16X1.75-IN)32
3V33089 WASHER-HARD (10.2X20.5X2.5-MM THK)149
0L114310 BOLT (3/8-16X2.5-IN)34
9S875211 NUT-FULL (3/8-16-THD)33
6V435212 CLIP (SLOT)2
6V435313 CLIP (TAB)2
0S159414 BOLT (3/8-16X1-IN)34
4P803215 TUBE AS1
4P803116 TUBE AS1
6S291017 ELBOW-FLARED1
5P498418 TEE-SWIVEL1
6I181719 BRACKET AS15
7C575720 MANIFOLD AS-FUEL (LH)(LH)1
6V983021 CAP (ORFS)2
6V8554NUT (13/16-16-THD)1
6V9356PLUG1
033603322 SEAL-O-RING66
6V863923 CONNECTOR30
9S418524 PLUG (3/4-16-THD)4
6V878225 TEE2
1W059426 CLAMP15
0S159027 BOLT (3/8-16X2-IN)15
5P078928 ELBOW (SWIVEL)1
7J718729 CONNECTOR4
6V190330 SEAL-O-RING5
7C577831 TUBE AS1
7C575832 MANIFOLD AS-FUEL (RH)(RH)1
7C577333 BRACKET AS1
5B1983BOSS (3/8-16-THD)1
7C574334 TUBE AS1
0S050935 BOLT (3/8-16X0.75-IN)1
9M913036 CLAMP1
419568737 BODY-VALVE1
7W772738 RETAINER1
5T276039 SPRING1
3P115640 SEAL-O-RING1
9S419141 PLUG (9/16-18-THD)1
6V504942 SEAL-O-RING1
7E170443 VALVE (PRESSURE REGULATOR)1
5P641644 ELBOW1
4F795746 BOLT (1/4-20X0.875-IN)2
5P053747 WASHER-HARD (7.2X14.5X2-MM THK)2
010246148 SETSCREW-SQUARE HEAD (3/8-16X2-IN)1
7W772649 PLATE1
