System And Components

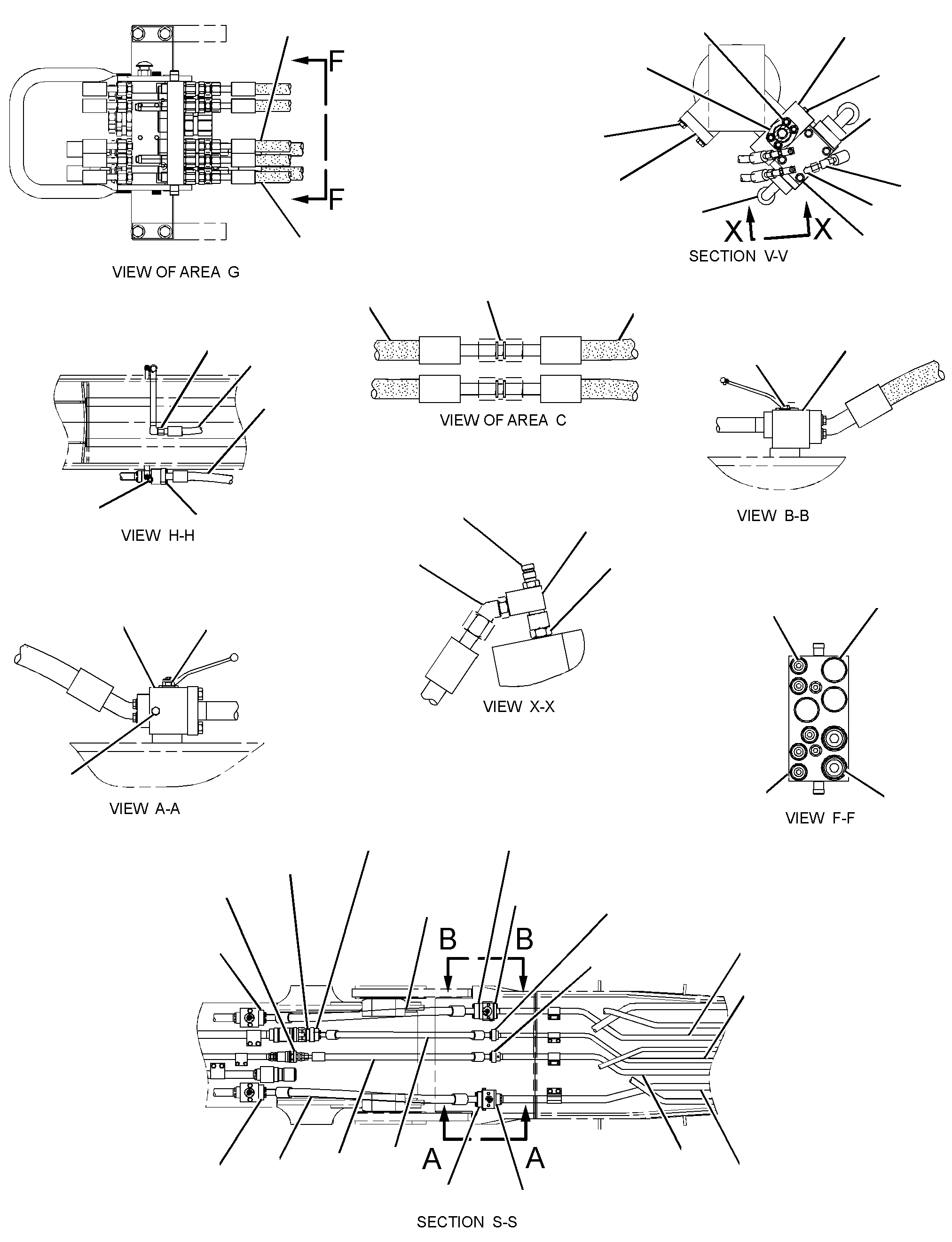

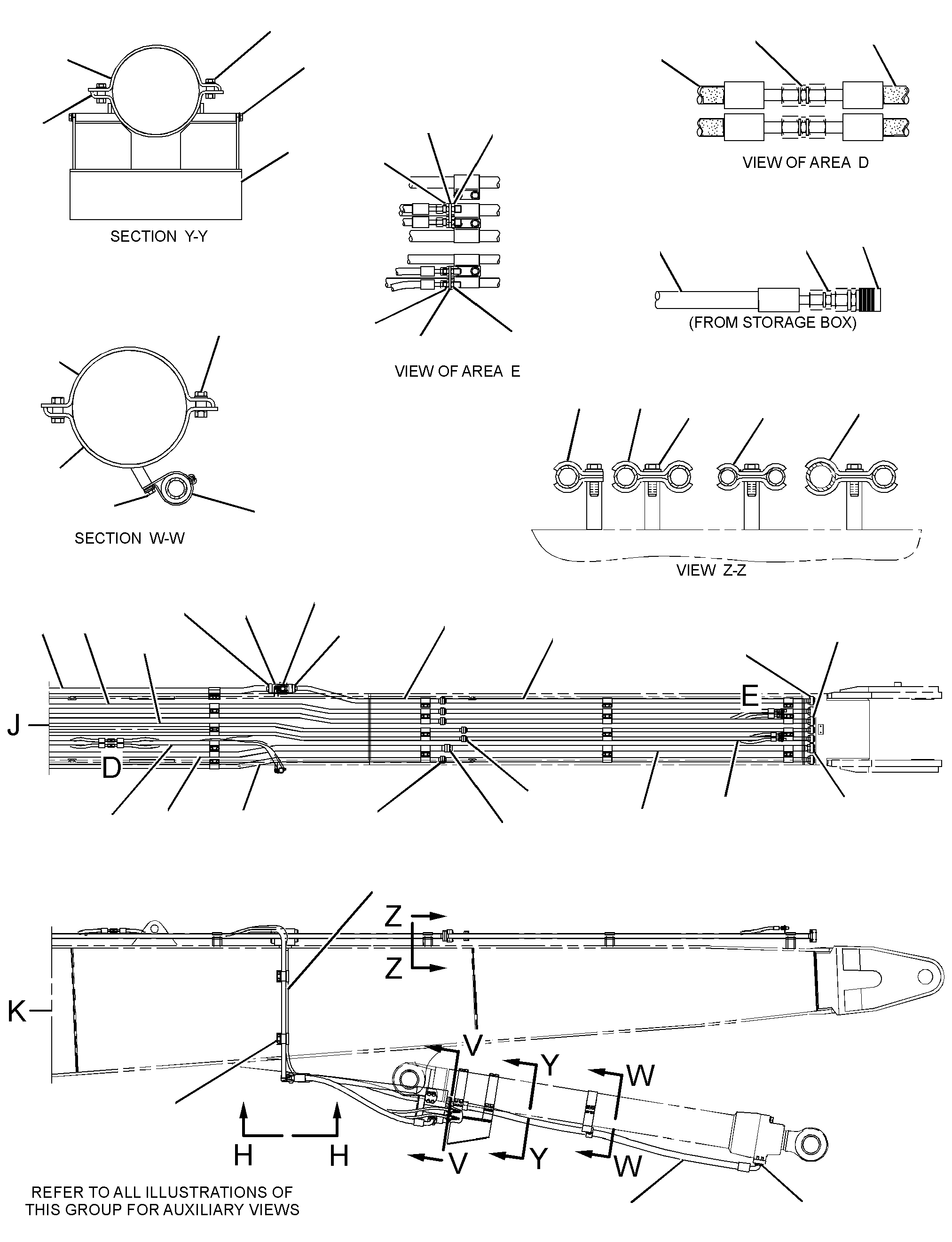

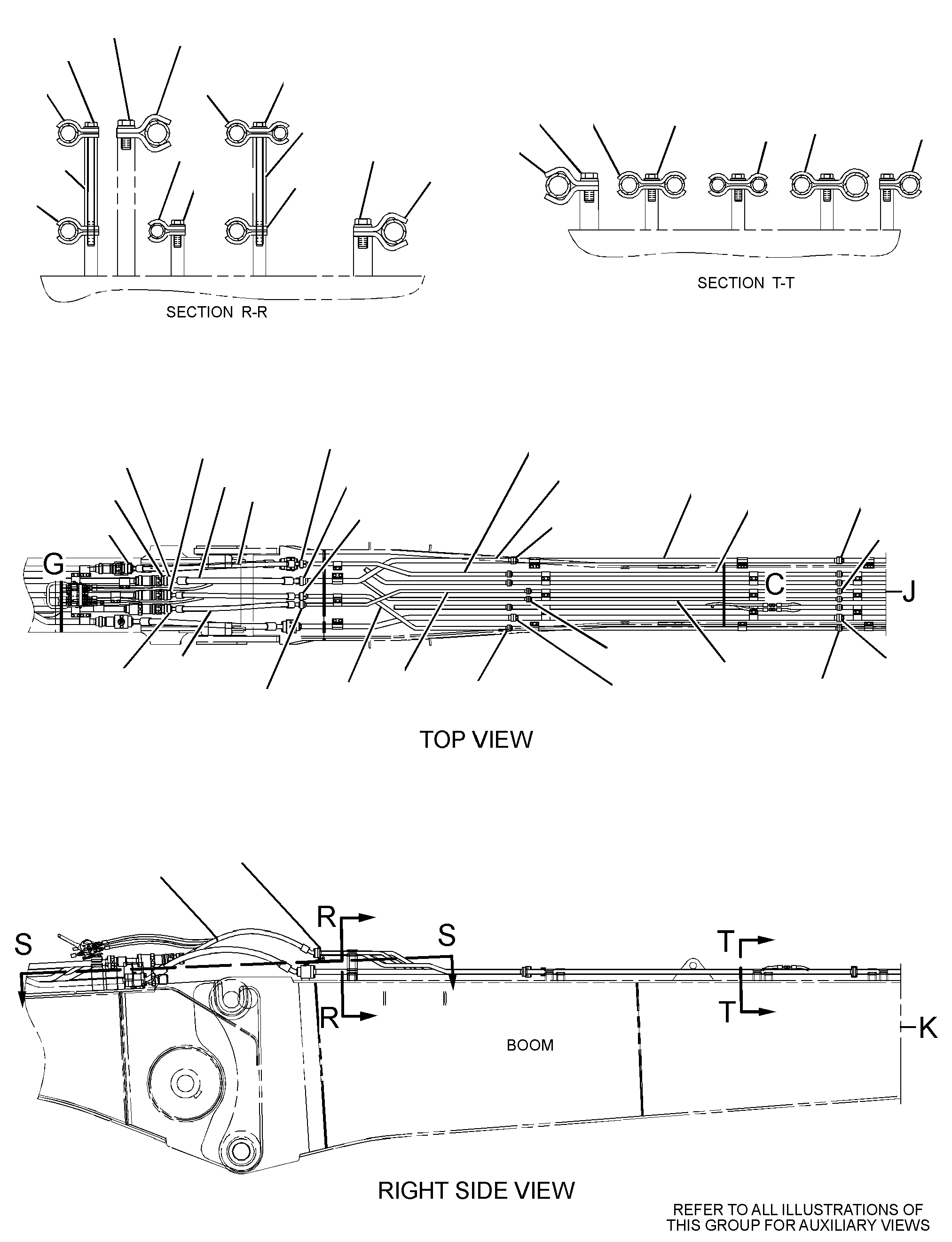

234-5725 LINES GP-BOOM -STUB BOOM NOSES/N FDL1-UP
Group No: 234-5725
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2425530 | 1 TUBE AS | 1 | |
| 2425531 | 2 TUBE AS | 1 | |
| 2425532 | 3 TUBE AS | 1 | |
| 2425533 | 4 TUBE AS | 1 | |
| 2425534 | 5 TUBE AS | 1 | |
| 2425535 | 6 TUBE AS | 1 | |
| 2425536 | 7 TUBE AS | 1 | |
| 2425537 | 8 TUBE AS | 1 | |
| 2425538 | 9 TUBE AS | 1 | |
| 2425539 | 10 TUBE AS | 1 | |
| 2425540 | 11 TUBE AS | 2 | |
| 2425541 | 12 TUBE AS | 2 | |
| 2425542 | 13 TUBE AS | 1 | |
| 2425543 | 14 TUBE AS | 1 | |
| 2425544 | 15 TUBE AS | 1 | |
| 2425545 | 16 TUBE AS | 1 | |
| 1737992 | 17 VALVE GP-MANUAL (AUXILIARY, SHUTOFF) | 1 | |
| 7X2475 | 18 BOLT (M16X2X130-MM) | 2 | |
| 9X8257 | 19 WASHER (17.5X30X3.5-MM THK) | 40 | |
| 1488407 | 20 PLUG AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 2295272 | 21 VALVE GP-MANUAL (AUXILIARY, SHUTOFF) | 1 | |
| 7X2550 | 22 BOLT (M12X1.75X110-MM) | 2 | |
| 8T4223 | 23 WASHER-HARD (13.5X25.5X3-MM THK) | 165 | |
| 9F2167 | 24 SCREW-PURGE (3/8-24X1.164-IN) | 3 | |
| 1P5767 | 25 FLANGE-HALF | 24 | |
| 8T4956 | 26 BOLT (M12X1.75X35-MM) | 4 | |
| 6V0400 | 27 FLANGE-HALF | 20 | |
| 2612734 | 28 FITTING GP-HYDRAULIC (QUICK DISCONNECT, FEMALE) | 1 | |
| 2620233 | KIT-REPAIR (QUICK DISC FITTING, FEMALE)(QUICK COUPLER) | 1 | |
| 2612735 | 29 FITTING GP-HYDRAULIC (QUICK DISCONNECT, FEMALE) | 5 | |
| 2620234 | KIT-REPAIR (QUICK DISC FITTING, FEMALE)(QUICK COUPLER) | 1 | |
| 2428182 | 30 HOSE AS | 2 | |
| 2428183 | 31 HOSE AS | 1 | |
| 2428196 | 32 HOSE AS | 3 | |
| 2460212 | 33 HOSE AS | 1 | |
| 8T4183 | 34 BOLT (M12X1.75X40-MM) | 100 | |
| 8T4184 | 35 BOLT (M12X1.75X45-MM) | 60 | |
| 2104336 | 36 CAP-DUST | 1 | |
| 8T4139 | 37 BOLT (M12X1.75X30-MM) | 57 | |
| 8T4195 | 38 BOLT (M10X1.5X30-MM) | 24 | |
| 1434157 | 39 CLIP | 16 | |
| 7X2553 | 40 BOLT (M16X2X40-MM) | 14 | |
| 1087550 | 41 CLIP | 14 | |
| 4I1674 | 42 CLIP | 14 | |
| 1319547 | 43 CLIP | 14 | |
| 7Y3732 | 44 CLIP | 24 | |
| 1433411 | 45 TUBE AS | 3 | |
| 2283561 | 46 TUBE AS | 8 | |
| 1965816 | 47 TUBE AS | 4 | |
| 1031311 | 48 SUPPORT AS | 1 | |
| 1187731 | 49 SUPPORT AS | 1 | |
| 8T4193 | 50 BOLT (M16X2X50-MM) | 16 | |
| 6W3731 | 51 SPACER (19.07X26.99X14-MM THK) | 12 | |
| 1443828 | 52 CLIP | 1 | |
| 1443829 | 53 CLIP | 1 | |
| 6V1875 | 54 GROMMET | 1 | |
| 1031313 | 55 SUPPORT | 2 | |
| 1444444 | 56 SUPPORT AS | 2 | |
| 1273414 | 57 PLATE AS | 1 | |
| 1274143 | LINER | 1 | |
| 1424857 | 58 BLOCK | 1 | |
| 3E8008 | 59 BOLT-SOCKET HEAD (M16X2X90-MM) | 4 | |
| 1P3705 | 60 SEAL-RECTANGULAR | 11 | |
| 9S4191 | 61 PLUG (9/16-18-THD) | 2 | |
| 3J1907 | 62 SEAL-O-RING | 4 | |
| 1261175 | 63 ADAPTER | 1 | |
| 7B7525 | 64 BOLT-SOCKET HEAD (7/16-14X1.25-IN) | 8 | |
| 1P3704 | 65 SEAL-RECTANGULAR | 15 | |
| 1488371 | 66 ELBOW AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C8988 | ELBOW | 1 | |
| 1488378 | 67 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1241427 | 68 VALVE GP-LOAD CONTROL (FORE BOOM CYLINDER) | 1 | |
| 4J0520 | SEAL-O-RING | 2 | |
| 1486613 | KIT-SEAL (LOAD CONTROL VALVE) | 1 | |
| 1486614 | KIT-SHIM (LOAD CONTROL VALVE) | 1 | |
| 8T5001 | 69 BOLT (M12X1.75X130-MM) | 4 | |
| 1488318 | 70 CONNECTOR AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8634 | CONNECTOR | 1 | |
| 5I4376 | 71 FITTING | 2 | |
| 6V3965 | 72 FITTING (QUICK DISCONNECT) | 2 | |
| 6V0852 | 73 CAP-DUST | 2 | |
| 1488353 | 74 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1P3703 | 75 SEAL-RECTANGULAR | 30 | |
| 2105911 | 76 CAP-DUST | 5 | |
| 8T7338 | 77 BOLT (M16X2X45-MM) | 4 | |
| 1P3706 | 78 SEAL-RECTANGULAR | 3 | |
| 1424858 | 79 MANIFOLD | 1 | |
| 1440661 | 80 HOSE AS | 1 | |
| 8T4194 | 81 BOLT (M12X1.75X50-MM) | 16 | |
| 1440665 | 82 HOSE AS | 1 | |
| 5P8077 | 83 FLANGE-HALF | 4 | |
| 8T4140 | 84 BOLT (M16X2X60-MM) | 10 | |
| 6C6363 | 85 HOSE AS | 1 | |
| 8C6877 | 86 BOLT (7/16-14X1.75-IN) | 4 | |
| 8T5360 | 87 WASHER (12X22.5X2.5-MM THK) | 4 | |
| 1488335 | 88 CONNECTOR AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8635 | CONNECTOR | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1668676 | 89 HOSE AS | 1 | |
| 5K9090 | 90 SEAL-O-RING | 1 | |
| 8T9403 | 91 FLANGE-HALF | 4 | |
| 8T4182 | 92 BOLT (M10X1.5X45-MM) | 8 | |
| 8T4121 | 93 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 5P0049 | 94 COVER | 1 | |
| 4I1676 | 95 CLIP | 2 | |
| 7Y4868 | 96 CLIP | 2 | |
| 2173025 | 97 COUPLING GP-HYDRAULIC BLOCK (BOOM NOSE LINES) | 1 | |
| 1488408 | 98 PLUG AS | 3 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 9S4183 | PLUG (1-1/16-12-THD) | 1 | |
| 1488336 | 99 CONNECTOR AS | 4 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488341 | 100 CONNECTOR AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8713 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1615675 | 101 HOSE AS | 1 | |
| 1645597 | 102 CONNECTOR AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C6868 | CONNECTOR | 1 | |
| 6V4144 | 103 COUPLER AS-QUICK CONNECT (FLUID SAMPLING) | 1 | |
| 2429365 | 104 SPACER | 2 | |
| 7K1181 | 105 STRAP-CABLE | 20 | |
| 1144353 | 106 HOSE AS | 2 | |
| 1645570 | 107 UNION AS | 2 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8730 | UNION (FACE SEAL) | 1 | |
| 1696635 | 108 HOSE AS | 2 | |
| 1495452 | 109 UNION AS (STRAIGHT) | 2 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8994 | UNION (STRAIGHT) | 1 | |
| 6V9168 | 110 NUT (11/16-16-THD) | 2 | |
| 1263048 | 111 BRACKET | 1 | |
| 6V9353 | 112 UNION | 2 | |
| 6V9169 | 113 NUT (13/16-16-THD) | 2 | |
| 1115704 | 114 BRACKET | 1 | |
| 1133374 | 115 HOSE AS | 2 | |
| 1061244 | 116 HOSE AS | 2 | |
| 1645572 | 117 UNION AS | 2 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V8731 | UNION | 1 | |
| 1472260 | 118 HOSE AS | 2 | |
| 1706503 | 119 HOSE AS | 1 | |
| 7X2551 | 120 BOLT (M12X1.75X200-MM) | 4 |
