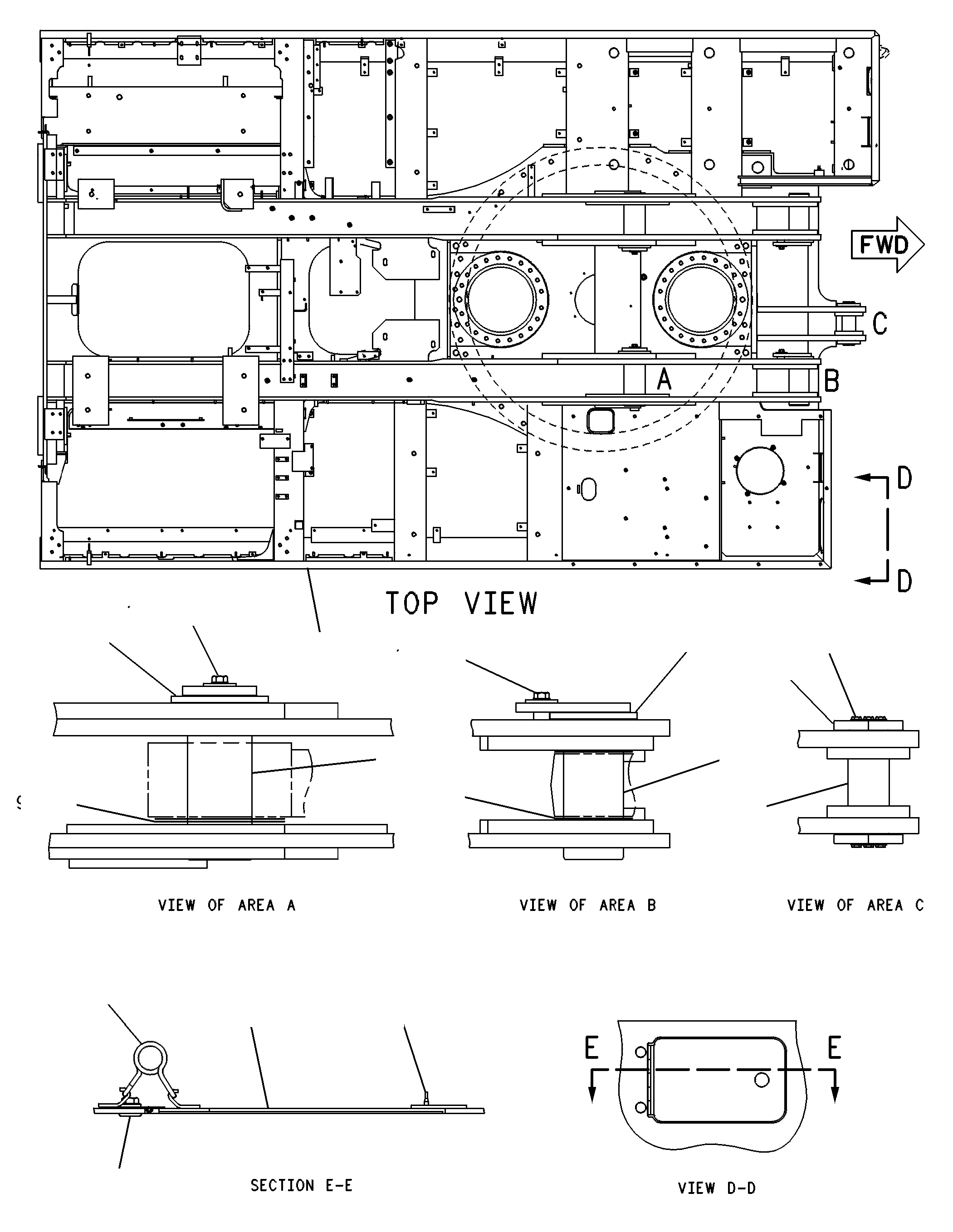

7I-0202 FRAME GP-UPPERS/N 6XK1-114

Group No: 7I-0202
Part NumberPart NameQty
11294171 FRAME AS-UPPER1
1195486PLATE-SKIRT (1750-MM)(SKIRT REPAIR)1
1195487PLATE-SKIRT (1545-MM)(SKIRT REPAIR)1
7I03192 PIN AS2
4I69623 PIN AS2
7X25734 BOLT (M24X3X40-MM)4
8T41675 WASHER-HARD (26X44X4-MM THK)4
09303776 SPACER (143X210X14-MM THK)2
09300777 SHIM (1-MM THK)4
7Y92758 SHIM (1.5-MM THK)2
09301099 SHIM (2-MM THK)2
093007610 SHIM (1-MM THK)4
099746811 SHIM (1.5-MM THK)2
093010812 SHIM (2-MM THK)2
7Y926713 SPACER (133X190X14-MM THK)2
4I318314 WASHER (26X70X8-MM THK)4
1K885015 SPRING1
5V385416 BUMPER1
8T541317 STUD-WELD (M10X1.5X25-MM)2
8T412118 WASHER-HARD (11X21X2.5-MM THK)2
8T413319 NUT (M10X1.5-THD)2
087376520 DOOR AS1
9V3659HINGE1
4K8501CLIP2
4E872621 PIN1
4E873022 PLATE2
8T418323 BOLT (M12X1.75X40-MM)6
8T422324 WASHER-HARD (13.5X25.5X3-MM THK)6
