System And Components

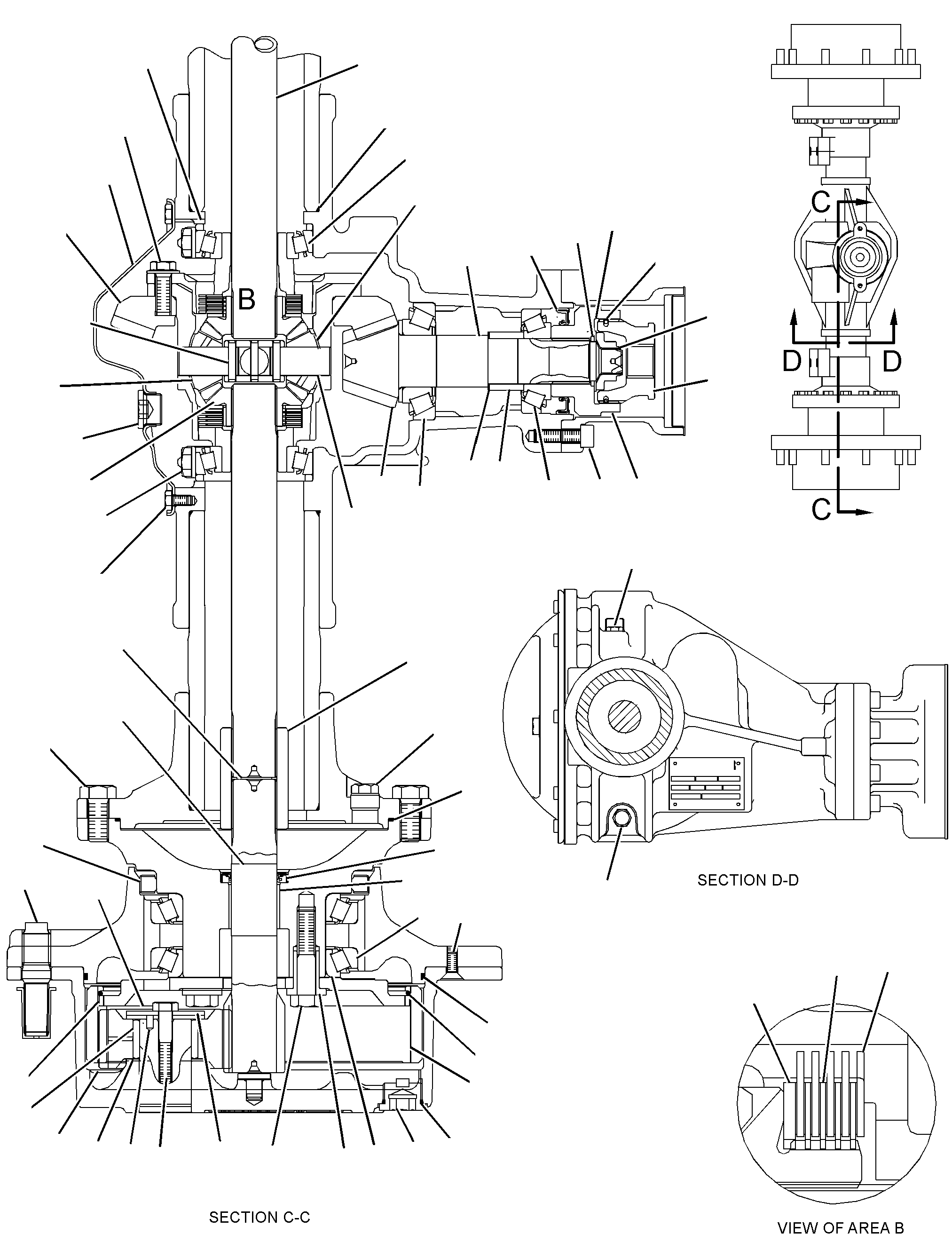

229-5779 AXLE GPS/N 5141-UP
Group No: 229-5779
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1990639 | 1 SCREW-FLAT HEAD (M8X1.25X20-MM) | 4 | |
| 1990662 | 2 SEAL-O-RING | 2 | |
| 2087786 | 3 RING-LOCK | 2 | |
| 2087788 | 4 GEAR-CROWN (77-TEETH) | 2 | |
| 6V6228 | 5 SEAL-O-RING | 2 | |
| 1526144 | 6 PLUG AS-DRAIN (MAGNETIC)(AXLE) | 2 | |
| 1788608 | 7 CONE-TAPERED | 4 | |
| 1658855 | 8 BUSHING | 16 | |
| 2111974 | 9 BOLT (M14X1.5X65-MM) | 16 | |
| 2087791 | 10 WASHER-THRUST (11X60X3-MM THK) | 6 | |
| 2112350 | 11 BOLT (M10X1.25X50-MM) | 6 | |
| 2151402 | 12 NEEDLE-ROLLER | 6 | |
| 9W7639 | 13 SPACER (40.5X60X2-MM THK) | 6 | |
| 2087823 | 14 GEAR-SUN (31-TEETH) | 6 | |
| 2112238 | 15 BEARING-NEEDLE | 168 | |
| 2087833 | 16 GEAR-CARRIER | 2 | |
| 1597400 | 17 STUD | 20 | |
| 9T9212 | 18 PLATE | 6 | |
| 1687010 | 19 SEAL-LIP TYPE | 2 | |
| 6V5844 | 20 BOLT (M16X2X35-MM) | 32 | |
| 2087862 | 21 SHAFT (AXLE) | 2 | |
| 1949480 | 22 RING-RETAINING | 2 | |
| 8T4199 | 23 BOLT (M8X1.25X12-MM) | 9 | |
| 6V8336 | 24 BOLT (M12X1.75X70-MM) | 4 | |
| 0304605 | 26 SEAL-O-RING | 1 | |
| 2112187 | 27 PLUG | 1 | |
| 2087894 | 28 SHAFT (DIFFERENTIAL) | 2 | |
| 2087901 | 29 BLOCK | 1 | |
| 2332734 | 30 PIN-SPRING | 3 | |
| 2087903 | 31 COVER | 1 | |
| 2112714 | 33 BOLT (M12X1.25X30-MM) | 12 | |
| 2087905 | 34 PLATE-END | 2 | |
| 2087906 | 35 PLATE | 8 | |
| 2087907 | 36 PLATE | 10 | |
| 2087908 | 37 GASKET | 1 | |
| 2087850 | 38 KIT-SHIM (AXLE) | 2 | |
| 9W0614 | 39 CONE | 2 | |
| 9W0615 | 40 CUP | 2 | |
| 2087909 | 41 SHAFT (AXLE) | 2 | |
| 4F4097 | 42 SEAL-O-RING | 4 | |
| 2087911 | 43 WASHER-THRUST | 4 | |
| 1924686 | 44 SEAL-LIP TYPE | 1 | |
| 1990658 | 45 SEAL-O-RING | 1 | |
| 2112689 | 46 WASHER (30X46X1.5-MM THK)(30X46X1.5-MM THK) | 1 | |
| 2087913 | 47 RING-LOCK | 1 | |
| 2087914 | 48 NUT-RING (M20X1.5-THD) | 1 | |
| 2087915 | 49 COUPLING | 1 | |
| 2087916 | 50 SLEEVE | 1 | |
| 1017404 | 51 BOLT-SOCKET HEAD (M10X1.5X30-MM) | 8 | |
| 2114399 | 52 BEARING AS (AXLE) | 1 | |
| 2111595 | 53 KIT-SPACER (AXLE) | 1 | |
| 2111594 | 54 KIT-SHIM (AXLE) | 1 | |
| 7T9344 | 55 CONE-BEARING | 1 | |
| 7T9345 | 56 CUP-BEARING | 1 | |
| 2087797 | 57 KIT-SHIM (AXLE) | 1 | |
| 2087917 | 58 SHAFT | 1 | |
| 2087918 | 59 COUPLING | 2 | |
| 1526145 | 60 PLUG-MAGNETIC | 3 | |
| 7X4799 | 61 SEAL-O-RING | 2 | |
| 1570740 | 62 SEAL-LIP TYPE | 2 | |
| 2087919 | 63 BUSHING | 2 | |
| 2S0480 | 64 CUP-TAPERED ROLLER | 4 | |
| 0551990 | 65 VENT (AXLE) | 1 | |
| 2113641 | KIT-GEAR (AXLE) | 1 | |
| 2113642 | KIT-DIFFERENTIAL (AXLE) | 1 |
