204-7741 AXLE GP-STEERING -WIDES/N BCZ2001-99999

Group No: 204-7741
Part NumberPart NameQty
20353971 GEAR AS-PINION1
9R68142 WASHER (88X104.6X1.5-MM THK)1
9R6805WASHER (88X104.6X0.9-MM THK)1
9R6806WASHER (88X104.6X0.95-MM THK)1
9R6807WASHER (88X104.6X1-MM THK)1
9R6808WASHER (88X104.6X1.05-MM THK)1
9R6809WASHER (88X104.6X1.1-MM THK)1
9R6810WASHER (88X104.6X1.15-MM THK)1
9R6811WASHER (88X104.6X1.2-MM THK)1
9R6812WASHER (88X104.6X1.25-MM THK)1
9R6813WASHER (88X104.6X1.3-MM THK)1
9R6801WASHER (88X104.6X0.7-MM THK)1
9R6802WASHER (88X104.6X0.75-MM THK)1
9R6803WASHER (88X104.6X0.8-MM THK)1
9R6804WASHER (88X104.6X0.85-MM THK)1
7T934216 CONE-BEARING1
9R693217 RING (11.3-MM THK)1
9R6933RING (11.33-MM THK)1
9R6934RING (11.36-MM THK)1
9R6935RING (11.39-MM THK)2
9R6936RING (11.42-MM THK)1
9R6937RING (11.45-MM THK)1
9R6938RING (11.48-MM THK)1
9R6939RING (11.51-MM THK)1
9R6940RING (11.54-MM THK)1
9R6941RING (11.57-MM THK)1
9R6942RING (11.6-MM THK)1
9R6943RING (11.63-MM THK)1
9R6944RING (11.66-MM THK)1
9R6945RING (11.69-MM THK)1
9R6836RING (11.72-MM THK)1
9R6837RING (11.75-MM THK)1
9R6838RING (11.78-MM THK)1
9R6839RING (11.81-MM THK)1
9R6840RING (11.84-MM THK)1
9R6841RING (11.87-MM THK)1
9R6842RING (11.9-MM THK)1
9R6843RING (11.93-MM THK)1
9R6844RING (11.96-MM THK)1
9R6845RING (11.99-MM THK)1
9R6846RING (12.02-MM THK)1
9R6847RING (12.05-MM THK)1
9R6848RING (12.08-MM THK)1
9R6849RING (12.11-MM THK)1
9R6850RING (12.14-MM THK)1
9R6924RING (12.17-MM THK)1
9R6925RING (12.2-MM THK)1
9R6926RING (12.23-MM THK)1
9R6927RING (12.26-MM THK)1
9R6928RING (12.29-MM THK)1
9R6929RING (12.32-MM THK)1
9R6930RING (12.35-MM THK)1
9R6931RING (12.38-MM THK)1
8U566954 SPACER (11.27-MM THK)1
8U5670SPACER (11.24-MM THK)1
8U5671SPACER (11.21-MM THK)1
8U5672SPACER (11.18-MM THK)1
8U5673SPACER (11.15-MM THK)1
128763759 RING (11.12-MM THK)1
1287638RING (11.09-MM THK)1
1287639RING (11.06-MM THK)1
1287640RING (11.03-MM THK)1
1287641RING (11-MM THK)1
1287642RING (10.97-MM THK)1
1287643RING (10.94-MM THK)1
9R700266 BEARING-TAPERED ROLLER1
229271267 SEAL-SHAFT1
9R698568 WASHER (27.1X50X5-MM THK)1
5W535269 NUT (M27X1.5-THD)1
5W539870 WASHER-RETAINING1
5W566671 FLANGE1
229271172 PLATE-DEFLECTOR1

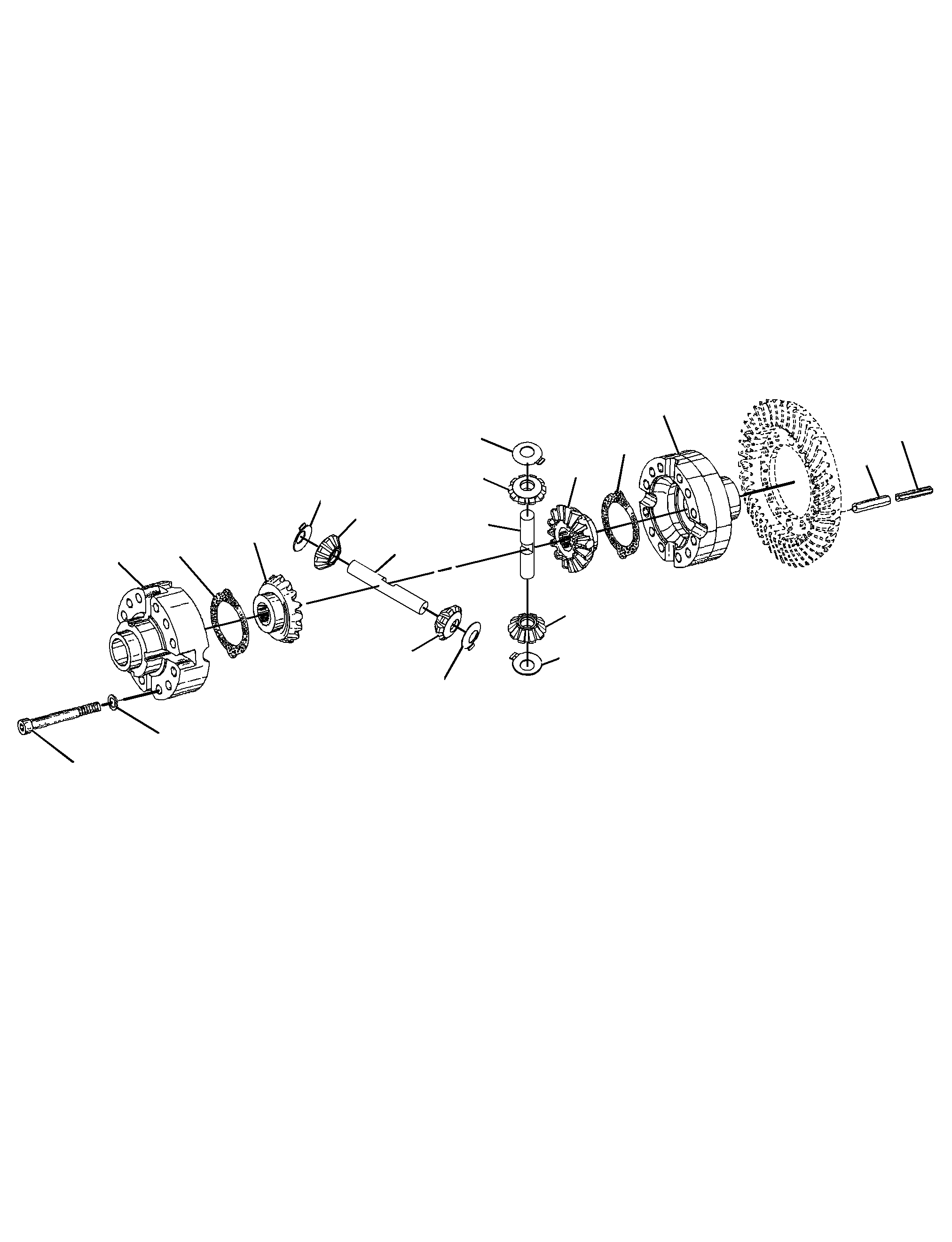

121762573 CASE1
9R696474 GEAR-DIFFERENTIAL2
6T574975 WASHER-THRUST2
128785576 GEAR-PINION4
9R699477 WASHER-THRUST4
119928878 SHAFT2
8T232379 BOLT-SOCKET HEAD (M12X1.5X120-MM)12
9R681980 WASHER (13X21.9X3-MM THK)12
8T245081 PIN-SPRING4
9R696282 PIN-CLAMPING4
054651483 SHIM (0.1-MM THK)2
1217679SHIM (0.15-MM THK)2
0546513SHIM (0.2-MM THK)2
1217680SHIM (0.25-MM THK)2
0546512SHIM (0.3-MM THK)2
1287675SHIM (0.35-MM THK)2
7T0564SHIM (0.4-MM THK)2
1217677SHIM (0.45-MM THK)2
7T0563SHIM (0.5-MM THK)2
1217678SHIM (0.55-MM THK)2
7T0562SHIM (0.6-MM THK)2
1287676SHIM (0.65-MM THK)2
1287677SHIM (0.7-MM THK)2
1287680SHIM (0.75-MM THK)2
7T0561SHIM (0.8-MM THK)2
1287681SHIM (0.85-MM THK)2
1287683SHIM (0.9-MM THK)2
1287684SHIM (0.95-MM THK)2
7T0560SHIM (1-MM THK)2
1287685SHIM (1.05-MM THK)2
1287686SHIM (1.1-MM THK)2
1287687SHIM (1.15-MM THK)2
1287688SHIM (1.25-MM THK)2
1287689SHIM (1.3-MM THK)2
1287690SHIM (1.35-MM THK)2
7T0558SHIM (1.4-MM THK)2
1287691SHIM (1.45-MM THK)2
1287692SHIM (1.5-MM THK)2
1287693SHIM (1.55-MM THK)2
1287694SHIM (1.6-MM THK)2
1287695SHIM (1.65-MM THK)2
7T0552SHIM (2-MM THK)2
2028137116 SHIM (1.47-MM THK)2
2028138SHIM (1.63-MM THK)2
2028139SHIM (1.75-MM THK)2
2028140SHIM (1.7-MM THK)2
2028141SHIM (1.8-MM THK)2
2028142SHIM (1.85-MM THK)2
2028143SHIM (1.9-MM THK)2
2028144SHIM (1.95-MM THK)2
9R7003124 BEARING-TAPERED ROLLER1
5W2793125 BEARING1
5W5475126 SEAL-O-RING1
5W5627127 BOLT (M18X2.5X60-MM)16
5W5531128 WASHER (19X30X3-MM THK)16
6V5225129 SCREW-DRIVE4
9X0798130 PLUG1
2030215131 SEAL-O-RING2
5W6076132 BOLT1
9R6948134 CLIP2
1754073135 BUSHING-SLEEVE2
7T9343136 CUP-BEARING1

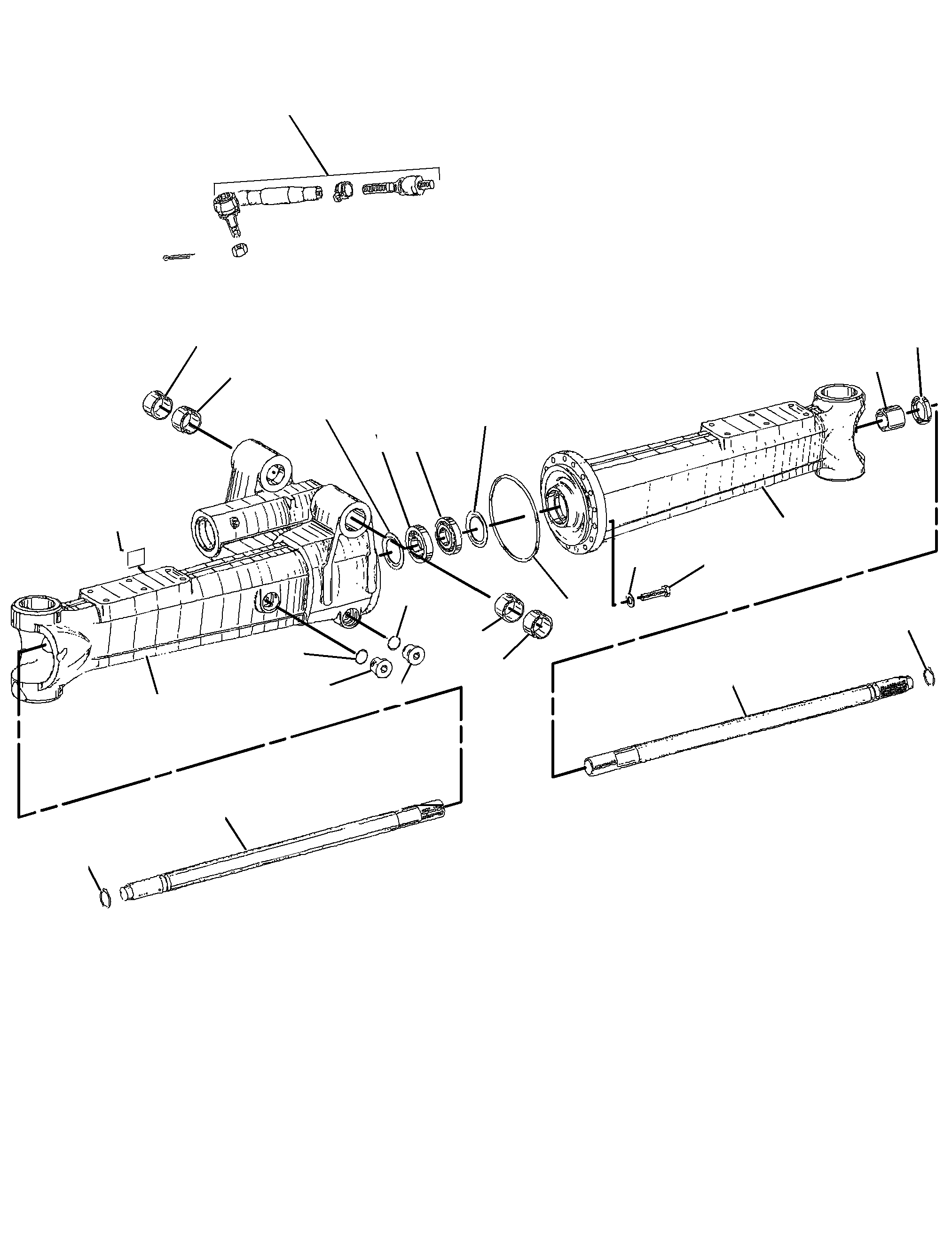

1326519137 HOUSING-AXLE1
1326520138 HOUSING-AXLE1
2047842139 SHAFT-AXLE2
1217675140 BUSHING4
1326521141 TIE ROD GP (LH)1
1326522142 TIE ROD GP (RH)1
2035402144 HOUSING GP-AXLE (LH)1
8U2342NUT1
2035403145 HOUSING GP-AXLE (RH)1
8U2342NUT1
8U7285148 BEARING-ROLLER4
1100858149 CAP-SEALING4
1104743150 SEAL-O-RING4
1217659151 SHIM (0.6-MM THK)2
1217661152 SHIM (0.8-MM THK)2
1217662153 SHIM (1-MM THK)2
1217663154 SHIM (1.2-MM THK)2
1217665155 SHIM (1.6-MM THK)2
1217667156 SHIM (2-MM THK)2
1100860157 PIN-BEARING4
8T4779158 BOLT (M16X2X35-MM)16
1287867159 FITTING-HYDRAULIC4
2202593160 BUSHING-SLEEVE2
9R6996161 SEAL4
2035415162 UNIVERSAL JOINT GP2
5W5682163 VALVE AS-PURGE (AXLE)2
1353439164 SHIM (3-MM THK)2
2035416SHIM (2.5-MM THK)2
1353441SHIM (2-MM THK)2
1353442SHIM (1.5-MM THK)2
1353443168 TUBE2
1353444169 BOLT (M12X1.5X30-MM)2
2035417170 SEAL-LIP TYPE2
8U2356171 BEARING4
8U2357172 FLANGE2
1104745173 SEAL-O-RING2
1351593174 GEAR (81-TEETH)2
5W6377175 PLUG4
8U2359176 SEAL-O-RING4
8U2360177 RING2
8U2361178 RING2
8U2365179 BUSHING (26-MM THK)2
8U2366BUSHING (26.2-MM THK)2
8U2367BUSHING (26.4-MM THK)2
8U2368BUSHING (26.6-MM THK)2
8U2369BUSHING (26.8-MM THK)2
8U2370BUSHING (27-MM THK)2
8U2371BUSHING (27.2-MM THK)2
1351594BUSHING (26.23-MM THK)2
1351595BUSHING (26.26-MM THK)2
1351596BUSHING (26.29-MM THK)2
1351597BUSHING (26.32-MM THK)2
1351598BUSHING (26.35-MM THK)2
2413652BUSHING (26.38-MM THK)2
2413653BUSHING (26.41-MM THK)2
2413654BUSHING (26.44-MM THK)2
2413655BUSHING (26.47-MM THK)2
2413656BUSHING (26.5-MM THK)2
1351599191 PISTON2
8U2373192 SEAL4
8U2398193 RING2
8U2399194 RING2
8U3590195 GASKET2
8U3591196 SPACER (6.5X15X7-MM THK)16
8U3592197 SPRING16
1351600198 RING2
8T0275199 BOLT (M6X1X50-MM)16
8U3594200 NUT16
8U9508201 DISC (2.5-MM THK)8
8U9509202 DISC (3-MM THK)8
8U9507203 DISC (2-MM THK)8
1100842204 DISC-FRICTION6
8U2377205 WASHER-THRUST2
8U2378206 RING-LOCK2
1351601207 WASHER2
8U4119208 GEAR (48-TEETH)2
8U2385209 RING-RETAINING (5-MM THK)2
8U9510210 CARRIER-PLANETARY2
9W4926211 PLUG2
6T6408212 SEAL-O-RING2
1931132213 GEAR-PLANETARY6
2139783214 BEARING-ROLLER6
1104751215 WASHER12
1908590217 RING-SNAP12
1104737218 RING-RETAINING6
1100165219 WASHER-THRUST (1.5-MM THK)2
1100164WASHER-THRUST (1.7-MM THK)2
1100163WASHER-THRUST (2-MM THK)2
1100162WASHER-THRUST (2.2-MM THK)2
1100161WASHER-THRUST (2.5-MM THK)2
1100160WASHER-THRUST (2.7-MM THK)2
1100159WASHER-THRUST (3-MM THK)2
1094440226 PLUG2
1908676227 SEAL-O-RING2
1172987228 BOLT-SOCKET HEAD (M12X1.75X115-MM)2
8U2381229 WASHER (13X19X1.5-MM THK)2
8U2382230 RING-RETAINING (1-MM THK)2
8U4120231 GEAR-SUN (15-TEETH)2
5W2177232 BOLT-SOCKET HEAD (M12X1.75X20-MM)4
5W0964233 BOLT (M22X1.5X92-MM)20

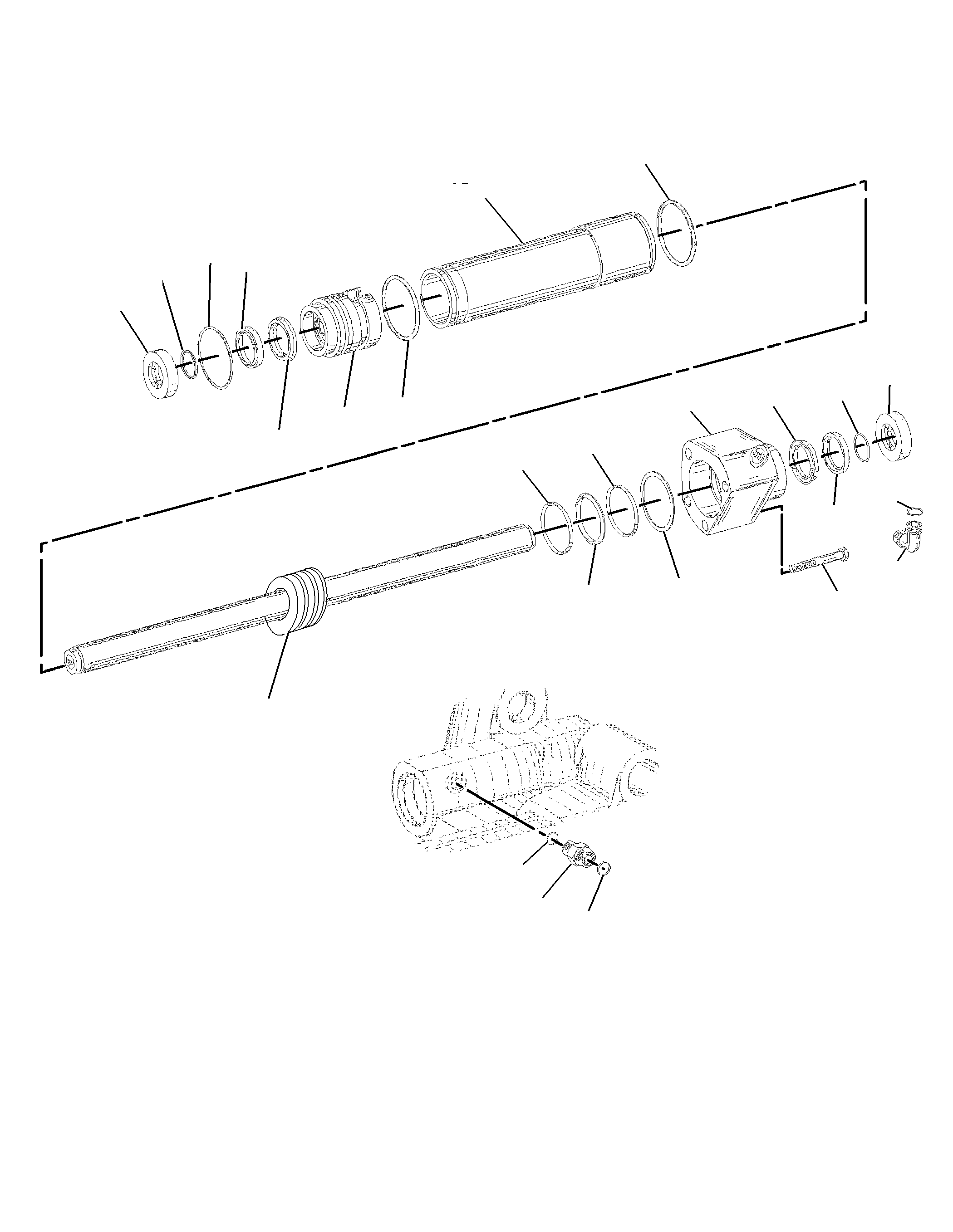

5W5696234 CYLINDER (STEERING)1
5W4819235 SEAL-O-RING2
5W6643236 GUIDE1
5W5485237 SEAL-O-RING1
5W5483238 RING2
5W6392239 SEAL-O-RING2
2160590240 ROD AS1
5W5646247 SEAL1
5W6391248 SCRAPER1
5W5547249 DISC (1-MM THK)1
5W5548DISC (1.1-MM THK)1
5W5549DISC (1.2-MM THK)1
5W5550DISC (1.3-MM THK)1
5W5551DISC (1.4-MM THK)1
5W5552DISC (1.5-MM THK)1
5W5553DISC (1.6-MM THK)1
5W5554DISC (1.7-MM THK)1
5W6400DISC (1.8-MM THK)1
5W5555DISC (1.05-MM THK)1
5W5556DISC (1.15-MM THK)1
5W5557DISC (1.25-M THK)1
5W5558DISC (1.35-MM THK)1
5W5559DISC (1.45-MM THK)1
5W5560DISC (1.55-MM THK)1
5W5561DISC (1.65-MM THK)1
8U2752DISC (0.7-MM THK)1
8U2753DISC (0.8-MM THK)1
8U2754DISC (0.9-MM THK)1
5W6442269 HOUSING1
5W5632270 BOLT (M14X2X100-MM)4
2030216271 SEAL-O-RING2
8U5818272 FITTING1
6T6305273 SEAL-O-RING1
1287901274 ELBOW AS1
1217686275 RING2
1217687276 SEAL-O-RING2
