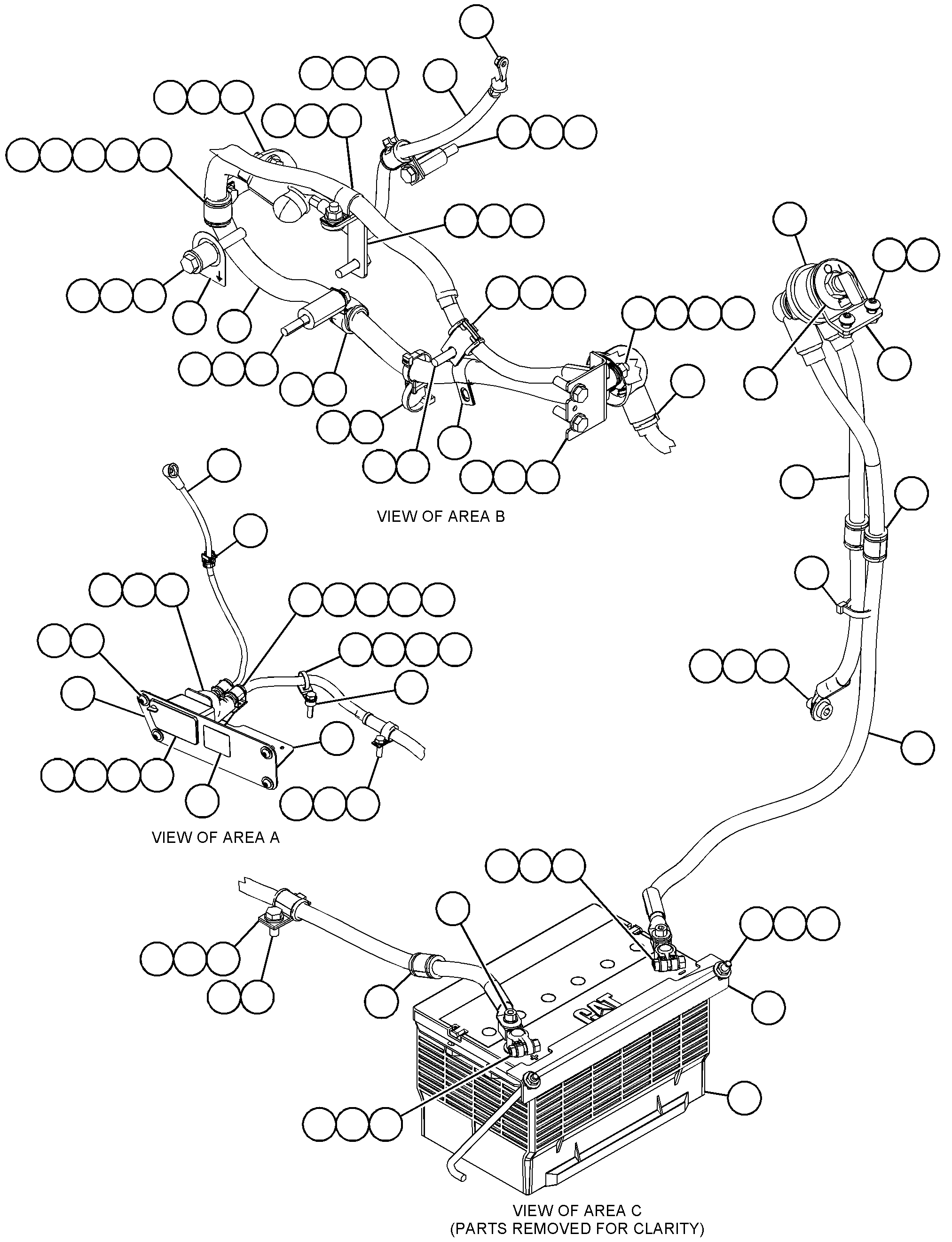

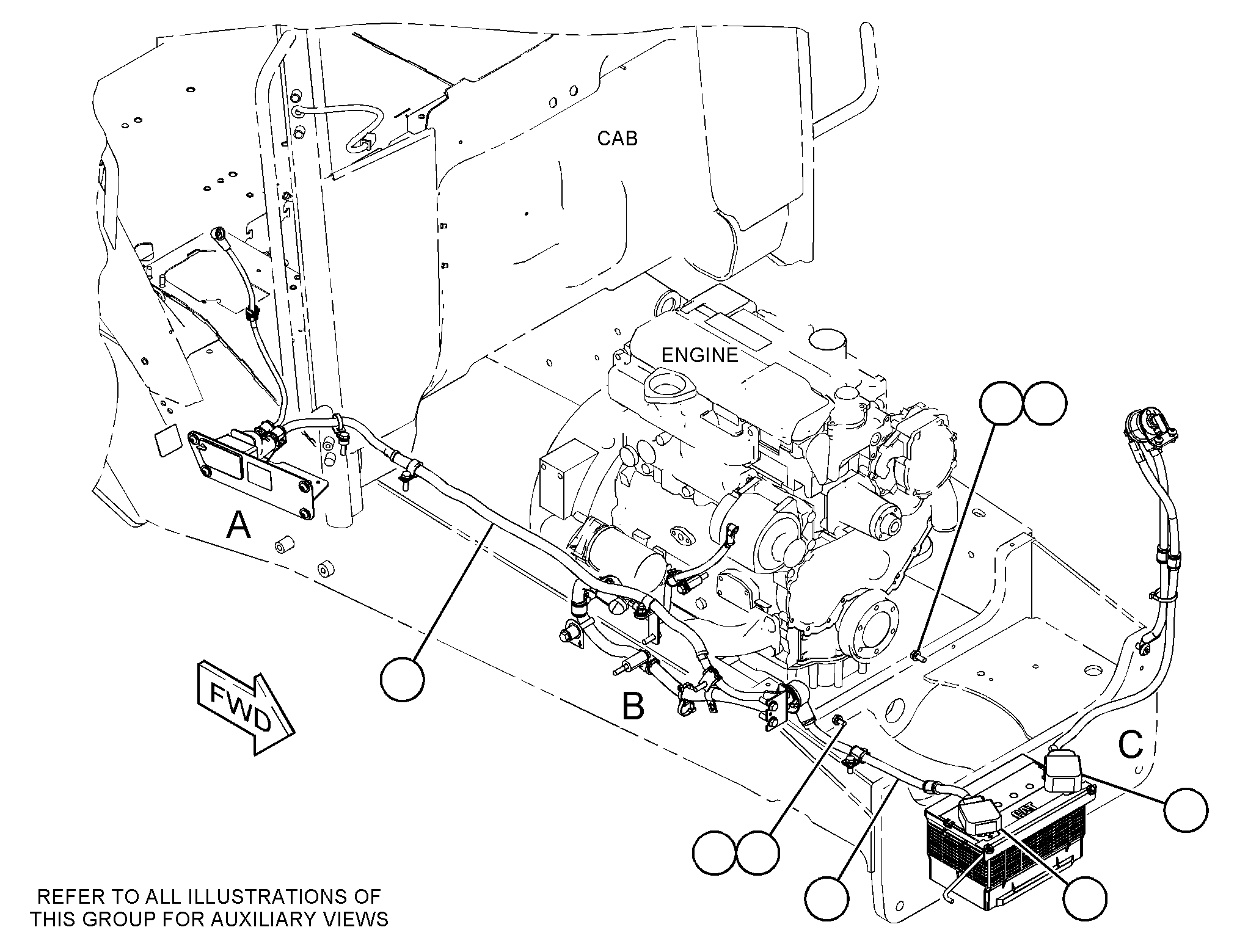

387-6670 BATTERY & WIRING GP -DISCONNECTS/N LYA1-UP

Group No: 387-6670
Part NumberPart NameQty
3E83201 PLATE-INSTRUCTION (BATTERY)(DISCONNECT SWITCH)1
3S20932 STRAP-CABLE3
7K11813 STRAP-CABLE4
7N07184 SWITCH GP-DISCONNECT (GROUND LEVEL)1
8W85285 SLEEVE5
10608006 CONNECTOR GP (REMOTE JUMP START, POSITIVE)1
0625388LOCKNUT (1-11-1/2-THD)1
2775777COVER-TERMINAL1
4D5243LOCKWASHER1
9B9146NUT-SPECIAL (3/8-16-THD)1
12240267 SPACER (13X25X25-MM THK)1
14123168 COVER1
17120399 BOLT-SOCKET HEAD (M8X1.25X30-MM)2
206242310 SADDLE-MOUNTING1
221335211 COVER1
230636812 BATTERY (12-VOLT, MAINTENANCE FREE, WET)1
263655613 STUD (M10X1.5-THD)1
290674614 CABLE AS1
3126455TERMINAL AS1
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(5-CM)
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(7-CM)
3116184TERMINAL-RING (2-GA, 3/8-IN SCREW)1
331555015 CABLE AS (POSITIVE)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
8F7242WASHER (8.7X15.9X1.6-MM THK)1
8U0767BOLT (M8X1.25X16-MM)1
0301705TERMINAL-CABLE (00-GA, 5/16-IN SCREW)1
1355009TUBE-HEAT SHRINK (32-MM DIA)(10-CM)
1598049CABLE (00-GA, RED)(60-CM)
2605151TERMINAL-BATTERY1
331555516 CABLE AS-BATTERY1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
5P4116WASHER-HARD (8.8X20.5X2-MM THK)1
8U0767BOLT (M8X1.25X16-MM)1
9G8909COVER-TERMINAL (BLACK)1
0301705TERMINAL-CABLE (00-GA, 5/16-IN SCREW)1
1355009TUBE-HEAT SHRINK (32-MM DIA)(10-CM)
1598050CABLE (00-GA, BLACK)(98-CM)
3562508TERMINAL-BATTERY (NEGATIVE)1
331555617 CABLE AS1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
9G8909COVER-TERMINAL (BLACK)1
1355009TUBE-HEAT SHRINK (32-MM DIA)(10-CM)
1598050CABLE (00-GA, BLACK)(58-CM)
2749183TERMINAL-RING (00-GA, 1/2-IN SCREW)1
331558118 BRACKET AS1
1658718NUT-WELD (M4X0.7-THD)2
360184519 FILM-IDENTIFICATION (JUMP START)1
360898320 ROD2
360898421 ANGLE1
362290422 PLATE AS1
1599540NUT-WELD (M8X1.25-THD)2
362803023 BRACKET AS1
368471424 CABLE AS (POSITIVE)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)2
1598049CABLE (00-GA, RED)(96-CM)
8N0869COVER-TERMINAL (RED)1
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(5-CM)
383278925 COVER1
383893626 STUD1
383893727 RECEPTACLE1
387650728 CABLE AS1
1352543BOOT (RED)1
6T5598TERMINAL-RING (1-GA TO 2-GA, 5/16-IN SCREW)1
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM)
2781438TERMINAL-RING1
387666929 CABLE AS1
1S4915LINER (CONDUIT)2
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
1355009TUBE-HEAT SHRINK (32-MM DIA)(13-CM)
1598049CABLE (00-GA, RED)(153-CM)
3519309TUBE-HEAT SHRINK (32-MM DIA)(4-CM)
3150180TERMINAL-RING (00-GA, 3/8-IN SCREW)1
387670330 CLIP-CABLE1
388535931 RETAINER1
389617932 BRACKET AS1
1599541NUT-WELD (M10X1.5-THD)1
425968733 BRACKET AS1
432595634 COVER1
437221135 FILM-IDENTIFICATION (12-VOLT)1
469932736 BRACKET1
092552437 BOLT (M12X1.75X80-MM)1
127217038 SCREW-TRUSS HEAD (M8X1.25X20-MM)6
138750039 SPACER (11X25X50-MM THK)1
1S099440 CLIP (LOOP)3
243502741 NUT (M6X1-THD)1
4B428042 WASHER (13.5X27X2.5-MM THK)2
4P758143 CLIP (LADDER)1
5C726144 NUT (M8X1.25-THD)4
5G367645 GROMMET2
5P411646 WASHER-HARD (8.8X20.5X2-MM THK)2
5T637447 SPACER (11X20X40-MM THK)1
5W217748 BOLT-SOCKET HEAD (M12X1.75X20-MM)1
7C435449 CLIP2
7P169551 WASHER (10.5X19X3-MM THK)1
7X337052 BOLT (M8X1.25X20-MM)1
8F359053 LOCKWASHER1
8F724254 WASHER (8.7X15.9X1.6-MM THK)4
8T188755 CLIP (SLOT)3
8T188856 CLIP (TAB)3
8T399857 BOLT (M4X0.7X12-MM)2
8T412158 WASHER-HARD (11X21X2.5-MM THK)11
8T413359 NUT (M10X1.5-THD)2
8T413660 BOLT (M10X1.5X25-MM)1
8T413761 BOLT (M10X1.5X20-MM)1
8T417862 BOLT (M10X1.5X90-MM)1
8T419263 BOLT (M12X1.75X25-MM)2
183712164 BOLT (M10X1.5X35-MM)5
8T420065 BOLT (M8X1.25X16-MM)2
8T422366 WASHER-HARD (13.5X25.5X3-MM THK)2
8T422467 WASHER-HARD (8.8X16X2-MM THK)4
8T500568 BOLT (M10X1.5X70-MM)1
8T796369 LOCKNUT (M8X1.25-THD)2
8X548970 SLEEVE3
9B045371 LOCKWASHER1
8T412172 WASHER-HARD (11X21X2.5-MM THK)1
8T419573 BOLT (M10X1.5X30-MM)1
8T412174 WASHER-HARD (11X21X2.5-MM THK)1
8T413775 BOLT (M10X1.5X20-MM)1
469932876 BRACKET AS1
8T3612NUT-WELD (M8X1.25-THD)2
7X057977 WASHER-HARD (8.8X25.5X2-MM THK)4
8T418278 BOLT (M10X1.5X45-MM)1
091008179 SPACER (10.5X20X10-MM THK)1
