System And Components

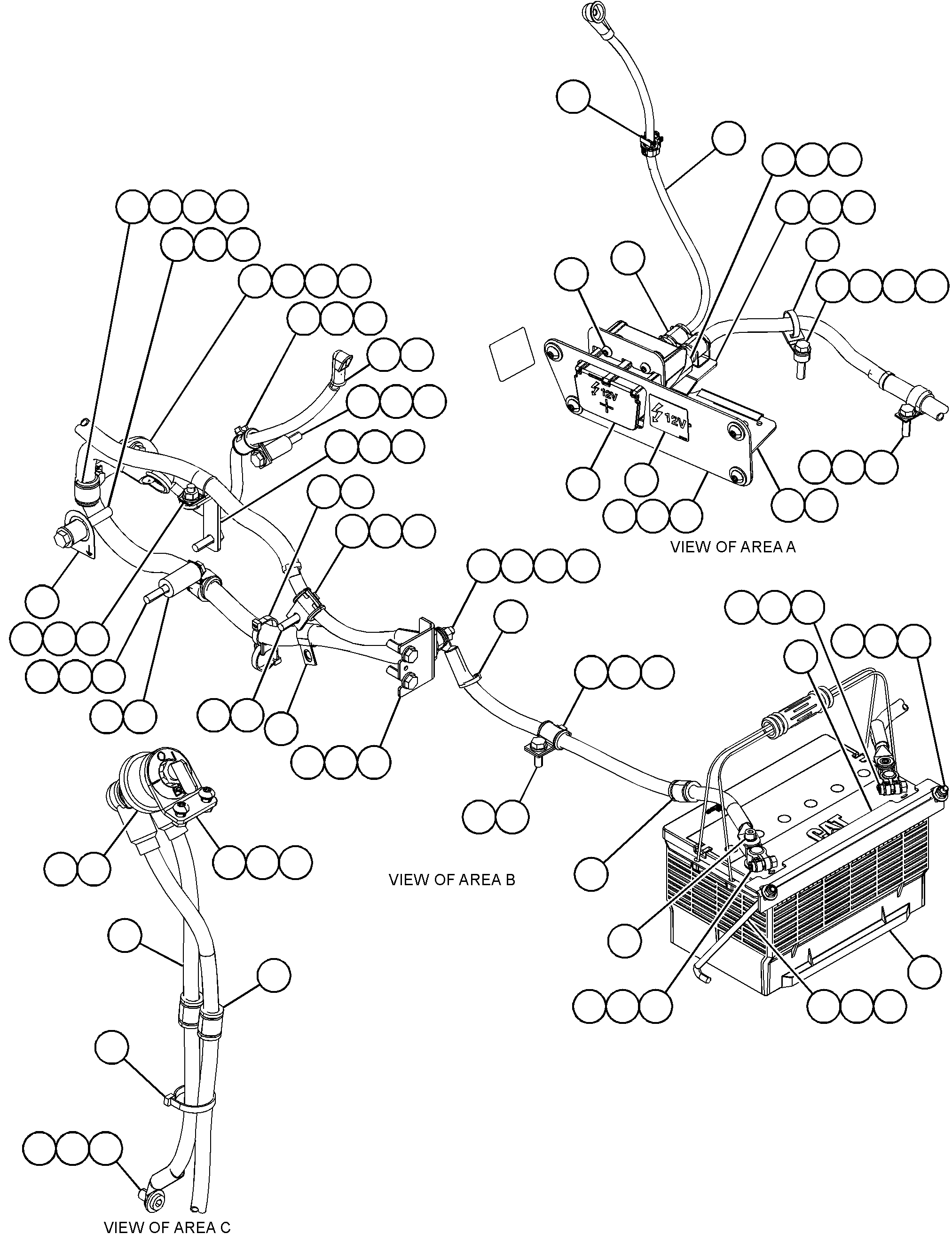

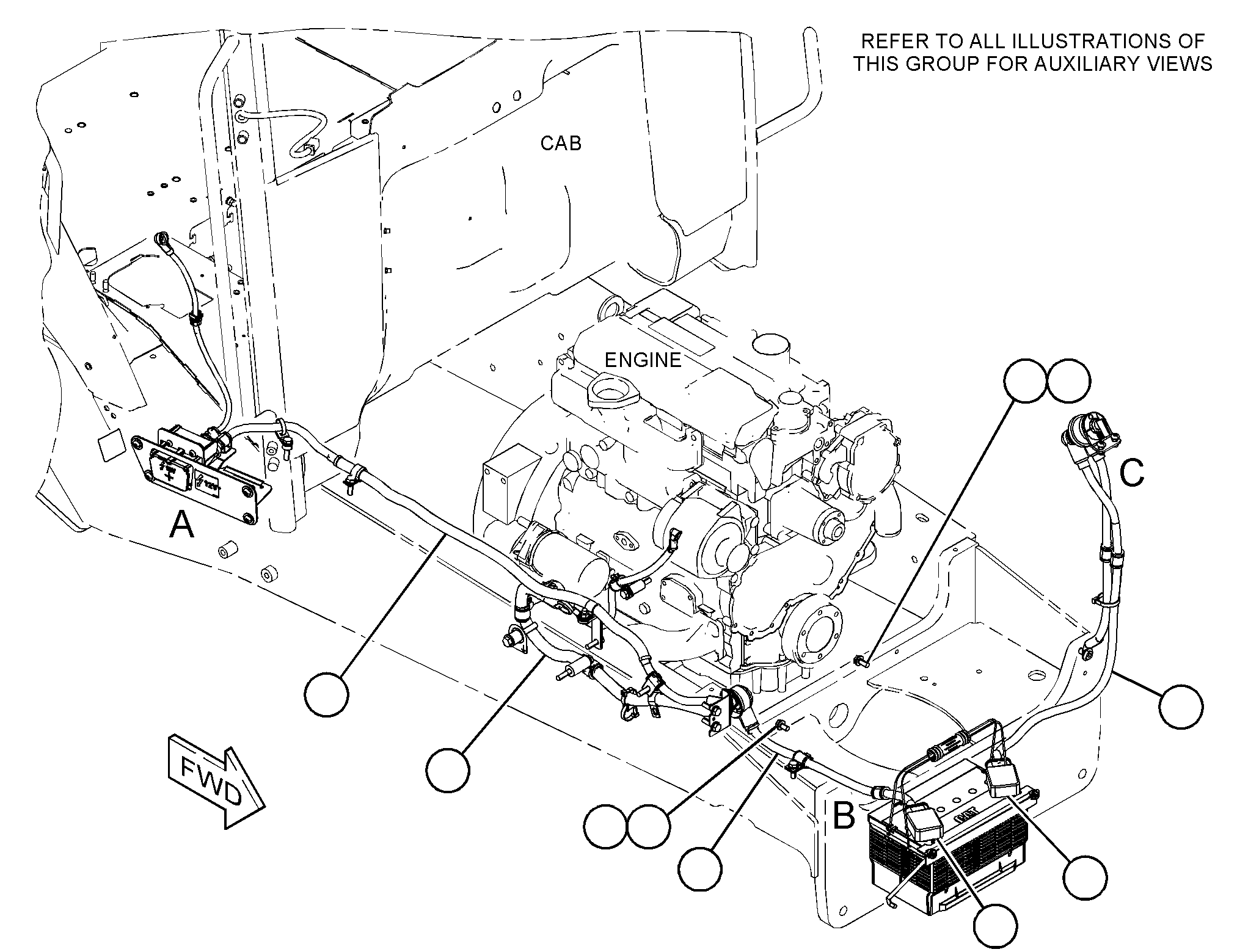

387-6670 BATTERY & WIRING GP -DISCONNECTS/N LYA1-UP
Group No: 387-6670
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E8320 | 1 PLATE-INSTRUCTION (BATTERY)(DISCONNECT SWITCH) | 1 | |
| 3S2093 | 2 STRAP-CABLE | 3 | |
| 7K1181 | 3 STRAP-CABLE | 4 | |
| 7N0718 | 4 SWITCH GP-DISCONNECT (GROUND LEVEL) | 1 | |
| 8W8528 | 5 SLEEVE | 5 | |
| 1060800 | 6 CONNECTOR GP (REMOTE JUMP START, POSITIVE) | 1 | |
| 0625388 | LOCKNUT (1-11-1/2-THD) | 1 | |
| 2775777 | COVER-TERMINAL | 1 | |
| 4D5243 | LOCKWASHER | 1 | |
| 9B9146 | NUT-SPECIAL (3/8-16-THD) | 1 | |
| 1412316 | 7 COVER | 1 | |
| 1712039 | 8 BOLT-SOCKET HEAD (M8X1.25X30-MM) | 2 | |
| 2213352 | 9 COVER | 1 | |
| 2306368 | 10 BATTERY (12-VOLT, MAINTENANCE FREE, WET)(MAINTENANCE FREE) | 1 | |
| 2636556 | 11 STUD (M10X1.5-THD) | 1 | |
| 2906746 | 12 CABLE AS | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(7-CM) | ||
| 3116184 | TERMINAL-RING (2-GA, 3/8-IN SCREW) | 1 | |
| 3126455 | TERMINAL AS | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(5-CM) | ||
| 3315550 | 13 CABLE AS (POSITIVE) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 8F7242 | WASHER (8.7X15.9X1.6-MM THK) | 1 | |
| 8U0767 | BOLT (M8X1.25X16-MM) | 1 | |
| 0301705 | TERMINAL-CABLE (00-GA, 5/16-IN SCREW) | 1 | |
| 1355009 | TUBE-HEAT SHRINK (32-MM DIA)(10-CM) | ||
| 1598049 | CABLE (00-GA, RED)(60-CM) | ||
| 2605151 | TERMINAL-BATTERY | 1 | |
| 3315555 | 14 CABLE AS-BATTERY | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 5P4116 | WASHER-HARD (8.8X20.5X2-MM THK) | 1 | |
| 8U0767 | BOLT (M8X1.25X16-MM) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 0301705 | TERMINAL-CABLE (00-GA, 5/16-IN SCREW) | 1 | |
| 1355009 | TUBE-HEAT SHRINK (32-MM DIA)(10-CM) | ||
| 1598050 | CABLE (00-GA, BLACK)(98-CM) | ||
| 3562508 | TERMINAL-BATTERY (NEGATIVE) | 1 | |
| 3315556 | 15 CABLE AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 1355009 | TUBE-HEAT SHRINK (32-MM DIA)(10-CM) | ||
| 1598050 | CABLE (00-GA, BLACK)(58-CM) | ||
| 2749183 | TERMINAL-RING (00-GA, 1/2-IN SCREW) | 1 | |
| 3315581 | 16 BRACKET AS | 1 | |
| 1658718 | NUT-WELD (M4X0.7-THD) | 2 | |
| 3601845 | 17 FILM-IDENTIFICATION (JUMP START) | 1 | |
| 3608983 | 18 ROD | 2 | |
| 3608984 | 19 ANGLE | 1 | |
| 3622904 | 20 PLATE AS | 1 | |
| 1599540 | NUT-WELD (M8X1.25-THD) | 2 | |
| 3628030 | 21 BRACKET AS | 1 | |
| 3684714 | 22 CABLE AS (POSITIVE) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 2 | |
| 1598049 | CABLE (00-GA, RED)(96-CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(5-CM) | ||
| 3876507 | 23 CABLE AS | 1 | |
| 1352543 | BOOT (RED) | 1 | |
| 6T5598 | TERMINAL-RING (1-GA TO 2-GA, 5/16-IN SCREW) | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM) | ||
| 2781438 | TERMINAL-RING | 1 | |
| 3876669 | 24 CABLE AS | 1 | |
| 1S4915 | LINER (CONDUIT) | 2 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 1355009 | TUBE-HEAT SHRINK (32-MM DIA)(13-CM) | ||
| 1598049 | CABLE (00-GA, RED)(153-CM) | ||
| 3519309 | TUBE-HEAT SHRINK (32-MM DIA)(4-CM) | ||
| 3150180 | TERMINAL-RING (00-GA, 3/8-IN SCREW) | 1 | |
| 3876703 | 25 CLIP-CABLE | 1 | |
| 3896179 | 26 BRACKET AS | 1 | |
| 1599541 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4325956 | 27 COVER | 1 | |
| 4372211 | 28 FILM-IDENTIFICATION (12-VOLT) | 1 | |
| 5099930 | 29 COVER | 1 | |
| 5125115 | 30 PLATE | 1 | |
| 5125170 | 31 BRACKET AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 5125180 | 32 BRACKET AS | 1 | |
| 0910081 | 33 SPACER (10.5X20X10-MM THK) | 1 | |
| 0925524 | 34 BOLT (M12X1.75X80-MM) | 1 | |
| 1224026 | 35 SPACER (13X25X25-MM THK) | 1 | |
| 1272170 | 36 SCREW-TRUSS HEAD (M8X1.25X20-MM) | 6 | |
| 1387500 | 37 SPACER (11X25X50-MM THK) | 1 | |
| 1S0994 | 38 CLIP (LOOP) | 3 | |
| 2062423 | 39 SADDLE-MOUNTING | 1 | |
| 2435027 | 40 NUT (M6X1-THD) | 1 | |
| 3T0852 | 41 LOCKNUT (M8X1.25-THD) | 2 | |
| 4B4280 | 42 WASHER (13.5X27X2.5-MM THK) | 2 | |
| 4P7581 | 43 CLIP (LADDER) | 1 | |
| 5C7261 | 44 NUT (M8X1.25-THD) | 4 | |
| 5G3676 | 45 GROMMET | 2 | |
| 5P4116 | 46 WASHER-HARD (8.8X20.5X2-MM THK) | 2 | |
| 5T6374 | 47 SPACER (11X20X40-MM THK) | 1 | |
| 5W2177 | 48 BOLT-SOCKET HEAD (M12X1.75X20-MM) | 1 | |
| 7C4354 | 49 CLIP | 2 | |
| 7P1695 | 50 WASHER (10.5X19X3-MM THK) | 1 | |
| 7X0579 | 51 WASHER-HARD (8.8X25.5X2-MM THK) | 4 | |
| 1053481 | 52 BOLT-SOCKET HEAD (M8X1.25X20-MM) | 1 | |
| 8F3590 | 53 LOCKWASHER | 1 | |
| 8F7242 | 54 WASHER (8.7X15.9X1.6-MM THK) | 4 | |
| 8T1887 | 55 CLIP (SLOT) | 3 | |
| 8T1888 | 56 CLIP (TAB) | 3 | |
| 8T3998 | 57 BOLT (M4X0.7X12-MM) | 2 | |
| 8T4121 | 58 WASHER-HARD (11X21X2.5-MM THK) | 13 | |
| 8T4133 | 59 NUT (M10X1.5-THD) | 2 | |
| 8T4137 | 60 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4178 | 61 BOLT (M10X1.5X90-MM) | 1 | |
| 8T4182 | 62 BOLT (M10X1.5X45-MM) | 1 | |
| 8T4192 | 63 BOLT (M12X1.75X25-MM) | 2 | |
| 8T4195 | 64 BOLT (M10X1.5X30-MM) | 1 | |
| 1837121 | 65 BOLT (M10X1.5X35-MM) | 5 | |
| 8T4223 | 66 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4224 | 67 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 8T5005 | 68 BOLT (M10X1.5X70-MM) | 1 | |
| 8X5489 | 69 SLEEVE | 3 | |
| 9B0453 | 70 LOCKWASHER | 1 | |
| 9X2616 | 71 SCREW-SOCKET (M8X1.25X16-MM) | 2 | |
| 8T4136 | 73 BOLT (M10X1.5X25-MM) | 1 | |
| 7X7877 | 76 STRIP-EDGE (10-CM) |
