System And Components

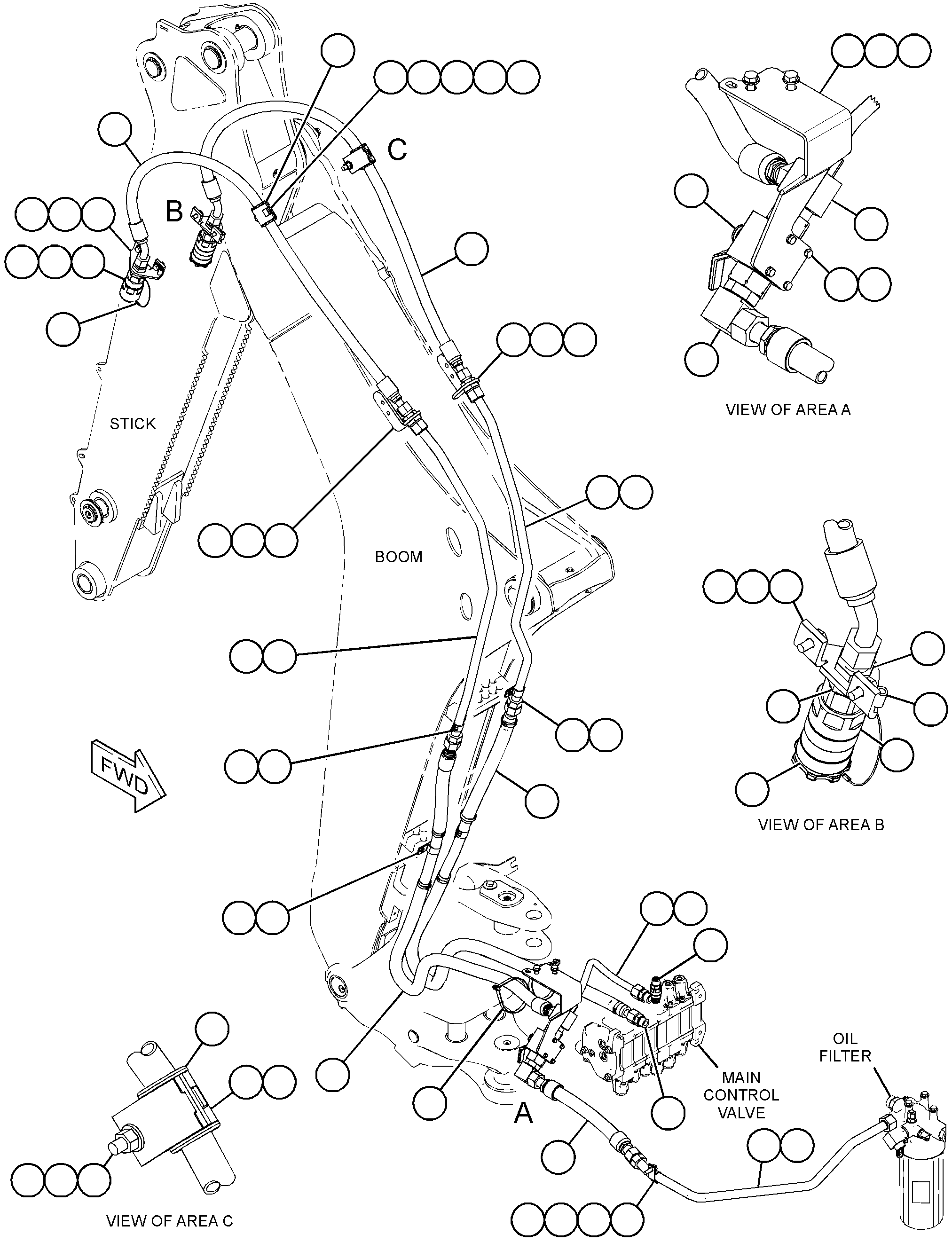

424-7015 LINES GP-AUXILIARY HYDRAULICS/N HWC1-UP
Group No: 424-7015
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1091260 | 1 BRACKET | 2 | |
| 2042281 | 2 STRAP-CABLE | 2 | |
| 2906712 | 5 HOSE AS | 1 | |
| 3652867 | 6 HOSE AS | 1 | |
| 3652875 | 7 VALVE GP-MANUAL (HYDRAULIC OIL) | 1 | |
| 3683051 | 8 HOSE AS | 1 | |
| 3684842 | 9 TUBE AS | 1 | |
| 3736999 | 10 VALVE GP-RELIEF (EXTENDABLE STICK, AUXILIARY) | 1 | |
| 8J2413 | SEAL-O-RING | 1 | |
| 0951751 | SEAL-O-RING | 1 | |
| 1691616 | RING-BACKUP | 1 | |
| 3756022 | 11 BRACKET AS | 1 | |
| 3775996 | 12 TUBE AS | 1 | |
| 4265391 | 13 HOSE AS | 2 | |
| 4391590 | 14 COUPLING (QUICK DISCONNECT, FEMALE) | 1 | |
| 4391591 | 15 COUPLING AS (QUICK DISCONNECT, MALE) | 1 | |
| 4463588 | 16 BRACKET | 1 | |
| 4463589 | 17 BRACKET | 1 | |
| 4480616 | 18 TUBE AS | 1 | |
| 4480617 | 19 TUBE AS | 1 | |
| 1488327 | 20 CONNECTOR AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488357 | 21 ELBOW AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488442 | 22 TEE AS | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T1685 | TEE | 1 | |
| 1503053 | 23 CONNECTOR AS | 2 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1083872 | CONNECTOR | 1 | |
| 2681514 | 24 UNION AS | 2 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8C8493 | UNION | 1 | |
| 2P1293 | 25 LOCKNUT (1-3/16-12-THD) | 4 | |
| 5C9553 | 26 BOLT (M6X1X16-MM) | 4 | |
| 5K9090 | 27 SEAL-O-RING | 3 | |
| 5P7466 | 28 CLIP (SLOT) | 2 | |
| 5P7467 | 29 CLIP (TAB) | 2 | |
| 5P8112 | 30 GROMMET | 2 | |
| 8S0023 | 31 CLIP (SLOT) | 2 | |
| 8S0024 | 32 CLIP (TAB) | 2 | |
| 8T1889 | 33 CLIP (SLOT) | 3 | |
| 8T1890 | 34 CLIP (TAB) | 3 | |
| 8T4121 | 35 WASHER-HARD (11X21X2.5-MM THK) | 7 | |
| 8T4136 | 36 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4184 | 37 BOLT (M12X1.75X45-MM) | 2 | |
| 8T4195 | 38 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4196 | 39 BOLT (M10X1.5X35-MM) | 1 | |
| 8T4223 | 40 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4244 | 41 NUT (M12X1.75-THD) | 2 | |
| 9X8256 | 42 WASHER (6.6X12X2-MM THK) | 4 | |
| 4711017 | 43 CAP AS | 1 | |
| 1934726 | SEAL-O-RING | 1 | |
| 4711018 | 44 CAP AS | 1 | |
| 5P9085 | 45 CLIP (LOOP) | 2 | |
| 4479742 | KIT-SEAL | 1 |
