System And Components

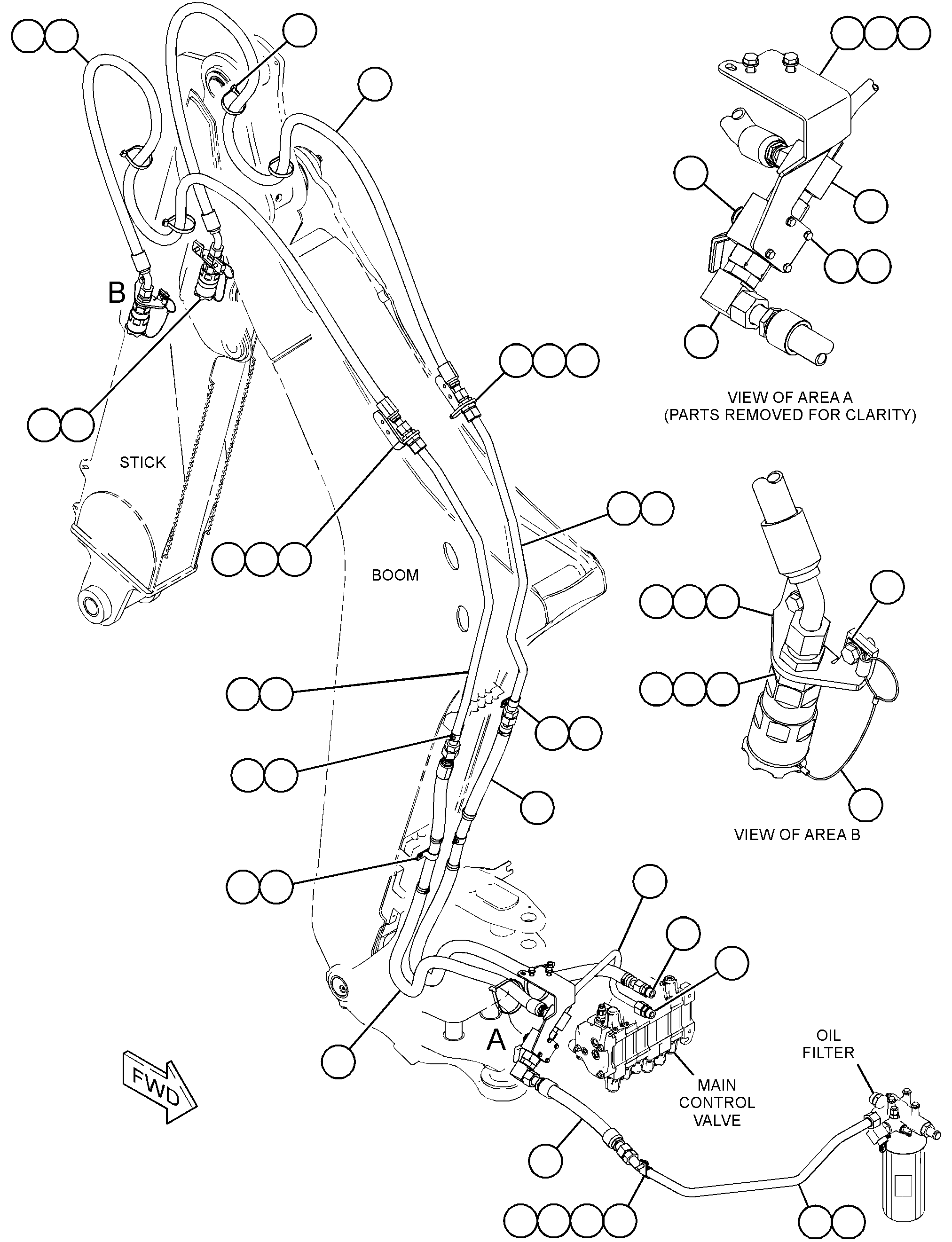

424-7017 LINES GP-AUXILIARY HYDRAULIC -EXTENDABLES/N HWC1-UP
Group No: 424-7017
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2906712 | 1 HOSE AS | 1 | |
| 1091260 | 2 BRACKET | 2 | |
| 2042281 | 3 STRAP-CABLE | 6 | |
| 4711017 | 4 CAP AS | 1 | |
| 1934726 | SEAL-O-RING | 1 | |
| 4711018 | 5 CAP AS | 1 | |
| 3652867 | 6 HOSE AS | 1 | |
| 3652875 | 7 VALVE GP-MANUAL (HYDRAULIC OIL) | 1 | |
| 3683051 | 8 HOSE AS | 1 | |
| 3684842 | 9 TUBE AS | 1 | |
| 3756022 | 10 BRACKET AS | 1 | |
| 3993639 | 11 TUBE AS | 1 | |
| 4240567 | 12 HOSE AS | 2 | |
| 4391590 | 13 COUPLING (QUICK DISCONNECT, FEMALE) | 1 | |
| 4391591 | 14 COUPLING AS (QUICK DISCONNECT, MALE) | 1 | |
| 4463588 | 15 BRACKET | 1 | |
| 4463589 | 16 BRACKET | 1 | |
| 4480616 | 17 TUBE AS | 1 | |
| 4480617 | 18 TUBE AS | 1 | |
| 1488327 | 19 CONNECTOR AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488357 | 20 ELBOW AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488442 | 21 TEE AS | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T1685 | TEE | 1 | |
| 1503053 | 22 CONNECTOR AS | 2 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1083872 | CONNECTOR | 1 | |
| 2681514 | 23 UNION AS | 2 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8C8493 | UNION | 1 | |
| 2P1293 | 24 LOCKNUT (1-3/16-12-THD) | 4 | |
| 5C9553 | 25 BOLT (M6X1X16-MM) | 4 | |
| 5K9090 | 26 SEAL-O-RING | 3 | |
| 8S0023 | 27 CLIP (SLOT) | 2 | |
| 8S0024 | 28 CLIP (TAB) | 2 | |
| 8T1889 | 29 CLIP (SLOT) | 3 | |
| 8T1890 | 30 CLIP (TAB) | 3 | |
| 8T4121 | 31 WASHER-HARD (11X21X2.5-MM THK) | 7 | |
| 8T4136 | 32 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4195 | 33 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4196 | 34 BOLT (M10X1.5X35-MM) | 1 | |
| 9X8256 | 35 WASHER (6.6X12X2-MM THK) | 4 | |
| 5P9085 | 36 CLIP (LOOP) | 2 | |
| 4479742 | KIT-SEAL | 1 |
